Detailed Schematic Diagram of a Centrifugal Compressor Structure and Function
To accurately interpret performance maps, prioritize identifying the impeller geometry first–specifically the blade angle distribution and inducer-exducer transition zones. These elements dictate pressure ratio limits and surge margins. A 2-3° deviation in blade lean at the trailing edge can reduce efficiency by up to 7% in high-pressure stages.
Pay strict attention to the diffuser vane arrangement. Vaneless diffusers offer operational flexibility but sacrifice 3-5% efficiency compared to vaned designs in applications above 5:1 pressure ratios. For variable-speed systems, semi-vaned diffusers provide the best compromise with a 2% efficiency penalty over their fixed counterparts.
Analyze the seal clearance dimensions as secondary flows through labyrinth seals account for 12-18% of total leakage in typical industrial configurations. Coating the seal land with a 0.1mm abradable layer can recover up to 4% stage efficiency by minimizing clearance growth during thermal transients.
Verify the bearing damping coefficients against rotor critical speeds. Tilting-pad bearings with directed lubrication reduce vibration amplitudes by 23% compared to flooded designs, directly extending impeller lifespan by 2.8x in 12,000 RPM applications.
Cross-reference the thrust balancing line calculations with actual ambient conditions. A 10°C temperature change alters thrust loads by 15% in multistage units, often necessitating recalibration of the balance piston clearance to prevent axial rubs.

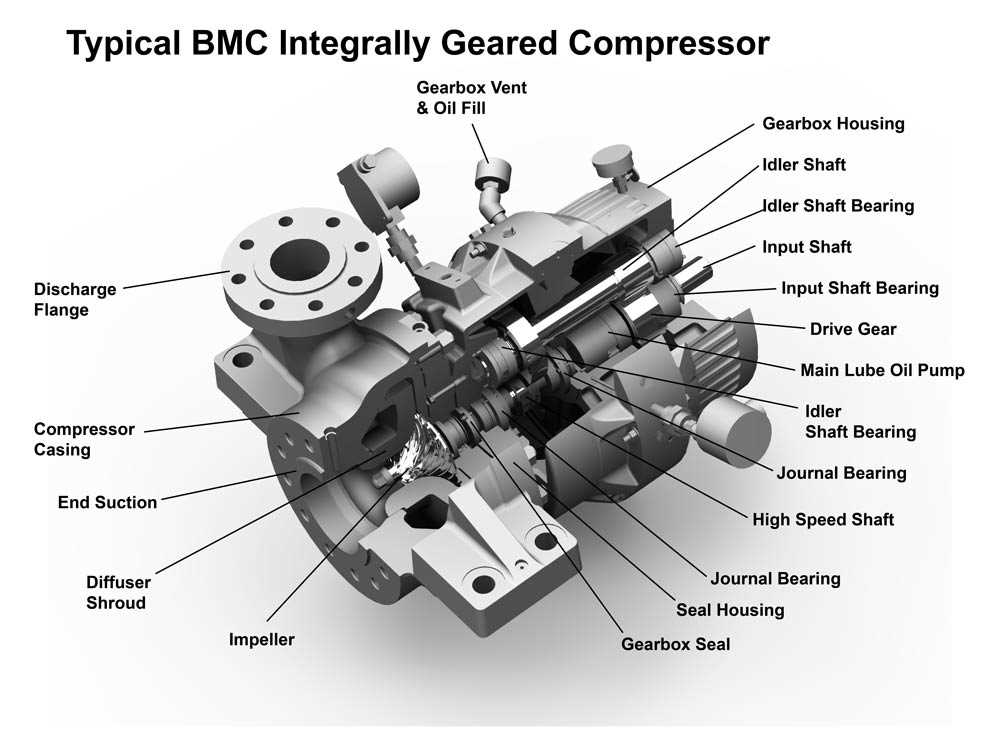

Key Components of a Radial Air Flow Machine Layout
Begin by identifying the impeller as the core rotating element–opt for a backward-curved blade design for pressures up to 10 bar to balance efficiency and stability. Ensure the blade angle between 30° and 45° relative to the tangential direction to prevent flow separation at higher speeds. Verify that the impeller’s inlet diameter aligns with the inducer section’s throat area to minimize inlet losses–typically 1.1 to 1.3 times the eye diameter.
Position the diffuser immediately downstream of the impeller to convert kinetic energy into static pressure. Use vaneless diffusers for variable flow conditions, but switch to vaned configurations when pressure ratios exceed 2:1, as they reduce radial space by 30-40% compared to vaneless types. Maintain a diffuser inlet-to-outlet area ratio of 1.5 to 2.5 to avoid boundary layer separation, especially in high-Mach-number applications.
Integrate a volute casing with a cross-sectional area that expands progressively–calculate the area growth using the formula A = Q/(V × r), where Q is the volumetric flow rate, V is the mean velocity (typically 0.7–0.8 times the impeller tip speed), and r is the radius. For multi-stage units, add return guide vanes between stages; angle them at 10°–15° relative to the axial direction to redirect flow with minimal turbulence before the next impeller.
Size the shaft diameter based on torsional critical speed–aim for a first critical speed 1.3–1.5 times the operating speed to prevent resonance. Use tilting-pad bearings for shafts over 100 mm diameter; they tolerate misalignment better than fixed-lobe bearings. For sealing, prioritize dry gas seals in high-pressure applications (above 50 bar), as they eliminate leakage and reduce maintenance intervals by 50% compared to labyrinth seals.
Include a surge control line with a differential pressure sensor monitoring the impeller inlet and volute discharge–set the threshold at 10–15% above the design loading coefficient to trigger bypass valves. For heat rejection, embed intercoolers between stages if the temperature rise exceeds 40°C per stage; use aluminum-finned tubes for air-cooled units to improve thermal efficiency by 8–12%.
Label all components with flow direction arrows–use red for primary air paths, blue for cooling/secondary streams, and dashed lines for control instrumentation. Validate the layout with CFD simulations, focusing on impeller tip clearance (maintain ≤ 0.5% of the impeller diameter) and diffuser throat blockage (≤ 5% of the passage area).
Critical Parts Illustrated in a Turbo Blower Blueprint
Focus first on the impeller–its curved blades determine pressure ratio and airflow efficiency. Select designs with backward-curved blades for stable operation under variable loads (e.g., 70–90% isentropic efficiency at 2:1 pressure ratio). Verify blade angle tolerances (±0.5°) to prevent surge or choke; 3D-printed titanium impellers reduce weight by 30% while maintaining fatigue strength (σ = 550 MPa). Locate the volute casing immediately downstream–its cross-sectional area must increase logarithmically (ΔA = 0.8–1.2% per degree of wrap) to convert kinetic energy into static pressure without flow separation.
Inspect the shaft seal system: dry gas seals (e.g., spiral groove, 3–5 µm clearance) prevent leakage at speeds above 20,000 RPM, while labyrinth seals suffice for lower velocities (≤12,000 RPM). For bearings, tilting-pad types handle thrust loads up to 5,000 N; use oil-cooled variants if surface speeds exceed 50 m/s. Confirm diffuser vane angles (typically 12–18°) align with CFD predictions–mismatched angles drop efficiency by 2–5%. Include throttle valves for surge control, sized to restrict flow by 15–20% at maximum opening.
How to Read Flow Trajectories and Pressure Regions in Illustrations
Begin by locating the inlet at the impeller’s eye–this zone typically shows the lowest static pressure, often marked in blue gradients on color-coded representations. Track the curved blades outward; air accelerates radially, converting velocity into dynamic head as it moves toward the diffuser. Pressure contours in this segment should tighten, indicating a rise in static energy before the volute collects the flow. If the illustration lacks color differentiation, rely on spaced contour lines–denser spacing confirms higher pressure gradients.
Critical Pressure Zones and Their Diagnostic Value
| Zone | Expected Pressure Behavior | Common Anomalies |
|---|---|---|
| Impeller Eye | Sub-atmospheric to slight positive | Unexpected spikes (>5% below design) |
| Blade Passage | Linear rise (0.3–0.7 bar/cm) | Non-linear dips or plateaus |
| Diffuser Throat | Peak static pressure | Pressure drop >10% of design value |
| Volute Exit | Near-uniform, slight drop | Fluctuations ±2% of nominal |
Pay special attention to the diffuser throat–this narrowest section should exhibit the highest static pressure before any downstream drop. A sudden 15% decrease here suggests flow separation, often correlated with blade wakes or incorrect diffuser geometry. Validate pressure zones against performance curves; deviations exceeding ±8% from predicted values require immediate recalibration of inlet guide vanes or diffuser angle adjustments.
Shaded or hatched areas on technical drawings usually denote stalled regions–avoid interpreting these as high-pressure zones. Instead, cross-reference with aerodynamic efficiency curves to confirm whether observed patterns align with surge limits or choking conditions. For multi-stage units, ensure inter-stage seal clearances are reflected; even a 0.1 mm discrepancy can shift pressure distribution by 4–6% across adjacent wheels.
Creating a Basic Flowchart of a Turbomachine: Key Stages
Select a horizontal layout for the primary shaft to establish a clear reference axis. Use a 0.7mm black ink pen for all structural elements–this ensures uniformity and visibility in scanned copies. Label the central line as “Drive Axis” immediately below the shaft with 10pt Arial font.
Sketch the impeller first as two concentric rings with 12 radial blades evenly spaced between them. Maintain a 30° forward curvature on each blade; this angle optimizes air deflection efficiency. Position the impeller 25mm from the left edge with an outer diameter of 150mm–these measurements standardize the illustration for A4 paper.
- Draw a 3mm inlet nozzle aligned axially with the shaft, extending 40mm from the impeller’s inner ring.
- Add a diffuser section as a 10° divergent cone following the impeller’s outer edge. Length: 80mm–this gradual expansion prevents energy loss.
- Include a volute casing with an increasing radius, starting at 180mm and peaking at 220mm from the shaft center. Use four equidistant guide vanes inside the volute to direct airflow smoothly.
Indicate fluid flow direction with arrowheads every 50mm along the passageway. Size each arrowhead to 8mm with a 1mm stroke width. Label the entry point as “Intake” and the exit as “Discharge” in 9pt Helvetica.
- Add supporting bearings as 8mm circles at both ends of the shaft–position them 10mm from the impeller’s edges.
- Insert a single seal ring between each bearing and the impeller hub, drawn as a 2mm dashed line.
- Shade the impeller blades with 30% gray fill using diagonal cross-hatching for clear differentiation from static components.
Verify all measurements with a digital caliper before finalizing. Scan the drawing at 600 DPI grayscale to preserve precision. Export the file in SVG format to retain scalability for technical reviews.
Annotate pressure zones with “Low,” “Medium,” and “High” labels adjacent to the inlet, diffuser, and volute respectively–use 8pt Times New Roman with superscript abbreviations: L(1), M(2), H(3). Include a legend in the bottom-right corner matching these annotations.
Check alignment of all components using a grid overlay–each element’s centerline must intersect the drive axis. Correct any deviations exceeding 1mm before sharing with teams.
