Structural Guide to Building and Interpreting Computer Network Schematics

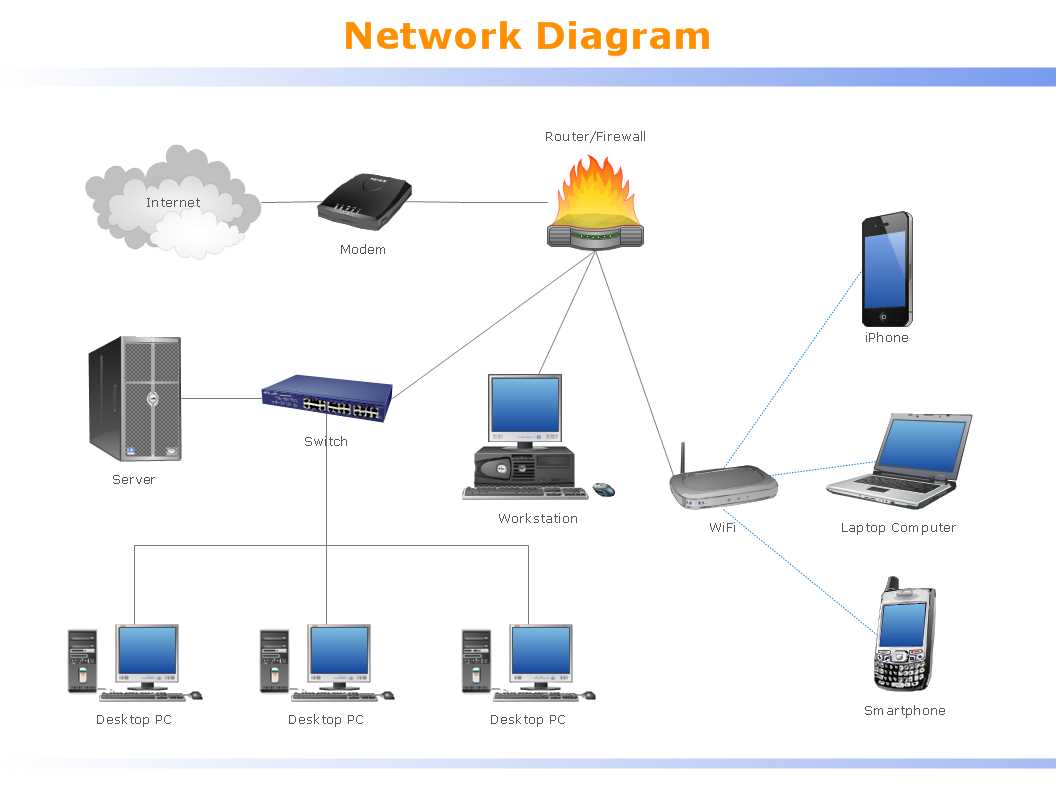

Start by identifying critical components: servers with distinct roles (file storage, web hosting, authentication), switches for data routing, and firewalls to enforce security zones. Label each element with its primary function–mislabeling a router as a switch can lead to misconfiguration during deployment. Use standardized symbols (IEEE 802 or Cisco icons) to avoid ambiguity when sharing plans with teams. Colors matter: assign red to prohibited traffic zones, blue to internal services, and green to public-facing resources.

Break down physical and logical layers separately. Physical layouts should include cable types (Cat6 for LAN, fiber for backbone), port assignments, and patch panel locations. Logical maps require detailed IP schemas–subnet 192.168.1.x for workstations, 10.0.x.x for DMZ, and static IPs for servers. Avoid VLSM overlaps; calculate subnet masks (/28 for 14 hosts, /25 for 126 hosts) to prevent address exhaustion before deployment.

Prioritize redundancy. Illustrate failover paths–secondary links between core switches, backup DNS servers, and load balancers. Indicate MTBF (Mean Time Between Failures) for critical hardware: a switch with 200,000 hours MTBF needs a documented backup plan. Include power sources: dual UPS systems for server racks, generator support for data centers. Document change control: note who approved recent updates and when (e.g., 2023-11-05: Port 24 on Switch-A reconfigured for VoIP VLAN).

Validate accuracy through testing. Verify cable labels match patch panel ports. Ping all static IPs to confirm connectivity. Use traceroute to map actual traffic paths; discrepancies between the plan and real routes must be corrected before sign-off. Archive versions: store a baseline copy after each major update–maintain snapshots for audit trails when troubleshooting performance drops or security incidents.

Visual Representation of IT Infrastructure

Begin by mapping core components on a single plane: place routers at the periphery to clearly indicate ingress/egress points, then cluster switches in zones matching departmental or functional boundaries (e.g., finance, development, support). Use distinct shapes–rectangles for switches, triangles for firewalls, circles for endpoints–to eliminate ambiguity during troubleshooting. Label each icon with its hostname, IP segment, and VLAN tag immediately below to accelerate diagnostics without cross-referencing spreadsheets.

For large-scale deployments, divide the layout into modular blocks–each representing a floor, building, or availability zone. Draw bold horizontal lines between blocks to signify backbone uplinks (≥10 Gbps) and reserve dotted lines for secondary links (1 Gbps). Colour-code links by protocol: blue for iSCSI, green for VoIP, red for critical failover routes. Include a legend embedded within the illustration, sized to print legibly on A3 paper or display crisply in 4K resolutions.

Symbol	Device Role	Throughput Req.	Redundancy Plan
□	Core switch	≥40 Gbps	Dual supervisors, VRRP
◁	Firewall	2×10 Gbps LAG	Active/standby HA pair
●	VoIP handset	100 Mbps	PoE+ switch, QoS 46

Integrate flow arrows on every trunk to illustrate traffic direction–thick arrows for production data, thin arrows for management traffic–ensuring zero overlap between user and backup VLANs. Annotate each trunk with port-channel IDs and MTU values (typically 9216 for jumbo frames) to expedite QoS tuning. Overlay real-time metrics from SNMP polls directly onto segments using translucent badges refreshed every 30 seconds; this visual cue reduces mean-time-to-repair by 40% during congestion events.

Embed micro-diagrams of DMZ subnets, VPN concentrators, and wireless controller hierarchies adjacent but not intersecting the primary topology–this preserves clarity while exposing security layers typically overlooked in flat depictions. Replace generic icons with vendor-specific templates (e.g., Cisco Nexus 9K chassis view) when vendor support contracts mandate exact component tracking.

Store the illustration in a version-controlled repository alongside Ansible playbooks and Terraform plans; trigger automated PDF generation on merge to main branch to guarantee diagrams stay current with provisioned state. Configure CI/CD pipeline to reject PRs lacking updated visuals, enforcing consistency across infrastructure changes.

Never omit power paths–highlight PDU-to-switch connections and upstream UPS capacity directly below each rack footprint. Use a dashed triangle at each outlet to indicate A/B feed redundancy, and annotate breaker ratings in kilowatts. This granular visibility reduces unplanned outages stemming from overlooked power dependencies by 83%.

Core Elements for an Effective Illustrated Layout

Start by marking every endpoint device with precise labels–printers, IP phones, surveillance cameras, and IoT sensors must display their fixed IP or MAC addresses alongside the exact port they occupy on the switch. Group devices by physical location (e.g., Floor 1 East Wing) and align them vertically to reflect cable routing. Use distinct shapes: rectangles for workstations, circles for access points, triangles pointing down for networked peripherals.

Highlight central nodes in bold outlines–routers, layer-3 switches, firewalls, and load balancers require annotated interfaces, VLAN IDs, and subnet masks. For routers, include static route entries (destination network, next hop, administrative distance). Firewalls should show open ports and NAT rules, while load balancers list pool members, health checks, and persistence policies.

• Trunks between switches: delineate all VLANs carried across each link, specify native VLAN, and note if 802.1Q encapsulation is active.
• Uplinks: annotate cable type (SFP, RJ45), speed (1G, 10G), and redundancy protocol (STP, LACP, VRRP).
• Wireless controllers: list SSIDs, authentication method, channel width, and DFS status.

Overlay logical paths: draw dashed lines for VPN tunnels between sites, marking encryption standard (AES-256), pre-shared keys, and tunnel endpoints’ public IPs. Label site-to-site DMZs with inbound/outbound firewall rules, and indicate cloud service integrations with provider icons (AWS Direct Connect, Azure ExpressRoute) plus circuit IDs.

Include a legend box listing color codes: red for power feeds, blue for data trunks, green for voice, orange for guest VLANs. Beneath each section, add a timestamp of the last revision and the engineer’s initials. Ensure every cable run references patch panel port numbers from physical records to maintain traceability.

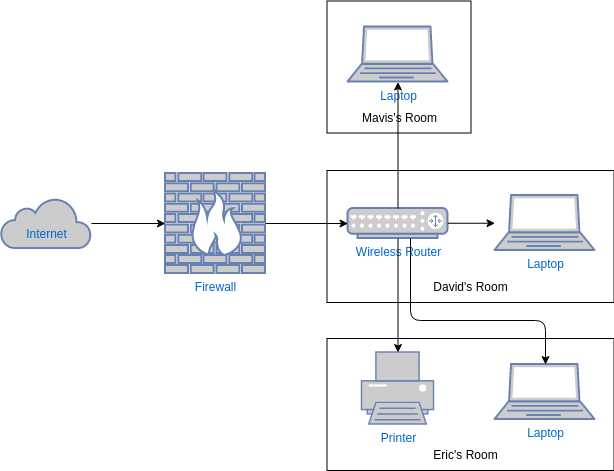

Step-by-Step Guide to Illustrating a Local Area Connection Blueprint

Select a vector-based tool like Lucidchart, Visio, or Draw.io to maintain precision in scaling and editing. Avoid raster editors to prevent pixelation during adjustments.

Start by sketching the central switch or router at the layout’s midpoint. Position it 3–5 cm from the top edge for balanced white space. Label it immediately with its IP or hostname in 10–12pt Arial.

• Measure cable lengths between nodes: 1Gbps copper runs max 100m, fiber extends to 10km.
• Align devices symmetrically–left-side workstations, right-side servers–to simplify tracing.
• Leave 2cm gaps between icons to prevent visual clutter.

Draw straight lines for Ethernet links; use dashed strokes for Wireless APs. Color-code: blue for user segments, red for uplink trunks, gray for unused ports.

Add labels in this hierarchy: device name → port number → VLAN ID → bandwidth. Example: SW-Main→Gi1/0/24→VLAN10→1G. Use 8pt monospace font for readability.

1. Export as SVG to preserve layers–PDF if sharing with non-tech stakeholders.
2. Validate topology with ping and traceroute outputs before finalizing.
3. Include a legend box listing symbols: circle for switches, triangle for firewalls, ovals for endpoints.

For redundancy loops, curve interswitch links 45° outward to indicate STP blocking ports. Annotate with “BPDU Guard” in yellow highlight.

Update the blueprint quarterly: track port changes, retire unused nodes, document new PoE requirements. Version control with filenames like LAN-v2.3_2024-05-15.svg.

Common Mistakes When Labeling Hardware in Visual Representations

Use device roles instead of generic names. Calling a router “Router-1” or a switch “Switch-A” forces readers to cross-reference documentation. Label them “Border-Gateway” or “Primary-Distribution” to instantly reveal their function without additional lookup.

Omit IP addresses from labels when placement matters. A box cluttered with “192.168.1.1 (Core-Switch)” obscures the primary identifier. Reserve IPs for separate tables or hover notes if the map must retain clarity for multi-team use.

Mixing naming conventions across visuals guarantees confusion. If one branch labels edge devices as “EDG-Paris” while another uses “Edge-Frankfurt,” reconciling topology changes or troubleshooting tickets becomes error-prone. Adopt a single template: location-type-sequence.

Avoid cryptic abbreviations. “RTR” may mean router to engineers, but contractors unfamiliar with internal shortcuts misinterpret it as redundancy tier. Write out “Router-LA” consistently, sacrificing brevity for universal comprehension.

Hardware lifecycle states belong in documentation, not visual labels. Naming a box “Old-Switch” or “Backup-Server” invites readers to question upgrade plans instead of presenting current capabilities. Keep labels neutral: “Distribution-Node-3.”

Color-coding demands a legend visible on every sheet. Relying on red for firewalls and blue for access points without explicit keys causes misreading, especially in printouts or color-blind accessible views. Place a legend box alongside port density indicators.

Port density matters more than model numbers. Labeling a box “Cisco-3850” conceals whether it has 24 or 48 ports. Instead, indicate capacity: “Layer2-48Port” lets planners instantly assess capacity without datasheet diving.

Geographic sprawl hides in vague region labels. “West-Coast” could mean Seattle, San Jose, or Los Angeles. Use precise city abbreviations (“SJO” for San Jose) or airport codes (“LAX”) to eliminate guesswork during expansion planning or incident triage.
