Schematic Guide for DOL Starter Circuit of a Three Phase Induction Motor
Use a contactor-based arrangement with a single main switching device rated at least 125% of the machine’s full-load current for reliable connection. Place a thermal overload relay downstream–adjust its trip class to 10 or 20 seconds depending on rotor inertia–to prevent coil burnout during start-up surges that reach 6–8 times rated current. Wire the relay contacts in series with the contactor coil; this cuts power before damage occurs.
Select power cables sized for 7–8 A/mm² to handle brief 150–200% overloads without voltage drop exceeding 3%. Route cables directly from source to terminals, avoiding inductive loops that amplify transient voltages. Install fast-acting fuses upstream–choose time-delay types rated at 150% of locked-rotor current–to isolate short circuits without nuisance trips during normal start cycles of 0.5–2.5 seconds.
Ground the neutral point of the supply transformer solidly; a floating neutral shifts phase voltages unpredictably during start-up, risking uneven torque pulses. Keep start-up sequences under 5 seconds to limit rotor heating–exceeding this window reduces insulation life by 30% per occurrence. Verify all connections torque-tightened to 20–25 Nm to prevent arcing at contact points.
Deploy a pushbutton station with start/stop momentary contacts wired in series; this ensures fail-safe operation if power dips during acceleration. For 4-pole machines above 15 kW, add a soft-charge resistor (0.1–0.5 Ω) bypassed after 0.2 seconds to clip transient inrush peaks by 40%, extending contactor life. Log start cycles; more than 10 attempts per hour indicate excessive inertia–redesign drive system or switch to reduced-voltage starting.

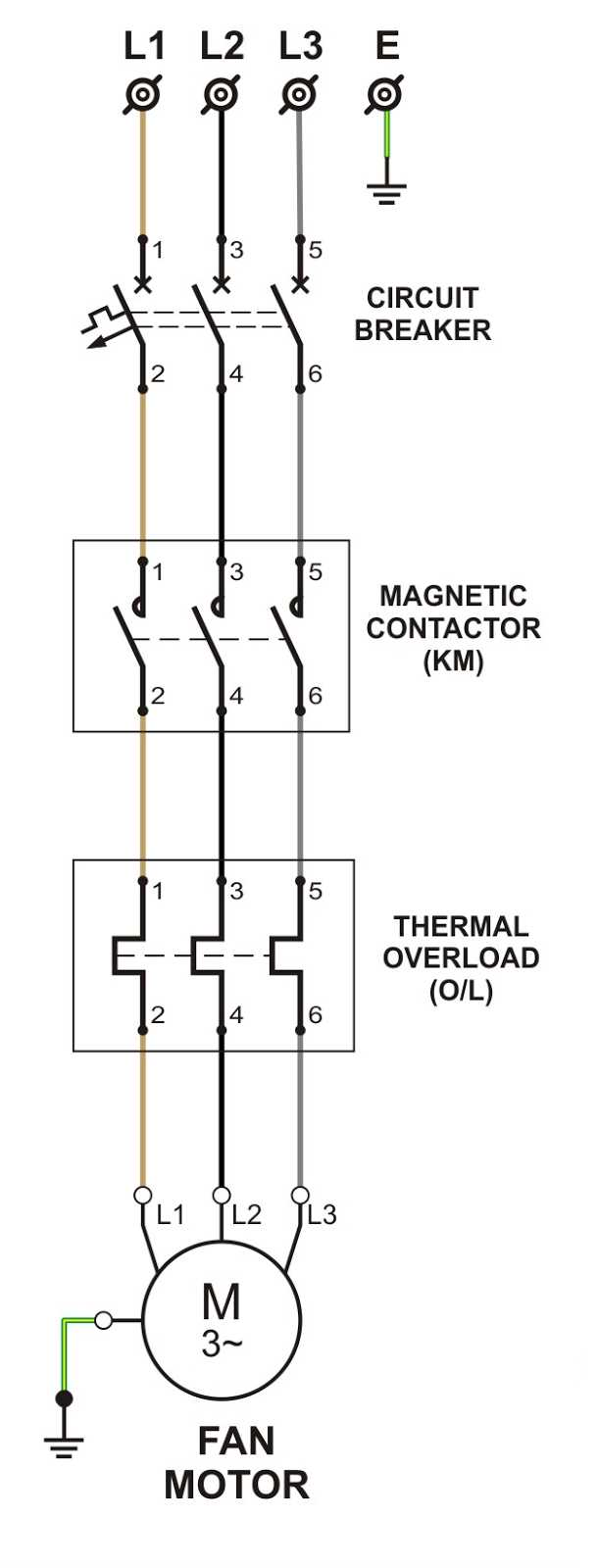

Direct-On-Line Circuit Layout for AC Squirrel-Cage Drives
Place the main contactor directly between the power source and the winding terminals, sized to match the locked-rotor current–typically 6 to 8 times the full-load amperage for NEMA B designs. Ensure the contactor coil operates at the same voltage as the control circuit (usually 230 V AC or 110 V DC) to prevent mismatched pull-in times that can cause chatter or premature contact erosion.
Wire the overload relay in series with the supply lines, using Class 10 or Class 20 trip curves based on the drive’s inertia. For pumps and fans, a Class 10 relay responds within 10 seconds at 600 % overload; for compressors or crushers, specify Class 20 to allow brief inrush without nuisance tripping. Position the relay downstream of the contactor, not upstream, to ensure protection remains intact even if a line fuse blows.
- Use copper bars, not flexible cables, for the main run between contactor and terminals to minimise voltage drop (max 3 % at starting).
- Install a three-pole fuse upstream of the contactor rated at 200 % of FLA, or follow IEC 60947-4-1 for SCPD coordination.
- Mount an auxiliary NO block on the contactor coil circuit; this keeps the control voltage isolated and provides a feedback path for remote indication.

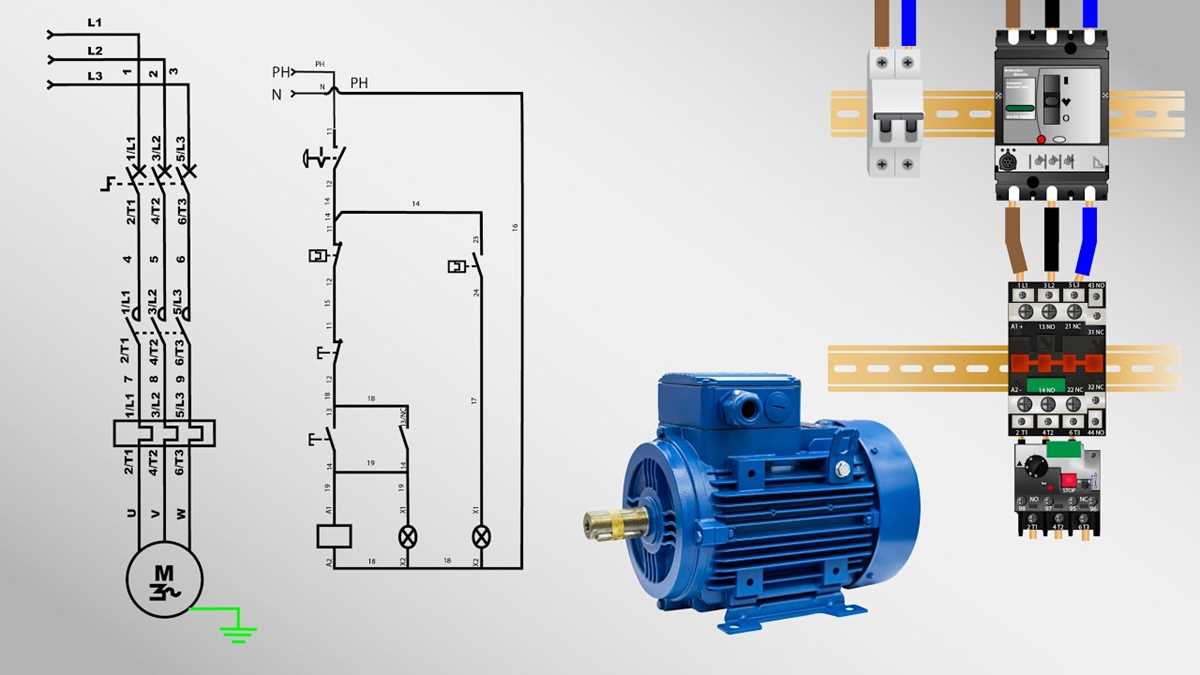

Control Wiring Sequence
Connect the start push-button in series with the NO contactor auxiliary and the stop push-button NC. Add a single-pole indication lamp (24 V LED) across the auxiliary contacts; when illuminated, it signals that coil voltage is present and contacts are closed. Use 1.5 mm² flexible wire for control loops and tin the ends to prevent oxidation; solid wire can fracture under vibration.
For motors above 30 kW, insert a pre-charge resistor bank (10 Ω, 100 W) in parallel with the main contacts, timed by a 0.5-second delay relay. This limits peak current to below 500 % FLA during the first half-cycle, reducing mechanical stress on couplings and gearboxes. After the delay, the resistor is bypassed by a second set of contacts or a shunt trip breaker to minimise heat dissipation.
Critical Parts for Direct-On-Line Activation Systems
Select a contactor with a current rating at least 1.5 times the full-load amperage of the machine. For a 10 HP unit pulling 14A, opt for a 20A or 25A contactor to handle inrush currents up to 6-8 times normal operating levels. Schneider Electric’s LC1D or Siemens 3RT10 series provide reliable coil voltages (24VAC/DC, 110V, or 230V) matched to available control power.
Overload relays must trip at 105-110% of the motor’s rated current within 2-10 seconds under locked-rotor conditions. Thermal or bimetallic types like ABB’s TA series allow adjustable settings from 0.1A to 100A. Electronic relays (e.g., Siemens 3RB24) offer precise calibration and remote resets.
Protection and Control Devices
Fuses or circuit breakers sized to interrupt fault currents protect against short circuits. Use HRC fuses with a breaking capacity of 50kA for 400V systems. Molded-case breakers (MCCBs) rated 1.25x the motor’s amperage provide both overload and fault clearance–Schneider GV2 or Eaton PKZM models suit most 1-25HP applications.
Pushbutton stations with momentary NO/NC contacts initiate and halt sequences. Green start buttons (NO) and red stop buttons (NC) comply with IEC 60947-5-1. For hazardous areas, use explosion-proof enclosures (IP65/NEMA 4X) with anti-vibration mounts. Pilz PIT or Eaton’s XB4 series include latching options for jogging modes.
Power and Signaling Hardware
Terminal blocks rated for 10A minimum simplify wiring–Weidmüller or Phoenix Contact offer DIN-rail-mountable options with ferrule-compatible clamps. For motor connections, use 60°C-rated copper conductors sized per NEC Table 310.16 (e.g., 2.5mm² for 14A continuous). Shielded cables prevent EMI-induced false trips in proximity to VFDs.
Main power disconnects must handle 115% of the motor’s service factor. Rotary switches or air-break isolators with visible break contacts (e.g., ABB OT series) satisfy OSHA lockout/tagout requirements. Auxiliary contacts (2NO+2NC) on the contactor can mirror status to PLCs or remote indicators.
Surge arrestors clamp voltage spikes to 2x the line potential. Siemens 5SD7 or Eaton CHSPT2 devices install line-to-neutral at the incoming feed. For outdoor installations, use weatherproof enclosures (NEMA 3R) with heater strips to prevent condensation on coils.
Control voltage transformers (CVTs) isolate 230V/400V mains to 110V or 24V for safe operator interfaces. Torroidal designs (e.g., Hammond 176E) reduce leakage flux and fit compact panels. Verify VA ratings: 50-100VA covers relay coils, pilot lights, and auxiliary alarms.

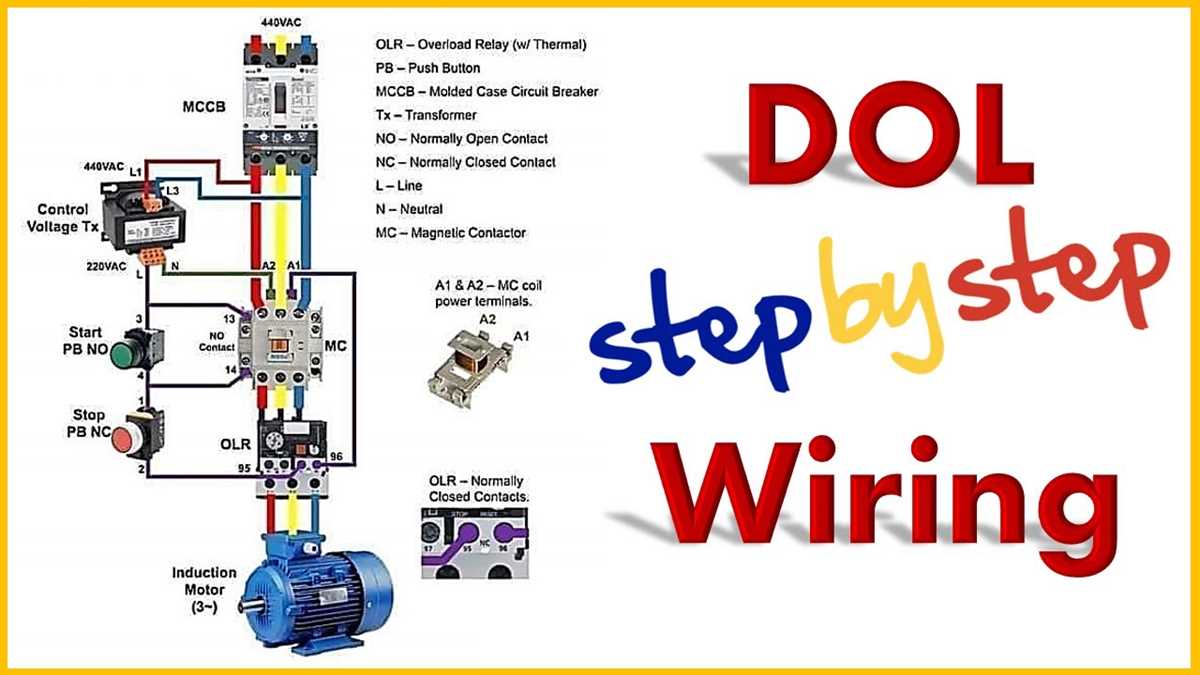

Step-by-Step Wiring Sequence for Direct-on-Line Activation
Begin by verifying the power source’s voltage matches the equipment’s rating–standard industrial supplies (400V AC) must align with the device’s nameplate specifications. Connect the main supply lines (L1, L2, L3) to the input terminals of the protective switch or circuit breaker, ensuring tight, corrosion-resistant connections using crimp lugs or busbars. Label each conductor clearly to prevent cross-wiring during maintenance or troubleshooting.
Core Assembly Connections
- Wire the contactor’s primary poles in series with the thermal overload relay, inserting the relay’s sensing elements (typically bimetallic strips) in the current path for overload detection. Use conductors sized to handle 125% of the full-load current to avoid voltage drops.
- Attach the outgoing load terminals (T1, T2, T3) to the terminal block leading to the windings, ensuring phase rotation matches the manufacturer’s recommended direction to prevent reverse rotation damage.
- For auxiliary circuits, connect the start button (normally open) in series with the contactor’s coil (A1-A2), then wire the stop button (normally closed) in parallel to break the coil circuit when pressed.
Test the setup with a multimeter in continuity mode: verify the start button energizes the coil, the main contacts close, and the overload relay trips at 110–120% of the rated current. If miswired, check for loose connections, incorrect phase pairing, or reversed polarity–common causes of failure. Secure all terminals with torque wrenches to the manufacturer’s specified values (e.g., M6 bolts at 5–7Nm) to prevent overheating.
Common Wiring Mistakes in Direct-On-Line Circuits and Rectification
Incorrect phase sequencing misaligns rotational direction, often due to swapped L1/L2/L3 terminals at the contactor. Verify polarity using a multimeter set to AC voltage (expect 400V±10% between phases) before energizing. Reversed phases force the rotor to spin opposite the driven load, risking mechanical binding or coupling shear. Cross-check mounting orientation of the magnetic actuator–misaligned cores create excessive hum (>65dB) and premature wear; recalibrate spring tension to factory specs (0.8–1.2Nm) if replacement occurs.
| Fault | Symptom | Root Cause | Action |
|---|---|---|---|
| Contactor chatter | Rapid 5–15Hz clicking | Low coil voltage ( | Measure supply sag; upgrade conductor gauge or stabilise transformer tap |
| Overcurrent trip | Hot housing (>60°C), breaker activation within 2s | Short circuit in overload relay ( | Replace heater elements or shunt faulty thermal unit |
| Phase imbalance | Uneven current draw (>5% variation) | Loose crimp or corroded busbar | Retorque connections to 12Nm; apply anti-oxidant paste |
Loose auxiliary contacts on NO/NC switches cause nuisance trips by failing to latch properly; inspect for pitting (depth >0.5mm warrants replacement). Over-torqueing terminal screws (>15Nm) distorts threads, reducing contact pressure–use calibrated torque wrench with copper washers to prevent deformation. Always confirm thermal relay calibration against actual running current (not nameplate value); heaters sized incorrectly (115% of load) lead to either delayed shutdown or false positives.
