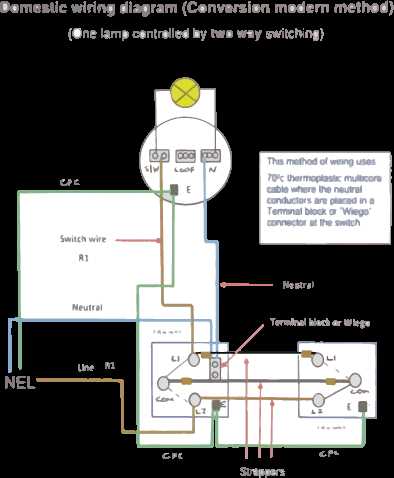

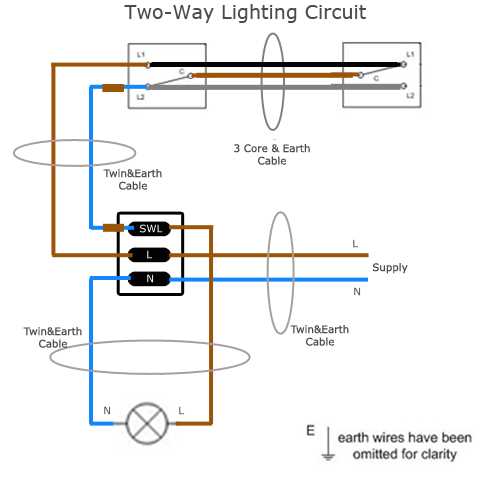

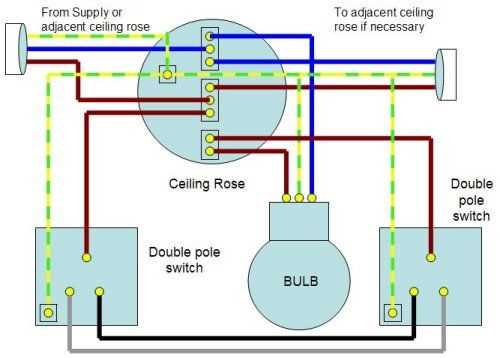

UK Two Way Lighting Circuit Diagram Step by Step Wiring Guide

For UK installations complying with BS 7671, use 3-core and earth cable between switches–live (brown), switched live (black, sleeved red), and common return (grey, sleeved yellow). The common terminal (marked “C” or “COM”) on each switch must connect to the grey core, while brown feeds the first switch’s L terminal and the black core links to the output terminal of the second switch (marked “L1” or “1”).

Neutral (blue) and earth (green/yellow) cables bypass the switches entirely–run them directly to the fitting. This prevents potential leakage currents and complies with Regulation 537.2.2, which prohibits switching the neutral in most domestic setups. Test continuity between switch terminals before energising: resistance between C and L1 should toggle between 0Ω and open-circuit as the switch toggles.

For metal back-boxes, bond the earth core to both switch frames and the fitting’s earth terminal–this satisfies protective equipotential bonding requirements under Chapter 41. Use 0.75 mm² minimum cross-section for earth conductors where the circuit protective conductor exceeds this size. Mark all sleeved live conductors at both ends with red sheathing to distinguish them from permanent live feeds.

Avoid daisy-chaining power between fittings in a multi-location setup–instead, run a dedicated spur from the distribution board to the first switch, then onward to the second and fitting. This method reduces voltage drop and simplifies fault isolation. For dimmable loads, verify compatibility with trailing-edge dimmers and ensure the maximum load (typically 250W–500W incandescent-equivalent) is not exceeded.

UK Dual-Switch Electrical Schematic Guide

Install a loop-in terminal block at each switch location to simplify wiring–this eliminates the need for junction boxes and reduces cable clutter. Use 1mm² earth core sleeving (green/yellow) for all protective conductors, even if the cable sheath is pre-sleeved, to comply with BS 7671:2018+A2:2022 regulations. Label the common terminal (marked ‘C’ or ‘COM’) on both switches with heat-shrink tubing; incorrect connections here cause polarity faults detectable only under load.

Cable Routing Specifications

Run 1mm² twin-and-earth cable between switches, maintaining a minimum 50mm separation from low-voltage cables (e.g., Ethernet) to avoid interference per Appendix 15 of the Wiring Regulations. Secure cables at 300mm intervals with polyamide clips (not plastic) in dry lining; metal clips are mandatory in voids insulated with combustible material. For loops exceeding 20m, upsize to 1.5mm² to prevent voltage drop–calculations must comply with Table 4Ab of the On-Site Guide.

Key Components for a UK-Compliant Dual-Control Switch Installation

Select a 10A rated switch as the minimum for residential installations, ensuring compliance with BS EN 60669-1:2018. Verify markings for BS 1363 certification, indicating load capacity and insulation resistance meeting UK standards. Avoid cheaper alternatives lacking these certifications, as they risk overheating or non-compliance with Part P of the Building Regulations.

Install 3-core and earth cable (brown, black, grey, bare earth) between switches for dual-point control. Use 1mm² core cross-section for lighting loads up to 240W; scale up to 1.5mm² for longer runs (over 20m) to prevent voltage drop. Connect the black core to the common terminal (marked L1/L2) on the first switch, ensuring consistent polarity across the installation.

• Neutral link: Use a 30mA RCD-protected circuit to isolate both switch points. UK regulations mandate RCD protection for all new lighting circuits, per BS 7671:2018+A2:2022 (Regulation 411.3.4).
• Terminal blocks: Opt for shrouded chocolate blocks (6A minimum) for intermediate connections, secured with IP2X-rated covers to prevent accidental contact.
• Junction boxes: Use deep 47mm round boxes for flush installations, allowing space for 3-core splicing without crimping insulation.

Fit back-boxes with 35mm depth for surface-mounted switches; deeper boxes (57mm) are required for smart or dimmer variants with built-in transformers. Ensure all metal back-boxes are bonded to earth via a 6mm² green/yellow sleeved conductor, even if plastic faceplates are used, to maintain equipotential bonding per Regulation 411.3.1.2.

For intermediate control (three-plus switch points), integrate an intermediate switch (4-terminal design) between the two changeover units. Wire the grey core to the strap terminals (marked L1/L2) and the brown core to the switched live output. Confirm the intermediate switch bears the CE mark and complies with BS 3676 for mechanical durability.

Label all conductors at both ends using heat-shrink tubing or self-laminating cable markers, referencing BS 7671 Appendix 10. Include a circuit reference number (e.g., “L2”) on the inside of the switch plate for future maintenance. Terminate earth conductors with green/yellow sleeving, even if insulated, to meet Regulation 514.3.3.

Test continuity and insulation resistance with a calibrated multimeter (500V DC test for insulation) before energising. Record results in an Electrical Installation Certificate (EIC) or Minor Electrical Installation Works Certificate (MEIWC), as required by Part P. Include R1+R2 values (loop impedance) and prospective fault current (PFC) measurements, ensuring they align with Table 41.1 (protective device ratings).

Step-by-Step Wiring Process for Intermediate Switches

Start by isolating the power at the consumer unit to prevent electrical shocks. Verify the circuit is dead using a voltage tester on both live and neutral terminals. Mark the existing cables at each switch location–common (C), line (L1), and loop (L2)–to avoid confusion during reconnection.

Install the intermediate switch between two existing toggle controls. Connect the common terminal (often marked with a different color or label) to the live feed from the first switch’s L1 or L2 output. The remaining two terminals will link to the corresponding outputs of the second switch. Use 1mm² twin-and-earth cable for these connections, ensuring secure, screw-tightened terminations.

Key Connections

• First toggle common → Intermediate switch common
• Intermediate switch L1 → Second toggle L1
• Intermediate switch L2 → Second toggle L2

For UK installations, adhere to the BS 7671 wiring regulations. Earth cables (green/yellow) must be connected to the switch plate’s earth terminal if metal-clad. For plastic-switch plates, earth cables can be sleeved and tucked safely into the back box. Double-check polarity–live (brown) must align with the correct terminal at each point.

Re-energize the circuit and test each switch position in sequence. The lamp should toggle on/off predictably regardless of which control is operated. If flickering or inconsistent behavior occurs, re-examine terminal tightness and cable routing–loose strands or crossed wires are common culprits.

Common Errors in Dual-Switch Wiring Setups for British Residential Properties

Failing to label conductors during stripping risks reversed connections. Use a permanent marker to identify brown (live), blue (neutral), and grey (switched live) cores before termination. Confusion between these leads to short circuits or non-functional switches, particularly in older properties where legacy 3-plate setups mix with modern 4-plate configurations.

Over-tightening terminal screws damages conductor strands, reducing current capacity. Apply 0.5 Nm torque–sufficient to secure without deforming copper. Loose connections create resistance hotspots, detectable with a thermal camera as temperature rises above 70°C. Replace damaged cores rather than reusing stripped sections.

Conductor Type	Max Recommended Torque	Risk of Exceeding Value
1.5 mm² solid	0.4 Nm	Strand deformation
2.5 mm² stranded	0.5 Nm	Insulation cracking
4.0 mm² earth	0.6 Nm	Terminal failure

Ignoring the 30 mA RCD requirement for upstairs installations violates BS 7671:2018+A2:2022. Fit a Type A RCD for circuits serving bathrooms or kitchens where fluorescent or LED drivers may cause nuisance tripping. Failure to comply voids insurance claims for fire damage traced to faulty switching.

Using unshrouded terminal blocks in junction boxes invites arcing. Select IP66-rated enclosures with snap-fit lids for loft or underfloor installations. Exposed terminals accumulate dust, increasing leakage current. Measure insulation resistance post-installation–values below 1 MΩ indicate compromised connections.

Misaligning intermediate plates in three-location layouts disrupts the traveler path. Verify continuity between switch plates during installation; a multimeter should read

Incorrect zonal placement of upstairs plates breaches Part P regulations. Keep switches ≥0.6 m from bath edges and ≥2.25 m from shower enclosures. Use splashproof (IP44) plates in zones 1 and 2. Non-compliant installations require costly rewiring during building control inspections.

Neglecting to test loop impedance values leads to undetected overcurrent risks. For 6 A circuits, maintain ≤ 6.8 Ω at the furthest point. BS EN 60269-2 specifies fuse ratings–replace 5 A rewireable fuses with 6 A MCBs for consistent protection. Document all measurements in the electrical installation certificate.

UK Electrical Safety Regulations and Part P Compliance for Self-Installed Switching Systems

Notify your local building control authority before starting any electrical modification in a domestic property, even minor alterations like adding a dual-switch control setup. Under UK Building Regulations Approved Document P (Electrical Safety in Dwellings), most fixed wiring tasks–including installing new cables or modifying existing configurations–are notifiable. Failure to comply may result in enforcement action, invalidated home insurance, or complications during property sales. Exceptions exist for like-for-like replacements and minor works like fitting new accessories, but verify first.

Use BS 7671 (18th Edition Wiring Regulations) as your definitive guide. Key requirements include: RCDs (30mA) for all sockets and lighting loops, correct cable ratings (1.5mm² for lighting, 2.5mm² for sockets), and segregation of low-voltage circuits from other services. For dual-switch systems, employ three-core-and-earth cable (6243Y, brown/black/grey cores) between switches, not separate cables. Earth continuity must be maintained–test with a low-resistance ohmmeter (target

Testing and Certification

After installation, perform dead tests (continuity, insulation resistance ≥1.0MΩ) and live tests (polarity, RCD trip time ≤40ms). Use a calibrated multimeter or dedicated tester (e.g., Megger 1553 or Fluke 1664). Record all results on an Electrical Installation Certificate (EIC) or Minor Electrical Installation Works Certificate (MEIWC), signed by a competent person–yourself if certified, or an electrician within 5 days. Without these documents, your work lacks legal validity.

Equipotential bonding (main and supplementary) must be verified, especially in wet zones (bathrooms, kitchens). For dual-switch loops, ensure the common terminal connects to the incoming live, not the neutral. Label all protective devices and distribution boards clearly, including circuit purpose and RCD coverage. Store certificates alongside fuse board schedules for future reference–inspectors, insurers, and conveyancing solicitors will demand them.
