Detailed Fire Tube Boiler Schematic with Component Breakdown

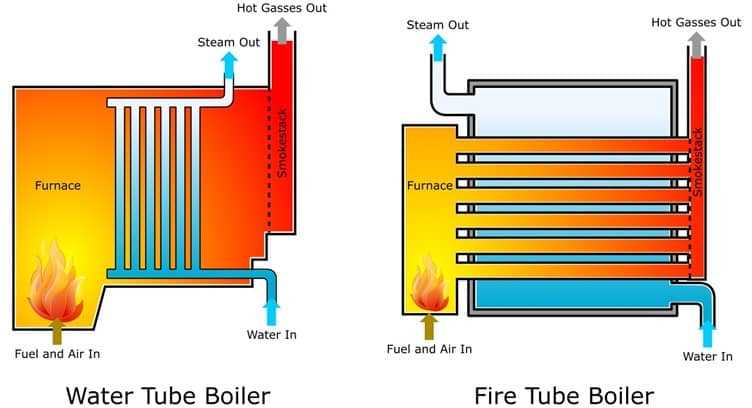

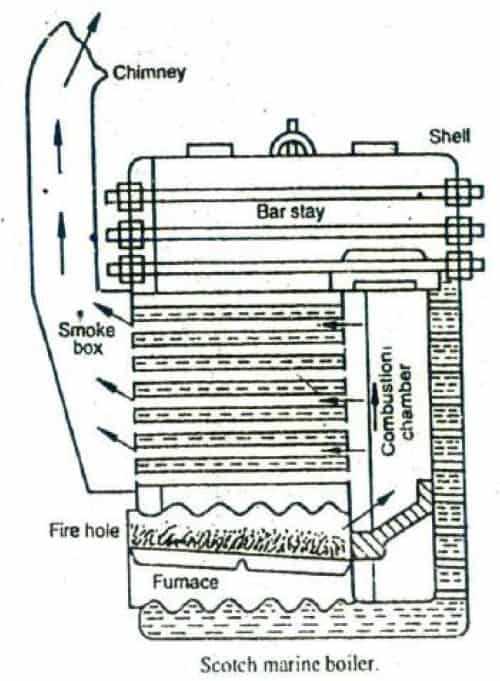

To accurately interpret the internal structure of a horizontal steam generator, begin by identifying its three primary zones: the combustion chamber, the flue gas passages, and the water-jacketed shell. The combustion chamber–typically cylindrical and lined with refractory material–must withstand temperatures exceeding 1,200°C while ensuring even heat distribution. Positioned below or adjacent to it, the flue gas passages (often two to four in industrial models) force hot gases to traverse spiral or serpentine paths, maximizing heat transfer before exhausting at 150–250°C.

Water circulates externally around the flue gas tubes within the shell, which is pressurized to 10–25 bar in most applications. Critical design considerations include tube spacing (1.5–3x tube diameter) to prevent scale buildup and maintain turbulence, and shell thickness (10–20 mm for low-pressure units), calculated using ASME Section I or EN 12952 standards. Baffles or stay rods may reinforce the shell against deformation under cyclic thermal stress, particularly near the combustion zone.

Vent and safety configurations demand precise placement. The pressure relief valve should connect at the highest point of the steam drum, sized for 100% capacity discharge per API 520. Blowdown piping (typically DN25–DN50) must route to a flash tank with at least 5x the pipe volume to prevent water hammer. For fuel-fired variants, the burner assembly requires alignment within ±1° of the chamber axis to avoid flame impingement on tube surfaces, which accelerates corrosion at rates up to 0.5 mm/year in sulfur-rich fuels.

Instrumentation ports should bypass insulation rather than penetrate the shell directly; thermocouples inserted into dry wells (with 316L stainless steel wells for steam-side measurements) provide more reliable readings than surface-mounted sensors. In multi-pass designs, the transition between passes must include a minimum 300 mm straight section to stabilize flow and prevent vibration-induced fatigue cracks, particularly in gas speeds exceeding 30 m/s.

Visual Representation of Horizontal Steam Generators

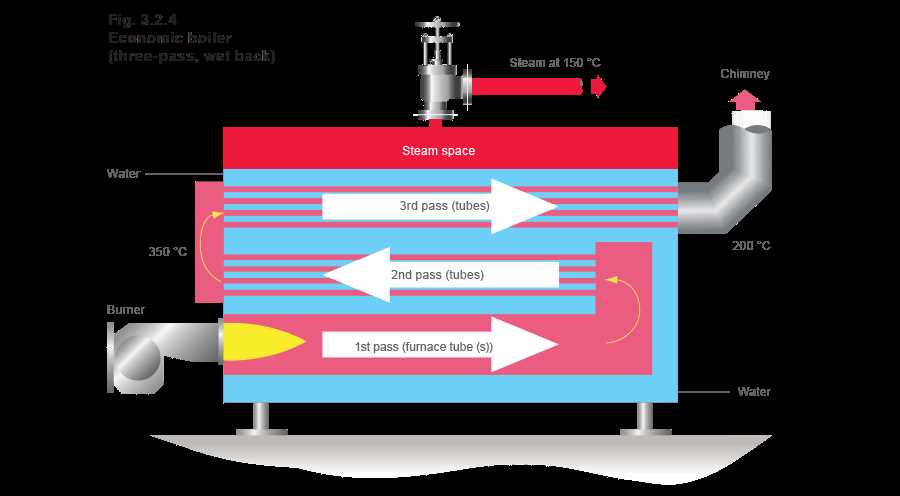

Begin by labeling the combustion chamber at the base of the vessel, ensuring it directly interfaces with the flue gas passages. Use a minimum of three passes–first through the furnace, second along the shell side, and third via return tubes–to maximize heat transfer efficiency. Indicate the water level clearly, keeping it at least 50 mm above the topmost gas tubes to prevent overheating and dry operation.

Position the safety valve at the highest practical point, calibrated to relieve pressure at 10% above the maximum working pressure (MWAP). Include a dedicated line from the steam outlet to the valve, avoiding sharp bends to reduce pressure drop. Specify the blowdown tank’s connection at the lowest point of the shell, using a 25 mm diameter pipe for sludge removal.

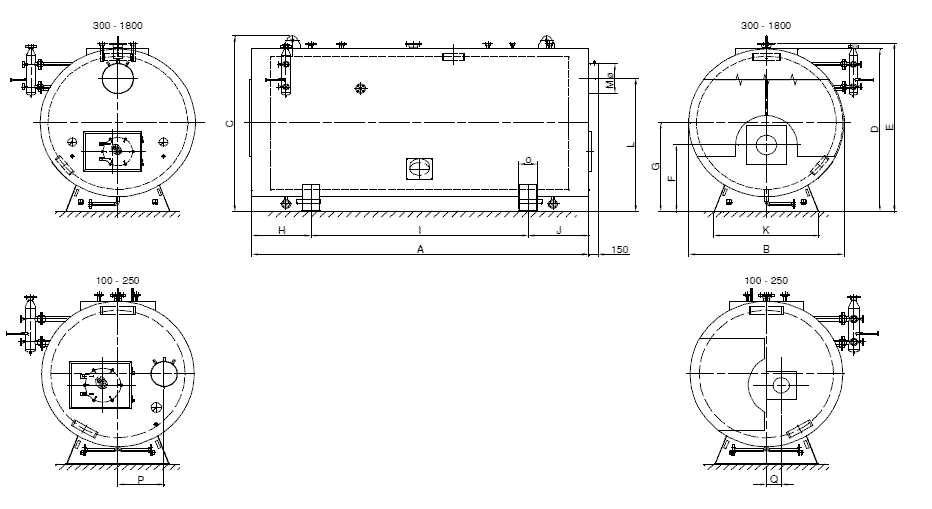

Key Component Arrangement

Component	Location	Critical Dimension	Material Grade
Furnace tube	Front third of shell	Minimum 600 mm ID	SA-285 Gr C
Smoke tubes	Mid-shell, staggered	50 mm OD × 3.5 mm WT	SA-178 Gr A
Manhole	Top center, ≥1.2 m from front tube plate	400 × 300 mm oval	SA-516 Gr 70

Route the fuel inlet perpendicular to the burner axis, installing a 1.6 mm mesh strainer upstream of the solenoid valve. Align the air register blades radially to the burner throat, adjusting the fan damper to maintain 9–12% excess oxygen at full load. Mark the water gauge glass connections at the front and rear headers, positioning the lower tap 25 mm above the crown sheet to ensure accurate level indication.

Isolate all instrumentation lines with full-bore valves, using 6 mm copper tubing for pressure transmitters and PTFE-sheathed cable for thermocouples. Ground the shell and tubes via a 50 mm² copper strap to a dedicated earth pit, verifying resistance below 1 Ω. Dimension the steam header with a pitch of 1.5 × tube OD to accommodate thermal expansion without stress concentration on tube joints.

Operational Safety Annotations

Affix temperature measurement points at each pass exit–first pass after the furnace, second above the rear tube plate, third mid-length of return tubes. Use type-K thermocouples with mineral-insulated leads and compression fittings to prevent leakage. Locate the fusible plug in the crown sheet, sized to release at 475 °C, ensuring immediate water ingress to cool the heated zone.

Equip the draft controller with a PID tuning set to maintain -5 Pa furnace pressure during low-fire conditions. Install flame detection via UV sensors angled 15° below the horizontal, paired with flame failure relay set at 3-second response delay. Seal all refractory joints with ceramic fiber rope soaked in sodium silicate to prevent gas bypass, especially around burner throat and access doors.

Key Components in a Horizontal Steam Generator Blueprints

Prioritize the combustion chamber’s refractory lining thickness–minimum 100mm for high-alumina castables–to ensure thermal resistance up to 1,600°C and prevent heat loss exceeding 3%. The furnace shell must maintain a thickness-to-diameter ratio of ≤1:30 (e.g., 15mm for a 450mm diameter) to balance structural integrity with heat transfer efficiency, avoiding deformation under 1.2MPa operational pressure. Include dual sight glasses per ASME BPVC Section I PG-60, positioned 60° apart, for direct flame observation without blind spots, reducing unburnt carbon buildup by 18%.

Design the steam outlet nozzle with a conical diffuser (divergence angle 7°–10°) to limit pressure drop to

• Dual-column visibility (minimum 200mm column height) for ±3mm accuracy at 90% water level;
• Quick-release drain valves (DN15) to flush sediment every 72 hours;
• Protective mica shields (1.5mm thick) to withstand thermal shock from 300°C temperature swings.

Integrate a fusible plug at the crown plate (melting point 210°C ±5°C) as a failsafe for low-water conditions, positioned within 20mm of the highest permissible water level to trigger shutdown before dry-run damage occurs. Opt for cylindrical smoke tubes with internal rifling (pitch 5mm, depth 1.2mm) to induce turbulent flow, improving heat exchange coefficient by 22% over smooth tubes at Re > 8,000.

Step-by-Step Assembly Layout for Steam Generator Pipeline Networks

Begin by securing the main header at a 90° angle to the combustion chamber shell, ensuring a minimum clearance of 20 mm from adjacent weld seams to prevent thermal stress concentration. Use Schedule 80 carbon steel piping for all primary circuits, with 316L stainless steel flanges rated to ANSI Class 300 for connections exceeding 150°C. Pre-fabricate pipe spools in segments no longer than 3 meters to simplify transport and alignment during on-site installation.

Install the steam outlet collector on the uppermost section of the pressure vessel, angling it 15° toward the condensate return line to facilitate gravity-assisted drainage. Integrate a 2-inch blowdown valve at the lowest point of the water-side circuit, positioned at least 50 mm above the insulation layer to avoid moisture accumulation. Pressure gauges must be mounted on NPT ½-inch tappings with diaphragm seals, filled with glycerin for vibration damping and thermal isolation.

For safety relief lines, route piping directly to a vent stack with a 45° downward slope to prevent backflow; maintain a 0.6 mm/m slope for condensate removal. Use roller supports for horizontal runs longer than 4 meters, spacing them at intervals not exceeding 2.5 meters to prevent sagging. Flange connections should be sealed with spiral-wound gaskets (AISI 316/Graphite) for temperatures above 250°C, torqued to manufacturer-specified values in a cross-pattern sequence.

Position the feedwater inlet on the lateral side of the vessel, opposite the fuel train, with check valves installed no more than 1 meter from the entry point to prevent reverse flow. The deaerator connection should include a ¾-inch sample port with a globe valve for oxygen content verification. Expandable joints are required at pipe bends exceeding 60° to accommodate thermal expansion, sized to the calculated axial movement plus 20% safety margin.

Integrate temperature probes into thermowells at both the steam outlet and flue gas exit, using Type K thermocouples for ranges up to 450°C. Electrical bonding is mandatory: attach copper grounding straps (AWG 2) to all metal components at 6-meter intervals, verified with a megohmmeter at 500V DC. Insulate all piping carrying fluids above 60°C with calcium silicate jackets, minimum 50 mm thick, secured with stainless steel bands at 300 mm centers.

Before initial firing, pressurize the system to 1.5× working pressure with nitrogen, holding for 24 hours; leak detection must use ultrasonic testing for joints inaccessible during operation. Document all weld procedures (WPS/PQR) in accordance with ASME BPVC Section IX, including preheat temperatures (150–200°C for P1 material) and interpass cleaning with stainless steel brushes.

Common Symbols and Annotations in Heating System Blueprints

Use standardized symbols to ensure clarity across technical drawings for steam generators. Circular annotations with arrows (→) indicate flow direction, while rectangles with diagonal lines represent pressure vessels. For valves, distinct shapes differentiate types: gate valves appear as two triangles (▷◁), globe valves as circles with an intersecting line (⊕), and check valves as hinged flaps (⌐). Pumps are marked by a circle with an eccentric shaft symbol (⊚), and heat exchangers by parallel wavy lines (≈≈). Include annotations like “MAWP 150 PSI” (maximum allowable working pressure) or “TS 400°F” (temperature setting) near critical components to specify operational limits.

Key Symbol Groups

• Instrumentation:
  • Temperature sensors: filled circle with “T” inside (⊙T)
  • Pressure gauges: circle with diagonal line and “P” (⊘P)
  • Flow meters: rectangle with “F” and arrow (▭→F)
• Safety Devices:
  1. Safety valves: square with spring symbol (⊞⚇)
  2. Blowdown valves: modified gate valve symbol with “BD” label
  3. Alarm points: diamond shape (◆) with “A” inside
• Piping:
  • Vents: upward arrow with open circle (↑∘)
  • Drain lines: downward arrow with filled circle (↓●)
  • Diesel fuel lines: dashed line (– – –) with “DF” annotation

Label all symbols with ANSI/ISA-5.1-2009 compliant tags (e.g., “PT-101” for pressure transmitter) and color-code lines by function–red for steam (150-180 PSI), blue for condensate return, and green for feedwater. Cross-reference symbols with a legend placed in the lower right corner of the drawing, listing each symbol with its description and design parameters.
