Essential Components and Workflow of a Gas Chromatograph Schematic Layout

Begin by identifying the carrier stream inlet–typically positioned at the instrument’s rear panel–where regulated pressure between 20–60 psi ensures consistent flow rates. Verify tubing connections using 0.25-inch stainless steel for high-temperature zones (column oven, injector) and PTFE for ambient segments to prevent signal drift. Pressure gauges should monitor pre-column and post-detector lines; discrepancies above ±5% indicate leaks or faulty regulators.

Locate the sample introduction port, configured for either split or splitless modes. For trace analysis, set the septum purge flow to 3–5 mL/min and confirm the liner type–deactivated quartz wool minimizes adsorption artifacts. The thermal desorption interface (if present) requires a fused silica restrictor to maintain sub-ambient pressures during desorption cycles.

Trace the separation column path, noting that capillary lengths (10–60 m) and internal diameters (0.1–0.53 mm) dictate resolution. Stationary phase polarity (e.g., 5% phenyl-methylpolysiloxane) must match the analyte’s functional groups–polar compounds demand wax-based phases to prevent peak tailing. Oven temperature ramps should not exceed 10°C/min for baseline stability.

Examine the detection block, where flame ionization requires a 30:1 air-hydrogen ratio for optimal combustion. Electron capture detectors need nickel-63 foils with ≥95% purity to avoid sensitivity loss. Mass spectrometry interfaces (quadrupole or TOF) mandate a heated transfer line (250–300°C) and ultra-high-purity helium (99.999%) to prevent ionization suppression.

Validate data acquisition parameters: sampling rates above 50 Hz for narrow peaks (carrier gas velocity calculators to adjust linear flow; deviations >10% worsen peak asymmetry. For quantitative work, calibrate with 5-point internal standard curves spanning the expected concentration range (ppb to ppm).

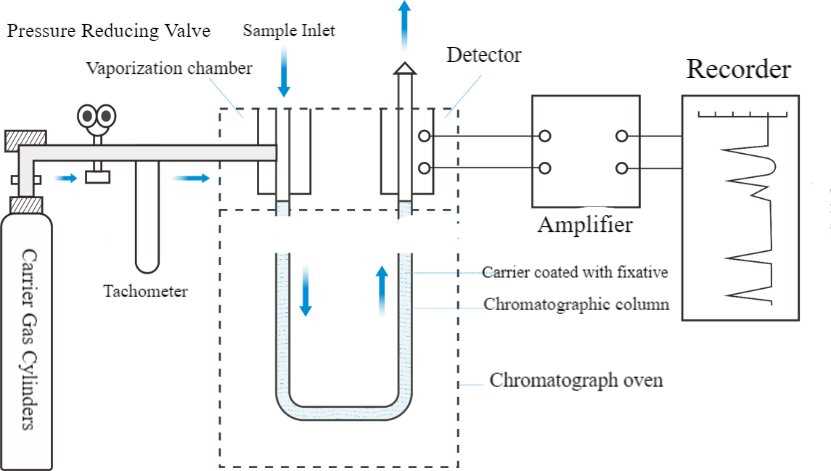

Visual Representation of Analytical Separation Instrument

Start by identifying the carrier fluid inlet at the leftmost point of the system–this entry point must maintain consistent pressure, typically between 30–100 psi, to ensure baseline stability. Use a regulated supply with a built-in gauge to prevent fluctuations that distort retention intervals. The injector port follows, heated to 200–300°C to vaporize samples instantly without thermal decomposition. Opt for a split/splitless inlet configuration; split ratios of 1:10 to 1:100 work for concentrated mixtures, while splitless mode suits trace analysis below 1 ng/μL.

The separation column is coiled within a controlled-temperature oven, critical for reproducible elution patterns. Fused silica capillaries, 10–100 meters long with 0.1–0.53 mm internal diameter, dominate modern setups. Stationary phase selection depends on analyte polarity: polydimethylsiloxane for non-polar compounds, polyethylene glycol for alcohols and acids, or cyano-modified phases for mid-polarity compounds. Maintain oven temperature programs starting at 40–60°C, ramping at 5–20°C/min to 250–320°C, holding for 2–10 minutes to elute high-boiling components.

Critical Components and Their Configuration

• Detector: Flame ionization detection (FID) offers universal response for hydrocarbons, detecting carbon ions with sensitivity down to pg/sec. For halogenated or nitrogen-containing compounds, electron capture detection (ECD) achieves sub-fg/sec limits. Mass selective detectors (MSD) provide structural elucidation via fragmentation patterns, matching against spectral libraries at 70 eV ionization energy.
• Carrier Fluid: Helium (99.999% purity) remains standard, though hydrogen accelerates analysis at lower pressures. Avoid nitrogen–broader peaks reduce resolution. Flow rates of 0.5–5 mL/min balance separation speed and efficiency; use an electronic flow controller to compensate for viscosity changes during temperature ramping.
• Data Acquisition: Sampling rates of 10–100 Hz preserve peak shape integrity. Integrate software thresholds at 0.5–1% of maximum signal to distinguish true peaks from noise. For complex matrices, employ deconvolution algorithms like AMDIS to resolve co-eluting compounds with spectral dissimilarities as low as 10%.

Post-column, install a back-pressure regulator if using MSD to prevent vacuum-related air leaks that skew baseline drift. For preparative applications, add a fraction collector triggered by peak detection thresholds, cooling samples to -20°C immediately to prevent volatilization. Regular maintenance involves replacing septa every 50–100 injections to prevent ghost peaks from septum bleed, and trimming 10 cm of column inlet when peak tailing appears, indicating active site contamination.

For method development, calculate theoretical plates (N) using N = 5.54 × (t_R/w_h)², targeting >2000 plates/meter for optimal resolution. Adjust linearity by injecting 5–7 concentrations spanning the expected range, ensuring R² > 0.995. When analyzing thermally labile compounds, switch to on-column or programmed temperature vaporization injectors to avoid degradation.

Troubleshooting Common Issues

1. Baseline Drift: Check for column bleed–condition new columns at 20°C above maximum temperature for 2 hours. Replace contaminated carrier fluid filters annually. For FID, ensure proper hydrogen:air ratios (40:400 mL/min) to prevent carbon buildup on the collector.
2. Peak Broadening: Verify column installation–too long insertion into the inlet causes dead volume. Confirm carrier fluid linear velocity at 20–40 cm/sec using u = L/t_M, where L is column length and t_M is methane retention time.
3. Split Peaks: Eliminate contamination in the injector liner; replace or clean with solvent sonication. For isothermal runs, reduce initial temperature by 20°C to sharpen peaks. If using MSD, tune quadrupole resolution to minimize spectral overlap.

Validate system performance by running a standard test mix (e.g., Grob mixture) weekly. Monitor retention times–shifts >0.5% indicate column deterioration or leaks. For quantitative work, inject bracketing calibration standards every 10 samples to correct for response factor drift. When handling reactive compounds (e.g., amines), deactivate metal surfaces with silanizing reagents to prevent irreversible adsorption, extending column lifetime by 30–50%.

Key Components and Their Roles in a Vapor Phase Separation System

Select an inert carrier medium with high thermal stability–helium, nitrogen, or hydrogen–depending on detector compatibility. Helium offers optimal efficiency for thermal conductivity detectors (TCD) but inflates operational costs. Hydrogen requires rigorous safety protocols due to flammability risks, yet delivers superior separation speed for complex mixtures. Flow rates between 1–5 mL/min optimize peak resolution; deviations beyond ±0.2 mL/min introduce baseline drift or co-elution. Use mass flow controllers to maintain precise regulation under temperature fluctuations.

The sample injector port demands temperatures 20–50°C above the boiling point of the highest-molecular-weight analyte. Split/splitless injectors balance sensitivity and reproducibility: split ratios of 10:1–100:1 prevent column overload, while splitless mode suits trace analysis below 1 ppm. Septa materials–silicon-coated with polyimide–must withstand repeated thermal cycles without leaching volatile contaminants. Replace septa every 50–100 injections; failure leads to ghost peaks or column bleed.

• Separation column: Choose stationary phase polarity to match analyte chemistry. Non-polar (methyl silicone) resolves hydrocarbons via boiling point differences, while polar phases (polyethylene glycol) separate alcohols, amines, or acids through dipole interactions. Film thicknesses (0.1–5 µm) influence retention: thinner films reduce elution times but sacrifice loading capacity. Column dimensions–0.1–0.53 mm ID, 10–100 m length–balance resolution and pressure drop; excessive length increases retention times without proportional improvement.
• Temperature programming: Ramp rates of 5–20°C/min resolve co-eluting compounds; isothermal holds apply to single-analyte or narrow boiling-point ranges. Programmed temperature vaporization (PTV) injectors accommodate wide boiling-point ranges by venting solvents prior to heating. Avoid exceeding the column’s maximum temperature by 20°C to prevent stationary phase degradation.

Detector selection dictates analytical sensitivity and linear range. Flame ionization detectors (FID) respond universally to carbon-containing compounds with detection limits near 1 pg/s but offer no structural information. Electron capture detectors (ECD) excel for halogenated or nitro-aromatic compounds (0.1 fg/s sensitivity) but require ultra-pure carrier media to avoid signal quenching. Mass spectrometric (MS) detectors provide qualitative confirmation via fragmentation patterns; tune quadrupole voltages weekly to maintain mass accuracy within ±0.1 Da.

Data acquisition software must sample at ≥20 Hz for sharp peak integration. Apply solvent delay windows to protect MS filaments from air/water elution. Post-run, condition columns at 250°C for 10 minutes to remove high-boiling residues. Store columns under inert gas at ambient temperatures; prolonged exposure to oxygen or moisture accelerates stationary phase oxidation. Replace guard columns every 200–300 injections to prevent irreversible analyte adsorption.

Step-by-Step Flow Path of Mobile Phase and Analyte in the System

Begin by ensuring the carrier inlet pressure regulator is set to 1.2–1.5 times the column’s maximum operating pressure–typically 30–80 psi for capillary columns. Overpressure risks backflow into the injection port, while underpressure reduces separation efficiency by 15–25%. Attach a high-purity (99.999%) supply line to avoid signal noise from contaminants like moisture or hydrocarbons, which can distort baseline stability by 30–40%. Verify flow rate via an electronic flowmeter before sample introduction to confirm linearity within ±2% of the target value.

Inject the vaporized sample–ideally 0.1–1 µL–into the heated inlet (250–350°C) at a split ratio of 20:1 to 100:1 for concentrated mixtures. For trace analyses, use splitless mode with a purge delay of 0.5–1.5 minutes to prevent solvent tailing. The liner should contain deactivated glass wool to trap non-volatile residues; failure to replace it after 50–100 injections increases carryover by 50%. Post-injection, the analyte travels through a fused silica column (0.1–0.53 mm ID) coated with a stationary phase of 0.1–5 µm thickness, where temperature-programmed ramping (e.g., 50°C to 300°C at 10°C/min) achieves optimal peak resolution.

Monitor the detector (FID, TCD, or MS) at 100–200 Hz sampling rate to capture narrow peaks (2–3 seconds wide). FID requires a hydrogen/air flame (30–40 mL/min H₂, 400 mL/min air) with a detector temperature 20–50°C above the final oven temperature to prevent condensation. For MS, maintain ion source pressure below 1×10⁻⁵ torr to avoid fragmentation artifacts. Column bleed peaks–identified by their consistent retention times–should be subtracted via blanks run under identical conditions.

Terminate the run by cooling the oven to 50°C before the next injection to preserve column lifespan. Use a backflush valve for columns handling dirty samples (e.g., biological or environmental matrices) to reverse flow after the last target peak elutes. This prevents 90% of late-eluting compounds from reaching the detector, reducing maintenance intervals from 200 to 500 injections. Always verify system integrity with a standard mix (e.g., C7–C30 alkanes) at the start of each sequence; retention time drift >0.05 minutes or peak asymmetry >1.2 indicates stationary phase degradation.
