Guide to Drawing and Understanding a Gate Valve Schematic Diagram
Begin by identifying the three critical zones in any linear flow control assembly: the operational stem, sealing wedge, and housing body. The stem’s travel direction must align precisely with the pipeline axis–misalignment beyond 0.5° compromises sealing integrity. For ANSI Class 150 units, use a rising-stem design to visually confirm shutoff status; non-rising stems reduce vertical clearance requirements by up to 30% in constrained installations.
Select wedge materials based on fluid properties: ASTM A216 WCB carbon steel handles temperatures to 427°C, while duplex stainless steel (UNS S31803) resists chlorides in offshore applications. Avoid solid wedges in high-vibration systems–flexible or split wedges distribute loads more evenly, reducing seat wear by 40% over 10,000 cycles. Verify seat-to-body clearance with a 0.003” feeler gauge before final assembly to prevent leakage paths.
For actuation, specify manual gear operators when torque exceeds 150 Nm–this reduces operator effort by 75% compared to handwheels. Electric actuators should include a 12-second nominal travel time for 8” nominal diameter units to match fail-safe response requirements. Always install two block valves upstream of any control device for isolation during maintenance; bypass lines enable zero-pressure maintenance in critical service applications.
Inspect the stem packing every 1,200 cycles–replace if gland leakage reaches 3 drops per minute. Graphite-impregnated packing (ASTM F2191) maintains seal integrity under 20 bar pressure swings; PTFE-backed seals degrade at temperatures above 232°C. For buried installations, use epoxy-coated bolted bonnets with cathodic protection at sacrificial anode intervals of 10 feet to prevent galvanic corrosion in pipe-grade soil conditions.
Pressure testing protocols depend on valve configuration: seat tests require 1.1 × maximum working pressure for 10 minutes, while shell tests demand 1.5 × pressure rating for 30 minutes. Document all test results per API 598 standards, noting any pressure decay beyond 2% over the test duration–this indicates potential casting porosity or improper machining tolerances.
Understanding Flow Control Mechanism Blueprints

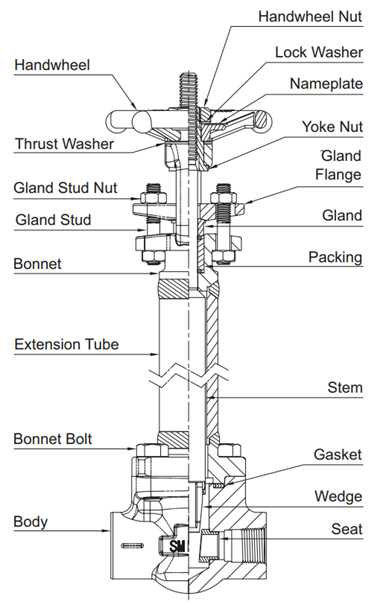

Begin by identifying the key assemblies in the technical drawing: the wedge, stem, bonnet, and seating surfaces. Locate the wedge’s tapered edges–these must align precisely with the body seats to ensure a metal-to-metal seal under pressure. Check stem threading specifications; ANSI Class 150-2500 typically uses rising stems with Acme or square threads, while Class 4500+ may require non-rising stems with coarse threading for higher torque resistance. Verify the bonnet-to-body joint type–bolted, welded, or pressure-seal–against the application’s pressure-temperature rating table below:
| Rating Class | Max Working Pressure (psi @ 100°F) | Bonnet Joint Type | Recommended Stem Thread |
|---|---|---|---|
| 150 | 285 | Bolted | Acme (29°) |
| 300 | 740 | Bolted/Welded | Square (4-sided) |
| 600 | 1480 | Pressure-Seal | Acme (14.5°) |
| 1500 | 3705 | Welded | Buttress |
Trace the fluid path from inlet to outlet, noting cavity volumes where sludge accumulation occurs–critical for abrasive or viscous media. For cryogenic applications, ensure the drawing specifies extended bonnet designs to protect the stem packing from thermal contraction. Lubrication points for gear-operated variants should appear adjacent to the stem nut and bearing surfaces; omit these only in hermetically sealed designs using bellows. Cross-reference the body cavity drain plug location with API 600/ISO 10434–matching the specified quarter-turn ball or threaded plug size to the nominal pipe diameter.
Critical Dimensional Tolerances
Enforce face-to-face dimensions per ASME B16.10: 50mm for DN50 rising-stem units, increasing non-linearly to 250mm at DN300. For parallel-slide configurations, seat bore concentricity must hold ±0.05mm over 360° to prevent wedge binding. Stem-to-bonnet clearance should range 0.2-0.4mm for cold-working conditions, tightening to 0.08-0.15mm for temperatures exceeding 400°C. Always overlay the drawing’s reference lines with actual measurements using digital calipers–a 0.1% deviation in wedge angle compounds leakage exponentially above ANSI Class 900.

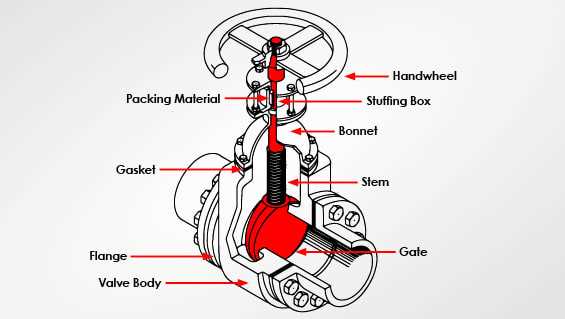

Critical Parts Depicted in Industrial Isolation Control Drawings
Inspect the main shutoff element first–typically a wedge or parallel disc–as it directly influences sealing integrity. Ensure its material matches application demands: stainless steel for corrosion resistance, bronze for moderate pressures, or ductile iron for high-load industrial systems. Verify clearance tolerances between the shutoff piece and seating surfaces; excessive gaps lead to leakage, while insufficient spacing risks binding under thermal expansion.
- Wedge-shaped designs suit vertical installations, relying on gravity-assisted closure.
- Parallel discs work better in horizontal configurations, requiring precise actuator alignment.
- Multi-turn actuators demand stronger stem threads to handle prolonged operational stress.
Examine stem assembly details–rising stems expose threads above the handwheel, simplifying visual position indication but requiring additional vertical space. Non-rising stems keep threads enclosed, protecting them from contaminants but complicating status monitoring. Choose based on installation constraints: rising for accessibility, non-rising for compact setups.
Seat ring materials determine longevity under abrasive or corrosive conditions. Hard-faced alloys like Stellite resist wear but increase costs significantly. Soft seats–PTFE or elastomers–provide superior sealing in low-pressure systems but degrade under thermal cycling. Always cross-reference media compatibility charts before selection.
- Check bonnet connection method: bolted designs offer robustness but require periodic retightening; welded bonnets eliminate leaks but complicate maintenance.
- Verify stem packing layers: graphite for high temperatures, PTFE for chemical resistance, triple-layered combinations for critical applications.
- Assess flange ratings: PN16/Class 150 suits standard pipelines, while PN40/Class 300 handles elevated pressures.
Identify auxiliary components like bypass lines for pressure equalization or lubrication ports for stem maintenance. These often-overlooked elements can extend service intervals by 30-40% when properly utilized. Include them in preventative maintenance schedules to avoid premature failures, particularly in high-cycle operations.
How to Read Fluid Path Indicators in Isolation Mechanism Blueprints
Identify the arrow marking fluid movement–this is the primary visual cue in technical drawings of shutoff devices. Arrows typically align parallel to the pipeline, pointing from the inlet toward the outlet. If absent, rely on the orientation of internal components: the wedge or disk always travels perpendicular to the flow path when actuated.
Examine the port labeling. Inlet ports (often marked “P” for pressure or “IN”) are usually positioned opposite the actuator, while outlet ports (“OUT” or “T” for tank) face the direction of intended discharge. Some designs use numerical tags (e.g., “1” for inlet, “2” for outlet) standardized by ISO 5211.
Check for tapered seat profiles. The seating surface with a wider diameter faces upstream, while the narrower end aligns downstream. This conical arrangement ensures positive sealing when the closure mechanism engages. In metal-seated units, upstream seating typically includes a replaceable insert for wear compensation.
Critical Annotations in Assembly Documentation
Locate dimension lines indicating “face-to-face” measurements–these often reveal flow orientation. ANSI B16.10 specifies face-to-face lengths, with flanged ends consistently positioned to maintain proper fluid transit. A shorter distance from flange to closure mechanism usually corresponds to the inlet side.
Review cross-sectional views for actuator alignment. Rising-stem designs have stems that withdraw vertically when opening; the stem’s base always connects to the upstream side. Non-rising stems rotate without vertical displacement, but the handwheel or gearbox orientation remains a reliable directional indicator.
Note material flow arrows embedded in casting markings. Foundries imprint arrows on body exteriors during molding, particularly in API 600-compliant units. These arrows correlate with internal flow channels and override conflicting port labels in rare assembly errors.
Troubleshooting Ambiguous Representations
When documentation lacks clear indicators, apply a pressure test using low-volume air or water. Introduce fluid at suspected inlet ports: leakage through bonnet seals confirms reverse installation. For drip-tight or bubble-tight classes, even minor seepage indicates incorrect orientation.
Consult flange bolt patterns. Raised-face flanges with spiral-wound gaskets typically position the groove toward the pressure source. Ring-type joint (RTJ) flanges show deeper grooves on the upstream side, designed to contain higher-pressure media without extrusion.
Common Symbols and Notations in Industrial Flow Control Illustrations
Standardized markings in technical drawings ensure clarity across engineering disciplines. A vertical line intersecting a pipe representation indicates a wedge-type isolating element, differentiated by arrow placement: arrows pointing away denote a rising stem mechanism, while arrows aligned along the line signal a non-rising variant. Parallel hash marks on the stem denote threaded connections, with single hash marks for male threads and double hash marks for female fittings. For actuated versions, a square or circle appended to the top signifies manual operation, whereas a dashed line connecting to an adjacent box indicates pneumatic or electric control.
Pressure ratings appear as numerical values adjacent to the body symbol, typically in libras per square inch (PSI) or kilopascals (kPa). ANSI 150# uses a single horizontal line beneath the main figure, while ANSI 300# adds two lines, and ANSI 600# three. Flanged ends show as T-shaped extensions at connection points, with raised-face flanges depicted by small concentric circles inside the flange outline. Butt-weld ends appear as simple perpendicular lines, whereas threaded ends include an additional internal hash mark within the pipe boundary.
Material and Finish Indicators
Material specifications utilize letter codes placed next to components. “CS” represents carbon steel, “SS” denotes stainless variants, “CI” for cast iron, and “BR” for bronze. Seat material appears in brackets beside the sealing element symbol; common notations include “PTFE” for polytetrafluoroethylene, “EPDM” for ethylene propylene diene monomer, and “MET” for metallic seating surfaces. Surface finish requirements show as “Ra 32” or “Ra 63” microinch values adjacent to sealing areas, with higher numbers indicating coarser finishes critical for tight shutoff performance.
