How Hydroelectric Power Plants Work Step-by-Step Schematic Explanation

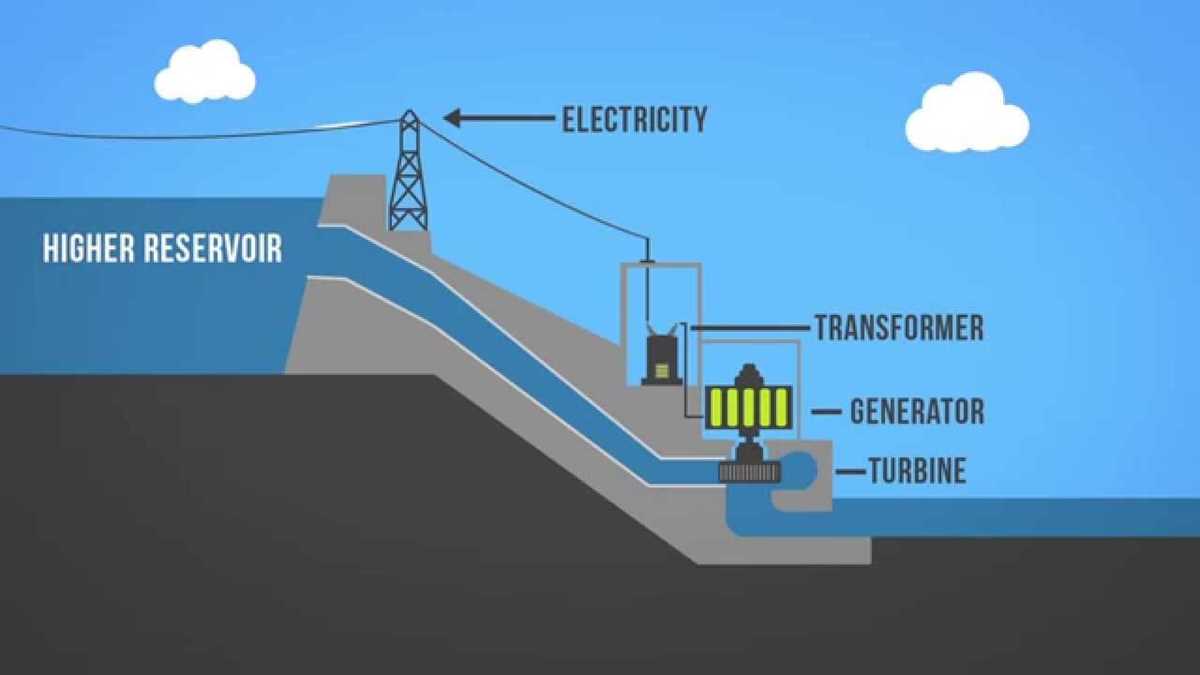

Start by examining the core layout: a dam intercepts a river, creating an elevated reservoir. The headrace tunnel, typically lined with reinforced concrete, channels water at a velocity of 8–12 m/s toward the turbines. Place the intake gate 6–10 meters below the reservoir’s maximum water level to prevent vortex formation and sediment ingress. Install trash racks with bar spacing of 20–80 mm–finer for Kaplan runners, coarser for Francis units.
Position the penstock at a slope between 10° and 20° to balance flow acceleration with head loss; steeper angles increase turbulence and cavitation risk. Use high-strength steel (ASTM A517 Grade F) for penstock walls thicker than 15 mm to withstand pressures exceeding 10 MPa in plants with heads above 200 m. Embed the surge tank 3–5 diameters upstream of the turbine to dampen water hammer: orifice diameters should equal 20–30% of the penstock’s cross-section.
Select the turbine based on site specifics: Pelton wheels operate efficiently between 300–1,800 m head, Francis turbines 50–500 m, and Kaplan propellers below 50 m. Mount the generator’s rotor on the turbine shaft with angular misalignment kept under 0.05 mm; misalignment beyond 0.1 mm accelerates bearing wear and reduces efficiency by 0.5–1.2%. Ground the stator frame with copper rods minimum 25 mm² cross-section to handle fault currents of 10–50 kA.

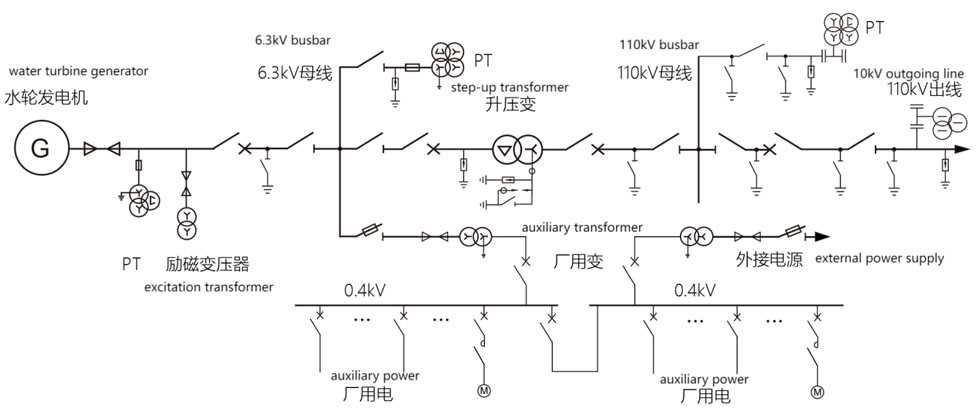

Route the low-voltage busbars from the generator to the step-up transformer via enclosed busducts–maintain spacing of minimum 1 meter between phases for 11 kV systems. Install disconnect switches rated for 125% of the system’s maximum short-circuit current on both sides of the transformer. Configure protection relays with pickup settings of 115% for overcurrent and 90% for undervoltage; response times must stay under 80 ms to prevent turbine runaway events.
Direct the tailrace at a slope of 1–3% to ensure water exits at 1.2–2 times the turbine’s intake flow rate–swifter discharge prevents backflow and cavitation at the runner blades. Install sediment flushing outlets at the lowest point of the tailrace basin; gates should open within 3–5 minutes during high-silt events to avoid abrasion. Monitor downstream dissolved oxygen levels–keep them above 5 mg/L to comply with aquatic life regulations; aerating weirs at the outlet can elevate DO by 30–50%.
Key Components of a River-Based Energy Generation System
Begin by identifying the dam’s intake gates–they control water flow with precision, typically operating at 2-5 meters per gate opening to balance pressure and prevent cavitation. Install pressure sensors at 3-meter intervals along the penstock to detect leaks early; a drop below 90% nominal pressure triggers immediate maintenance alerts.
Use Francis turbines for heads between 15-300 meters; their efficiency peaks at 94% under optimal conditions. Pair them with generators rated at 10-700 MW, ensuring stator cooling via closed-loop water systems with a maximum temperature rise of 30°C to avoid insulation degradation.
Locate the transformer yard within 200 meters of the generator to minimize transmission losses–copper conductors reduce resistance by up to 40% compared to aluminum at 500 kV. Equip step-up transformers with on-load tap changers to maintain output within ±0.5% of the grid’s 50/60 Hz requirement.
Incorporate spillway gates with a capacity of 1.5x the maximum flood flow to prevent overtopping. Radial gates require hydraulic actuators with a 99.9% uptime guarantee; piston failures can breach safety margins within 12 minutes under full flood conditions.
The tailrace design dictates turbine efficiency–ensure a submerged outlet at least 2 meters deep to minimize vortex formation. For low-head stations (under 30 meters), Kaplan turbines with adjustable blades achieve 92% efficiency, but blade angles must be recalibrated every 1,000 operating hours to account for wear.
Integrate a SCADA system with redundant fiber-optic links to monitor vibration, temperature, and flow rates in real time. Critical alarms (e.g., bearing temperatures exceeding 85°C) should bypass operator approval and trigger automatic shutdown within 5 seconds.
Grounding grids must extend beyond the facility’s perimeter by at least 0.5 meters per kV of system voltage–for a 500 kV station, this means a 250-meter radial spread with copper conductors buried at 0.8 meters depth to dissipate 10 kA fault currents safely.
Critical Elements in Energy Generation Blueprints
Locate the penstock immediately after the intake gates–its angle must not exceed 15° from horizontal to prevent cavitation and velocity losses. Larger installations benefit from reinforced concrete penstocks with steel linings, reducing friction coefficients to 0.012–0.014, while smaller turbines often use exposed steel pipes with localized thickening at joints. Pressure relief valves should be spaced every 200 meters to mitigate water hammer effects, calculated using the Joukowsky equation with pipe elasticity constants specific to the material.
Turbine Selection Criteria
Francis runners dominate medium-head systems (30–300m) due to their 90–95% efficiency curve across a 60–100% flow range but require precise blade angles–errors beyond ±2° reduce output by 4–7%. Kaplan designs thrive in low-head environments (5–30m) with adjustable blades synchronized to the guide vane position via mechanical servomotors or digital PID controllers, maintaining optimal angle of attack at varying loads. Pelton wheels, reserved for high-head sites (300m+), achieve 85–90% efficiency only when jet diameters align within 0.1% of the calculated value using the nozzle coefficient (typically 0.97–0.99).
Draft tubes in reaction turbines must taper gradually–cross-sectional area expansion ratios between 2.5:1 and 4:1 prevent flow separation, while vertical extensions below tailwater elevation recover 7–12% more kinetic energy. Generators should use laminated silicon steel cores (0.35mm thickness) to limit hysteresis losses to ≤2.5% at 60Hz, with water-cooled stator windings mandatory for units exceeding 100MVA. Excitation systems require redundant thyristor bridges to maintain voltage regulation within ±0.5% during transient load swings, calculated via the Heffron-Phillips model with real-time power angle feedback.
Decoding Fluid Movement and Energy Transformation in Water-Driven Systems
Locate the reservoir intake first–this is where potential energy accumulates. Identify the narrow gates or valves regulating water release; their positioning directly affects pressure buildup. Trace the penstock line downward: each meter of vertical drop translates to approximately 9.81 kPa of pressure gain per cubic meter of water. Note sharp bends or diameter changes in the conduit–they introduce friction losses, reducing efficiency by 2-5% in typical installations.
Key Conversion Points to Track
| Stage | Input Form | Output Form | Typical Efficiency Range |
|---|---|---|---|
| Intake to Penstock | Gravitational Potential | Kinetic + Pressure | 95-98% |
| Turbine Blades | Hydraulic Energy | Mechanical Rotation | 90-96% |
| Generator | Mechanical Torque | Electrical Current | 97-99% |
Follow the turbine housing details. Reaction turbines (Francis, Kaplan) convert pressure energy gradually through vane curvature–expect 3-7% losses from vortex formation. Impulse turbines (Pelton) rely on high-velocity jets; check nozzle alignment–misalignment by 0.5° can drop efficiency by 1.2%. Look for draft tubes beneath turbines: their conical shape recovers 60-80% of velocity head, critical in low-head setups.
Examine the tailrace exit. Water velocity below 0.3 m/s indicates suboptimal flow recovery, suggesting sediment buildup or improper turbine settings. Compare inlet and outlet elevations–every meter of un-recovered head represents lost generation opportunity. For a 50 MW facility, each 0.1 m of avoidable head loss equals ~$15,000/year in forgone revenue at $0.05/kWh rates.
Study transformer symbols–step-up ratios above 1:20 suggest distant grid connections requiring extra insulation. Locate voltage regulators: their strategic placement between generator and transmission lines prevents cascading outages during transient loads. Check surge tanks if present–their absence in high-head systems risks penstock rupture from water hammer effects, which can exceed 200% of static pressure.
Operational Indicators Hidden in Flow Lines
Dashed lines often denote auxiliary flows–track them to cooling circuits or bearing lubrication. If lines return to the main conduit, expect temperature rises of 0.5-2°C per pass, affecting turbine blade cavitation thresholds. Solid bold lines through electrical components represent busbars; their thickness correlates to current capacity–1 cm² typically handles 3-5 A/mm² in aluminum designs. Cross-reference flow directions with valve states: normally closed valves in bypass routes signal standby operations or maintenance configurations.
Building a Water Energy Illustration from Scratch
Begin by drafting a reservoir outline at the highest elevation on your layout, ensuring a minimum vertical drop of 15 meters to the turbine for adequate pressure. Use a 0.5mm technical pen for precision–ink thickness affects clarity when scanning. Label the intake gate with dimensions: 3 meters wide, 2 meters tall, reinforced with 12mm steel plating.
- Position the penstock pipe at a 30-degree angle from the reservoir base to minimize friction losses–10% less than vertical drops under 50 meters.
- Select a Francis turbine if water speed exceeds 5 m/s; Pelton wheels for higher heads (above 100m). Note efficiency drops below 85% if sediment exceeds 200ppm.
- Mount the generator 1 meter above the turbine housing to prevent flooding; seal bearings with graphite-based grease for humidity resistance.
Draw power lines at 45-degree angles from the generator to the transformer station, spacing cables 1.5 meters apart to prevent electromagnetic interference–copper strands must exceed 16mm² cross-section for 2MW output. Include surge arrestors every 200 meters along the route: zinc oxide varistors rated at 1.2× system voltage.
For the tailrace channel, use trapezoidal dimensions: 4 meters bottom width, 6 meters top, 3 meters depth–slopes of 1:1.5 reduce erosion by 40% compared to rectangular channels. Annotate flow speed (2–3 m/s) and sediment load limits (max 150mg/L). Place the draft tube 3 meters below the turbine’s exit, angling it 10 degrees upward to recover kinetic energy–this boosts efficiency by 2%.
- Verify all annotations against actual site data before finalizing the draft; discrepancies over ±5% invalidate hydrodynamic calculations.
- Color-code components: blue for water paths, red for electrical, black for structural–use Pantone Process Blue and 185C for consistency.
- Scan at 600 DPI for vector conversion; cleanup in CAD software requires less than 0.2mm line tolerance.
