Complete Kenwood DMX8709S Car Stereo Wiring Guide and Diagram

For seamless audio integration in your vehicle’s sound system, use the 16-pin ISO connector as your primary interface. Pin assignments follow a standardized layout: pins 1–4 handle front speaker outputs (left positive/negative, right positive/negative), while pins 5–8 cover rear channels. Ground returns occupy pins 13–14, with constant 12V power on pin 11 and ignition-switched 12V on pin 10. Verify continuity with a multimeter before securing connections–resistance above 0.5 ohms suggests corrosion or loose terminals requiring re-crimping.

The amplifier turn-on lead (pin 9) demands a direct link to the factory harness’s remote wire; splicing it elsewhere risks delayed audio initialization or boot loops. For aftermarket amplifiers, route this signal through a 1A fuse holder within 18 inches of the power source to prevent voltage drops. Color-coding adheres to DIN standards: yellow for permanent power, red for ignition, and blue/white for the amp trigger. Deviations from this scheme indicate prior modifications requiring schematic cross-referencing.

Digital signal integrity hinges on proper grounding–connect the head unit’s chassis ground (pin 12) to a bare metal point on the vehicle’s firewall, avoiding painted surfaces. Use 12-gauge wire for speaker outputs to minimize signal degradation on runs exceeding 12 feet. For vehicles with factory steering wheel controls, wire the data bus (pin 7) to the corresponding interface module using shielded twisted-pair cable, terminated with 120-ohm resistors to prevent electrical interference.

Subwoofer pre-outs (pins 15–16) require RCA cables with gold-plated connectors and impedance-matched shielding to preserve low-frequency clarity. Test for noise by playing a 50Hz sine wave at half volume–audible hum indicates ground loops, solvable via a 1:1 isolation transformer or relocating the head unit’s ground point. When integrating with OEM navigation, bypass the factory mute wire (pin 6) by bridging it to constant power unless utilizing voice guidance–then route it through a relay controlled by the parking brake circuit.

Installation Guide for the DMX8709S Multimedia Interface

Connect the 12-pin harness to the rear of the unit’s main plug, ensuring pin alignment matches the manufacturer’s color-coding: yellow (constant +12V), red (accessory), black (ground), and orange (illumination). For aftermarket amplifiers, splice the blue/white remote turn-on wire directly to the head unit’s corresponding lead–this triggers power delivery only when the system activates. Avoid twisting wires; use crimp connectors or solder joints with heat-shrink tubing to prevent corrosion or short circuits.

Verify speaker outputs with a multimeter before finalizing connections–left front (+) should register 4 ohms at 20W RMS, while subwoofer channels require a dedicated line-level RCA output bridged to an external amplifier for optimal bass response. If integrating steering wheel controls, route the pink/white data cable to the vehicle’s OEM module without altering the CAN bus protocol; incorrect wiring risks triggering fault codes in the dashboard display.

Identifying Power and Ground Connections for Your Multimedia Receiver

Begin by locating the permanent power cable (typically yellow, 14-18 AWG) on the back panel of your device. Connect this directly to the vehicle’s battery positive terminal using an in-line fuse rated no higher than 15 amperes, positioned within 15 cm of the battery. Avoid splicing into existing circuits or accessory wires–this ensures stable current delivery during high-load operations like startup or audio amplification.

Verify ground integrity by attaching the black ground wire (minimum 14 AWG) to a bare metal chassis point free of paint, rust, or coatings. The ideal grounding spot should be within 30 cm of the unit’s mounting location, preferably near factory grounding studs. Test resistance between the ground point and battery negative with a multimeter–values exceeding 0.2 ohms indicate a poor connection requiring re-cleaning or relocation.

Wire Color	Function	Recommended Gauge	Connection Notes
Yellow	Constant 12V	14-16 AWG	Fused (≤15A), direct to battery
Red	Switched 12V	16-18 AWG	Connect to ignition-switched source
Black	Chassis Ground	14 AWG	Bare metal, no intermediaries

For switched power (commonly red), route this to an ignition-controlled source, ensuring the wire gauge matches the expected current draw (usually 5A or less). Confirm proper operation by toggling the ignition–display illumination should mirror key positions without flickering or delayed response. If dimming occurs when the system is active, upgrade all power/ground wires to 12 AWG and recheck connections.

Proper Speaker Cable Installation for Your Multimedia Receiver

Locate the amplifier connections on the rear panel–four pairs of color-coded terminals marked Front (white/white-black), Rear (gray/gray-black), Subwoofer (purple/purple-black), and optional Center channel (green/green-black). Each pair consists of a positive (+) and negative (-) post; verify polarity before inserting any stranded conductor.

Strip 8 mm of insulation from each copper strand, twist tightly to prevent fraying, then crimp an insulated female spade lug rated for 18–14 AWG wire. Avoid soldering; heat can damage adjacent components. Match each lug to its corresponding terminal color code: white for left front, white-black for right front, gray for left rear, gray-black for right rear, etc.

Insert spade lugs vertically into binding posts, ensuring bare wire does not touch adjacent terminals. Secure with the included plastic caps tightened clockwise until snug–do not overtighten, as cracked caps will loosen over time. Double-check that no stray strands bridge terminals after fastening.

• Front left: white (+), white-black (-)
• Front right: gray (+), gray-black (-)
• Rear left: green (+), green-black (-)
• Rear right: purple (+), purple-black (-)

Route cables away from moving parts, sharp edges, and heat sources like exhaust tunnels. Use split-loom tubing or automotive-grade conduit for runs exceeding 4 meters to reduce interference. Keep subwoofer cables separate from power lines and OEM harnesses to prevent induced noise.

Diagnosing Connection Issues

If audio distortion appears, immediately switch off the system and inspect terminals for oxidation. Clean both male posts and female lugs using a contact cleaner spray and microfiber swab. Verify continuity with a multimeter set to 200 ohms–readings above 0.5 ohms indicate problematic connections requiring recrimping or replacement.

After securing all conductors, perform a chassis ground check: place a multimeter probe on the unit’s metal frame and the other on the vehicle’s chassis. Readings below 0.1 ohms confirm proper grounding; higher values demand tracing the ground lead back to the battery negative or a dedicated chassis stud.

Step-by-Step RCA Cable Installation for Your Multimedia Receiver

Power off the head unit and detach the negative terminal of the vehicle’s battery to prevent short circuits. Locate the rear panel’s AV input/output cluster–marked by color-coded jacks (red, white, and yellow) matching standard composite connectors.

Identify the correct RCA ports based on functionality: subwoofer preamp outputs (typically a single purple or gray pair), front/rear speakers (red/white pairs), and video signals (yellow). Verify channel assignments in the user manual if labels are unclear–mismatches cause audio imbalance or signal dropouts.

Route cables from the receiver to the amplifier or system components using existing wire channels along the vehicle’s frame. Avoid sharp edges, moving parts, and heat sources; secure excess length with zip ties every 12 inches to prevent interference or damage. Use a dash panel removal tool to lift trim sections, exposing hidden pathways for cleaner installation.

Connecting and Testing the Cables

Insert each RCA plug firmly into its corresponding jack until it clicks. Tug gently to confirm engagement–loose connections produce static or intermittent sound. For multi-zone setups, trace cables individually to assign sources correctly (e.g., DVD player to Zone 2 outputs).

Reconnect the battery terminal and power on the unit. Select the appropriate input mode (e.g., “AUX” or “Video”) using the touchscreen or rotary knob. Play a test track or video; verify balanced audio across channels and stable video playback. Adjust amplifier gain settings if distortion occurs–start at 50% and fine-tune based on sound clarity.

If signal issues persist, inspect cables for frayed shielding or bent pins. Replace damaged connectors immediately; high-quality OFC (oxygen-free copper) cables reduce noise in long runs. For hybrid setups (e.g., rearview camera + audio), ensure the yellow RCA is dedicated to video input only–shared connections degrade performance.

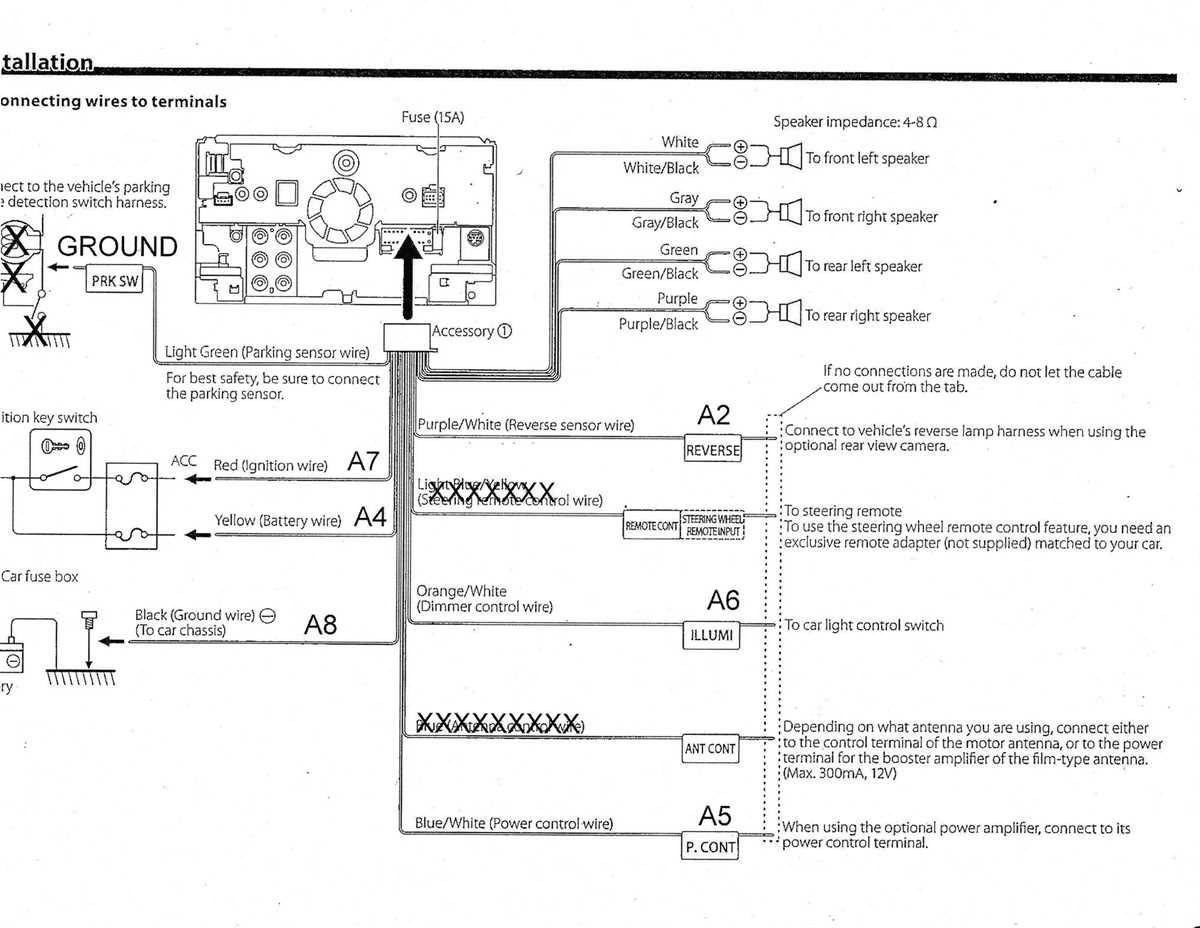

Color Code Guide for Aftermarket Multimedia System Harness

The 16-pin connector on the back of your unit follows a strict color scheme to ensure correct device integration. Match each wire precisely–deviation risks signal loss or hardware damage. Below is the reference for the primary harness:

• Yellow – Constant 12V power (battery line). Connect directly to the vehicle’s main battery feed via a 15A fuse. Avoid splicing into accessory circuits.
• Red – Switched 12V (ignition). Attach to a circuit that energizes when the key is turned. Verify voltage drops below 0.5V when the engine is off.
• Black – Ground. Secure to the chassis using a bolt free of paint, rust, or sealant. Minimum 12-gauge wire recommended.
• Blue/White – Amplifier remote turn-on. Connect to the car’s amp trigger or aftermarket amplifier remote input. Respect the 300mA current limit.
• Gray – Front right speaker (+). Pair with the corresponding violet (-) lead. Observe polarity–reversal distorts audio.
• Violet – Front right speaker (-). Twist this wire with the gray (+) to reduce interference.
• White – Front left speaker (+). Match with green (-). Shield these pairs from power wires to prevent buzzing.
• Green – Front left speaker (-). Route away from motor or alternator lines.
• Green/Black – Rear left speaker (+). Combine with orange/black (-). Use twisted pairs for stereo separation.
• Orange/Black – Rear left speaker (-). Secure connections with crimp connectors or solder.
• Purple – Rear right speaker (+). Link to brown (-). Test impedance (4-8 ohms) before finalizing.
• Brown – Rear right speaker (-). Keep wire runs under 12 feet to preserve signal strength.
• Pink – Reverse signal input. Attach to the vehicle’s backup light wire if planning rearview camera integration. Ensure voltage drops to 0V when shifting out of reverse.
• Light Green – Parking brake or handbrake input. Ground this wire for video display while driving (check local laws).
• Orange – Illumination/dimming control. Connect to the dashboard dimmer circuit. Voltage should range from 0-7V for proper brightness scaling.
• Blue/Yellow – Steering wheel control interface (if equipped). Requires a dedicated adapter module for most vehicles.

Sort wires by length before installation. Label each using heat-shrink tubing or masking tape to prevent confusion during routing. Avoid bundling speaker wires with power or ground lines–maintain a 6-inch separation to minimize noise.

For aftermarket amplifiers, splice the RCA outputs (not color-coded in this connector) separately. Use shielded coaxial cables and ground the shielding at the head unit end only to eliminate ground loops.

Verify all connections with a multimeter before powering on the system. Check for:

1. Continuity on ground (black wire to chassis).
2. 12V on yellow with engine off (constant power).
3. 0V on red until ignition is turned on.
4. No voltage on blue/white until amplifier is required.

Fuse the yellow wire within 6 inches of the battery terminal. Use a fuse rating matching the device’s manual (typically 15A). Never substitute fuse types–AGC or slow-blow may not protect adequately.

If integrating a backup camera, the pink wire must receive a clean 12V signal only when the vehicle is in reverse. Test this before final assembly to avoid camera damage or false triggers.

When routing wires through firewall grommets, use nylon fish tape to prevent abrasion. Secure wires every 12 inches using cable ties or loom to prevent rattling or pinching from moving parts. Double-check all connections against this guide before closing panels.
