Step-by-Step Protoplast Fusion Schematic for Genetic Engineering Methods

To merge plant or microbial cells stripped of their walls, begin by isolating viable units under isotonic conditions (0.5–0.7 M mannitol or sorbitol). Use enzymatic digestion with cellulases and pectinases at 25–30°C for 1–4 hours–monitor progress every 30 minutes under phase-contrast microscopy to avoid over-digestion. Centrifuge at 100×g for 5 minutes to pellet intact spheres; discard supernatant containing debris. Wash twice with osmostabilizer to remove residual enzymes.

For pairing, select cells with complementary traits: auxotrophic mutants or antibiotic-resistant strains. Resuspend in fusion buffer (PEG 4000–6000, 30–40% w/v in 0.1 M CaCl₂, pH 5.8) at a 1:1 ratio (10⁶ cells/mL each). Incubate for 15–20 minutes at room temperature–agitate gently every 5 minutes to prevent aggregation. Gradually dilute PEG with osmoticum over 10 minutes to halt fusion; abrupt dilution causes lysis.

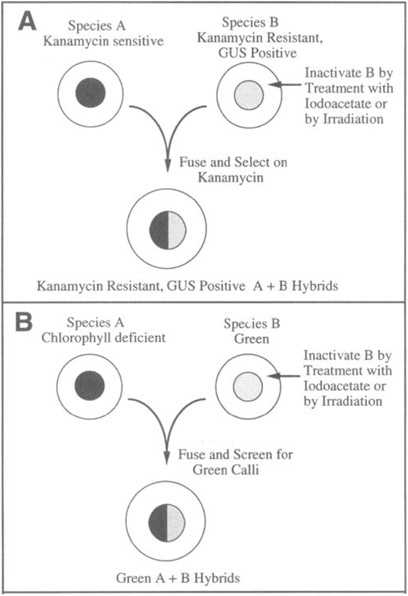

Plate on selective media containing both nutritional deficits and antibiotics–only hybrid entities will grow. Use soft agar overlays (0.7% agar) to improve colony formation. Confirm recombination via PCR targeting marker genes: design primers spanning fusion breakpoints with 60–65°C annealing temperatures for specificity. Expect 5–15% efficiency; optimize PEG molecular weight or electrical pulse parameters (250–500 V/cm, 20–50 µs) if yields are low.

Store successful hybrids in glycerol stocks (15–20% v/v, −80°C) or lyophilize with cryoprotectant (5% trehalose). Replicate experiments using different cell lines–variance in wall composition affects enzyme access. For fungi, replace cellulases with chitinases (1 mg/mL); adjust osmolarity to 0.8–1.0 M for yeast. Document osmotic tolerance thresholds–some hybrids require gradual adaptation to hypotonic conditions before plating.

Visual Representation of Cell Hybridization

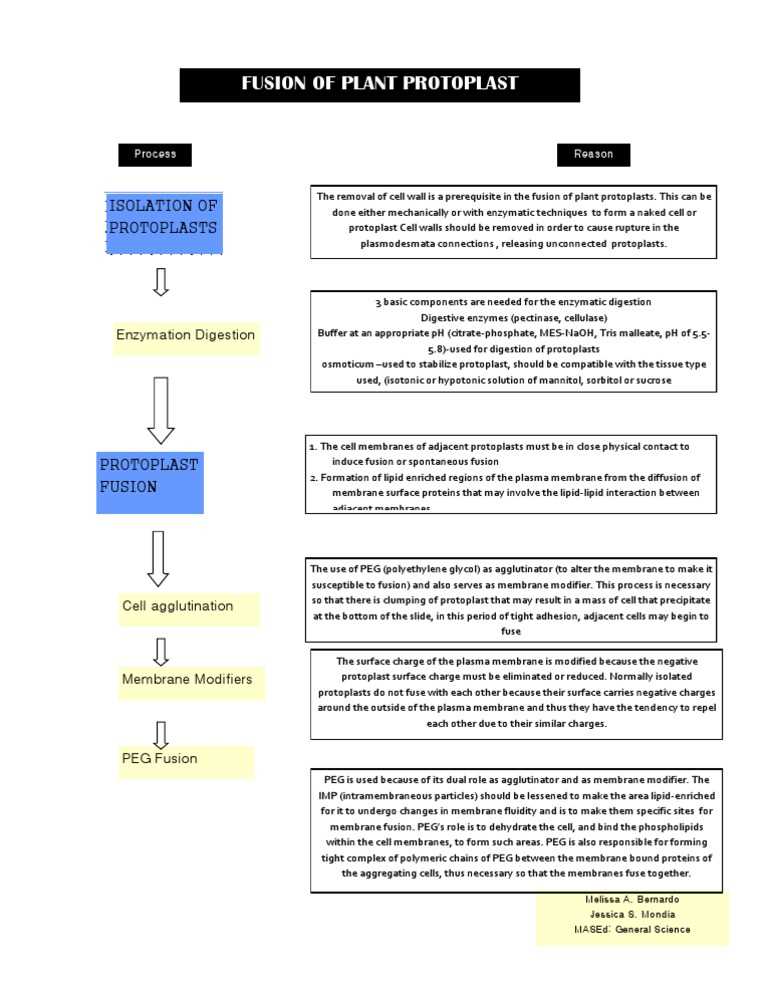

Begin by isolating wall-less cells from plant, fungal, or bacterial cultures using enzymatic digestion with cellulases, pectinases, or lysozyme–tailor enzyme mixtures to the cell type for optimal yield. Ensure osmotic stabilization with 0.4–0.6 M mannitol or sorbitol to prevent lysis during incubation (30–90 min at 25–30°C). Centrifuge at 100–200 × g for 5–10 min to pellet viable units, then resuspend in a buffered mannitol solution (pH 5.6–5.8) at 1–2 × 10⁶ cells/mL.

Combine equal volumes of paired cell suspensions in a sterile container and add 20–40% (v/v) polyethylene glycol (PEG) 4000–6000 or calcium nitrate (50–100 mM) to induce aggregation. Gently agitate the mixture for 10–30 min at 20–25°C, then dilute gradually with osmoticum to halt interaction. Key variables:

• PEG concentration: Higher than 40% increases toxicity but improves clumping.
• Divalent cations: Ca²⁺ enhances bridging; Mg²⁺ at >100 mM inhibits fusion.
• Incubation time: Extend beyond 30 min risks viability loss (monitor with fluorescein diacetate staining).

Transfer the treated cells to a regeneration medium (e.g., Murashige and Skoog with 0.5 M sucrose) within 2 hours to prevent osmotic shock. Plate at densities of 10⁴–10⁵ units per 90 mm dish to allow recovery. Use selective markers (antibiotic resistance, auxotrophic complementation, or fluorescent tags like GFP/RFP) to distinguish hybrid colonies–screen 48–72 hours post-treatment under a fluorescence microscope for dual-labeled cells.

Verify successful hybridization through karyotyping or PCR targeting species-specific sequences. For plant cells, include a 0.1–0.2% agar overlay to prevent desiccation during early regeneration. Store mixed populations at 4°C in darkness for up to 7 days if immediate processing is delayed–viability drops by 15–20% per day beyond this window. Document each step with phase-contrast images (magnification 200–400×) to track morphological changes, such as the transition from aggregated clusters to single, enlarged cells.

Core Elements for Depicting Cell Hybridization Visuals

Start with isolated viable cells stripped of their outer walls–spherical, membrane-bound units suspended in an isotonic medium (0.5–0.7 M mannitol or sorbitol). Label these as “wall-free cellular units” with a diameter range of 20–50 μm to reflect natural variation. Include a Ca²⁺ ion buffer (10–50 mM) in the illustration, represented as small charged spheres clustering near the cell membranes, as these ions stabilize interactions during adhesion.

Add polyethylene glycol (PEG, MW 4000–8000) at 20–40% concentration, illustrated as a viscous layer enveloping the cells. Use wavy lines to show its gradual application, ensuring contact bridges form between adjacent membranes. Annotate the PEG’s role as a membrane fusogen, reducing repulsion by altering surface charge density. Avoid generic labels–specify “PEG 6000” and its molecular weight for accuracy.

Depict two distinct parental cell types–one marked with a fluorescent dye (e.g., FDA or GFP) and the other with a vital stain (e.g., propidium iodide)–to demonstrate post-merger verification. Show their distinct fluorescence under separate excitation wavelengths (UV/blue for GFP, green/red for PI) in a small inset legend. This differentiation confirms hybrid viability and prevents false positives from non-fused aggregates.

Include a time-lapse progression: initial close contact (0–5 min), membrane fusion (10–30 min), and cytoplasmic mixing (60+ min). Use arrows to indicate sequence, with thicker arrows for later stages. Label bi-phasic kinetics–lag phase (membrane rearrangement) and rapid phase (organelle redistribution)–measured via photomicroscopy at 10-minute intervals. Add a scale bar (10 μm) for context.

Highlight osmotic stabilization by surrounding cells with a buffered solution (pH 5.6–5.8) containing 5–10 mM MES and 1% bovine serum albumin. Show this as a faint blue gradient, emphasizing temperature control at 22–25°C to prevent lysis. Annotate osmolarity (600–700 mOsm/kg) and warn against sudden osmotic shifts, which cause membrane blebbing.

Finish with recovery conditions: replace PEG with fresh medium after 30–60 minutes, then incubate hybrids in low-light (10–20 μE/m²/s) for 24–48 hours. Add a magnified view of heterokaryons at 72 hours, showing merged nuclei or chimeric chloroplasts to validate successful recombination. Use dotted lines to outline residual PEG removal and include antibiotic resistance markers (e.g., kanamycin or hygromycin) as verification tags.

Step-by-Step Preparation of Cellular Units for Genetic Merging

Begin by selecting healthy, actively dividing plant tissue–preferably young leaves or undifferentiated callus cultures–since their cell walls yield more efficiently to enzymatic breakdown. Standard conditions require 1.5–2.5% (w/v) cellulase Onozuka R-10 and 0.3–0.5% (w/v) macerozyme R-10 in an osmotic-stabilizing buffer (e.g., 0.4–0.6 M mannitol or sorbitol) at pH 5.6–5.8. Incubate at 28–30°C for 2–4 hours under gentle agitation (40–60 rpm) to prevent clumping; longer exposure risks cytoplasmic leakage.

Filter the suspension through 40–70 µm nylon mesh to remove undigested debris, then centrifuge the filtrate at 100–150 × g for 5–8 minutes to pellet the isolated spheroplasts. Wash twice with fresh osmoticum (same molarity) to eliminate residual enzymes–failure here introduces protease contaminants that degrade membrane integrity. For fungal or bacterial cells, swap cellulases for lysozyme (500–1000 U/mL) or snailase (1–2% w/v) and adjust buffer to pH 6.2–6.5 with CaCl₂ (1–10 mM) to stabilize membranes.

Fine-Tuning Osmotic and Ionic Conditions

Resuspend the pelleted units in a calcium-magnesium buffer (0.5–0.7 M mannitol, 10–20 mM CaCl₂, 5–10 mM MgSO₄) to enhance adhesion during subsequent merging steps. Viability drops sharply below 0.3 M osmoticum or above 1.0 M, so titrate carefully against species-specific tolerances–*Nicotiana tabacum* tolerates 0.5 M, while *Solanum tuberosum* requires 0.4 M. Test viability via fluorescein diacetate (FDA) staining (5 µg/mL, 5-minute incubation); exclude preparations with

For PEG-mediated adhesion, add 40% (w/v) polyethylene glycol (MW 4000–8000) dropwise while swirling to achieve a final concentration of 15–25%. Higher MW PEG (6000–8000) reduces toxicity but requires 5–10 mM Ca²⁺ to compensate for weaker bridging. Maintain room temperature (22–25°C) during mixing–chilling causes spontaneous aggregation, while overheating (>30°C) triggers membrane blebbing.

Critical Washing and Storage Parameters

Post-adhesion, dilute the suspension 1:10 with osmoticum over 10–15 minutes to halt PEG action; abrupt dilution ruptures fragile pairs. Centrifuge at 80–120 × g for 3–5 minutes and resuspend in fusion buffer (0.5 M mannitol, 5 mM CaCl₂, 5 mM MES, pH 5.8). Storage beyond 4 hours demands 4°C and 5–10 µg/mL cycloheximide to inhibit protein synthesis, but proceed to merging within 24 hours to avoid viability loss. For electro-assisted merging, replace PEG with 0.3–0.4 M sorbitol/0.1% BSA and adjust conductivity to 10–50 µS/cm via 1 mM KCl to prevent arcing.

Confirm wall removal via calcofluor white staining (0.01% w/v, 5-minute incubation)–residual cellulose fluoresces blue under UV. Discard batches with >5% stained units. For gram-positive bacteria, include 5–10 mM EDTA in the lysozyme step to chelate Mg²⁺ and disrupt teichoic acids; omit Ca²⁺ entirely, as it stabilizes cell walls. Final density should reach 1–5 × 10⁶ units/mL for optimal merging efficiency–lower counts reduce collision frequency, while higher densities promote nonspecific clustering.
