Creating and Understanding Public Address System Schematic Diagrams

Start with a clear signal chain: microphones or audio sources, a mixing console, amplifiers, and speakers. Connect low-impedance inputs (600Ω or less) to preamps or mixers with balanced XLR or TRS cables to minimize interference over long runs. For large venues, distribute line-level signals via twisted-pair copper wiring (Cat5e or better) or fiber optics to avoid voltage drop and latency.

Place amplifiers no more than 30 meters from speakers to maintain power efficiency–beyond this distance, use 70V or 100V constant-voltage lines with transformers at both ends. For outdoor setups, ground all metal components and use surge protectors rated for at least 1.5 kV to prevent damage from electrical spikes. Label every wire and connection with unique identifiers (e.g., “Mic 1 → Mixer Ch1 → Amp A → Front Left”) to simplify troubleshooting.

Position speakers at a height of 2.5–4 meters to ensure even coverage–avoid aiming them directly at reflective surfaces like glass or concrete. For spaces longer than 20 meters, add delay speakers to synchronize audio with the source, preventing echoes. Test frequency response with a pink noise generator and adjust EQ to compensate for room acoustics, targeting a flat curve between 250 Hz and 4 kHz for speech clarity.

Use shielded cables for low-level signals (microphones, instruments) and unshielded for high-level signals (speakers, amplifiers). For temporary setups, opt for Neutrik connectors with locking mechanisms to prevent accidental disconnection. Always include a backup power source (UPS or generator) and a secondary signal path in critical applications, such as emergency announcements or live performances.

Key Components of a Sound Reinforcement Blueprint

Start with a mixing console rated for at least 16 channels if covering medium-sized venues–avoid overloading inputs with low-impedance microphones without transformers. Brands like Soundcraft or Allen & Heath offer models with built-in limiters to prevent clipping during unexpected peaks. Ensure the console has direct outs for subgroup routing to amplifiers, especially in multi-zone setups where different areas require independent volume control.

Select amplifiers based on speaker load requirements, not just wattage. For 8-ohm speakers, match the amp’s RMS output to the speaker’s continuous power handling, adding a 20% buffer for dynamic content. Crown or QSC amplifiers include protective circuits to guard against thermal overload when driving difficult loads, such as distributed ceiling speakers in acoustically challenging spaces.

Use shielded twisted-pair cable for microphone lines to reduce interference from fluorescent lighting or power cables running parallel. For long runs exceeding 50 meters, install in-line transformers to balance signals and maintain clarity. Avoid ordinary speaker wire for low-level signals–opt for XLR or TRS connectors with proper shielding to prevent hum.

• Centralized processing: Integrate a digital signal processor (DSP) like the BSS BLU-806 for crossover points, EQ, and delay adjustments. Program it to compensate for room modes in venues with irregular shapes, using time-aligned delays for speakers covering different distances.

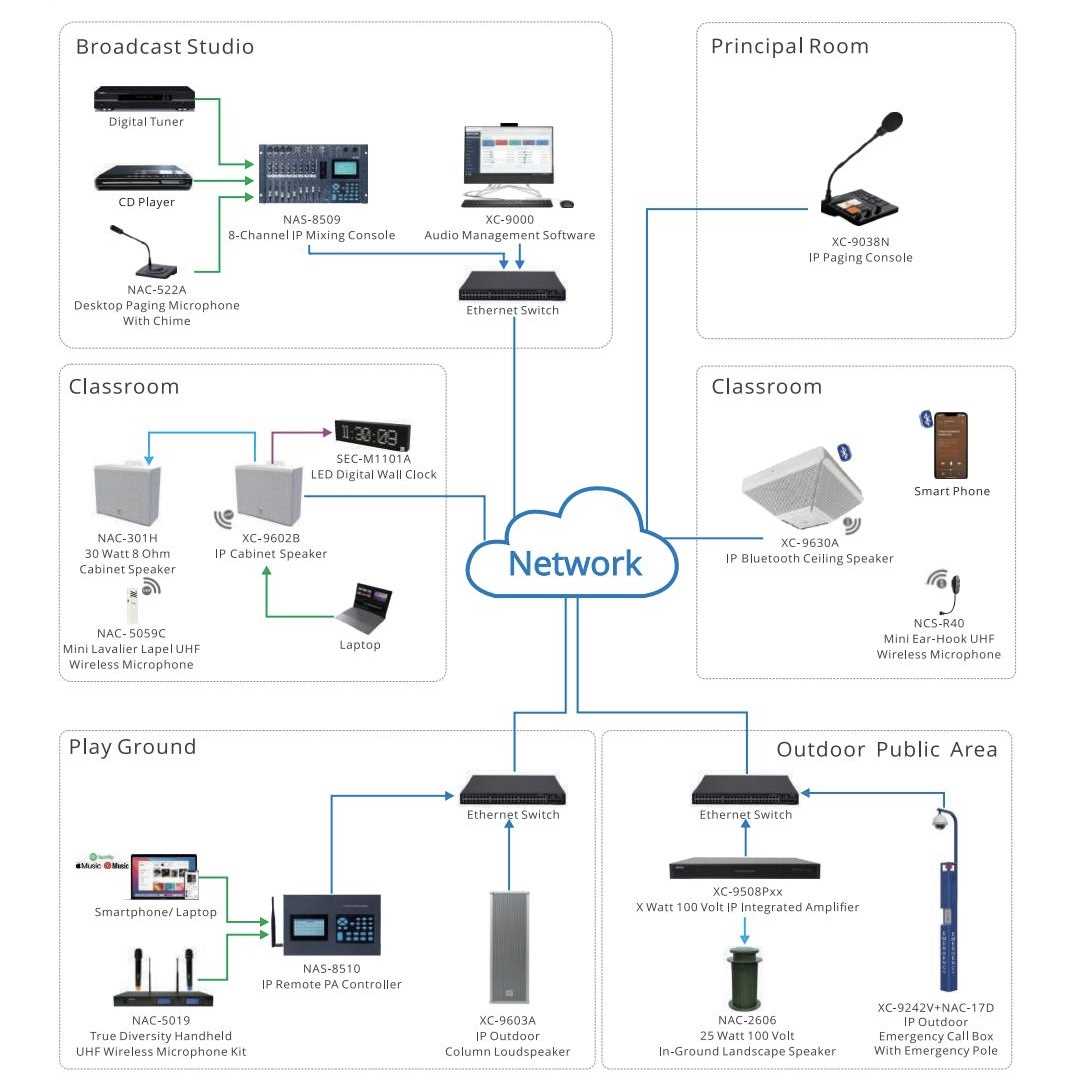

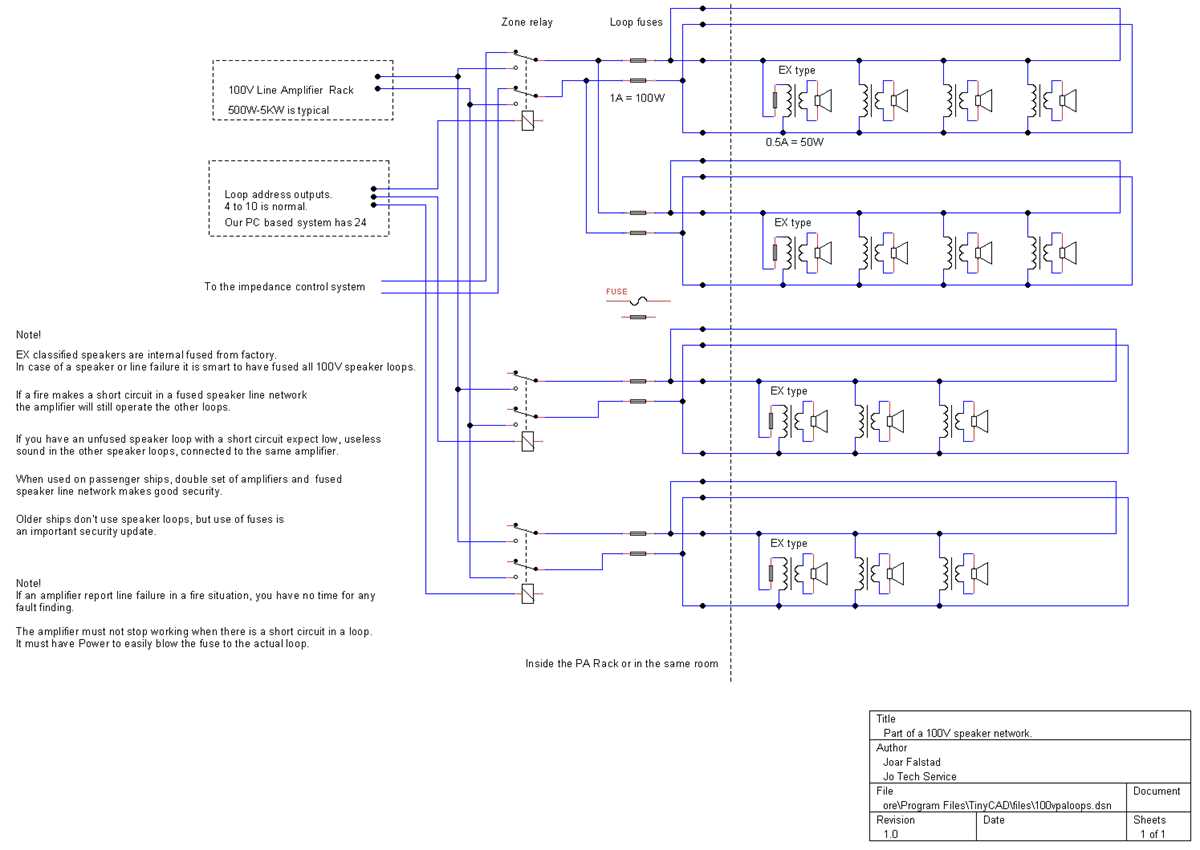

• Distributed zones: For facilities like airports or shopping malls, divide the setup into zones with individual volume controls. Use 70V/100V transformers for distributed speakers to simplify wiring and reduce voltage drop over long distances.
• Emergency override: Hardwire a priority input (e.g., fire alarm panel) to bypass all other signals during emergencies. Test override functionality monthly to ensure it disengages music or announcements instantaneously.

Connector and Termination Standards

Standardize on Neutrik Speakon connectors for speaker cables in portable setups–locking connectors prevent accidental disconnection during performances. For permanent installations, use barrier strip terminals with soldered joints to withstand vibration and temperature fluctuations. Label every cable at both ends with machine-printed heat-shrink tubing to avoid misconnections during maintenance.

Ground the entire setup at a single point to eliminate ground loops. Use star grounding topology: connect all equipment to a central copper busbar, then run a single #10 AWG wire to the building’s main electrical panel. Avoid daisy-chaining grounds, as this introduces noise and potential shock hazards. Install isolated ground receptacles for sensitive components like mixing consoles.

For wireless microphones, position receivers at least 3 meters from transmitters to prevent intermodulation distortion. Use diversity receivers with antennas spaced at 90-degree angles to mitigate multipath interference. Coordinate frequencies with a spectrum analyzer to avoid conflicts with local TV stations or other wireless systems.

1. Speaker placement: Mount horn-loaded speakers at 3-4.5 meters above floor level in large halls to avoid comb filtering. Aim cabinets at the audience’s ear level, tilting downward by 10-15 degrees for optimal coverage. Use boundary-loaded subs in corners for maximum bass efficiency without requiring excessive power.
2. Signal flow verification: Trace every signal path during installation with a polarity tester. Check phantom power delivery on each microphone line to ensure consistent performance across channels. Document impedance measurements at every connection point to identify potential faults before they affect operation.
3. Power sequencing: Use a power conditioner with surge protection and sequential turn-on to prevent inrush current damage. Configure the system to power amplifiers last (after signal processors and mixers) to avoid pops and thumps. Include a UPS for mission-critical announcements, sized to support all core components for 30 minutes of runtime.

Key Components and Their Symbols in a Sound Reinforcement Blueprint

Start by identifying the microphone symbol–a circle with a diagonal line representing a dynamic or condenser input. Condenser mics include a small capacitor icon inside the circle; dynamic types show a coil. Label each with impedance values (e.g., 200Ω, 1kΩ) to prevent mismatches when connecting to preamps, which are depicted as rectangles with a triangle pointing right, often marked “Gain” or “Mic In.” Include phantom power indicators (usually “+48V”) for condenser models to avoid damage or no signal.

Mixers appear as horizontal blocks with multiple vertical sliders, each labeled “Fader” and numbered (1–24). Above sliders, insert EQ symbols: high-pass filters (curved line cutting low frequencies), low/mid/high bands (bell curves with center frequencies). Route outputs via AUX sends–small circles with arrows–marked for monitors or effects. Power amplifiers are rectangles with diagonal lines or a speaker icon inside, specified by wattage (e.g., 200W @ 8Ω) and bridging options noted in dashed lines. Ground connections must show a simple line terminating in three parallel bars to prevent hum loops.

Signal Processing Units

Compressors use a rounded rectangle with a threshold (-20dB) and ratio (4:1) inside. Limiters show the same shape but with infinite ratio (∞:1). Crossovers are pairs of intersecting lines with cutoff frequencies (e.g., 2kHz) and slopes (12dB/octave). Delay units depict a rectangle with a clock or “ms” label, while reverbs include a series of diminishing lines or a plate symbol. Always include FX loops as dotted rectangles with return and send labels to isolate parallel processing paths.

Speakers break down into woofers (half-circle with upward arc), tweeters (simple triangle), and horns (trapezoid). Subwoofers add a small square beneath the woofer symbol, with crossover points (e.g., 100Hz) written adjacent. Wire runs must differentiate impedance: solid lines for low-Z (8Ω), dashed for high-Z (70V). Terminal blocks use interlocking rectangles, labeled “+” and “-” for polarity. Add grounding symbols–triangles with a ground line–at every chassis connection to eliminate interference.

Creating a Sound Distribution Layout: A Practical Guide

Begin with a scaled floor plan of the venue, marking all speaker locations, control points, and cable routes. Use graph paper for manual drafting or vector-based software for precision. Identify key zones–stage, audience areas, and ancillary spaces–then assign symbols for each component: amplifiers (rectangle with “A”), microphones (circle with “M”), and speakers (triangle). Label power sources separately to avoid confusion during installation.

Trace signal paths in a logical sequence: start from the input source (microphone/line-in), proceed through processing units (mixers, equalizers), and end at the output devices. Use solid lines for audio cables, dashed for control wiring, and dotted for power. Indicate cable gauges next to each line (e.g., “14 AWG”) to ensure compatibility with load requirements. Cross-reference with manufacturer specs to validate voltage drops over distance.

Color-code sections for clarity: red for high-voltage lines, blue for low-level signals, and green for grounding. Include a legend with symbols, abbreviations (e.g., “XLR” for balanced cables, “TS” for unbalanced), and component specifications (impedance, wattage). For multi-room setups, separate sub-diagrams may be needed; link them with callouts showing signal flow between zones (e.g., “Aux Out → ZONE B Mixer”).

Verify every connection point against real-world constraints. Measure maximum cable runs–typically 100 meters for balanced lines before signal degradation–and adjust paths to avoid interference (e.g., routing near AC wires). Mark splices, connectors, and distribution blocks with exact model numbers. Add annotations for special conditions: “Hum shielded cable near transformers” or “Use grounded outlets for rack units.”

Finalize by testing the layout against a checklist: Are all outputs matched to inputs? Are redundant paths labeled (e.g., primary/backup amps)? Does the design account for fail-safes (fuses, surge protectors)? Export the file in PDF with vector layers intact for easy edits during troubleshooting or expansions.
