Solar Power System Wiring Layout and Key Components Explained

Start with a three-stage inverter rated for at least 3 kW to handle modern appliances without overload. Select a model with MPPT tracking and a 97% efficiency threshold to minimize conversion losses. Verify the inverter’s voltage range matches your battery bank–typically 48V for residential setups–to avoid compatibility issues.

Position photovoltaic panels at a 30–35° tilt angle facing true south (northern hemisphere) to maximize irradiance capture. Use monocrystalline modules with a 22% efficiency or higher; their superior low-light performance justifies the cost. Calculate the minimum array size based on daily consumption–for a 10 kWh household, install 20–25 panels (300W each) assuming 4 peak sun hours.

Wire deep-cycle lithium iron phosphate (LiFePO4) batteries in series to reach 48V nominal. A 200Ah capacity per battery ensures 2–3 days of autonomy in cloudy conditions. Include a battery management system (BMS) with temperature monitoring to prevent thermal runaway. Secure connections with ANSI-rated crimp terminals and tinned copper cables (minimum 6 AWG) to reduce resistance and fire risks.

Integrate a DC combiner box with 20A breakers per string to isolate faults without shutting down the entire array. Add surge protection devices (SPDs) rated for 600V or higher to guard against transient spikes. Ground the metal frame of the panels and mounting structure to a copper rod buried 2.5m deep, ensuring resistance below 25 ohms.

Avoid series-parallel mixing in panel wiring unless necessary; stick to pure series for higher efficiency. Use MC4 connectors with IP67-rated seals for outdoor connections. Label every circuit with UV-resistant tags and voltage/current ratings for future maintenance. Test the layout with a multimeter under load before finalizing connections.

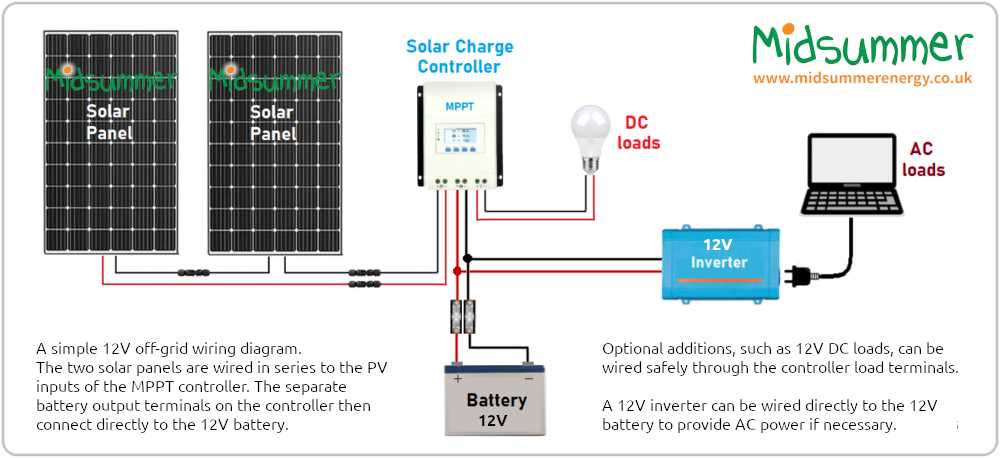

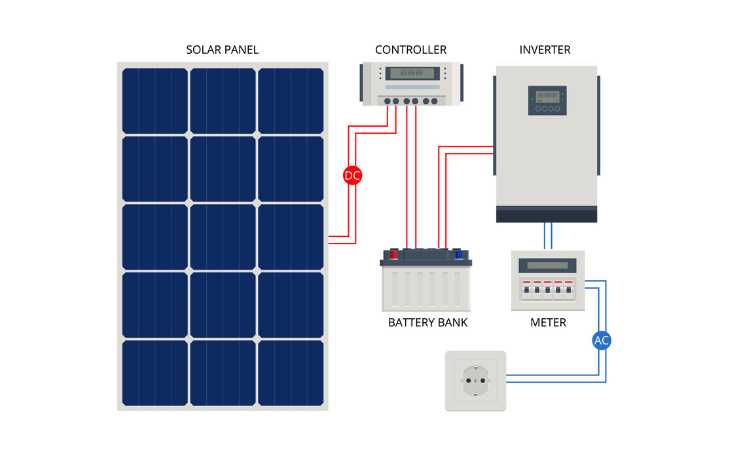

Visual Layout of a Photovoltaic Energy Setup

Begin by grounding the PV panels to a dedicated copper rod with at least 8 AWG wire, ensuring compliance with NEC Section 690.47 for redundant grounding paths–this prevents transient surges from damaging inverters.

Position charge controllers no farther than 3 meters from the battery bank to minimize voltage drop; MPPT models outperform PWM in cold climates by 15-30%, though they require precise voltage matching to the array’s open-circuit rating.

Use 2/0 AWG cables for battery interconnects when currents exceed 100A; tin-plated copper resists corrosion in flooded-cell setups, while lithium packs demand active balancing circuits to prevent thermal runaway.

Mount DC isolators on both the module strings and near the inverter input–label each pole clearly in UV-resistant ink to simplify troubleshooting under NEC 690.14 requirements.

Configure inverters with AFCI breakers sized to 125% of the continuous load; hybrid models with grid-forming capability allow islanding during outages without additional transfer switches.

Bypass diodes should be installed every 12 cells in shaded environments, though newer half-cut panels reduce this need by splitting cells into isolated sections that halve resistive losses.

For off-grid setups, pair gel or AGM batteries with temperature-compensated charging–standard lead-acid degrades 50% faster at 30°C than at 20°C–while lithium iron phosphate maintains 90% discharge capacity down to -20°C.

Critical Elements for an Off-Grid Energy Blueprint

Begin with photovoltaic panels rated for at least 300W per unit, as lower outputs increase wiring complexity and reduce efficiency. Monocrystalline modules offer 18-22% conversion rates, while polycrystalline alternatives cap at 16-18%. Calculate total wattage based on daily consumption, adding a 25% buffer to compensate for inefficiencies like temperature derating and cable loss. For residential setups, 8-12 panels typically suffice, but industrial arrays may require 50+ units.

• Mounting structure: Fixed-tilt racks at a 30-45° angle (latitude-dependent) boost yield by 15-20% compared to flat installations. Adjustable mounts add cost but increase annual output by 25-35%.
• Charge controller: MPPT models outperform PWM by 30% in low-light conditions. Select a controller with a current rating 1.25× the short-circuit current of your array. For lithium batteries, ensure firmware supports temperature compensation.
• Inverter: Pure sine wave units protect sensitive electronics. Size the inverter to handle 120% of peak load–common appliances like fridges draw 3× their running wattage on startup.

Battery bank selection demands attention to cycle life. Lithium iron phosphate cells endure 2,000-5,000 cycles, while lead-acid alternatives last 500-1,200 cycles. A 48V system reduces wiring gauge requirements by half compared to 12V setups, cutting copper costs. For redundancy, design parallel strings never exceeding three in number–unbalanced charging risks premature failure.

Conduct a site survey using a pyranometer or smartphone app like SunEye to map shading obstacles. A single 10% shaded panel in a series string drops output by 50%. Ground faults in ungrounded arrays can corrode frames–use GFDI breakers rated for 1mA leakage detection.

1. Use 6 AWG copper cables for runs under 15m; switch to 4 AWG for longer distances. Aluminum wiring demands 30% larger gauges.
2. Install surge arrestors on both DC and AC sides–8kA models suffice for residential, 20kA for commercial.
3. Label every disconnect switch with voltage/current ratings; color-code cables per NEC Article 200 (red for positive, black/dark blue for negative).
4. Program low-voltage disconnect at 20% for lead-acid, 10% for lithium to prevent deep discharge damage.

Balance of system components often overlooked include combiner boxes, which consolidate strings and reduce junction boxes from 12 to 1. Pre-wired options like MidNite Solar’s MNEPV save 4+ hours of labor. For grid-tied setups, integrate anti-islanding relays with UL 1741 certification–communities like Hawaii mandate this for net metering compliance. Final torquing of terminals to manufacturer specs avoids hotspots, which cause 17% of premature failures.

Step-by-Step Wiring Connections Between PV Modules and Grid-Tie Converters

Begin by selecting 4 mm² (12 AWG) copper cables for series connections between modules, ensuring each conductor carries no more than 8A per mm² at peak irradiance (1000W/m²). Use MC4-compatible crimping tools to terminate wires with tin-plated lugs, then seal junctions with IP67-rated splice connectors to prevent moisture ingress. For 60-cell panels (30V VOC, 9A ISC), string a maximum of 12 modules in series (360V VOC) before connecting to a 400V DC-rated converter; exceeding this risks voltage derating or inverter shutdown.

Route cables along module frames using UV-resistant clips spaced every 30 cm to prevent sagging–a common cause of arcing faults under wind loads. Ground each module’s aluminum frame with 6 mm² green/yellow copper wire bonded to a IEC 62305-compliant grounding electrode (minimum 1.5m copper-plated rod, 16mm diameter). For parallel strings, install DC combiner boxes with 125% rated circuit breakers (e.g., 15A for a 12A string) and Type 2 surge arrestors (tested to 4kV) on both positive and negative legs.

Component	Wire Gauge (mm²)	Max Current (A)	Connector Type
Module-to-module (series)	4	32	MC4
String-to-combiner box	6	44	Anderson SB50
Combiner box to inverter	10	60	M8 terminal block
Grounding wire	6	N/A	Lug crimp + solid wire

Connect the converter’s DC input using twisted pair wiring (positive and negative bundled together) to minimize inductance and EMI interference–critical for MPPT efficiency. Use ferrite chokes on inverter input cables if the run exceeds 10m. Finally, verify polarity with a multimeter (red to positive, black to negative) before energizing; reversed polarity will destroy MPP trackers instantly and void warranties. For redundancy, install a DC disconnect switch (rated for 1.2x VOC) within 2m of the inverter to comply with NEC Article 690.15.

Choosing and Placing Regulators in Renewable Energy Configurations

Match regulator capacity to the total panel output voltage plus a 25% safety margin. For 12V panels generating 20A, select a controller rated for at least 25A to prevent overheating during peak irradiation. PWM types suit small arrays under 300W, while MPPT units recover 15-30% more energy from identical setups, justifying the cost for systems above 500W.

Position the regulator within 3 meters of the battery bank to minimize voltage drop. Use 6AWG copper wiring for runs exceeding 1.5 meters, recalculating wire gauge if ambient temperatures surpass 30°C. Heat shrink terminals at connection points reduce corrosion risk in humid environments by 40% over bare metal.

Mount PWM regulators vertically on non-combustible surfaces away from direct sunlight. MPPT units with built-in heat sinks require 50mm clearance on all sides for airflow; forced cooling via 12V fans becomes necessary above 50°C ambient. Avoid enclosure sharing with inverters – EMI interference can reduce regulator efficiency by 8%.

For lithium batteries, select regulators with programmable charging profiles. Set absorption voltage to 14.4V and float to 13.6V for LiFePO4, adjusting temperature compensation to 0 mV/°C. Lead-acid types demand 14.8V absorption and 13.2V float, with -30 mV/°C compensation to prevent stratification.

In split-bank configurations, use dual-output regulators rather than Y-connecting single units. Cross-charging between dissimilar battery types accelerates sulfation by 60%. Add a 15A fuse between each regulator output and battery bank – this isolates faults without cascading failures.

For off-grid cabins with seasonal usage, choose regulators with load disconnect capability rated for 125% of maximum continuous load. Program low-voltage cutoff at 11.8V for lithium, 10.5V for flooded lead-acid. Include hysteresis of 1.2V to prevent relay chatter during cloud transients.

Ground regulator chassis directly to the battery negative terminal using 4AWG wire. Grounding through mounting screws creates resistive paths that can induce 0.2V noise into the circuit, reducing charge efficiency. Isolate the negative bus from earth ground in floating systems to prevent stray current corrosion.

Verify regulator operation monthly by measuring open-circuit panel voltage (Voc) against battery voltage through the regulator. A functional MPPT unit should show battery voltage at its output terminals, while Voc appears at the input. Deviations exceeding ±0.3V indicate component degradation requiring replacement.
