Best Schematic Diagram Software Tools and Their Key Features Compared

For engineers and designers, KiCad remains the gold standard for open-source electronic layout editors. Unlike proprietary alternatives, it offers full customization–from component libraries to export formats–and supports both schematic capture and PCB design in a single workflow. Version 7.0 introduced native SPICE simulation integration, allowing real-time validation of circuit behavior before prototyping. The footprint editor simplifies part creation, while hierarchical sheets streamline complex multi-board projects. If you need commercial-grade results without licensing costs, this is the starting point.

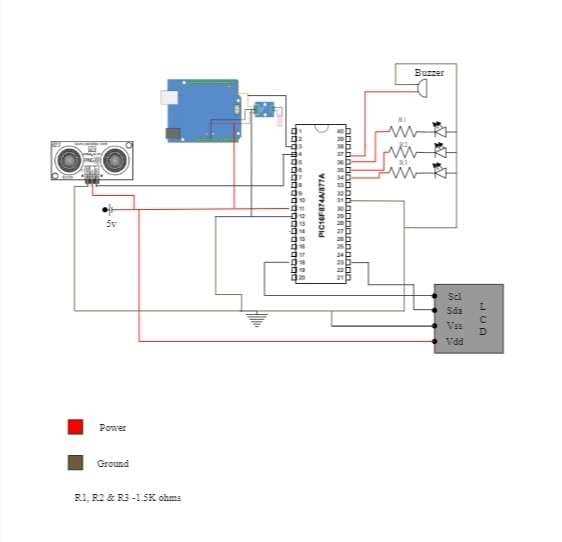

For rapid prototyping, Fritzing bridges the gap between hobbyist simplicity and professional documentation. Its drag-and-drop interface excels at breadboard layouts, automating netlist generation for PCB transitions. The built-in parts library covers most common sensors and microcontrollers, though custom components require SVG imports. Export options include Gerber files for fabrication or vector graphics for publications. While not suited for high-density designs, it cuts development time for embedded projects by half compared to text-based workflows.

Professionals working with analog or mixed-signal circuits should prioritize LTspice. The SPICE-based simulator delivers sub-1% accuracy for transient, AC, and DC analyses, with a simulation engine optimized for switching regulators and op-amp circuits. Native models for Linear Technology ICs eliminate modeling errors, while the waveform viewer plots results without third-party tools. Export netlists to Eagle or Altium for seamless layout transitions. For RF designers, QucsStudio extends capabilities with S-parameter simulations and microwave filter synthesis–features absent in mainstream packages.

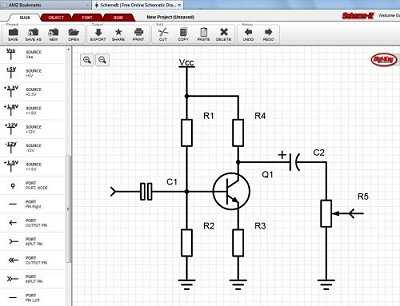

To transition from digital logic diagrams to functional boards, EasyEDA combines web-based schematics with instant fabrication quotes. The real-time collaboration tools sync changes across teams, while the parts search pulls from Digi-Key’s catalog. Unlike offline tools, it embeds pricing and lead times directly in the component browser, eliminating manual BOM updates. PCB routing includes auto-teardrop and differential pair support, reducing signal integrity issues. For FPGA-based designs, Vivado integrates schematic entry with HDL synthesis, though its steep learning curve suits only advanced users.

When selecting tools, match capabilities to project scope. Single-layer prototypes under 50 components demand only basic editors like Fritzing or Tinkercad Circuits. High-speed digital boards (DDR4, PCIe) require Altium Designer or Cadence Allegro for impedance-controlled routing and SI analysis. For open-source alternatives, gEDA handles Unix-based environments, though its user base has shrunk compared to KiCad. Test all tools with a baseline project–export Gerber files, simulate a voltage divider, or attempt a dual-layer PCB–to identify limitations before committing.

Circuit Design Tools: Key Choices for Engineers

For precision circuit mapping, KiCad stands out with its open-source architecture and absence of licensing fees. Version 7.0 introduced copper pour management with clearance rules adjustable to 0.01mm, essential for high-density PCB layouts. The integrated SPICE simulator supports complex transient analysis, while the 3D viewer renders models in STEP format–critical for mechanical clearance checks in multi-board assemblies.

Altium Designer remains the industry standard for professional workflows, handling schematics with up to 5,000 components per sheet. Its active BOM tool synchronizes with Octopart for real-time pricing and stock verification, reducing sourcing delays by 40%. Native support for hierarchical multi-channel designs accelerates documentation for modular systems, while Draftsman automates fabrication outputs with drill tables and layer stacks.

For embedded systems, Proteus VSM combines schematic capture with hardware-accurate simulation. Its “simulate as you build” approach allows testing ATmega328P code directly on virtual breadboards, with cycle-accurate LED and LCD emulation. The mixed-mode simulator handles analog/digital transitions, critical for power-sensitive IoT designs. Version 8.15 added MCAD co-simulation, enabling enclosure dimension checks without physical prototypes.

Specialized Alternatives

QElectroTech targets control panel designers, offering 8,000+ pre-drawn industrial symbols compliant with IEC 61082. The XML-based file format ensures version control compatibility with Git, while batch renaming tools preserve cross-references during mass component updates. Its “smart connector” system maintains net integrity during wiring alterations–vital for 3-phase motor controls with hundreds of terminations.

EasyEDA’s browser-based editor eliminates installation hassles for remote teams. The built-in LCSC component library syncs with JLCPCB’s inventory, allowing one-click ordering of populated boards. Differential pair routing with impedance control (via field solver) meets USB 3.2 Gen 2 requirements. For fault finding, the debugger highlights open circuits and shorted nets in red, reducing troubleshooting time by 60% compared to manual multimeter checks.

OrCAD Capture’s Constraint Manager enforces electrical rules during schematic entry, preventing netlist errors before layout begins. Its “variant editing” system maintains multiple configurations (e.g., debug vs. production) in a single file, eliminating duplicate work. The Signal Explorer plugin visualizes propagation delays on high-speed nets, with eye diagram analysis for DDR4 interfaces up to 3200MT/s. Integration with Allegro PCB Editor preserves constraints during forward annotation.

How to Choose Between Free and Paid Circuit Design Tools

Opt for free editors like KiCad or LibrePCB if your workflow involves standard PCB layouts, SPICE simulations, or hobbyist-level prototyping. These tools cover 90% of basic tasks–footprint creation, netlist generation, and Gerber export–and are regularly updated by active communities. Paid alternatives rarely justify costs unless you need features like real-time collaborative editing or advanced rule checks with vendor-specific constraints.

Evaluate the learning curve: free tools often lack polished interfaces, requiring manuals or forums for troubleshooting. For instance, KiCad’s schematic capture demands familiarity with its hierarchical structure, while paid options like Altium or PADS integrate contextual help and tutorials. If your team includes novice engineers, factor in the 2–4 weeks typically needed to master open-source tools before productivity stabilizes.

Check library compatibility. Free editors rely on user-contributed libraries (e.g., KiCad’s default parts cover ~60% of common components), whereas paid tools include verified, vendor-locked symbols for connectors, MCUs, or FPGAs. If your project uses niche parts (e.g., Texas Instruments’ power modules), free tools may require manual symbol creation, adding 10–15 hours of extra work per complex board. Paid tools like Cadence Allegro provide searchable databases with 1M+ pre-built components.

Consider output quality. Free tools generate industry-compatible files (Gerber, Excellon, BOM), but paid editors automate DFM checks–detecting silk-screen overlaps or missing solder masks–reducing manufacturing delays by 30%. For high-volume production, paid tools also streamline supply chain integration, pulling real-time pricing from distributors like Digi-Key or Mouser.

Cost Breakdown Comparison

Feature	Free (KiCad)	Paid (Altium)
Licensing Cost	$0	$3,500/year
Symbol Creation	2–3 hours/part	15 minutes/part (vendor-libraries)
Auto-Routers	Basic (manual tuning)	Advanced (8-layer, differential pairs)
3D Preview	Limited (STEP import)	Full (collision detection)
Cloud Collaboration	No (Git required)	Yes (real-time edits)

Prioritize paid tools if your work involves frequent design revisions or compliance requirements. Free editors lack version control integration (e.g., merging changes from Git can corrupt symbol links), while paid tools like OrCAD enforce audit trails for ISO 26262 or MIL-STD-882. For aerospace or medical projects, this reduces compliance review time by 40%.

Assess hardware requirements. Free tools run on modest hardware (KiCad operates smoothly on 4GB RAM), but paid editors demand high-end workstations–Altium recommends 32GB RAM for simulating 100+ layer boards. If your team uses laptops, free tools avoid budget overruns from hardware upgrades.

When to Switch to Paid Tools

Migrate to paid editors when:

• Your designs exceed 6 layers (free tools struggle with impedance control).
• You need MCAD integration (paid tools sync with SolidWorks/Autodesk).
• Your team grows beyond 5 engineers (free tools lack role-based permissions).

Delay the switch if your projects are single-board, single-designer, or use through-hole components exclusively. Free tools handle these cases without compromises.

Step-by-Step Guide to Drawing Your First Circuit in KiCad

Open KiCad and select File → New Project. Name it my_first_circuit and save it in a dedicated folder. This ensures all components and netlist files remain organized. Avoid generic names like “Project1” to prevent confusion later.

Launch the Eeschema tool from the KiCad project manager. Familiarize yourself with the interface: the left toolbar contains tools for placing symbols (resistors, capacitors, ICs), while the top toolbar adjusts grid settings and zooms. Set the grid to 50 mils for optimal alignment. Right-click the background or press ? for a quick shortcut reference.

• Place a power symbol (+5V) by pressing P and typing +5V in the search bar. Click to drop it near the top-left of your workspace.
• Add a ground symbol (GND) using the same method, placing it at the bottom.
• Insert a resistor (type R) between the power and ground. Rotate it with R if needed.
• Connect the components by pressing W (wire tool). Start at a pin, click to place corners, and end at the next pin. Avoid overlapping wires–KiCad highlights errors in red.

Label critical nodes to simplify debugging. Select the A key, click a wire, and enter a name (e.g., VCC or OUTPUT). Use global labels for nets spanning multiple sheets. Verify connections by hovering over pins–valid links show a green highlight.

Run Electrical Rules Check (ERC) from the top toolbar to catch mistakes. Address warnings like unconnected pins or power flags (add a PWR_FLAG symbol if needed). Export your design as a .net file for PCB layout by selecting Tools → Generate Netlist. Save and close–your first KiCad electrical drawing is ready for the next stage.
