Complete Guide to Wiring Your Electric Gate Schematic Layout

Begin by identifying the power supply requirements for your access control setup. Most residential sliding or swinging barriers operate on 24V DC or 12V AC, depending on the motor type. Check the manufacturer’s documentation for exact voltage and current ratings–using an incorrect power source risks damaging the control board or motor. For a standard 24V system, select a transformer with at least 3A output to handle peak loads during operation.

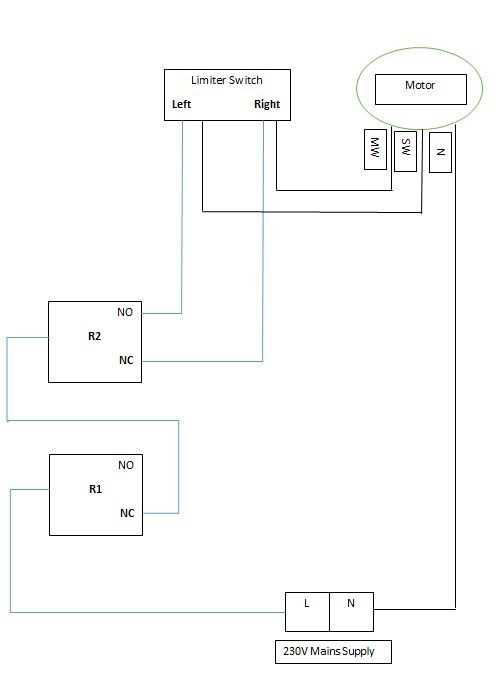

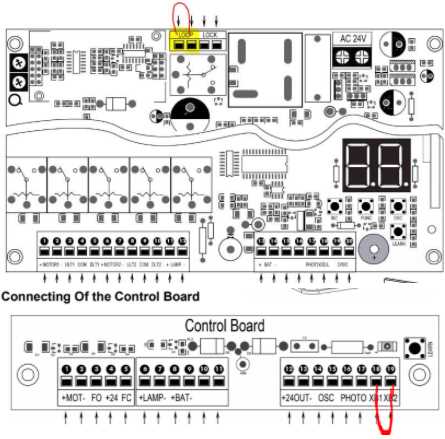

Map the control board terminals before making any connections. Typical labels include: +V (positive), GND (ground), OPENER (relay output), and SAFETY (photo eyes or edge sensors). Failure to match these correctly can result in erratic behavior or safety sensor malfunctions. Use 16-14 AWG stranded copper wire for all power connections to minimize voltage drop over distance, especially for runs exceeding 15 meters.

Connect the motor leads directly to the control board’s designated output terminals. For swinging mechanisms, ensure polarity matches the motor’s direction–reversing these will cause the barrier to move inward when it should open outward. For sliding models, verify the gearbox’s torque rating against the manufacturer’s recommended wire gauge to prevent overheating during extended use.

Integrate safety devices before finalizing the setup. Photoelectric sensors must be wired in series with the SAFETY terminal, typically using shielded twisted pair (STP) cable to reduce interference. Edge sensors, if present, should connect to the same circuit. Test these components by blocking the sensor path–if the system fails to stop or reverse, recheck the wiring polarity and continuity immediately.

For remote control or keypad access, connect the receiver or input device to the OPENER terminal via a low-voltage relay rated for the system’s current draw. Avoid splicing high-voltage lines (e.g., 120V/240V mains) into this circuit–such connections violate safety standards and can trip breakers or damage components. Instead, use a dedicated transformer for auxiliary devices.

Confirm all connections with a multimeter before powering the system. Measure voltage at the control board terminals to ensure the transformer output matches the expected value. If voltage drops below 20V DC or 10V AC at the motor, inspect for loose terminals, undersized wires, or excessive run lengths. For systems with backup batteries, use a sealed lead-acid (SLA) unit sized to support at least 5 full operation cycles during power outages.

Automated Entry System Circuit Layout Guide

Always verify voltage compatibility between the motor, control board, and power supply before connecting any components. A mismatch as small as 1 V can damage sensitive electronics. For 12 VDC systems, use a multimeter to confirm output at the transformer terminals–expected readings should settle at 12.6 V under load to prevent under-voltage motor stalls.

Position the control unit within 2 meters of the moving mechanism to minimize signal loss. Stranded copper wire, 1.5 mm² for power and 0.75 mm² for signals, ensures reliable current flow without overheating. Avoid parallel runs with high-voltage lines (above 50 VAC) to prevent induction interference, which can cause erratic operation or false safety triggers.

Integrate a surge protector rated at least 10 kA between the main power source and the transformer. Unexpected spikes, even brief, degrade microcontrollers rapidly. Select protectors with thermal fuse backup–this isolates the circuit if the primary protection fails. Test protection monthly by simulating a 6 kV transient using a surge generator; any deviation from expected behavior warrants immediate replacement.

Label every connection point on the control board and terminal block before wiring. Use heat-shrink tubing on splices to prevent corrosion, especially in outdoor installations. For battery-backed systems, connect the backup unit via a dedicated 10 A circuit breaker–omitting this step risks deep discharge cycles that shorten battery lifespan by 40%.

Ground the metal frame and control box to a dedicated earth rod, not shared with other equipment. Resistance between frame and earth should not exceed 10 ohms. Use an insulation resistance tester to confirm no leakage paths exist–values below 1 MΩ indicate compromised insulation requiring immediate isolation and repair.

Configure safety edges with normally closed (NC) contacts and connect them in series with the motor relay. This ensures the system halts if the edge is triggered, even if the main controller fails. For systems with photoelectric sensors, align emitters and receivers within 1 mm tolerance to prevent false beam breaks from ambient light interference.

After completing connections, power up the system in test mode first, bypassing the motor activation. Monitor current draw with a clamp meter–any reading above 20% of the motor’s rated current during idle indicates wiring errors or component faults. Only after confirming stable readings proceed to full operational testing, cycling the barrier 20 times to verify consistent performance.

Critical Elements for Automated Entrance Circuit Setup

Begin with a robust control panel housing a 24V transformer, fuse block, and relay system–these eliminate voltage fluctuations common in residential power supplies. A unit rated for at least 3A continuous draw prevents overheating during multiple operations. Verify compatibility with your motor type (swing or slide) as torque demands vary.

Select isolation relays designed for inductive loads; standard automotive relays risk premature failure under motor startup surges. Install snubber circuits across relay contacts to suppress arcing, extending component life by 40–60%. For outdoor installations, use sealed relays with IP65 rating to prevent corrosion from condensation.

Power cables must exceed minimum gauge requirements: 4mm² copper for runs under 15m, 6mm² for 15–30m stretches. Solid-core wire reduces signal degradation in control circuits, while stranded wire suits movable connections like hinge cables. Avoid aluminium–oxidation at terminals increases resistance by up to 200% over time.

Integrate an emergency stop button with a normally closed circuit configuration; this fails safe if wiring breaks. Place photocells at 60–90cm height for consistent detection, spacing them no more than 6m apart. For solar-powered setups, add a deep-cycle battery bank sized to handle 3–5 days of autonomy, factoring local sunlight hours.

Use surge protectors with a minimum clamping voltage of 400V for outdoor applications, shielding against lightning-induced spikes that destroy unprotected boards. Ground all metal components with 16mm² bare copper wire, burying it at least 60cm deep to meet NEC/CE standards. Avoid shared ground paths with household circuits to prevent interference.

Install a dual-channel radio receiver with rolling-code encryption to thwart replay attacks; consumer-grade single-channel receivers risk unauthorized access. Program remotes with a 15-second delay between commands to prevent motor overheating during rapid toggling. For diagnostic purposes, add a manual override switch–this bypasses the entire automated system for direct operator control during maintenance.

Installation Walkthrough: Comparing Swing and Slide Automated Entrance Systems

Begin by marking power supply paths for both layouts: swing systems require dual actuators (one per leaf) with a minimum 12 AWG cable run along buried conduit to prevent voltage drop, while slide tracks need single motor wiring with 10 AWG cable for the longer distance. Position the control panel within 5 meters of the mechanism–swing units often mount inside the post, whereas slide setups attach to the track’s header. Verify the main breaker rating matches the voltage specs: 230V for European systems, 120V/240V split-phase for North American.

Swing Entrance Setup Details

• Leaf synchronization: Connect limit switches to EITHER the control board OR individual actuators (avoid mixing) using 4-core shielded cable. Twist wires at 5 turns per meter to reduce EMI from nearby transformers.
• Safety loop placement: Run photocells at 60 cm height across the entire opening, with loops spaced every 50 cm on concrete surfaces (every 30 cm on gravel). Connect to the board’s NC contacts for instant halt during obstruction.
• Battery backup: Install a 12V 7Ah battery within 1 meter of the motor–swing systems draw 3.5A during operation, slide units need 5.2A due to rack resistance.

Slide Assembly Procedure

1. Mount the motor atop the track, aligning the gear with the pre-drilled rack holes. Secure with M8 bolts torqued to 25 Nm to prevent slippage under load.
2. Run power cables through flexible metallic conduit along the track–slide mechanisms require continuous 24V auxiliary wire for encoder feedback. Avoid sharp bends tighter than 15 cm radius.
3. Install end-of-travel magnets 30 cm from each track terminus. Calibrate the encoder by running the slide to both limits without obstruction–board resets automatically after 3 full cycles.
4. Test the clutch by manually pushing the slide while disengaged–it should resist but not drag. Adjust torque settings in 5Nm increments via the dip switches if resistance exceeds 30 kgf.

Final checks differ: swing systems need leaf alignment within 2 mm measured at the latch point to prevent sag, while slide tracks must remain perfectly level (max 1 mm deviation over 3 meters) to avoid rack misalignment. For both, energize the system first without obstacles to confirm directional arrows (left/right) match the intended opening flow. Store unused cable in IP67-rated junction boxes near the foundation to prevent moisture ingress.
