How to Wire a Wall Plug Step-by-Step Guide with Diagram
Before handling any electrical component, verify the circuit is de-energized at the breaker panel. Use a non-contact voltage tester to confirm terminals are inactive–this step prevents accidental shocks or short circuits. Standard outlets accommodate 120V AC (North America) or 230V AC (Europe, Asia) depending on regional regulations. Check local codes for permissible wire gauges: 14 AWG copper for 15A circuits, 12 AWG for 20A. Aluminum conductors require compatible connectors and anti-oxidizing compound.

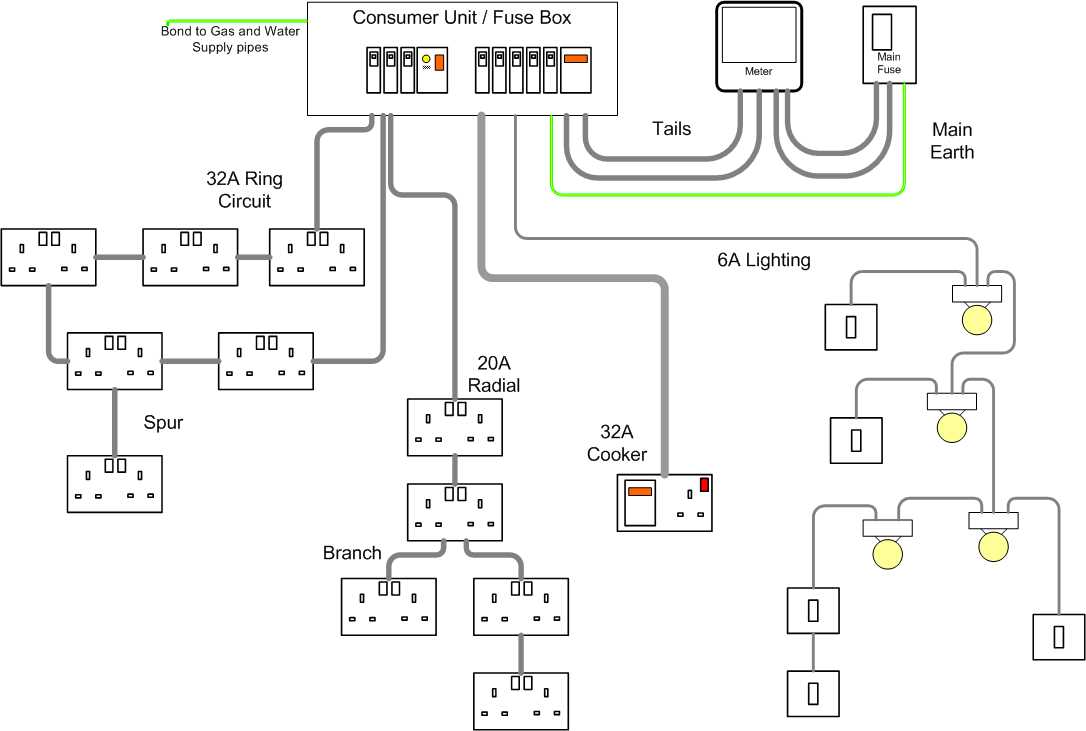

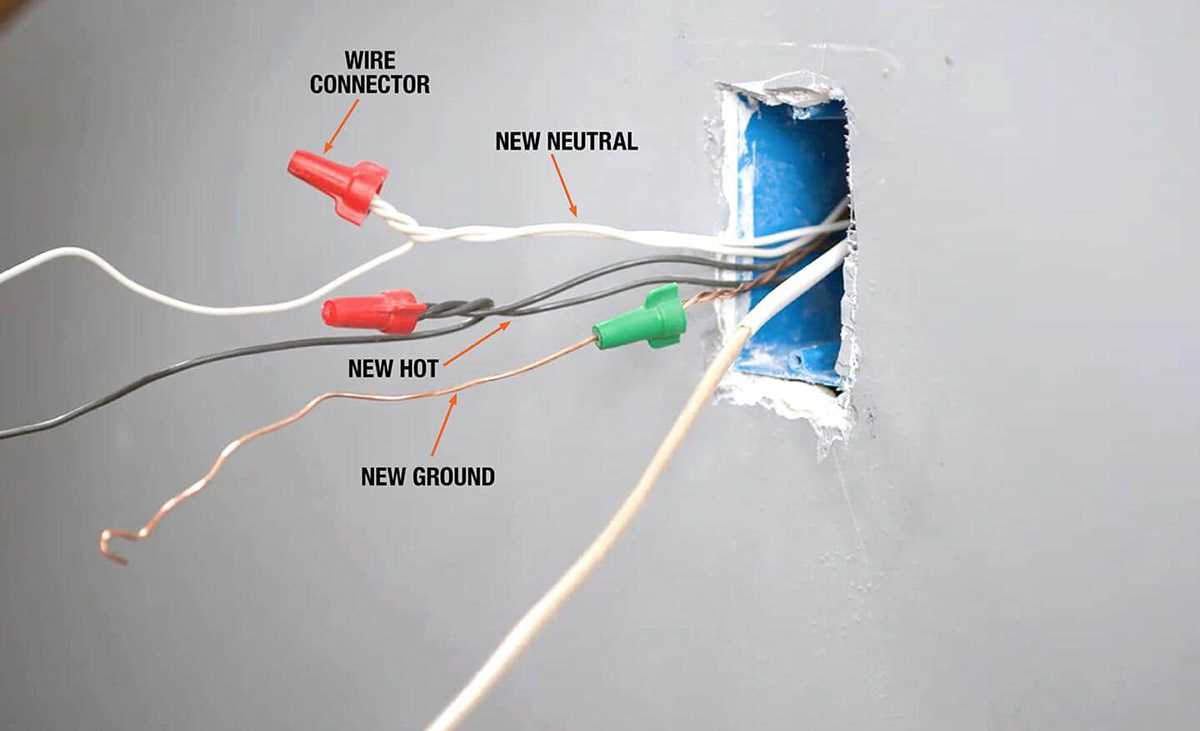

Identify live, neutral, and ground wires by insulation color: black or red (hot), white (neutral), bare or green (ground). Connect hot wires to brass screws, neutral to silver screws, and ground to the green screw–miswiring risks overheating or shock hazards. For split-circuit outlets (e.g., kitchen appliances), connect the red wire to the second brass terminal and ensure the tab between brass screws is removed. Failure to break this tab creates a short between circuits.
Secure connections with firm clockwise twists around screw terminals–no loose strands should extend. Torque screws to 12–15 in-lbs; overtightening damages threads, undertightening causes arcing. For push-in connections (back-wired), strip wires to the exact length specified by the device manufacturer (typically 11–13 mm). Pull-test connections to confirm retention. Install outlet covers immediately after testing to prevent accidental contact with live terminals.
GFCI protection is mandatory near moisture sources (bathrooms, kitchens, outdoor locations). Connect line wires (incoming power) to the “LINE” terminals and load wires (downstream outlets) to “LOAD”–reversing these causes nuisance tripping. Test GFCIs monthly using the integrated test button; reset after verifying functionality. AFCIs are required in bedrooms and living areas to detect arc faults–consult labeling to distinguish between AFCI and GFCI devices.
For three-wire circuits (NEMA 6-15/6-20), the red wire connects to the second hot terminal. Ensure the breaker matches the outlet’s amperage rating–mixing 20A outlets with 15A breakers violates safety codes. Tamper-resistant outlets are mandatory in new residential construction; verify the shutters operate freely before installation. Always use UL-listed or CSA-certified devices–counterfeit components lack thermal overload protection and may start fires.
Electrical Outlet Connection Guide
Before handling any installation, shut off power at the circuit breaker. Identify the correct breaker by testing the outlet with a non-contact voltage tester–never assume labels on the breaker panel are accurate. A single mistaken switch can result in severe injury or equipment damage.

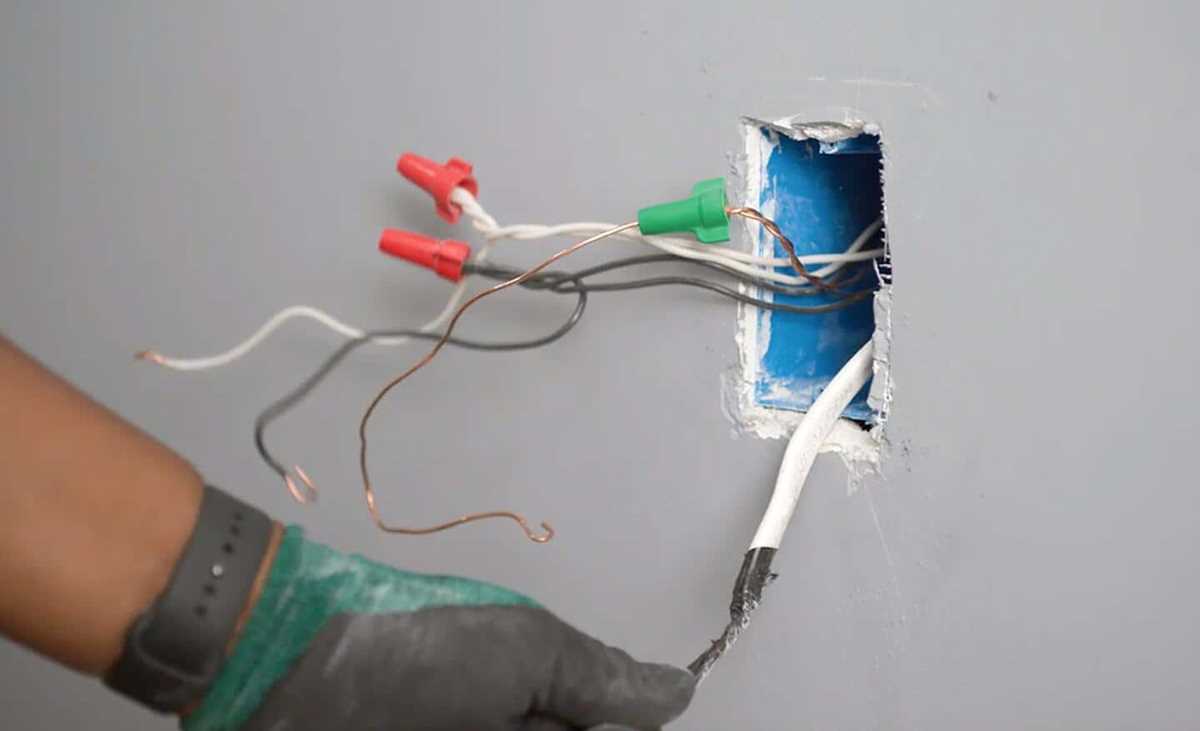

Expose the terminal screws on the receptacle by removing the faceplate and securing screws. For standard outlets, locate the brass screws (hot), silver screws (neutral), and green screw (ground). Twist copper conductors 6-8mm clockwise around each screw to ensure maximum contact; loose connections generate heat and increase fire risk.
Securely fasten the ground wire first. Wrap the bare or green-insulated conductor tightly around the green terminal screw. This path provides the safest route for fault current, preventing shock hazards. Verify continuity with a multimeter set to 200 ohms–readings above 1 ohm indicate insufficient grounding.
Connect the neutral conductor to the silver screw. Neutral wires carry return current back to the service panel. Use needle-nose pliers to shape the copper tip into a neat hook–avoid overlapping insulation that could impede conductivity. For back-wired outlets, insert stripped ends fully into corresponding holes until a faint click confirms retention.
Amp rating dictates conductor gauge. 15-amp receptacles require 14 AWG copper wire; 20-amp needs 12 AWG minimum. Smaller gauges overheat under sustained load, causing insulation breakdown. Use wire nuts labeled for the specific wire count when joining conductors–never twist bare copper together without approved connectors.
Align the receptacle within the electrical box before tightening mounting screws. Misaligned outlets strain connections and faceplate engagement. Confirm the outlet sits flush with the wall–recessed positioning hampers plug insertion, while protrusions create safety hazards. Test-fit the faceplate to ensure screws align with box cutouts.
For GFCI outlets, connect line and load terminals according to manufacturer labeling. Line terminals receive incoming power; load terminals protect downstream outlets. Incorrect hookup disables ground-fault protection. Verify functionality by pressing the test button–outlet should trip, cutting power instantly. Reset to restore normal operation.
Label each conductor’s purpose on the box cover or inside panel door. Document circuit number, voltage, and connected devices. This record prevents future confusion during maintenance or troubleshooting. Re-energize the circuit, then use a socket tester to confirm correct polarity–reversed hot/neutral creates shock risks and damages sensitive electronics.
Step-by-Step Guide to Identifying Conductor Hues and Their Roles
Begin by locating the installation’s primary power source–typically a breaker panel or junction box. Standard color coding varies by region but follows consistent patterns. In North America, the ungrounded conductor (hot) is black, red, or occasionally blue, while the grounded conductor (neutral) is white or gray. The equipment grounding conductor is bare copper, green, or green with yellow stripes. Verify these hues against local electrical codes before proceeding.
Use a multimeter set to AC voltage mode to confirm roles. Probe between the hot conductor and neutral–expect 110-120V (or 220-240V for split-phase systems). A zero-voltage reading between neutral and ground indicates proper bonding. Miswired circuits may show voltage on the neutral, signaling a fault. Record readings in a table for reference:
| Conductor Type | Standard Hues (NA) | Expected Voltage (Hot-to-Neutral) | Expected Voltage (Neutral-to-Ground) |
|---|---|---|---|
| Hot | Black, red, blue | 110-120V or 220-240V | – |
| Neutral | White, gray | 0V | 0V |
| Ground | Bare, green, green/yellow | – | 0V |
International hues differ markedly. In the UK and EU, brown denotes the live conductor, blue the neutral, and green/yellow the earth. Australian standards follow similar colors but may use red for hot in older installations. Consult IEC 60446 or local amendments–deviations often appear in legacy systems or specialized equipment like three-phase motors (black, brown, gray for L1-L3).
Label conductors immediately after identification using adhesive sleeves or permanent markers. Consistent tagging prevents errors during maintenance–note functions directly on the sheathing (e.g., “L1,” “N,” “PE”). For mixed-voltage systems (e.g., 277V lighting with 120V outlets), color-code wires by circuit to avoid confusion. Avoid relying solely on hues; cross-verify with circuit breaker labels.
Handling Non-Standard Installations
Older buildings or custom setups may use non-standard colors (e.g., orange for traveler wires in 3-way switches, purple for isolated ground). Trace these wires back to their source–junction boxes, terminal blocks, or distribution panels. Use a tone generator and probe to follow paths through walls or conduits. Document every deviation in wiring schematics for future reference.
For safety, disconnect power at the breaker before touching any exposed conductors. Recheck hues with a non-contact voltage tester–some materials (e.g., aluminum) may oxidize, altering appearance. If insulation shows cracks or discoloration, replace the cable entirely. Never assume a function based solely on color; rigorous testing prevents hazards.
Essential Tools for Secure Electrical Outlet Installation
Begin with a non-contact voltage tester (CAT III or higher) to confirm circuits are de-energized before handling conductors. Models like the Fluke 1AC-II or Klein NCVT-3 detect AC up to 1000V with audible and visual alerts, reducing accidental shock risks by 95% according to OSHA. Keep a dedicated insulated screwdriver set–VDE-certified Phillips #2 and flathead 3/16″ sizes–for terminal screws to prevent grounding through metal shafts. Jaws should grip screws firmly without cam-out, ideally with ergonomic handles tested to 1000V.
Precision Instruments for Accurate Work
A digital multimeter (DMM) with a minimum 600V AC/DC range, resistance (ohms), and continuity settings is critical. The Fluke 117 or Amprobe AM-510 offer auto-ranging and true RMS for unstable loads, ensuring readings accurate to ±1.5%. For cable preparation, use wire strippers calibrated to 12-10 AWG conductors, featuring built-in cutters and notch-free blades to avoid nicking conductors–imperfections increase resistance and heat buildup. Fish tape (1/8″ flat or 3/16″ rounded steel) with a hooked tip retrieves romex through 1/2″ EMT, while a flexible drill bit (e.g., Greenlee 735G) bores 3/4″ holes through studs without deflection.
Leverage a torque screwdriver for terminal connections–ANSI/NETA standards mandate 12 in-lbs for #6-#10 screws–to prevent loose contacts that cause arcing. The Wiha 72180 or Wera 564/4 torque drivers cover the required range with ±4% accuracy. A fiberglass insulating mat (ESD-safe) placed beneath work areas isolates tools from concrete floors, reducing stray voltage risks. For final inspections, a thermal imager with 0.1°C sensitivity (FLIR E4 or Seek Thermal CompactPRO) identifies hotspots before energizing circuits, flagging miswired neutrals or poor connections invisible to DMMs.
