Understanding Electrical Circuit Connections in Series and Parallel Configurations
Connect power sources directly to loads in a single path to isolate failure points. This linear arrangement ensures consistent current through all components, making it ideal for diagnosing faults–if one element fails, the entire chain halts. Use this configuration for minimalist designs like holiday lights or simple battery-powered devices where reliability outweighs redundancy. Measure voltage drops across each part to verify stability; any deviation signals a defective segment.
Opt for branched layouts when distributing power across multiple endpoints without interdependence. Here, voltage remains uniform across all branches, while current divides based on resistance values. This topology suits systems requiring simultaneous operation, such as household wiring or modular electronics. Calculate total resistance using the reciprocal formula: 1/Rtotal = 1/R1 + 1/R2 + … + 1/Rn. Failure in one branch leaves others functional, preventing cascading shutdowns.

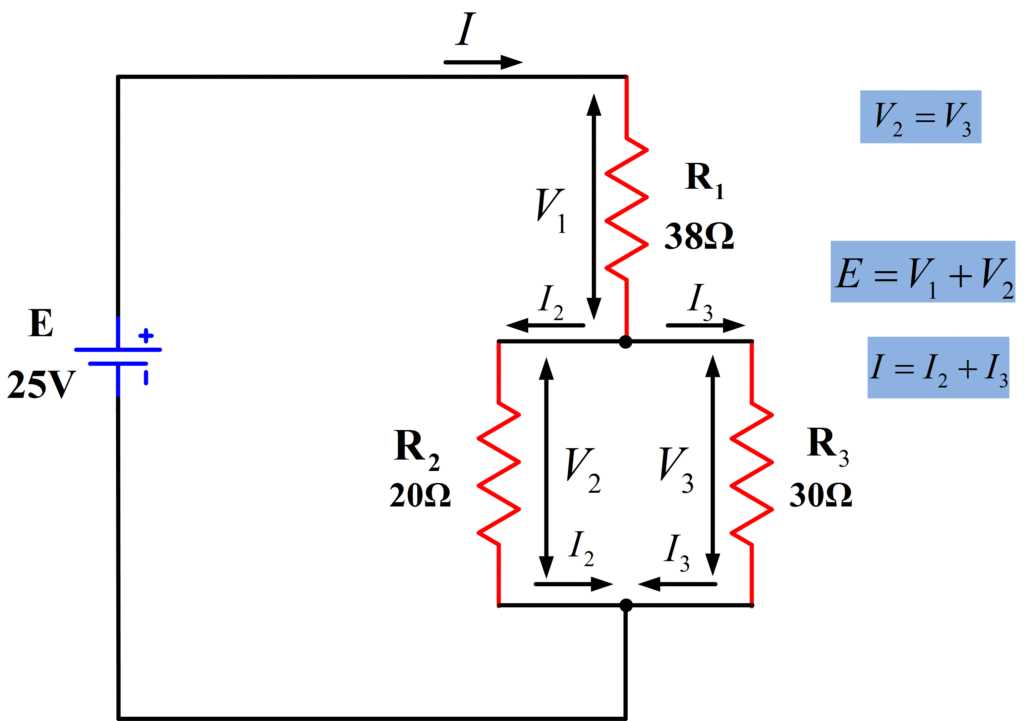

Combine both approaches for hybrid networks, balancing efficiency and fault tolerance. For example, wire power strips in a branched format while connecting individual outlets linearly. Label each segment with resistance values and current ratings to avoid overloads. Test with a multimeter before energizing–confirm parallel branches share identical voltage, while sequential paths maintain identical current. Document configurations for future troubleshooting, noting critical voltage thresholds (typically ±5% of nominal).
Use thick-gauge conductors (≤1.5mm² for 10A) in high-current branches to minimize heat buildup. For low-power applications, thinner wires (0.5mm²) suffice but verify manufacturer ratings. Fuse each branch at 125% of expected current to prevent overheating. In sequential setups, bypass switches allow temporary isolation of faulty sections without full shutdowns. For branched systems, incorporate relay-controlled subcircuits to automate failover.
Key Differences in Sequential vs. Simultaneous Electrical Layouts
For precise voltage division across components, chain arrangements excel–each element receives the same current, but potential drops sum inversely to resistance ratios. Use this when powering LED strings or resistive sensors where uniform brightness or signal integrity is critical. Calculate total resistance as R_total = R₁ + R₂ + ... + Rₙ; omit components to increase voltage at remaining points proportionally. Avoid exceeding individual ratings–thermal runaway occurs faster than in branching setups due to cumulative dissipation.
Branching networks distribute identical potential across all nodes while current splits by conductance paths. Deploy these for power distribution grids or redundant safety systems where failure isolation is mandatory. For quick sizing, apply Kirchhoff’s current law: I_total = I₁ + I₂ + ... + Iₙ, where branch currents derive from I = V/R. Parallelize mismatched impedances carefully–low-resistance branches will dominate load sharing, risking burnout in underrated conductors. Always fuse each branch separately to prevent cascading failures.
Step-by-Step Guide to Sketching a Sequential Resistor Configuration
Begin by sketching a straight conductive path using a horizontal line–this represents the power rail. Mark the start point as the positive terminal of your voltage source. Leave a 2 cm gap after the first resistor symbol to ensure clarity between components. Use a ruler to maintain precision; uneven spacing complicates troubleshooting later.
| Component | Symbol | Spacing | Orientation |
|---|---|---|---|
| Battery | –| |– (long line +) | 0 mm | Vertical |
| Resistor | –[ ]– | 2 cm | Horizontal |
| Return rail | ───── | N/A | Horizontal |
After the first load, draw a downward angled line ending 45° to create a gap. Insert the next resistor symbol horizontally, repeating the same 2 cm spacing rule. Connect the tail end of each resistor to the next without overlap–crossing lines cause misinterpretation. Terminate the chain by linking the final resistor’s end back to the negative battery terminal via a continuous rail. Label each resistor sequentially (R₁, R₂, R₃) and annotate voltage drops if analyzing current distribution.
Mastering Resistance Computation in Branch Networks via the Reciprocal Method
To compute combined resistive loads in interconnected branches, apply the reciprocal formula:
- Sum the inverse values of each resistive component.
- Take the reciprocal of this total to obtain the equivalent opposition.
For components with resistances R1, R2, R3, the formula resolves as:
- 1/Rtotal = 1/R1 + 1/R2 + 1/R3
- Invert the result: Rtotal = 1 / (1/R1 + 1/R2 + 1/R3)
Simplify calculations by converting resistances to conductances first. Conductance (G), the inverse of resistance, follows G = 1/R. Sum conductances directly, then convert back:
- Gtotal = G1 + G2 + G3
- Rtotal = 1 / Gtotal
For identical components (e.g., three 10 Ω resistors), divide the single value by the count:
- Rtotal = 10 Ω / 3 ≈ 3.33 Ω
When working with mixed values, use decimal approximations for fractions. Example for 4 Ω, 6 Ω, and 12 Ω resistors:
- 1/4 + 1/6 + 1/12 = 0.25 + 0.1667 + 0.0833 = 0.5
- Rtotal = 1 / 0.5 = 2 Ω
Apply the product-over-sum shortcut for exactly two components:
- Rtotal = (R1 × R2) / (R1 + R2)
- Example with 5 Ω and 20 Ω: (5 × 20) / (5 + 20) = 100 / 25 = 4 Ω
Verify results by checking if the computed opposition remains smaller than the smallest component. Discrepancies indicate calculation errors. Use this property as a quick sanity test after applying any method.
Frequent Errors in Marking Potential Differences Across Sequential Configurations
Always designate voltage drops in the direction of conventional flow–from higher to lower potential–even if the schematic appears counterintuitive. Misalignment here causes cascading misreadings, especially when measuring across resistors with unequal values. A common blunder involves reversing polarity arrows, leading to incorrect Ohm’s law applications. Verify each arrow’s head points toward the terminal where charges lose energy, not where they gain it.
Incorrectly Assuming Uniform Potential Decline
Labeling every drop as equal ignores component resistance variations. If three resistors (10Ω, 20Ω, 30Ω) share a 6V source, the 10Ω element must show 1V, not 2V. Use Kirchhoff’s voltage principle to split the total potential proportionally before annotating. Skipping this step forces technicians to recalculate later, wasting troubleshooting time. Always cross-check with a multimeter if schematic values seem ambiguous.
Avoid labeling drops on open branches. A missing connection or blown fuse introduces a zero-voltage section; marking it as non-zero misleads repairs. Similarly, omit drops across conductive paths without resistive elements–wires and switches exhibit negligible loss. Overzealous marking here clutters the diagram without adding useful data. Focus annotations only where impedance actively divides the supply.
Overwriting Existing Annotations
Reusing the same voltage variable (e.g., V₁) for multiple drops confuses interpretations. Assign unique identifiers like V_R1, V_R2, V_R3 to each segment. If resistors form a chain, re-labeling downstream nodes prevents errors when debugging. This practice also aids in converting schematics to SPICE netlists later. Keep handwritten notes consistent; erasures or scribbles obscure critical details.
Forgetting to update drops after component changes disrupts entire measurements. Replacing a 5Ω resistor with a 15Ω one alters all downstream values–neglecting this adjustment invalidates subsequent resistor-power calculations. Always re-calculate the full chain whenever swapping parts. Digital simulators flag such inconsistencies, but paper sketches require manual verification. Carry a printout of original values as reference during modifications.
Constructing Multi-LED Branched Connections: A Starter’s Blueprint
Choose a 9V battery as your power source to ensure consistent brightness across all LED paths. Connect the battery’s positive terminal directly to a solderless breadboard’s power rail, then link each LED’s anode (longer leg) to this rail via a 220Ω current-limiting resistor–critical to prevent burnout. The cathode (shorter leg) of every LED must tie back to the battery’s negative terminal, either through individual wires or a shared ground bus on the breadboard. Verify polarities before powering on; reversed connections will render the setup inert.
Component Layout and Troubleshooting
Arrange LEDs in a zigzag pattern on the breadboard to avoid accidental short circuits between adjacent rows. Test each branch sequentially: if an LED remains dark, check for loose wires, incorrect resistor values (use a multimeter to confirm 220Ω), or misaligned legs. Bulkier resistors (e.g., 1/4W) work better for beginners–smaller ones risk overheating if mishandled. For added stability, use solid-core jumper wires instead of stranded variants; they hold their shape better under repeated adjustments.
Expand the setup by adding a second power bus on the breadboard’s opposite side for dedicated high-current paths. Pair each new LED branch with a dedicated push-button switch between the resistor and ground to control individual segments without disrupting others. Label wires with masking tape to track connections–colored tape (red for positive, black for negative) reduces errors. Store completed configurations in antistatic bags to shield components from moisture and static discharge during prolonged disuse.
