How to Wire Speakers in Series or Parallel Complete Guide with Diagrams

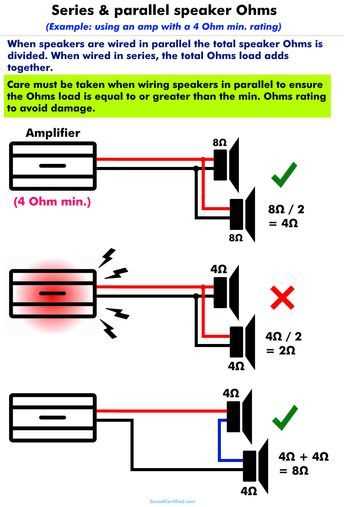

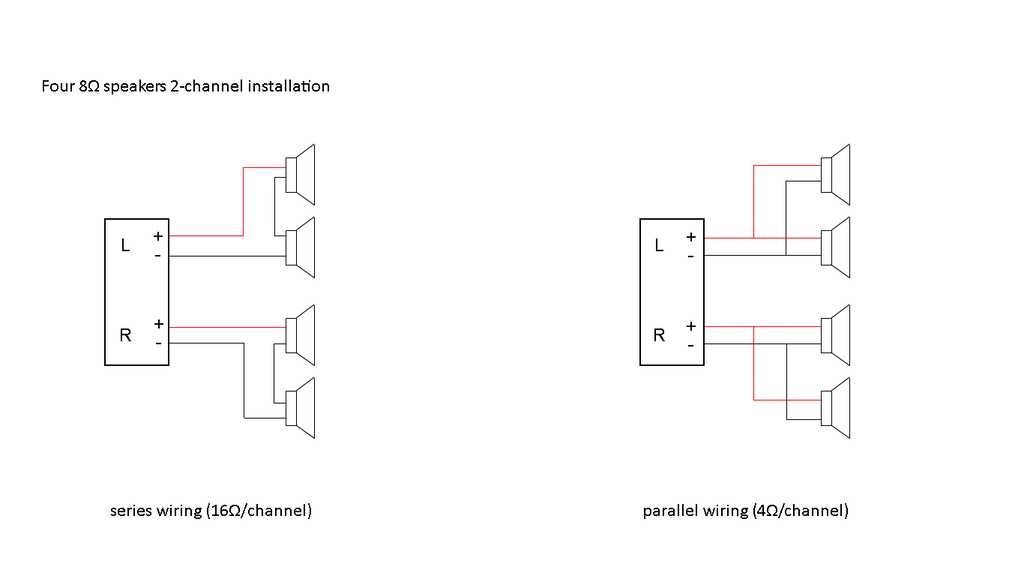

Begin with impedance matching when connecting multiple acoustic drivers to an amplifier. For 8-ohm drivers, sequential connections (daisy-chaining) double the impedance per additional unit–two drivers yield 16 ohms, four rise to 32 ohms. This setup ensures stable power distribution but reduces output volume. Combined connections halve impedance per added driver–two 8-ohm units drop to 4 ohms, four to 2 ohms. Amplifiers tolerating low loads handle this well, but exceeding current limits risks overheating. Measure the amp’s minimum impedance rating before proceeding.
Use sequential setups for clarity in multi-way systems. Each driver retains defined frequency response without phase interference, ideal for distributed audio zones. Combined setups increase efficiency for large venues by centralizing current draw, but crossover interactions may muddy midrange. For subwoofers, combined wiring delivers higher SPL with less distortion, though amplifier stress rises. Balance impedance against power needs–sequential wiring suits delicate setups, combined excels in raw output.
Draw circuit layouts with precise gauge recommendations: 16 AWG for runs under 5 meters, 14 AWG for 5-10 meters, and 12 AWG beyond. Twist cables to minimize interference, and terminate grounds at a single point to avoid hum loops. Daisy-chaining requires short jumpers between drivers; paralleling needs thick trunks from the amp to a central junction. Verify voltage drop across connectors–oxidized terminals degrade signal integrity.
Test configurations with a multimeter before powering up. Sequential connections should read cumulative resistance per added driver. Combined setups demonstrate inverse resistance–more drivers, lower reading. Abnormally low readings indicate a short; high readings suggest loose connections. Use banana plugs for low-maintenance setups, spade connectors where vibration resistance matters. High-frequency drivers benefit from shielded cable to reject RF interference.
Choosing Between Sequential and Simultaneous Audio Setup Configurations
Connect audio components in sequential order when the amplifier’s impedance tolerance is low–this raises the total load resistance, reducing stress on the amplifier. For an 8-ohm driver pair, the combined impedance doubles to 16 ohms, ensuring stable power delivery. Use this layout in low-power setups or when integrating mismatched transducers, as it minimizes distortion from frequency response mismatches. Measure each unit’s impedance before assembly; even minor variations compound across multiple stages, risking uneven volume distribution or premature clipping.
Critical Factors for Simultaneous Connections
Linking drivers side-by-side halves the net impedance for identical units, doubling the current draw–ideal for high-power amplifiers rated for lower loads (e.g., 2 ohms). A pair of 4-ohm transducers in this arrangement presents 2 ohms, demanding an amplifier capable of handling sustained low resistance. Avoid this method with subwoofers rated below 4 ohms unless the power source explicitly supports bridged operation at such loads. Verify crossover compatibility; simultaneous setups amplify phase cancellations at crossover frequencies, requiring precise time alignment or active filtering to prevent muddiness.
For hybrid setups, prioritize voltage consistency over impedance matching. Sequential arrangements preserve signal clarity in passive crossovers but limit dynamic range, while simultaneous configurations maximize output but risk power sag under heavy transients. Test with a multimeter at 1 kHz before finalizing terminals; stray capacitance in wiring can skew readings by ±0.5 ohms, misleading calculations. Use oxygen-free copper conductors for simultaneous links to mitigate resistance loss–18 AWG is sufficient for runs under 3 meters, but 14 AWG or thicker is mandatory for longer distances or amplifiers exceeding 200W RMS.
Calculating Combined Load Resistance in Sequential and Simultaneous Arrangements
Measure each driver’s nominal resistance first–common values range from 4 to 16 ohms. For drivers connected end-to-end, sum their individual resistances: a 4-ohm unit paired with an 8-ohm unit yields 12 ohms total. Check amplifier specifications; many solid-state models tolerate 4 ohms minimum, while tube gear often demands 8 ohms.

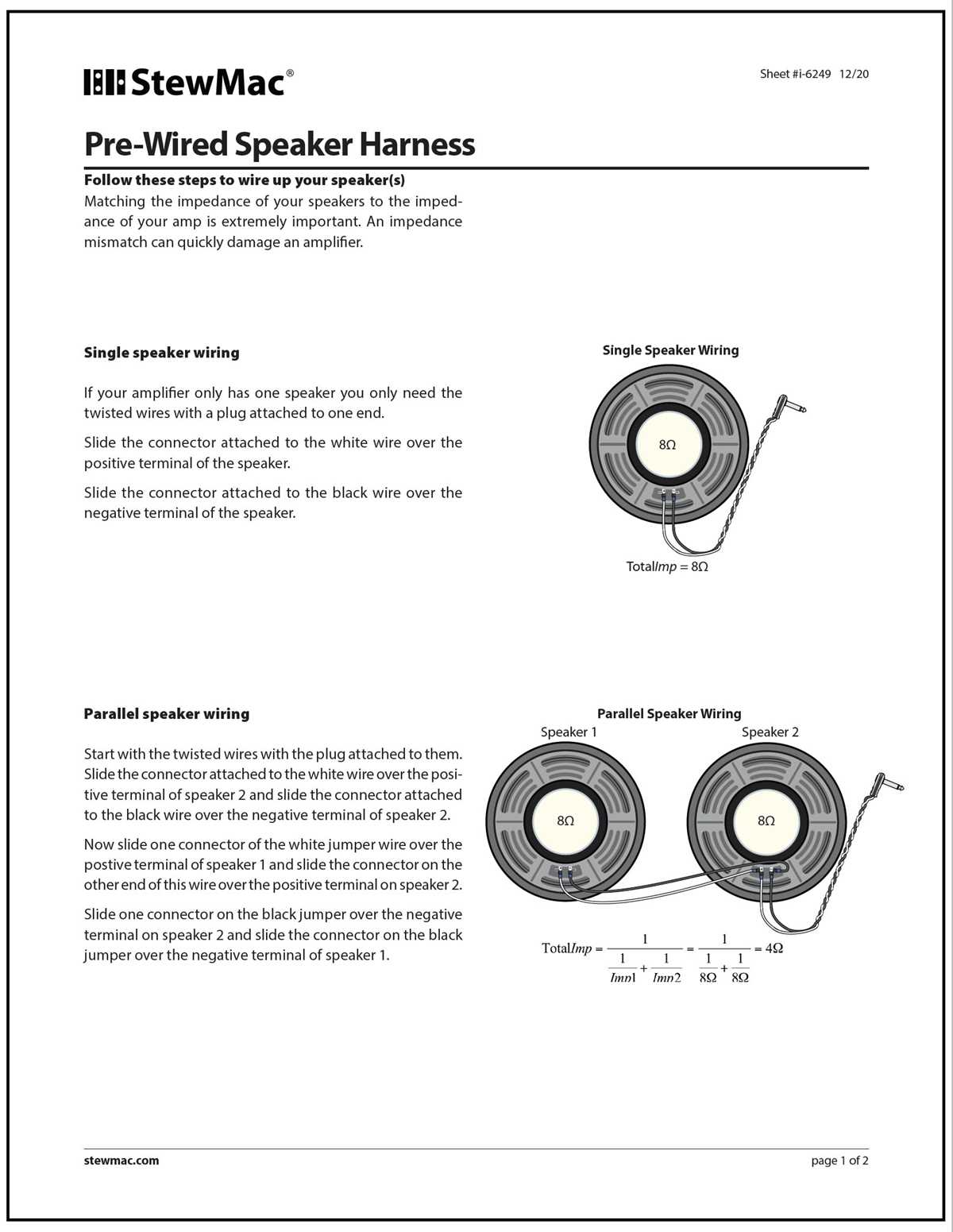

When drivers share the same positive and negative terminals, apply the inverse-sum rule. Two 8-ohm loads become 4 ohms combined; three 8-ohm loads drop to approximately 2.67 ohms. Keep final resistance above the amplifier’s minimum rating–dropping below risks overheating or protective shutdowns.
Mixed arrangements require two-step calculation. Group drivers in the same connection pattern first, then merge results. For example, two 6-ohm drivers wired end-to-end (12 ohms) alongside a single 4-ohm driver wired simultaneously results in [(1/12) + (1/4)]^-1 ≈ 3 ohms. Verify amplifier documentation for phase and damping requirements.
Frequency response shifts with resistance changes–drivers wired sequentially exhibit attenuated treble, while simultaneous connections may boost output at resonant frequencies. Use a multimeter to confirm calculated resistance before powering up; loose terminals can skew readings by ±10%.
Variable-load amplifiers like Class D models often handle 2 ohms safely, but traditional Class AB units typically demand 4 ohms minimum. Overloading risks distortion and component degradation. Consider current draw: at 100W, a 4-ohm load draws 5 amps, while a 2-ohm load doubles to 10 amps–check fuse ratings and heat sinks.
Electrolytic capacitors in passive crossovers introduce reactive components–resistance fluctuates with frequency. Near crossover points, expected impedance may deviate ±20%. Simulate driver behavior with free tools like WinISD or Room EQ Wizard to preempt surprises.
Balanced division ensures uniform power distribution. Uneven loading creates hotspots–one driver drawing excess current leads to early failure. Match driver specifications within 10% tolerance for consistent performance; mismatched loads unbalance frequency response and stereo imaging.

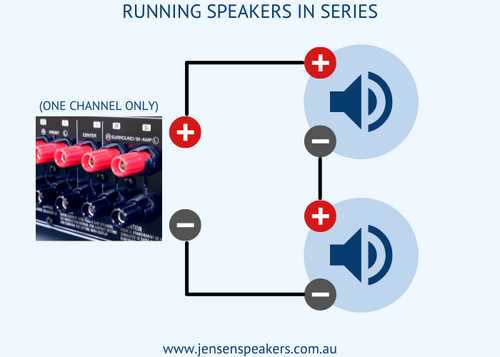

How to Connect Audio Drivers Sequentially: A Practical Walkthrough
Start by identifying the positive (+) and negative (-) terminals on each unit. Use a multimeter set to continuity mode to confirm polarity if markings are unclear–reverse connections will cancel phases, weakening output. For passive drivers, ensure your amplifier’s impedance rating exceeds or matches the total load. For example, two 4-ohm units wired end-to-end result in 8 ohms total; pair this only with an amp stable at 8 ohms or higher.
Gather short lengths of 16-gauge oxygen-free copper wire–thinner wires introduce resistance, degrading sound. Strip 6mm of insulation from each end, twist strands tightly, and secure with solder for durability. Alternatively, use spade connectors crimped with pliers for tool-free setup. Avoid wire nuts; loosened connections cause intermittent dropouts or distortion.
Wire Routing and Testing
| Step | Action | Tool/Material |
|---|---|---|
| 1 | Attach first unit’s (+) to amplifier’s (+) output | Spade connector or solder |
| 2 | Link first unit’s (-) to second unit’s (+) | Short wire segment |
| 3 | Connect second unit’s (-) back to amplifier’s (-) | Spade connector or solder |
| 4 | Insulate all joints with heat-shrink tubing or electrical tape | Heat gun or lighter |
Power on the amplifier at low volume and verify both drivers emit sound evenly. Play a sine wave test tone (1 kHz) and check for volume balance; a 3dB drop indicates loose connections or phase mismatch. If one unit remains silent, recheck polarity and continuity with a multimeter. For three or more drivers, extend the chain–each additional unit raises impedance, so recalculate total load before proceeding.
Secure all wires with cable ties or adhesive clips, keeping them away from vibrating surfaces or sharp edges that could fray copper over time. Label each connection with masking tape noting driver number and polarity for future troubleshooting. If adding a crossover, insert it between the amp and first driver to prevent high-frequency damage to tweeters.
Critical Errors in Connecting Sound Devices in Simultaneous Routes and Solutions
Use a multimeter to verify each path before powering amplifiers. Impedance mismatches below 2 ohms can destroy equipment within seconds. Calculate total load by summing reciprocal values: 1÷Ztotal = 1÷Z1 + 1÷Z2 + 1÷Zn. Failing this step risks overheating and failure in audio systems rated for higher loads.
Secure all connections with solder and heat shrink tubing. Bare wires touching metal chassis create shorts, instantly redirecting current away from drivers. Crimped terminals without insulation invite corrosion, increasing resistance over time. Check continuity after sealing to ensure signal reaches every transducer.
Distribute current evenly across amplifier channels. Loading a single output with multiple units while leaving others idle causes overheating on one side. Match power handling: if an amp delivers 100W into 4 ohms, connecting two 8-ohm drivers in tandem creates 4 ohms total–but the same load must apply to all outputs.
Avoid mixing different impedance ratings in the same circuit. Pairing a 4-ohm woofer with an 8-ohm midrange skews frequency response. The lower-impedance unit draws more current, distorting output balance. Confirm matching values before joining paths.
- Never run bare copper wires near magnets–induced currents corrupt signals.
- Use oxygen-free cable for lengths over 5 meters to prevent capacitance buildup.
- Label every junction immediately after installation to simplify future troubleshooting.
Isolate high-frequency tweeters from low-frequency drivers. Crossovers protect tweeters from damaging low-end energy, but improper connections bypass these safeguards. Verify crossover integration before finalizing connections to preserve driver integrity.
Test for phase cancellation immediately after installation. Reverse-polarity connections in simultaneous routes cancel frequencies, thinning out sound. Use a phase checker or play a mono test tone–if output drops, swap polarity on one unit until response stabilizes.
