How to Wire Shelly Plus 1 Step-by-Step Connection Guide
Connect the device’s L (live) terminal to your power source’s hot wire–typically brown or red in European standards, black in North American setups. Ensure the circuit breaker is off before touching any conductors. Use a voltage tester to confirm the absence of current. For 230V AC installations, select a cable with at least 1.5 mm² cross-section; for 120V, 2.5 mm² is recommended to handle inductive loads.
Attach the N (neutral) terminal to the white (North America) or blue (Europe) wire. Avoid mixing neutrals from different circuits–this violates safety codes and risks imbalance in shared systems. If the relay operates a motor or transformer, add a snubber circuit (0.1 µF capacitor + 100Ω resistor in series) across the output terminals to suppress voltage spikes.
For switching applications, link the I/O terminal to the load–LED strips, pumps, or solenoids–using conductors rated for the expected current. Check the relay’s datasheet: the Plus series models handle 16A resistive loads but only 4A for inductive loads. Exceeding these limits will trip internal fuses or damage the MOSFET. Always use heatsinks for loads above 10A.
Ground the device by connecting the ⏚ terminal to the equipment grounding conductor–green/yellow (Europe) or bare/green (North America). This prevents damage from static discharge and ensures compliance with IEC 60730-1 for Class I appliances. If the installation lacks grounding, isolate the relay with a 30 mA RCD.
Power-up sequence: restore neutral first, then live. If the relay fails to initialize, verify the voltage between L and N–207–253V AC for European models, 102–132V for North American variants. Check for loose terminals: a 0.5 mm gap increases contact resistance and can cause overheating.
Connecting the Smart Relay: A Practical Schematic Guide
Begin by identifying the power supply terminals on the device: L (live) and N (neutral). Connect the incoming mains wire to L and attach the corresponding neutral to N. Ensure the voltage matches the relay’s specifications–typically 110–265V AC–before proceeding. Incorrect voltage risks damaging the internal circuitry.
For single-switch control, link the output (O) terminal to the load, such as a lamp or motor. The input switch connects between SW and L, allowing toggling without additional components. If using a push-button, add a bypass capacitor (0.1µF) across SW and L to suppress voltage spikes that could trigger false activations.
Use the following configuration for multi-way switching (e.g., stairwell setups):
| Terminal | Connection | Purpose |
|---|---|---|
| SW | First switch (common) | Initial control point |
| O | Load (hot side) | Power delivery |
| Second switch (traveler) | Connects to SW via 3-core cable | Remote toggling |
Avoid daisy-chaining switches without proper cable sizing–exceeding 1.5 mm² cross-section increases resistance, causing voltage drops that interfere with stable operation. For installations exceeding 50 meters, insert a repeater module to maintain signal integrity.
Polarity-sensitive loads (e.g., LEDs with built-in drivers) require a direct connection to O, bypassing SW entirely. If the relay’s output carries DC, reverse polarity protection is critical; a Schottky diode (e.g., 1N5822) in series with the load prevents backflow that could corrupt firmware.
After securing all connections, power the system and verify responsiveness via the physical switch. Observe the LED indicator: steady blue confirms normal operation, while rapid blinking signals an error–likely a loose wire or overcurrent condition. Refer to the manufacturer’s fault codes for precise diagnostics.
For wireless integration, pair the device via the companion app before closing the housing. Use a 2.4 GHz network with WPA2 encryption; weaker protocols risk unauthorized access. Update firmware immediately after pairing to address known latency issues in early releases.

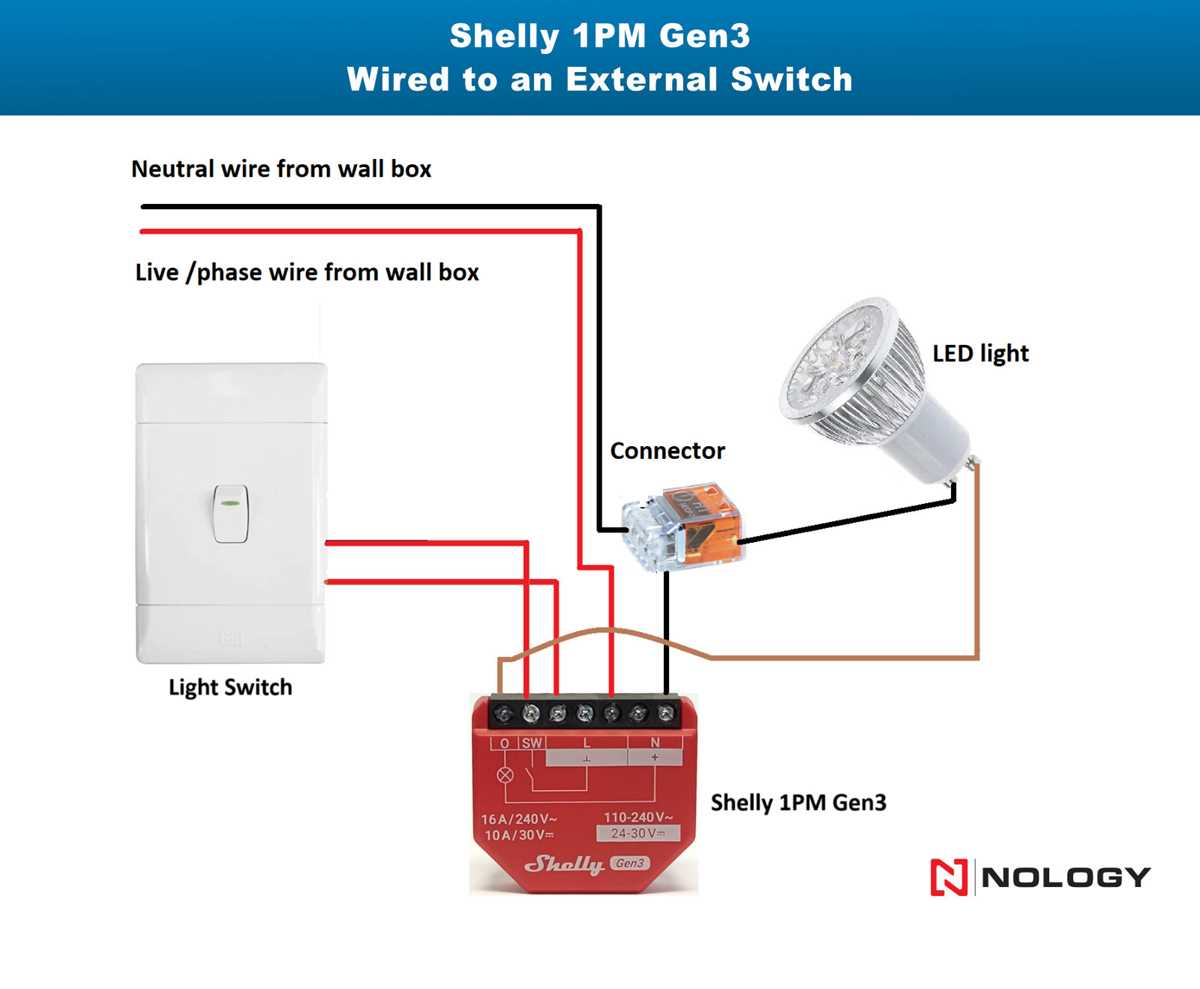

Step-by-Step Guide to Integrating the Smart Relay Module with a Single Control Point
Power off the circuit at the fuse box before handling any live terminals. Verify absence of voltage using a non-contact tester on both the supply and load sides. Failure to confirm zero voltage risks electric shock or short circuits during installation.
Identify the incoming live wire (typically brown or red) and connect it to the L terminal on the device. Strip 8–10 mm of insulation from the wire end to ensure full contact without exposed strands beyond the screw clamp. Tighten the terminal securely–loose connections generate heat and cause intermittent operation.
Locate the load wire (usually black or blue) leading to your light fixture or appliance. Attach it to the O output terminal, following the same stripping and tightening procedure. Use a multimeter in continuity mode to verify the switch interrupts this path when toggled. If the circuit remains closed, recheck wiring polarity before proceeding.
For the neutral (often gray or white), link it directly to the N input if your setup includes a neutral line. In older installations without a neutral at the switch box, skip this step but confirm the relay’s power requirements–some models tolerate alternative configurations, though performance may degrade.
Enable control via physical switch: Connect one terminal of your single switch to the I (input) port on the module. The other switch terminal should tie back to the permanent live supply. This pairing lets the switch act as a momentary toggle–press once to turn the load on, press again to turn it off. Test the switch before enclosing the box.
Once all connections are verified, restore power at the fuse box. Observe the module’s LED indicator–steady blue confirms proper operation, while rapid flashing suggests an error. Access the device’s interface via its default Wi-Fi network to configure automation rules, timers, or voice assistant integration. If the load fails to respond, revisit wiring continuity and switch functionality.
Integrating the Smart Relay Module for Dual-Control Lighting Setups
Connect the common terminal of the mechanical toggle to the live input on the automation device. Use 1.5mm² solid copper cable for stable current flow, ensuring the conductor is securely fastened in the terminal block to prevent loosening under 10A loads. Route the cable through the back of the junction box to avoid interference with wall plates.
Link the traveler wires from both toggles to separate output channels on the module. Assign one channel as the primary driver and the other as the secondary, allowing the firmware to detect toggle position changes instantly. Verify that the connections match the internal logic table to prevent unexpected toggling behavior during manual operation.
Attach the neutral wire directly to the module’s designated port, bypassing any intermediary connections in dual-control setups. This eliminates voltage drop issues that can cause flickering in LED bulbs rated below 6W. For installations with metallic conduit, ensure the neutral is isolated from the conduit to avoid ground loops.
Program the automation device to interpret the secondary toggle’s state as a momentary signal rather than a latching switch. This requires configuring the input mode to “edge detection” in the mobile interface, reducing latency to under 50ms when switching between controls.
Test the setup with a multimeter before energizing the circuit. Measure across the module’s output terminals while toggling both switches to confirm voltage swings between 0V and line voltage. If readings deviate by more than 5%, recheck the traveler wire connections for incorrect pairing.
Secure all cables with nylon zip ties spaced 10cm apart within the junction box to prevent chafing against sharp edges. Use insulated ferrules on stranded copper wires to prevent fraying inside terminal blocks, especially in humid environments where oxidation accelerates.
Label each wire in the junction box with heat-shrink tubing marked with a permanent marker. Include the destination (e.g., “SW1-Traveler”) and voltage rating (e.g., “240V AC”) to simplify future troubleshooting. Store a digital copy of the configuration settings in a secure repository for quick reference during maintenance.
Power Supply Options for Relay Devices: AC vs DC Configurations
Opt for a 24V DC power source when working with compact automation modules if stability and noise reduction are priorities. DC supplies eliminate AC-induced interference, ensuring cleaner signal transmission in low-voltage circuits. A regulated 24V DC adapter (
AC power remains the standard for mains-connected applications, particularly in permanent installations. A 220–240V AC supply simplifies deployment in electrical panels, avoiding the need for additional converters. However, ensure proper isolation: use a Class II transformer or a fused power entry module to comply with safety standards. AC wiring is less affected by voltage drops in long cable runs (>10m), but introduces risks of hum or ground loops in audio/data lines. For mixed-use setups (e.g., lighting + automation), combine an AC supply for the relay with a separate DC line for control signals.
Key Selection Criteria
- Load Type: DC supplies suit resistive or inductive loads ≤10A; AC handles larger loads (>16A) without derating.
- Environment: Outdoor/DC-powered units benefit from galvanic isolation. AC connections require moisture-proof terminals (IP44+).
- Safety Margins: AC installations need short-circuit protection (MCBs). DC systems should include reverse polarity diodes.
- Efficiency: DC converters (>90% efficiency) outperform AC transformers (~70%) in continuous operation.
For hybrid systems, prioritize separated circuits:
- Use a 24V DC rail for logic inputs (e.g., switches, PIR sensors).
- Power relays with 230V AC from a dedicated circuit breaker.
- Route neutral wires separately to avoid ground loops.
- Add varistors (MOVs) across AC terminals if voltage spikes are expected.
Ground both DC and AC sides to a central earthing point, but avoid bonding them. Test for residual current (>30mA) before commissioning; use an RCD for AC lines.
