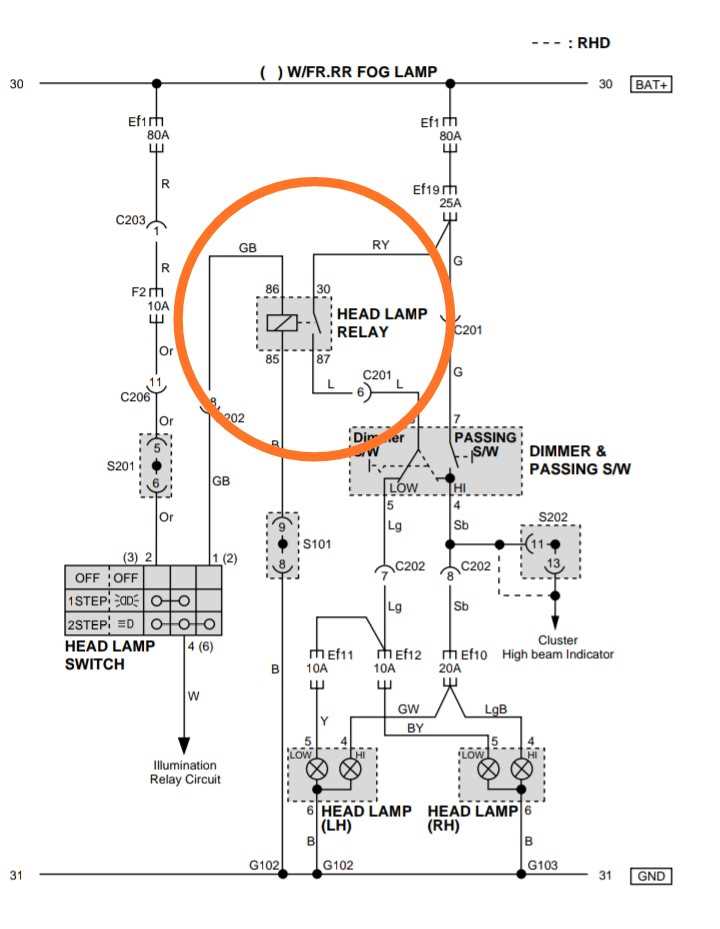

Complete Electrical Wiring Diagram for 1997 Chevy Silverado Full Guide

Locate the underhood fuse block on the driver’s side near the firewall–access requires removing the black plastic cover secured by two clips. Terminals C1 (dark green/white stripe) and C2 (light blue/black stripe) supply constant 12V power from the battery; verify continuity before reconnecting any aftermarket accessories. Ignition-switched circuits are routed through terminal A7 (pink/black) and A10 (yellow/black), with fuse ratings of 20A and 10A respectively–exceeding these will trip the thermal breaker integrated into the block.

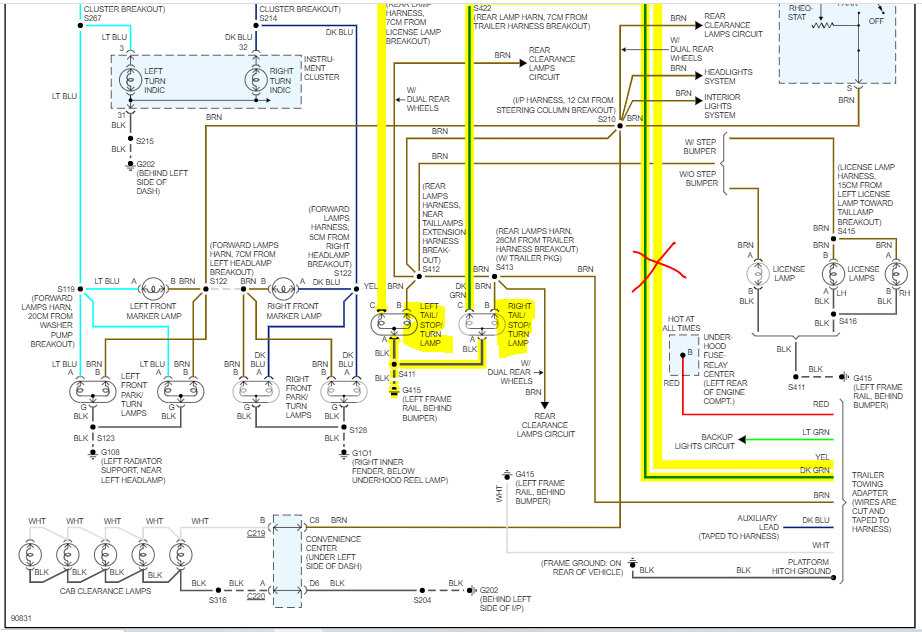

For trailer harness integration, splice into the rear lighting cluster at connector T305–left turn signal (amber) is pin 3 (brown/white), right turn (amber) is pin 5 (brown/yellow), and brake/tail-lights share pin 4 (brown). Ground points G101 (near the rear bumper) and G202 (under the driver’s seat) must be scraped down to bare metal and treated with dielectric grease to prevent voltage drop under full load (observed failure threshold: 0.8V across 8-gauge wire).

Aftermarket radio installation requires tapping fuse F24 (10A, ignition-switched) for accessory power and bridging the orange/white wire (pin B1 on the factory harness) to retain steering wheel controls–use a 220-ohm resistor in series to prevent error codes. For remote start systems, relay activation must pull pin 50 on the ignition switch (purple/white stripe) to ground within 0.5 seconds to trigger the starter solenoid without engaging the park-neutral safety override.

Troubleshooting intermittent dash lights: trace the instrument cluster’s pink wire (pin I2) to the headlight switch–corrosion at the bullet connector (common failure point) interrupts the dimmer rheostat signal, causing erratic backlight behavior. Replace the harness segment between the firewall grommet and the fusebox if resistance exceeds 0.3Ω; original wiring insulation degrades at a rate of ~0.5% per year in high-humidity environments, leading to short-to-ground faults by year 12.

Electrical Schematics of the 1997 GMC C/K 1500 Series

Locate the underhood fuse block first–labeled as “Power Distribution,” it houses critical relays and circuits for the engine control module, fuel pump, and ignition system. Pinouts are color-coded: orange (power), black/white (ground), and purple (sensor feeds). Verify connections against the factory service manual’s chart (section 6E3-22) before testing continuity with a multimeter set to 200 ohms. Replace damaged wires using 18-gauge GXL automotive cable, matching original insulation thickness to prevent chafing near the brake master cylinder.

Trace the instrument cluster harness behind the dash panel–disconnect the negative battery terminal before probing. The 12-pin connector (light green housing) carries signals for the tachometer (tan/black), speedometer (yellow), and fuel gauge (pink). If gauges malfunction, check the 1.5-ohm resistor linked to the voltage regulator; corrosion at the splice near the A-pillar often disrupts readings. For intermittent issues, bypass the firewall bulkhead connector with a temporary jumper wire to isolate faults.

Exhaust fan circuits integrate with the cooling module via a 30-amp relay (designation K24). The trigger wire (dark blue/white) originates from the powertrain control module–prolonged fan failures risk overheating, so splice in a bypass switch for testing. Headlight assemblies rely on two 7.5-amp fuses (left/right); low beams share a common brown/white ground near the radiator support. Ignore aftermarket “replacement” schematics unless cross-referenced with GM’s EWD-3110 document–third-party diagrams frequently omit the cruise control module’s dedicated pink/black feed.

Finding the Fuse Panel and Relay Layout on a 1997 GMC C/K Series

Open the driver-side door and inspect the trim panel directly beneath the dashboard’s left edge. A small rectangular access cover, roughly 4 by 6 inches, is secured by two plastic clips; pry the clips upward with a flat-head screwdriver to reveal the primary fuse block. Remove the cover entirely to expose the internal relay positions and fuse slots.

The fuse block contains two distinct sections: the upper row of mini-blade fuses (labeled A1–A16) and the lower section of maxi-fuses (marked B1–B8). Relays are arranged vertically along the right side; positions R1–R6 correspond to critical circuits like the fuel pump, horn, and starter solenoid. Each relay socket is numbered and color-coded–match the relay’s base color to the socket before insertion.

• Fuses A3 (10A) and A5 (15A) protect the instrument cluster and turn signals respectively.
• Maxi-fuse B2 (30A) supplies power to the ignition system–check for corrosion if the engine cranks but fails to start.
• Relay R3 (fuel pump) emits an audible click when energized; lack of this sound during key-up indicates relay failure or blown fuse B4 (20A).

Secondary fuse panels exist under the hood, mounted on the driver-side fender well adjacent to the battery. Remove the plastic cover by unsnapping the six retaining clips to access the high-amp circuits–primary feeder fuses (50A–100A) control the alternator, cooling fans, and headlamp modules. Labels are embossed on the underside of the cover; cross-reference these with the vehicle’s manual for resistance values during testing.

Faulty relay behavior often mimics fuse failure. Swap suspect relays with an identical unit from a known-good slot (e.g., R2 horn relay can substitute for R3 fuel pump relay) to confirm failure before replacement. Store spare relays in the empty slots provided on the upper right corner of the interior fuse block for quick access during roadside diagnostics.

Corrosion buildup on fuse terminals causes intermittent failures. Remove suspect fuses using needle-nose pliers, clean terminals with electrical contact cleaner, and apply dielectric grease before reinserting. Replace any corroded maxi-fuses with identical ampere ratings–never downgrade to prevent wiring harness damage.

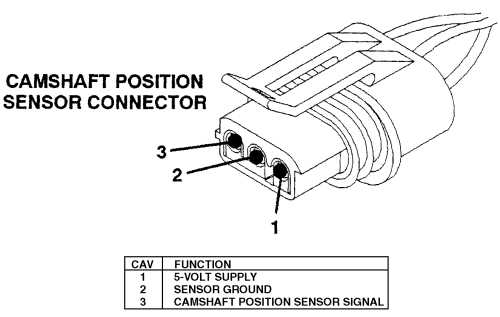

Decoding Engine Bay Cable Colors and Roles for the 1997 GMC Variant

Start by locating the black (BLK) cables near the battery–these serve as the primary ground connections. Trace them to the chassis or engine block; corrosion here disrupts multiple circuits. Replace any frayed or oxidized sections with 10 AWG copper strand to maintain conductivity.

The red (RED) leads carry 12V feeds from the alternator and ignition switch. Probe these with a multimeter: expect 13.8–14.4V when the engine runs. A drop below 12.6V at idle signals alternator failure or a parasitic drain. Verify against the alternator’s B+ terminal before condemning the cable.

Identify yellow (YEL) strands supplying the fuel pump relay. This circuit energizes only when the ignition key is in the “ON” position. If fuel delivery falters, splice into the rear frame rail connector and test for 12V pulse during cranking–no pulse confirms relay or ECM fault.

Inspect dark green (DK GRN) wires linking the coolant sensor. These terminate at the PCM and gauge cluster. An open circuit here triggers false temperature warnings; use a thermistor tester to confirm sensor integrity before replacing cables.

Light blue (LT BLU) cables control the TCC solenoid and transmission shift solenoids. Resistance should read 12–25 ohms across these leads. Higher readings indicate internal coil breakdown–replace the solenoid before splicing new cables to avoid repeat failures.

Trace purple (PPL) strands to the MAF sensor. Voltage here fluctuates between 0.5–4.5V based on airflow. A steady 5V signal points to a broken wire or ECM issue. Check for chafing along the A-pillar where these cables enter the cabin.

Avoid mistaking tan/black stripe (TAN/BLK) for oxygen sensor leads–these power the EVAP purge solenoid. Cycle the key to “ON” without starting; listen for a 2-second click at the solenoid. No click? Test for 12V at the fuse box terminal labeled “D2.”

For white (WHT) ignition coils, ensure the secondary resistance measures 6–15 kΩ. Misfires often stem from broken strands at the coil boot–replace the entire harness segment if resistance exceeds spec, rather than patching individual wires.

Step-by-Step Guide to Interpreting the 1997 Pickup Gauge Cluster Schematic

Locate the color-coded cable legends at the bottom of the schematic–each hue corresponds to a specific function within the cluster. Black (GND) grounds all circuits, while pink (IGN) delivers 12V when the key is in the ON position. Trace these two first to verify baseline power before proceeding to secondary connections.

Identify the gauge terminals using the table below–each pin on the backside of the cluster maps directly to a labeled circuit in the schematic. Match the connector’s lettered slots (A through J) with their assigned roles:

Connector Slot	Color	Function	Voltage (Key ON)
A	Black/White	Chassis ground	0V
B	Pink	Ignition feed	12V
C	Dark Blue	Fuel sender signal	0-9V (variable)
D	White	Headlight feed	12V (lights on)

Probe each terminal with a multimeter set to DC volts while the ignition is ON. If the reading deviates by more than 0.5V from the expected value, inspect the upstream fuse or sender–corrosion in the sender’s float arm often mimics gauge failure.

Isolate the tachometer circuit by following the orange wire from connector slot F. This lead branches from the ignition coil’s negative terminal–verify continuity by cranking the engine briefly while observing a 1-3V AC spike on the meter. No voltage here confirms a severed connection or faulty coil.

Check the low-oil-pressure warning by grounding the tan/black wire at slot H manually. The warning lamp should illuminate instantly; failure points to a burnt bulb or a defective oil-pressure switch. Replace the switch if oil levels are adequate but the light remains inactive.

Validate the turn-signal flasher sequence by confirming the light-blue wire at slot E pulses between 0V and 12V when the lever is toggled. Erratic blinking often traces back to a worn flasher relay concealed behind the dashboard near the steering column.
