How to Build and Understand a Basic DC Circuit Step by Step
Start by selecting a battery as the power source–9V alkaline types work reliably for low-current setups. Place it at the top of your layout to establish a clear voltage reference, marking the positive terminal with a red wire and the negative with black. This color-coding prevents misconnections that could damage components or create unsafe conditions.
Choose a load resistor based on Ohm’s Law calculations: for example, a 470 Ω resistor on a 9V source will draw ~19 mA, well within safe limits for standard LEDs. Overlook this, and you risk overheating or burning out sensitive elements. Use a multimeter to verify resistor values before insertion–tolerance errors (often ±5%) can alter expected behavior.
Connect a switch in series before the load to control current flow. A basic SPST (single-pole, single-throw) toggle switch suffices for most setups, but ensure its contact rating exceeds the circuit’s current–cheap switches rated for 0.5A may fail under sustained 1A loads. Solder connections for permanence; temporary breadboard setups introduce resistance variability.
Ground all return paths to a single node to avoid floating potentials. In dual-rail designs, separate ground symbols for positive and negative rails prevent confusion–label them “V+”, “GND”, and “V–” if using a split supply. Forget this step, and parasitic currents can create erratic voltage drops across components.
For indicator elements, pair an LED with a current-limiting resistor. A 220 Ω resistor on a 5V line restricts current to ~10 mA, sufficient for visibility without stressing the diode. Calculate this against the LED’s forward voltage (typically 1.8–3.3V) to avoid dim or burnt-out outputs. Reverse polarity destroys LEDs instantly–double-check orientation.
Label every segment with clear, non-generic identifiers: “R1 – 470 Ω,” “SW1 – Toggle,” “LED1 – Red (2.1Vf).” Ambiguous notation leads to tracing errors during debugging. Use a thin-tip permanent marker or printed adhesive labels for longevity.
Building a Basic Electrical Schematic: Key Components and Layout
Start by placing a power source–typically a battery–on the left side of your schematic. Use a rectangular symbol for the battery, labeling the positive terminal with a “+” and the negative with a “–”. A standard AA battery provides 1.5V, while a 9V block suits low-power applications. Avoid assuming higher voltages will work without recalculating resistor values, as this risks damaging LEDs or other sensitive components.
Connect the battery’s positive terminal to a switch (use the standard on/off symbol: a break in the line). This allows controlled current flow and prevents unnecessary drain when the setup is inactive. For a toggle switch, the symbol is a straight line with a diagonal break; for a push-button, replace the diagonal with a “T” shape intersecting the line. Verify switch ratings match your voltage–most consumer-grade switches handle up to 125VAC/30VDC, but micro-switches may only support 20V.
Load and Current Limiting Devices
After the switch, insert a load–most often an LED for beginner projects. The LED’s anode (longer leg) connects to the positive path, while the cathode (shorter leg, marked with a flat edge on the bulb) returns to the negative side. Never connect an LED directly to the power source; always pair it with a resistor. Use Ohm’s Law (R = (Vsource – VLED) / ILED) to calculate resistance. For a 9V source and a red LED (2V forward voltage, 20mA current), this yields R = (9V – 2V) / 0.02A = 350Ω. Round up to the nearest standard value, typically 330Ω or 470Ω.
Wire the resistor in series between the switch and the LED. For breadboard testing, use 22-gauge solid core wire; stranded wire frays and complicates connections. Color-code wires: red for positive, black for negative, and additional colors (blue, yellow) for signal paths if adding complexity later. Measure continuity with a multimeter before powering on–short circuits can destroy components in milliseconds.

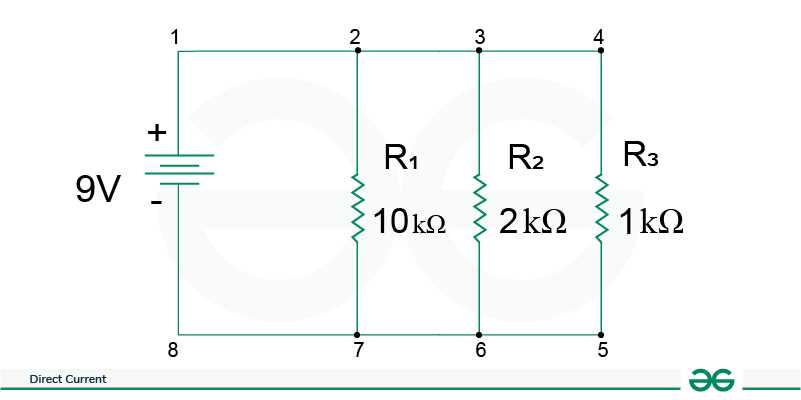

Complete the loop by returning the LED’s cathode to the battery’s negative terminal. If testing multiple LEDs, arrange them in parallel (each with its own resistor) rather than series; series configurations divide voltage, often leaving downstream LEDs dim or nonfunctional. For a 9V source, two red LEDs in series would drop 4V, starving the second LED of sufficient voltage. Parallel setups ensure consistent brightness but require individual resistors to prevent current hogging by lower-resistance LEDs.
Core Elements for a Direct Current Setup
Select a power source with a voltage matching your load requirements. For low-power applications (LEDs, small motors), a 3V–12V battery suffices. Higher-demand devices (50W+) need lead-acid or lithium-ion packs with stable output. Verify the current rating (Ah) to avoid premature depletion–LEDs tolerate mA ranges, while motors may require 1A or more per phase.
Conductors must handle expected amperage without overheating. Copper wire gauges follow the American Wire Gauge (AWG) standard:
- AWG 22 (0.32 mm²): ≤1A (signal paths, sensors)
- AWG 18 (0.82 mm²): ≤3A (small actuators)
- AWG 12 (3.31 mm²): ≤10A (power rails, heaters)
Insulation type matters–silicone-coated wires endure 200°C, while PVC degrades at 70°C. For high-frequency switching (PWM), use twisted pairs to reduce noise.
Switches or transistors act as control gates. Mechanical switches (SPST, DPDT) suit manual toggling, but solid-state relays (SSRs) or MOSFETs (IRFZ44N) enable electronic control with minimal latency. Calculate switching losses: MOSFETs dissipate ~0.5W per Amp at 10kHz. For inductive loads (motors), add a flyback diode (1N4007) to clamp voltage spikes.
Loads determine component selection. Resistive loads (heaters, incandescent bulbs) draw steady current; inductive loads (motors, relays) introduce back-EMF. Capacitors (100µF–1000µF) smooth voltage dips but require derating–electrolytic caps lose 20% capacitance at -20°C. Fuses (fast-blow or slow-blow) protect the setup; choose amperage 1.25× the max expected current to avoid nuisance trips.
Step-by-Step Assembly of a Battery-Powered LED Setup
Select a 9V alkaline battery, a standard 5mm red LED (forward voltage: 1.8–2.2V, current: 20mA), and a current-limiting resistor. Calculate the resistor value using Ohm’s law: R = (Vbattery - VLED) / ILED. For a 9V source and 2V LED, (9 - 2) / 0.02 = 350Ω. Use the nearest standard value: 330Ω or 390Ω. Higher resistance increases battery life but dims the LED; lower risks burnout.
| Component | Specification | Tolerance |
|---|---|---|
| Battery | 9V alkaline (e.g., Duracell MN1604) | ±0.5V |
| LED | 5mm red (e.g., Lite-On LTST-C190KRKT) | ±0.1V (forward voltage) |
| Resistor | 390Ω, 1/4W, carbon film | ±5% |
| Wires | 22 AWG stranded copper | Insulation melt temp: 80°C |
Strip 5mm of insulation from both ends of two 10cm wires. Twist one end of each wire around the resistor leads. Connect the resistor’s free end to the LED’s anode (longer leg). Attach the second wire to the LED’s cathode (shorter leg with flat edge). Verify polarity: the anode must face the battery’s positive terminal. Press the wires onto the battery terminals; the LED should illuminate immediately. For permanent connections, use a breadboard or solder with rosin flux. Test continuity with a multimeter; resistance should read 390Ω ±5% when powered. If the LED fails to light, reverse the LED leads or check for loose connections.
How to Read and Interpret Common DC Schematic Glyphs
Begin by memorizing these core symbols–each represents a fundamental element in power flow layouts:
- Battery: Two parallel lines (one longer for the positive terminal) or multiple pairs for multi-cell units. The longer line always indicates the anode (+). Variations like Li-ion may include a dotted outline for safety markings.
- Resistor: A zigzag line (ANSI) or rectangle (IEC). Wattage ratings dictate size: ¼W (small), 5W (large). Look for bands or printed values (e.g., “470R” = 470Ω).
- Switch: A break in the path with either an angled line (toggle) or a dotted circle (push-button). SPST (single throw) is simplest; DPDT (double pole) has two parallel breaks.
- LED: A triangle with a vertical line (anode) and outward arrows for light emission. Polarity matters–reverse connection prevents illumination.
- Capacitor: Two parallel lines (non-polarized) or one curved line (for electrolytic/polarized). Microfarad values are often labeled (e.g., “100μF”).
Decoding Abbreviations and Notations
Schematics use abbreviations to denote functions without clutter. Commit these to memory:
- VCC / VDD: Supply voltage for circuits (VCC for BJTs, VDD for MOSFETs).
- GND: Ground symbol (three descending lines) or chassis ground (triangle with a base). Avoid confusion with signal ground (often marked “SG”).
- PWR: Power input (usually a bold arrow or thick line).
- NC: “No Connect” (unused pins on components–never assume continuity).
- TP: Test point (small circle or numbered label for debugging).
Voltage ratings (e.g., “12V”) are placed near power sources, while current ratings (e.g., “500mA”) appear on traces. Dotted lines indicate mechanical connections (e.g., switches linked to actuators).
Trace paths systematically: positive leads flow from the power source, through components, to ground (or return to the source in closed loops). Follow the thickest traces first–these carry the highest current. Junction dots confirm electrical connection; crossed wires without dots are isolated. For integrated blocks (e.g., voltage regulators), note input (IN), output (OUT), and ground (GND) pins–manufacturers deviate rarely, but datasheets override assumptions. Always verify orientation: polarized components (diodes, electrolytic capacitors) fail if reversed, often catastrophically.
