Complete Sim900 Circuit Diagram Guide with PCB Layout and Pinout Details

Start with a power supply delivering 4.2–9V at 2A to ensure stable operation. Connect the input through a low-dropout regulator (LDO) like the AMS1117-3.3, pairing it with a 100µF electrolytic capacitor on both input and output to filter voltage spikes. Avoid cheaper alternatives–LDOs with fast transient response prevent brownouts during network registration.

Route UART lines (TXD, RXD, GND) directly to your microcontroller without pull-up resistors. Use 1kΩ series resistors only if noise persists in long traces. Keep trace impedance below 50Ω for signal integrity, especially for 115200 baud communication. Ground loops are a primary failure source–separate analog and digital grounds with a single-point star connection near the module’s GND pin.

Implement an active-low PWRKEY pushbutton with a 10kΩ pull-up resistor to VCC. Hold it low for 1–2 seconds to trigger module boot. Skip external reset circuits–tty commands (AT+CFUN=1) suffice for most resets. For antennas, match impedance to 50Ω using a PI network (L-C-L) if the module lacks internal matching. Test with a VSWR across 850–1900 MHz bands.

Add a SIM card holder with detection switch wired to the module’s RI pin via a 10kΩ pull-down. Use a 3V SIM–check for AT+CSIM compatibility if errors occur. For battery-backed applications, include a 3.7V Li-ion with a TP4056 charger IC, monitoring charge status via CHRG pin tied to an MCU interrupt.

Isolate audio paths with 1µF coupling capacitors on MICP/MICN and SPKP/SPKN lines. Apply AC coupling to prevent DC offset damage. For debugging, log raw UART data to an SD card using DMA or ring buffer–avoid delays that cause buffer overflows during AT command responses.

Flashing requires a USB-to-serial adapter (3.3V logic). Use stm32flash or avrdude for bootloader uploads if modifying firmware. Validate GPRS connectivity with AT+CGATT=1 after boot–network timeouts often stem from poor grounding or insufficient current. Always verify SIM registration (AT+CREG?) before sending commands.

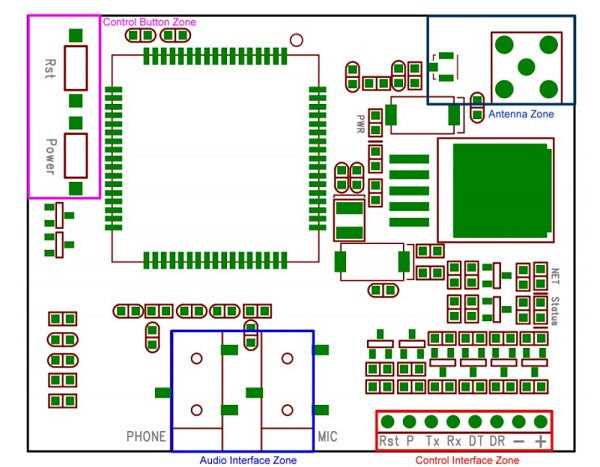

GSM Module Circuit Layout: Practical Implementation Guide

Start with a dedicated power supply circuit for stable operation. Use a 5V to 4.2V linear regulator like LM1117 or AMS1117 with input/output capacitors (10µF ceramic) to prevent voltage spikes. Connect the enable pin directly to the regulated output–never leave it floating. For battery-powered designs, add a 2A polyfuse in series with the supply line to prevent damage from unexpected surges.

Signal integrity requires precise grounding. Route the module’s ground plane away from noise sources like switching regulators or digital I/O. Use a 4-layer PCB with the second layer as a continuous ground plane. Connect all ground pins simultaneously via multiple vias–avoid daisy-chaining. For UART communication, series resistors (22Ω) on TX/RX lines reduce reflections, especially in traces longer than 10cm.

Critical Connections and Component Selection

• Antenna: Use a 50Ω SMA connector with a π-network matching circuit (LC components tuned to 900MHz). Prefer a ceramic chip antenna for compact designs, but ensure proper clearance (2-3x antenna length) from metal parts.
• SIM Interface: Route SIM card traces at minimum width (0.2mm) to avoid impedance mismatches. Add ESD protection diodes (e.g., PESD5V0S1BA) on SIM I/O lines to prevent damage from static discharge.
• Audio Path: AC-coupling capacitors (1µF) on microphone/speaker lines block DC offsets. Use ferrite beads on analog lines to filter high-frequency noise from nearby digital components.

Debugging ports should include test points for UART, power rails, and key signals (RI, DTR, PWRKEY). Label each with silkscreen for quick probing. For production boards, incorporate zero-ohm resistors as jumpers–remove them after testing to isolate sensitive sections. Always verify the layout with a network analyzer before finalizing the PCB; even minor deviations in trace length can cause impedance mismatches or signal degradation.

Key Components Required for GSM Module Circuit Assembly

Start with a voltage regulator capable of delivering 3.4–4.4V at 2A peak current–common choices include AMS1117-3.3 (for LDO stability) or MP2307DN for switching converters where efficiency matters. Pair it with 100µF electrolytic and 0.1µF ceramic capacitors on both input and output to suppress transients; failure to do so will trigger resets during high-current bursts like GPRS transmissions. Include a 1N5819 Schottky diode between the battery and regulator to block reverse current, preventing battery drain when external power is disconnected.

Critical Passives and Interfaces

Component	Specification	Purpose
SIM holder	Micro-SIM, push-push type	Avoids contact oxidation; gold-plated pins mandatory
32.768kHz crystal	±20ppm tolerance	RTC accuracy for network registration
Antennas	3dBi PCB trace (GSM850/900), 2dBi for DCS/PCS	Mismatch causes -5dBm sensitivity drop; use 50Ω SMA connector
Level shifter	TXB0104 (UART)	Converts 2.8V module logic to 3.3V/5V MCU

Route UART traces with controlled impedance (30Ω differential, 50Ω single-ended) and keep them under 8cm to prevent data corruption. Add a 10kΩ pull-up resistor on the module’s PWRKEY pin to ensure proper startup sequencing–omitting this risks unresponsive states. For debug stability, include a 0.1µF decoupling capacitor on every VDD pin near the chip, less than 2mm from the pad.

Step-by-Step Wiring Guide for GSM/GPRS Modules

Start by connecting the VCC pin to a stable 3.4–4.4V power source–any deviation risks module failure or erratic behavior. Use a dedicated low-dropout regulator (e.g., AMS1117-3.3) if your supply exceeds 4.4V, ensuring ripple stays below 10mV for reliable operation. Avoid USB-powered setups; they lack current stability for GSM transmit bursts.

Wire the GND to the system ground, keeping traces short and wide (minimum 1mm) to minimize noise. Route the ground path away from high-frequency components like MCUs or switching regulators to prevent crosstalk. For battery-powered designs, add a 10μF tantalum capacitor between VCC and GND at the module pins–ceramic capacitors alone may not handle sudden current spikes during network registration.

Attach the TXD and RXD pins to your microcontroller’s UART, matching baud rates (default: 9600). Use a logic level converter if your MCU runs at 5V–module pins tolerate maximum 3.3V; higher voltages can permanently damage the IC. Include a 1kΩ resistor in series with TXD if noise persists in noisy environments.

For the SIM card interface, connect SIM_VDD to 3V (or leave floating if using a 3V SIM). Wire SIM_DATA, SIM_CLK, and SIM_RST directly to the card holder, ensuring pull-up resistors (10kΩ) on all lines. Test the setup with AT+CPIN?–if the response is +CPIN: READY, the SIM is detected; +CME ERROR: 10 indicates a wiring fault.

Power Supply Options and Voltage Regulation Schemes

For reliable operation, use a 3.3V–4.2V DC input with ≥2A peak surge capability. Li-ion batteries (e.g., 18650) or a 5V/2A USB adapter with a low-dropout (LDO) regulator like AMS1117-3.3 or MIC29302WT are optimal. Avoid unregulated wall adapters–voltage spikes above 4.3V risk permanent damage to sensitive circuits. For battery-powered designs, integrate a TP4056 charge controller with protection against overcurrent (≤3A) and reverse polarity.

• LDO regulators (e.g., XC6206P33): 300mV dropout, 240mA max output–ideal for compact designs.
• Switching regulators (e.g., LM2596): 90% efficiency at 3A, but requires 22µH inductor and 100µF capacitors for stability.
• Load requirements: 200–500mA active, 1.5–3mA sleep mode. Use 1000µF tantalum or low-ESR electrolytic capacitors at input/output to suppress transients.
• Thermal considerations: LDOs dissipate P = (V_in – V_out) × I_load. For V_in = 5V, V_out = 3.8V, I_load = 500mA, mount on ≥20mm² copper pad.

Serial Communication Setup with Microcontrollers

Start by configuring the UART (Universal Asynchronous Receiver/Transmitter) pins on your microcontroller with precise baud rates. For ATmega328P, use 9600 as the default for stability, though higher rates like 115200 work reliably with shorter wires (under 30 cm). STM32 requires explicit clock initialization–enable USART2 in the CubeMX tool and set Word Length to 8 Bits, Stop Bits to 1, and Parity to None.

Connect TX (transmit) to RX (receive) and vice versa between devices, ensuring a common ground. For ESP32, use UART_NUM_1 (pins 16/17) for secondary communication, as UART_NUM_0 (pins 1/3) conflicts with USB debugging. Library functions like Serial.begin() (Arduino) or HAL_UART_Transmit() (STM32 HAL) handle transmission; verify buffer limits–64 bytes max for Arduino’s Serial.write() without blocking.

Implement hardware flow control only if latency demands it–use RTS/CTS on STM32’s USART with HWControl set to UART_HWCONTROL_RTS_CTS. For Raspberry Pi Pico, PIO (Programmable I/O) can bit-bang UART at custom rates if needed. Always include pull-up resistors (4.7kΩ) on I²C lines, but UART tolerates direct connections if voltage levels match (e.g., 3.3V to 3.3V).

Debug with an oscilloscope or logic analyzer–check for framing errors (incorrect baud rate) or noise (long cables). For error handling, STM32’s HAL_UART_ErrorCallback() detects overrun and noise flags; Arduino’s Serial.available() returns -1 on buffer overflow. Use checksums or delimiters (e.g., 0x0A for line feed) to validate data integrity in variable-length messages.

Optimize for power by disabling UART when idle–on ESP32, call uart_driver_delete(); on AVR, disable the USART module via PRR (Power Reduction Register). For bidirectional communication, implement a response timeout (100ms typical) using millis() or HAL_GetTick() to avoid deadlocks. Always test with minimal payloads first–start with 1-byte echoes to isolate wiring issues before scaling to complex protocols.
