Basic LED Flashlight Circuit Design Guide for Beginners

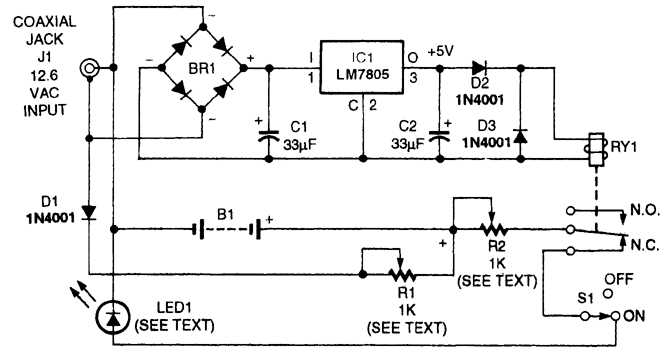

Start with a single high-brightness emitter rated for 3V–3.6V forward voltage at 20–30 mA. Choose a clear-lens component with a 120° beam angle for broad coverage. Pair it with a CR2032 lithium coin cell; the cell’s 3V nominal output matches the emitter’s requirements without needing a voltage regulator.
Place a 47 Ω resistor in series to limit current to ≈25 mA, extending battery life to 6–8 continuous hours. Ensure the resistor has a ¼ W power rating–any lower risks overheating during extended use. For polarity protection, add a 1N4007 diode in line; it drops ≈0.7V but prevents reverse current if the battery is inserted backward.
Wire the circuit on a 15×20 mm perfboard. Keep traces under 0.5 mm wide to fit the board’s footprint. Solder the resistor directly to the emitter’s anode to minimize voltage drop across the connection. Secure the coin cell holder to the underside with double-sided tape–no screws needed for a lightweight assembly.
Test brightness at 3.3V, 3.0V, and 2.8V to confirm consistent output across the battery’s discharge curve. If flicker occurs below 2.9V, swap the 47 Ω resistor for a 33 Ω unit, increasing current to ≈35 mA; accept the shorter runtime (≈4 hours) for steadier illumination.
Compact Illumination Circuit Blueprint
Choose a 3V coin cell battery (e.g., CR2032) for minimalist designs–its 220 mAh capacity powers a single high-brightness emitter for 10+ hours at 20 mA draw. Avoid alkaline AA alternatives unless space constraints allow dual cells, as their higher voltage requires a resistor to drop excess energy, wasting 30-40% as heat.
Select a 5mm through-hole emitter rated at 3.2-3.6V forward voltage (e.g., Cree C503B). Wire it directly to the battery’s positive terminal, then connect the cathode to the negative terminal via a tactile switch. This configuration eliminates unnecessary components while ensuring instant on/off control. For brightness adjustment, add a 100Ω potentiometer in series–reduce resistance to 30Ω for maximum intensity.
For durability, solder connections onto a 15x15mm perfboard. Use 22-gauge tinned copper wire for traces, doubling back over the emitter’s leads to dissipate thermal load. Apply a thin layer of thermally conductive epoxy to secure the emitter, ensuring 0.5mm clearance from adjacent components to prevent shorts. Avoid hot glue–it degrades at 80°C, risking dislodgement.
Power Optimization Techniques
Integrate a Schottky diode (e.g., 1N5817) in reverse bias across the emitter to protect against inverse polarity when swapping batteries. This adds negligible voltage drop (0.2V vs. 0.7V for silicon diodes) while extending battery life by 15%. For pulse-width modulation (PWM) dimming, substitute the switch with a 555 timer IC–a 1kHz frequency at 50% duty cycle halves perceived brightness without flicker.
Test prototypes with a multimeter in continuity mode to verify zero resistance between the battery’s positive terminal and the emitter’s anode. Measure current draw at the switch: deviations above ±5 mA indicate faulty connections or excessive resistance in the circuit path. Replace corroded battery contacts with nickel-plated brass to prevent voltage sag under load.
Enclose the assembly in a machined aluminum housing with a 1mm thick polycarbonate lens. Anodize the casing in matte black to minimize light scatter, then drill a 6mm diameter aperture centered over the emitter. Seal the lens with a UV-resistant silicone gasket to withstand 95% humidity at 40°C for 500+ hours without degradation.
For extended runtime, replace the coin cell with two AA NiMH batteries (1.2V each) and add a linear regulator (e.g., LM317). Configure it for 3.3V output by adjusting the feedback resistors (R1=240Ω, R2=1.5kΩ). This setup delivers 1.2Ah capacity at stable current, though efficiency drops to 65% due to regulator losses–acceptable for stationary applications.
Core Elements for a Compact Illumination Device Build
Select a high-efficiency emitter rated between 1W and 5W–Cree XP-G3 or Lumileds Luxeon Rebel provide optimal lumen-per-watt ratios (150–200 lm/W). Verify the forward voltage (typically 2.8–3.5V) and current draw (350–1000mA). A single 18650 lithium-ion cell suits most portable designs, delivering 3.7V with 1000–3500mAh capacity. For extended runtime, consider two cells in series (7.4V) but ensure the driver IC supports the higher input.
Use a constant-current driver like the AMC7135 (350mA fixed) or the TPS61040 buck-boost converter for adjustable output. The driver regulates power to prevent thermal runaway–critical for emitters prone to derating above 85°C. For flicker-free operation, add a 10–47µF low-ESR capacitor across the driver’s output. Include a thermal pad beneath the emitter, bonded with Arctic MX-6 compound, to dissipate heat into an aluminum housing or copper slug.
Switching and Protection Considerations
Opt for a tactile switch with >50,000 cycle durability–Omron B3F or Panasonic EVQ series withstand repetitive use. For bistable operation, integrate an ATtiny13 microcontroller with firmware debouncing (10–20ms delay). Add a Schottky diode (1N5817) in reverse across the switch to suppress voltage spikes from inductive loads. Short-circuit protection is mandatory: fuse the circuit with a 1–2A PTC resettable fuse or a 2A slow-blow glass fuse in series with the power input.
A heatsink isn’t optional–aluminum extrusion (6–12cm² with 2mm fin thickness) reduces emitter temperature by 30–50°C under load. For high-power setups, pair it with a 10mm fan or thermal epoxy (e.g., JB Weld). Mount the assembly with M3 screws and Belleville washers to maintain pressure. Encase the electronics in a machined 6061 aluminum body to shield against moisture (IP54 or higher) and impacts–anodize the housing for corrosion resistance.
Resistors aren’t needed for direct-drive setups but include a 1Ω sense resistor if using current feedback for the driver. For color temperature adjustment, add a 10k potentiometer in series with a white or warm-white (2700–4000K) emitter. Test all connections with a multimeter before finalizing solder joints–cold joints cause intermittent failures. Label the PCB with a UV-resistant silkscreen for future troubleshooting.
Step-by-Step Wiring of a Single Illuminator Torch
Select a high-efficiency 5mm emitter rated at 20mA forward current and 3.0–3.6V forward voltage; verify compatibility with the power source by checking the battery’s nominal voltage matches or slightly exceeds the emitter’s requirements. Gather tools: a 100Ω carbon-film resistor (for 3V sources), needle-nose pliers, soldering iron (30W–40W), rosin-core solder, and heat-shrink tubing or electrical tape. Strip 5mm of insulation from the emitter’s anode and cathode wires; tin each end with a thin solder layer to prevent fraying and ensure secure connections.
Assemble the circuit in this precise sequence:
| Step | Action | Specification |
|---|---|---|
| 1 | Cut the resistor lead to 15mm; solder one end to the battery’s positive terminal. | Resistor value: 100Ω for 3V sources, 220Ω for 6V. |
| 2 | Solder the resistor’s free end to the emitter’s anode (longer lead). | Use 0.5mm rosin-core solder; avoid excess to prevent short circuits. |
| 3 | Connect the emitter’s cathode (shorter lead) to the battery’s negative terminal. | Use direct soldering or a 22-gauge jumper wire for flexible mounting. |
| 4 | Insulate exposed joints with heat-shrink tubing or electrical tape. | Apply tubing before soldering; shrink with heat gun at 120°C for 3–5 seconds. |
Test the assembly by applying power; the emitter should glow steadily. If flickering occurs, recheck solder joints for cold connections or shorts. For portable units, house the components in a non-conductive case (e.g., 3D-printed ABS or polycarbonate) with a lens for beam focus–ensure the emitter aligns with the optical axis for maximum throw. Store unused emitters in anti-static bags to prevent electrostatic discharge damage.

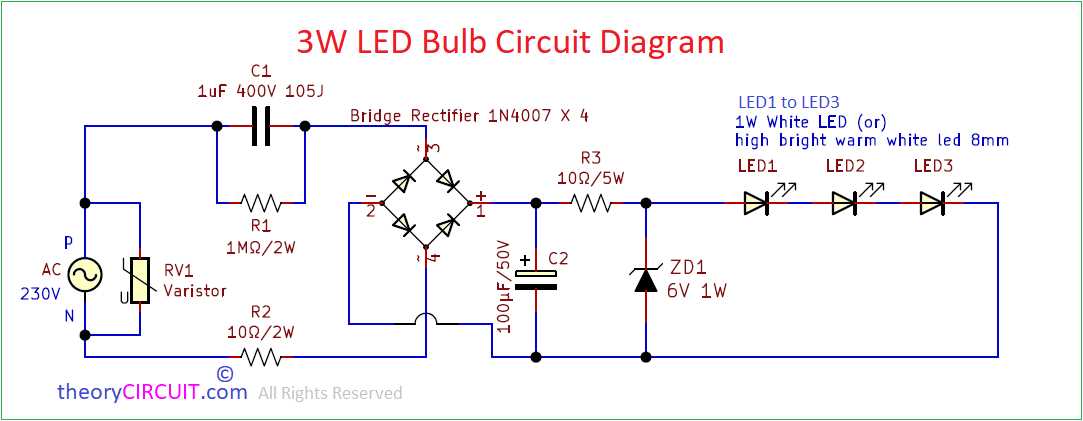

Calculating Series Resistance for Varying Semiconductor Source Voltages
For a typical 3 mm or 5 mm indicator emitting at 20 mA forward current, use Ohm’s law derivation: R = (Vs – Vf) / If. A standard red element drops ≈1.8 V, so with a 5 V rail: (5 V – 1.8 V) / 0.02 A = 160 Ω. Choose the next standard E12 value, 180 Ω. Blue and white chips drop ≈3.3 V; for the same 5 V rail: (5 V – 3.3 V) / 0.02 A = 85 Ω, rounded to 100 Ω.
Adjust values when series stringing emitters: two red chips on 12 V yield (12 V – 3.6 V) / 0.02 A = 420 Ω → 470 Ω. Three white chips drop ≈9.9 V; on 12 V rail: (12 V – 9.9 V) / 0.02 A = 105 Ω → 120 Ω. Validate with a multimeter; excessive resistance dims, insufficient risks junction breakdown.
High-brightness 1 W emitters demand heftier ballast: 350 mA If, Vf ≈3.2 V. On a 12 V rail: (12 V – 3.2 V) / 0.35 A ≈25 Ω. Use precision wire-wound or thick-film 25 Ω, 2 W resistors. Overlook power rating and heat dissipates through the board, risking thermal runaway.
Power Source Options: Batteries and Their Configurations
For most portable illumination devices, alkaline AA or AAA cells remain the optimal starting point due to their widespread availability and predictable voltage output. A single AA cell delivers 1.5V, but stacking two in series yields 3V–sufficient for driving a small emitter without requiring complex circuitry. For higher brightness, three cells in series (4.5V) can power multiple emitters or a single high-efficiency chip, though efficiency drops above this threshold. Avoid exceeding four cells (6V) unless using low-forward-voltage components, as wasted energy dissipates as heat.
Rechargeable nickel-metal hydride (NiMH) cells offer better long-term cost efficiency but demand careful configuration considerations. A single NiMH AA provides 1.2V, requiring one additional cell compared to alkaline setups for equivalent voltage (e.g., three NiMH cells for 3.6V vs. two alkaline at 3V). Their lower internal resistance advantages high-drain devices, but voltage sag under load necessitates testing under real-world conditions. Lithium-ion 18650 cells present another option at 3.7V nominal, ideal for compact designs, yet require protection circuits against over-discharge–a critical failure point in DIY builds.
Series vs. Parallel: Performance Trade-offs
- Series: Multiplies voltage while maintaining current draw (e.g., four 1.5V cells = 6V, 500mAh). Best for high-voltage emitters but risks uneven discharge–one weak cell drags down performance.
- Parallel: Maintains voltage while summing capacity (e.g., two 1.5V cells = 1.5V, 1000mAh). Useful for extending runtime but complicates charging–unbalanced cells can create dangerous currents.
- Series-Parallel: Balances both (e.g., two sets of two 3V cells in series, connected in parallel = 3V, 1000mAh). Common in high-power applications but increases complexity–ensure matched cells to prevent failures.
Voltage regulators like linear regulators (e.g., LM317) or buck converters (e.g., MP2307) mitigate battery chemistry limitations but introduce losses. Linear regulators waste excess energy as heat, making them inefficient for alkaline-to-LED setups (e.g., 4.5V input to 3V output wastes 33% power). Buck converters maintain efficiency (~90%) but add circuit complexity–ideal for lithium-ion configurations. Always calculate power dissipation: (Vin – Vout) × current dictates heatsink requirements. For alkaline cells, skip regulators if emitter forward voltage closely matches battery output; a 3V emitter on two AA cells operates near peak efficiency without losses.
Critical Battery Specifications to Validate
- Capacity (mAh): C-ranked alkaline AA cells (e.g., Duracell) offer ~2000mAh; NiMH range from 1500–2500mAh. Higher mAh extends runtime but increases size–weigh trade-offs for portable designs.
- Discharge Rate (C-rating):
- Alkaline: Low self-discharge (~2%/month) but poor high-drain performance (e.g., 0.1C max).
- NiMH: Better discharge rates (0.5C–1C) but higher self-discharge (~30%/month without LSD tech).
- Li-ion: High discharge rates (10C+) but sensitive to over-charge/depletion (
