Build a Basic Microphone Circuit with Step-by-Step Diagram Guide
For a reliable sound pickup setup using a condenser capsule, connect a 2.2kΩ resistor between a 9V supply and the positive terminal of an electret element. Ground the negative terminal directly. A 10µF coupling capacitor should follow to block DC while passing audio signals to the output. This configuration eliminates external bias networks, reducing component count without sacrificing sensitivity.
If power limitations exist, replace the 9V source with a 3.3V or 5V line–adjust the resistor to 1kΩ to maintain proper capsule polarization. For low-noise operation, use a metal-film resistor and a polyester or film capacitor rated for at least 50V. Avoid ceramic capacitors in the signal path, as microphonics can introduce unwanted artifacts.
A field-effect transistor (FET) like a 2N3819 or J310 can buffer the signal before further amplification, ensuring minimal loading on the capsule. Connect the gate to the capacitor’s output, the source to ground via a 1kΩ resistor, and take the output from the drain, fed through a 4.7kΩ load resistor tied to the supply. This stage provides a gain of ~10, sufficient for most preamp inputs.
For shielding, enclose the assembly in a grounded metal case or wrap signal-carrying traces with copper tape connected to the common ground. Keep input leads under 10cm to prevent RF interference. Test with an oscilloscope: a healthy setup should show ~50mV peak-to-peak at conversational volume, with clean edges and no visible distortion.
Basic Audio Capture Schematic Guide
Start with an electret capsule like the CMA-6542TF or WM-61A; these require 2–10 VDC bias through a 2.2 kΩ resistor. Connect the positive capsule terminal to the bias resistor, then route the output to a single-transistor preamp using a 2N3904 or BC547. Ground the capsule’s other terminal via a 10–100 µF electrolytic capacitor to block DC while allowing audio signals.
Avoid long input traces; they pick up 50/60 Hz hum. Keep the preamp’s input trace under 2 cm and shield it with a ground pour. Place a 1 nF ceramic capacitor directly between the transistor’s collector and ground to roll off RF interference above 20 kHz. Use a 47 µF electrolytic at the bias point to decouple power supply noise.
| Component | Value | Purpose |
|---|---|---|
| R_bias | 2.2 kΩ | Electret capsule DC bias |
| C_block | 10–100 µF | DC blocking, LF coupling |
| C_RF | 1 nF | RF suppression on collector |
| R_load | 4.7 kΩ | Collector load resistor |
| C_decoup | 47 µF | Power supply decoupling |
Breadboard the preamp first; measure collector voltage at ~45 % of VCC for maximum headroom. If voltage swings below 30 % or above 70 % of VCC, adjust the 4.7 kΩ collector resistor in 1 kΩ steps. Add a 1 µF coupling capacitor at the output to drive headphone loads down to 32 Ω without clipping.
Twist power and ground wires together to reduce loop area; a ferrite bead on the power lead knocks down conducted noise. Test frequency response by feeding 1 kHz at 20 mV RMS; output should be 1 V RMS ±0.5 dB. If low frequencies sag below 100 Hz, increase the output coupling capacitor to 10 µF.
Transfer the perfboard layout to copper clad using a toner-transfer method; etch with ferric chloride. Drill 0.8 mm holes for component leads, then solder a contiguous ground plane on the bottom side. Mount the capsule perpendicular to the board edge to minimize vibration coupling. Add a 3-pin male header for +5 V, ground, and signal.
Power the unit from a single 5 V wall adapter; regulate locally with an AMS1117 3.3 V if noise floor must be below −70 dBV. Place a 0.1 µF ceramic capacitor within 2 mm of the AMS1117 input pin. Include a 220 µH inductor in series with the main +5 V lead if switching regulator hash is audible.
Sensitivity checks: aim for −42 dBV/Pa at 1 kHz; deviations larger than ±2 dB indicate incorrect bias or capsule damage. Replace the bias resistor with a 1 kΩ trimpot if capsule sensitivity varies across production units. Seal the completed assembly in a grounded aluminum enclosure with a 6 mm diameter sound port; notch the port with foam to flatten response above 10 kHz.
Final verification step: loop back the output into Audacity; record silence for 30 s–no spikes above −65 dBV should occur. If digital hash appears, add a 20 Ω resistor in series with the analog output lead near the header to dampen resonances.
Core Elements for an Audio Signal Path

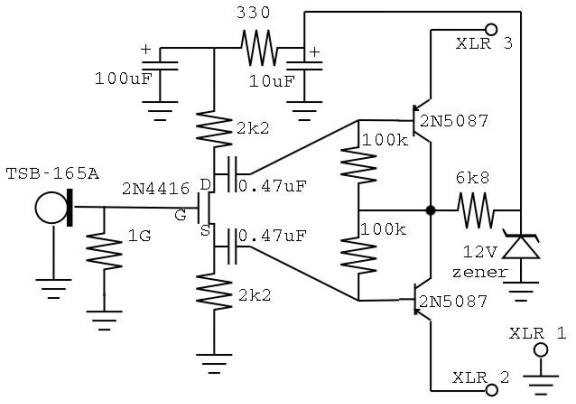

Start with a condenser capsule (e.g., electret type like CMA-4544PF-W) rated between 2V–10V polarization voltage; verify its sensitivity (≥-44dBV/Pa) and self-noise (≤20dB SPL). Pair it with a JFET preamp (2N3819 or BF245) in common-source configuration–gate to the capsule’s backplate, drain to a 4.7kΩ–10kΩ load resistor, and source tied to ground via a 1kΩ–2.2kΩ resistor for stable biasing. For dynamic setups, use a moving-coil element (e.g., Shure SM57-style) with a 600Ω–1kΩ input impedance transformer ( Lundahl LL1538) to match the coil’s
Decouple DC with a ceramic capacitor (10nF–100nF, 50V) at the capsule’s output and a tantalum capacitor (22µF–47µF, 16V) at the power supply entry to suppress ripple–avoid electrolytics here due to leakage current. Power stabilization requires a low-dropout regulator (e.g., TPS7A4700 for 5V–9V output) with input/output capacitors (10µF ceramic, X7R dielectric) placed balanced output via an LM833 op-amp in unity-gain configuration, capacitively coupled to XLR pins 2/3 (1µF film capacitor, ≥100V rating), with pin 1 grounded via a 10Ω resistor to prevent RF interference.
Step-by-Step Wiring Guide for Electret Audio Sensor

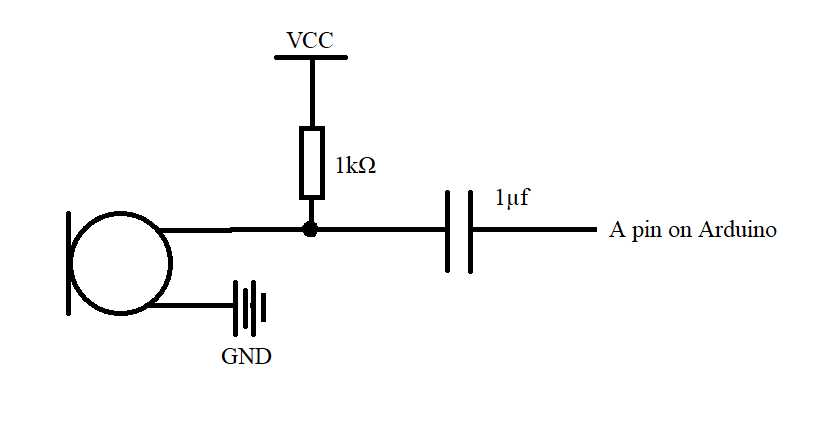

Start by identifying the polarities on your electret capsule: the longer lead connects to power, while the shorter one grounds to a resistor. Use a 2.2 kΩ resistor between the power lead and a 3–5V DC source (e.g., Arduino’s 5V pin or a 3V coin cell). Avoid higher voltages–exceeding 10V risks damaging the sensor’s built-in JFET amplifier.
Required Components
- Electret capsule (e.g., CMA-4544PF-W)
- 2.2 kΩ resistor (¼W, ±5% tolerance)
- DC power supply (3–5V)
- Copper wire (22–26 AWG)
- Soldering iron (≤30W) + solder
- Multimeter (for voltage verification)
Strip 5mm of insulation from the resistor’s leads, then twist it to the positive terminal of the capsule. Secure with solder–ensure no cold joints form. Next, solder the negative lead to a shared ground (e.g., battery’s negative terminal or Arduino’s GND). For signal output, attach a 10 µF electrolytic capacitor in series with the positive lead to block DC offset; the capacitor’s positive side connects to the sensor.
Verification Steps
- Power the setup; measure voltage across the capsule’s leads with a multimeter–expect 1.2–2.5V.
- Connect the capacitor’s free end to an oscilloscope or amplifier input; tap the capsule–observe a 50–200 mV peak-to-peak signal.
- If no signal, swap the capacitor (check polarities) or reduce resistor value to 1 kΩ for higher gain.
Adjusting Gain for Optimal Audio Signal Strength
Set the preamplifier’s gain between 20–40 dB for most voice applications. Exceeding 50 dB introduces hiss, while below 15 dB leaves signals buried in ambient noise. For condenser capsules, use a low-noise FET stage with a 10 kΩ input impedance to match typical electret elements. Dynamic transducers require higher current; bias resistors of 2.2 kΩ–4.7 kΩ prevent distortion. Test with a 1 kHz sine wave at -20 dBV input–output should peak at -3 dB below clipping without waveform flattening.
Fine-tune with a potentiometer wired as a voltage divider before the amplification stage. A 10 kΩ logarithmic taper potentiometer provides smoother gain control for audio frequencies than linear types. Place a 100 nF coupling capacitor after the pot to block DC, followed by a 1 µF electrolytic capacitor to ground for low-frequency roll-off at 16 Hz, eliminating subsonic interference. Measure signal-to-noise ratio (SNR) with an oscilloscope; aim for >60 dB SNR at maximum gain before noticeable hiss appears. For electret transducers, reduce phantom power voltage from 9 V to 5 V if self-noise increases.
Attenuate high frequencies if feedback occurs–insert a 10 kΩ resistor in series with a 22 pF capacitor between amplifier stages to form a first-order low-pass filter cutting at 7.2 kHz. This preserves speech intelligibility while reducing harshness. For lapel transducers, add a 47 µF capacitor in parallel with the bias resistor to stabilize gain at 100 Hz. Verify adjustments by speaking at 30 cm distance; peak levels should stay within ±1 dB across 250 Hz–4 kHz. Replace op-amps with discrete JFET input pairs if noise floors exceed -120 dBV/√Hz.
Linking an Audio Sensor to a Signal Booster
Begin by matching the impedance of your sound pickup device to the input stage of your amplifier. For electret capsules, a FET-based preamp with a 2.2 kΩ resistor between the drain and supply voltage ensures stable biasing. Condenser types require phantom power–typically 48V–applied through two 6.8 kΩ resistors in series with the balanced lines. Dynamic models, like moving-coil transducers, pair best with a low-noise op-amp (e.g., NE5532) configured for a gain of 20-50 dB, using a 10 µF coupling capacitor to block DC offset.
Ground the shield of the interconnect cable directly to the amplifier’s chassis at a single point to avoid hum loops. For unbalanced connections (e.g., TS jacks), keep the cable under 5 meters to prevent high-frequency roll-off and interference. Use star grounding: connect all grounds to a central node, then link that node to the power supply’s common return. Twisted-pair wiring reduces electromagnetic pickup; if unavailable, route the cable away from power lines and transformers by at least 15 cm.
Calibrate gain staging to prevent clipping. Measure the output of your audio sensor with an oscilloscope: peak levels should not exceed 70% of the amplifier’s supply voltage. For a 9V rail, this translates to ~6.3V peak. Insert a 1 kΩ potentiometer between the sensor’s output and the amplifier input to adjust sensitivity. Add a 100 nF bypass capacitor across the power supply pins of active components to filter noise from switching regulators or dirty power sources.
Test for distortion by feeding a 1 kHz sine wave at -20 dBu (77 mV RMS) into the system. A THD+N ratio below 0.1% indicates proper alignment. If oscillations occur, reduce loop gain by increasing the compensation capacitor on the op-amp (start with 10 pF, adjust upward in 5 pF increments). For battery-powered setups, use a low-dropout regulator (e.g., MCP1700) to maintain consistent performance as voltage declines.
