Step-by-Step Single Doorbell Wiring Guide with Clear Diagram

Begin by disconnecting power at the circuit breaker to prevent shocks. Use a multimeter to verify wires carry no voltage before handling. Attach the transformer to a junction box, matching the voltage (typically 12V, 16V, or 24V) to your chime’s requirements. Secure connections with wire nuts, ensuring no exposed copper remains.

Route the low-voltage leads from the transformer to the push button location. Use 18-gauge bell wire for runs under 100 feet–thicker wire prevents voltage drop on longer distances. At the door station, connect the button’s terminals to the transformer’s “front” and “common” wires. Polarity matters only if your chime has LED illumination; otherwise, match colors for consistency.

Mount the chime unit on a stud or use drywall anchors rated for 25+ pounds. Connect its terminals to the transformer’s leads: “front” to the push button’s return wire, “common” to the transformer’s neutral. For mechanical chimes, note the terminal order–reversing connections may silence the gong. Test the setup by restoring power and pressing the button; listen for a crisp tone. If silence persists, recheck connections or measure transformer output with a multimeter.

For outdoor buttons, use weatherproof models with silicone-sealed contacts. Extend the wire through conduit if exposed to moisture. Label all wires during installation–future troubleshooting becomes straightforward when each conductor’s path is documented. Avoid aluminum wire due to corrosion risks; solid-core copper ensures long-term reliability.

Adjust chime volume with the built-in control if available, or replace the coil with a higher-resistance unit for louder operation. Keep runs between components under 150 feet to maintain sufficient voltage. For systems with multiple stations, add resistors or diodes to isolate signaling paths–consult manufacturer specs for precise values.

Installing a Chime Electrical Layout

Begin by identifying the transformer’s voltage rating–commonly 8V, 16V, or 24V–and match it precisely to your chime unit. Most residential systems operate at 16V, but verify this on the device’s label to avoid burnout or weak signals. If the transformer lacks a visible rating, use a multimeter set to AC voltage mode and probe the output terminals while the system is powered. Record the reading and cross-reference it with the chime’s requirements.

Run a two-conductor cable from the transformer to the chime button, ensuring the wires are rated for indoor or outdoor use as needed. For outdoor installations, use UF-B (Underground Feeder) cable or THWN-2 wires inside conduit to resist moisture and temperature fluctuations. Strip ½ inch of insulation from each wire end, then secure them under the button’s screw terminals, tightening firmly to prevent loose connections–this is a frequent failure point in poorly installed setups.

Connect one wire from the button to the transformer’s high-voltage terminal and the other to the chime’s front or primary terminal. The chime’s second terminal must link directly to the transformer’s remaining terminal to complete the circuit. Avoid twisting wires together–use crimp connectors or lever nuts for long-term reliability. If the chime features a light, ensure its bulb is compatible with the transformer’s voltage; many LED replacements require resistors to prevent flickering.

Test the setup by momentarily pressing the button. A clear, loud tone should emit from the chime; if faint or nonexistent, recheck all connections with a continuity tester. Probe both button terminals while pressed–if the tester lights, the button functions correctly. Next, verify the chime’s terminals; if no signal reaches them, inspect the cable for breaks or improper terminations. Replace damaged wires immediately, as exposed conductors pose fire and shock hazards.

For systems requiring a power adapter instead of a traditional transformer, confirm the adapter’s output matches the chime’s input specs–typically 12V DC for digital models. Plug the adapter into a dedicated, unswitched outlet to avoid accidental shutdowns. If the chime includes a backup battery, install it correctly (observing polarity) and test monthly, as depleted batteries silence alarms during power outages.

If adding a second chime elsewhere in the home, use a single-pole, double-throw (SPDT) relay to avoid overloading the transformer. Wire the relay’s coil across the first chime’s terminals, then route the relay’s normally open contacts to the second chime. This isolates the circuits, ensuring both chimes ring simultaneously without voltage drops. Seal all wall penetrations with silicone caulk to prevent drafts and insect entry.

Troubleshoot silent chimes by measuring voltage at the transformer’s output–if absent, replace the transformer. If voltage is present but the chime remains mute, disassemble it and inspect for internal wire detachment or corroded contacts. Clean corrosion with fine-grit sandpaper or contact cleaner, then reassemble. For intermittent ringing, check the button’s plunger mechanism–replace if worn or stuck, as debris accumulation is a common culprit.

Document your installation with labels on all components, noting wire colors and their destinations (e.g., “White = Transformer to Button”). Store spare parts–extra wires, connectors, and a replacement button–near the installation site for quick repairs. Periodically tighten terminals to compensate for thermal expansion and vibration, which loosen connections over time.

Essential Equipment and Supplies for Installing a Front Entry Chime

Start with a low-voltage transformer (16V AC or 24V AC) matched to your chime’s requirements–most residential models need 16V. Verify the transformer’s wattage rating; undersized units cause weak rings or delayed responses. Include 18-gauge solid copper wire (stranded risks loosening under screw terminals) in two colors for hot and neutral lines, plus a third for the front button if your setup lacks a dedicated ground. A non-contact voltage tester (sensitivity ≥50V) ensures safe handling–probe terminals and exposed connections before touching. For solderless connections, use insulated crimp connectors (butt or fork style) with a crimping tool calibrated to 18-gauge; twist-and-tape joints degrade over time.

Add a multimeter (min. 400V AC range) to measure transformer output–expect 15-18V AC with no load, dropping to 10-14V under load. Include fish tape (steel, 1/8″ width) for routing wire through studs, but avoid plastic-coated variants that fray in tight conduits. For outdoor buttons, use waterproof junction boxes (NEMA 3R) and silicone-filled wire nuts to prevent moisture ingress. A stud finder (edge-detection type) locates mounting points; standard models miss lathe and plaster. Torx or Robertson drivers (T10/T15) speed up terminal screws–flathead tips strip easily. Keep spare terminal screws (No. 6-32 x 1/4″) for replacements; factory screws often shear during disassembly.

Step-by-Step Guide to Locating Your Home’s Chime Circuit

Turn off power at the breaker panel before examining any connections. Use a non-contact voltage tester to confirm no current remains in the transformer or terminals. If the system lacks a dedicated breaker, shut off the main switch–the low-voltage circuit may share power with lighting or outlets, posing a risk if misidentified.

• Check behind the pushbutton: Remove the exterior plate, typically secured with one or two screws. Look for paired wires (often 18-22 AWG) connected to screws or push-in terminals–color codes vary, but red and white are common for front/back units.

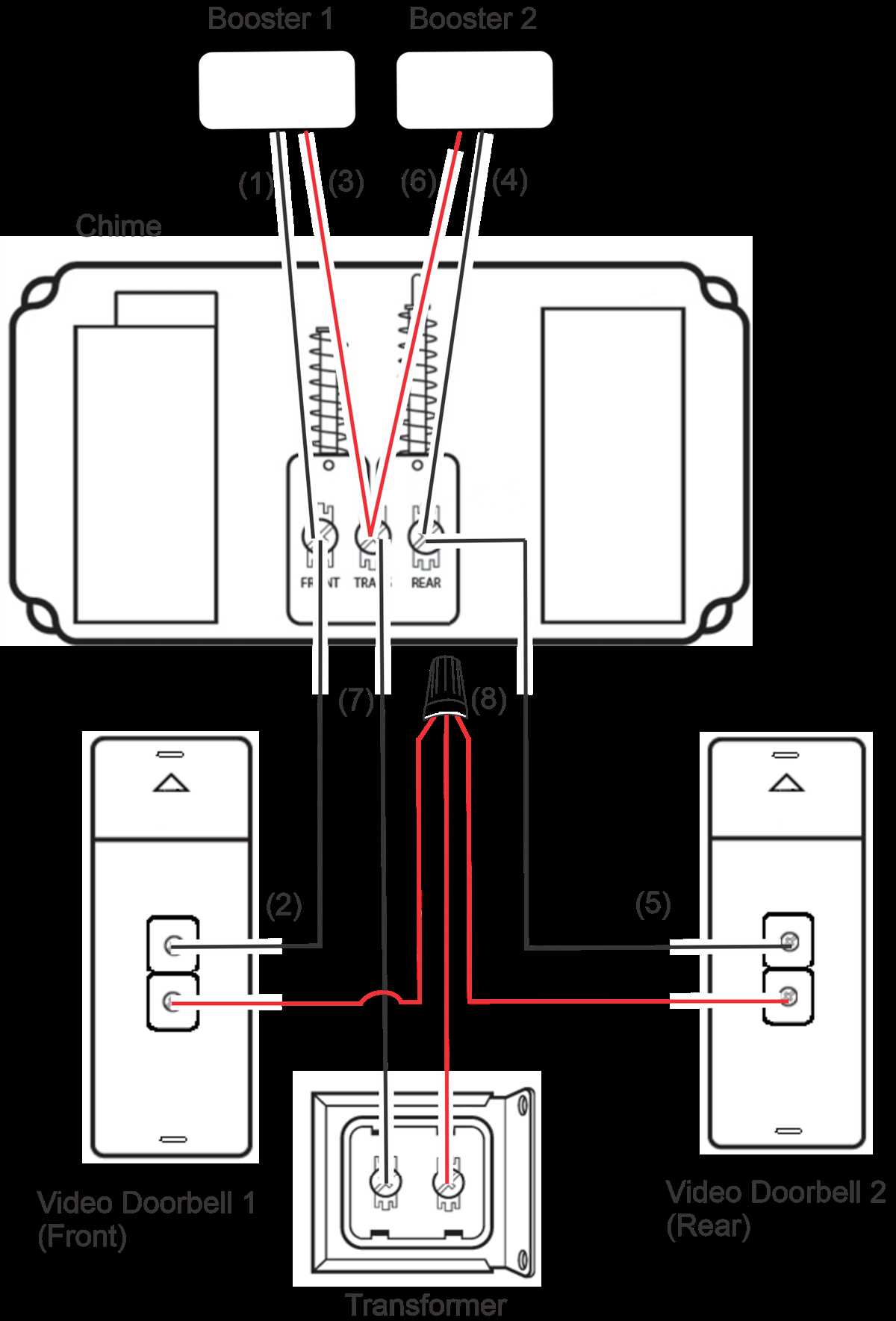

• Inspect the interior unit: Trace wires from the button to the chime box, usually mounted in a hallway, utility closet, or near the electrical panel. Open the cover to expose terminals labeled “Front,” “Trans,” and sometimes “Rear” or “Bell.”
• Measure transformer voltage: Attach a multimeter to the terminal screws–expect 10-24V AC. If readings are zero, follow wires back to the power brick, often tucked behind drywall near an outlet or in the attic, garage, or basement.

Document findings: Photograph connections before disconnecting anything. Label both ends of each wire with masking tape (e.g., “Front Button Top” or “Transformer Common”). If wires disappear into conduits or walls without clear termination, probe gently with insulated pliers–avoid stripping insulation, as short circuits may disable the entire setup.

Step-by-Step Guide to Integrating a Chime Power Unit into Your Electrical Setup

Locate your home’s main electrical panel and identify a dedicated 120V circuit with a 15- or 20-amp breaker. If adding a new circuit, install a double-pole breaker rated for the transformer’s load–typically 24VAC at 20VA or lower. Verify the panel can handle the additional draw; older systems may require an upgrade if overloaded.

Mount the power unit near the panel or in a concealed but accessible spot like a utility closet or basement. Use a standard electrical box for secure attachment, avoiding locations prone to moisture or excessive heat. Secure the unit with screws, ensuring the front cover sits flush against the wall to prevent dust or debris from entering terminal connections.

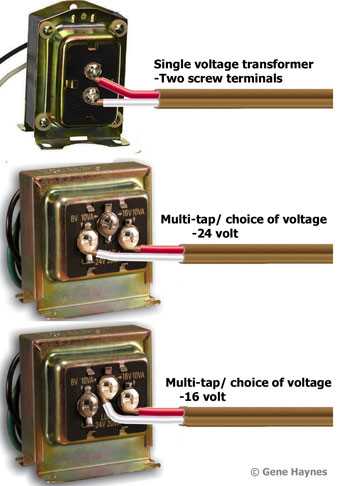

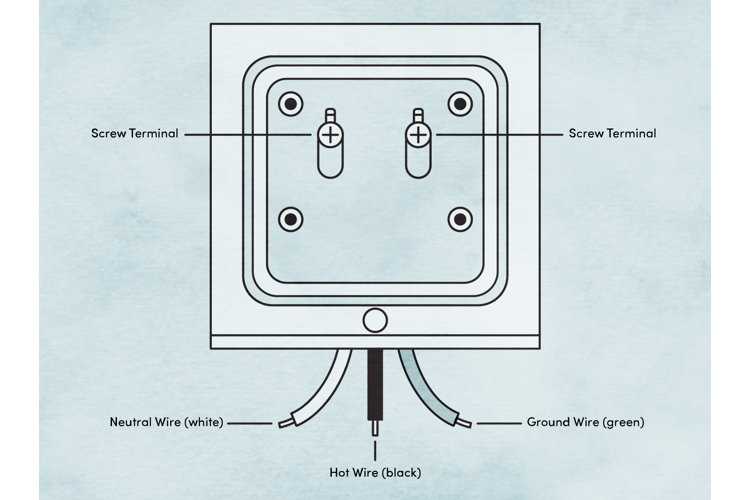

Strip the ends of the incoming 120V wires (black for hot, white for neutral, bare/green for ground) back ½ inch using wire strippers. Insert them into the transformer’s primary terminals–match the labels (usually “H” for hot, “N” for neutral). Tighten screws firmly; loose connections cause voltage drops or overheating. For grounding, attach the bare wire to the transformer’s designated ground screw or bus bar in the electrical box.

Run low-voltage cables (18 or 20 AWG, bell wire) from the transformer’s secondary terminals to the chime’s location. Avoid routing near high-voltage lines or sources of interference like motors or fluorescent lighting. Use conduit or crown molding for protection if the path crosses exposed studs or joists. Secure cables every 4–6 feet with insulated staples or clips to prevent sagging or accidental damage.

Connect the low-voltage wires to the transformer’s secondary terminals (often labeled “F” and “T” or “24V”). Polarity matters for some systems–confirm compatibility with your chime’s manual. Loose strands can short; twist them tightly before inserting into terminals. If the transformer lacks pre-labeled outputs, use a multimeter set to AC voltage: red probe on one terminal, black on the other–reading should be 16–24VAC.

Test the setup by turning on the circuit breaker. Activate the chime to ensure audible response; no sound may indicate reversed polarity or a tripped breaker. Check the transformer’s casing for warmth–excessive heat suggests a short or overloaded circuit. If voltage is absent, inspect the primary connections and breaker. For persistent issues, measure current draw on the secondary side; readings above 0.8 amps signal a faulty chime or wiring fault.

Finalize installation by enclosing the transformer in its cover plate and securing loose cables. Label the circuit breaker “Doorbell Transformer” for future reference. If the system supports multiple buttons (front/back entrances), verify each functions independently without cross-talk. For outdoor setups, use weatherproof junction boxes and silicone sealant around cable entries to prevent moisture infiltration.
