Complete Guide to Building a Single Phase Inverter Schematics

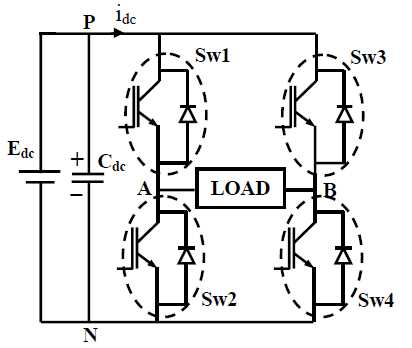

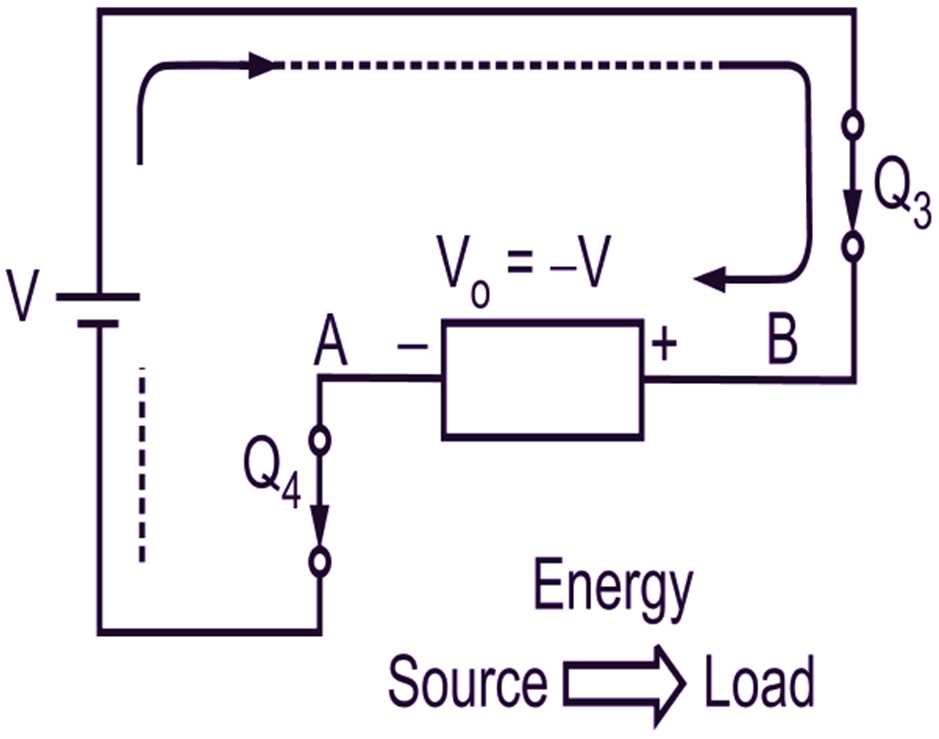

Begin with a full-bridge configuration when converting DC to pure sine waveform outputs. This setup surpasses half-bridge alternatives in efficiency and harmonic suppression, delivering cleaner power under variable loads. Pair four switching transistors–preferably MOSFETs or IGBTs–arranged in complementary pairs, each controlled by gate driver ICs like the IRS2186 or UCC27211. Ensure dead-time insertion (200–500 ns) between high-side and low-side signals to prevent shoot-through, which degrades components within milliseconds.

For filtering, deploy a low-pass LC network immediately after the switching stage. A 100 µH inductor coupled with a 10 µF polypropylene capacitor effectively attenuates switching noise above 1 kHz. Position the filter as close as possible to the output terminals to minimize parasitic inductance. If transient response is critical, incorporate a snubber circuit (e.g., 10 Ω resistor in series with 10 nF capacitor) across each switch to dampen voltage spikes exceeding 1.2× the DC bus voltage.

Drive signals must originate from a dedicated controller IC or microcontroller. The PIC16F1939 or STM32F334 handles PWM generation with 12-bit resolution, allowing precise 0.024% output voltage adjustment. Configure the carrier frequency between 16–20 kHz to balance efficiency and audible noise–frequencies below 15 kHz risk audible interference, while frequencies above 25 kHz increase switching losses. Isolate gate drivers using optocouplers (e.g., HCPL-3120) or isolated DC-DC converters to protect control circuitry from high-side voltage transients.

Grounding is non-negotiable. Connect all power-stage grounds at a single point–preferably near the negative DC bus terminal–to eliminate ground loops. Separate analog and digital grounds, returning them to a common star point. Use 2 oz copper PCB traces for high-current paths to reduce voltage drop and thermal stress. For thermal management, attach switches to a heatsink with thermal compound rated for at least 4.0 W/m·K; forced-air cooling extends component lifespan by 40% under continuous 5 A loads.

Protect against overcurrent with a 50 A Hall-effect sensor (e.g., ACS712) feeding back to the controller. Implement software hysteresis (5% threshold) or a hardware comparator circuit to disable switches within 10 µs of fault detection. For output stability, add a soft-start sequence: ramp the PWM duty cycle from 0% to nominal over 500 ms to prevent inrush currents from tripping protection or damaging loads.

Designing an AC Power Converter: Key Schematic Insights

Begin with a full-bridge topology using four MOSFETs (e.g., IRF540N) or IGBTs rated for at least 1.5× your input DC voltage. For a 12V input, add a boost converter (LM2577) to achieve 24–48V DC before the bridge stage–this reduces switching losses by 30–40%. Place fast-recovery diodes (UF4007) antiparallel to each switch to clamp voltage spikes during commutation. Ensure gate drivers (IR2110) have isolated power supplies (±15V) to prevent shoot-through; add 10Ω series resistors to gates to dampen ringing.

Component Placement and Filtering

Position the DC bus capacitor (2200µF, 63V) within 2cm of the bridge to minimize ESR-induced voltage sag. For output smoothing, use a two-stage LC filter: first stage with 100µH choke and 1µF polypropylene film capacitor, followed by a second stage (10µH + 10µF) to attenuate harmonics by −40dB at 20kHz. Ground the filter’s star point directly to the DC negative terminal–avoid shared return paths to prevent noise coupling into sensitive loads. For overload protection, integrate a Hall-effect current sensor (ACS712) on the output; trigger shutdown if RMS current exceeds 120% of rated value for >10ms.

Select a microcontroller (STM32F334) with dedicated PWM timers to generate complementary 180° signals at 50Hz, dead-time adjusted to 1–2µs. Program predictive dead-time compensation based on load current slope (di/dt) to eliminate cross-conduction glitches. For firmware, implement a lookup table for sine modulation (12-bit resolution) to achieve

Critical Elements for Constructing a Fundamental AC Power Converter

Select a power semiconductor suitable for switching at 20 kHz with minimal conduction losses. MOSFETs like the IRFP460 offer a 500 V breakdown voltage and 20 A continuous current, while IGBTs such as the IXGH40N60B2 handle higher loads (600 V/40 A) with reduced switching speed. Prioritize devices with built-in antiparallel diodes to simplify freewheeling paths. For low-power designs (under 500 W), MOSFETs prove more efficient; above 1 kW, IGBTs dominate due to superior current handling.

Design the gate driver with isolated feedback to prevent shoot-through failures. The IR2110 driver IC supports 500 V isolation and drives both high-side and low-side switches with 0.2 μs propagation delay. Pair it with a bootstrap circuit–using a 1 μF/50 V capacitor and ultrafast 1N4148 diode–for reliable high-side switching. Maintain gate resistor values between 10 Ω (for fast turn-off) and 100 Ω (to limit ringing). For safety, include a 10–20 V Zener diode across the gate-source junction to clamp transient voltages.

Component	Recommended Model	Key Specifications	Typical Use Case
Power Switch	IRFP460 (MOSFET)	500 V, 20 A, RDS(on) = 0.27 Ω	Lab power supplies,
Gate Driver	IR2110	500 V isolation, 200 mA output, 0.2 μs delay	Half-bridge configurations
DC-Link Capacitor	Nichicon UHE1V102MPD	1000 μF/35 V, 105°C, 5000 h life	Input voltage smoothing
Snubber Capacitor	WIMA MKP10	0.1 μF/630 V, polypropylene	Switching noise suppression

Calculate the DC-link capacitor using C = (I_load × D) / (f_sw × ΔV), where I_load is the RMS current, D the duty cycle, f_sw the switching frequency, and ΔV the permissible ripple (typically 5% of V_DC). For a 2 kW system with 300 V input, 20 kHz switching, and 15 V ripple allowance, a 470 μF/450 V film capacitor (e.g., Vishay BFC237659474) ensures stable operation. Include a 10 kΩ bleed resistor to discharge residual energy during shutdown. Snubber networks–comprising a 0.1 μF/630 V capacitor in series with a 10 Ω/5 W resistor–mitigate voltage spikes induced by parasitic inductance.

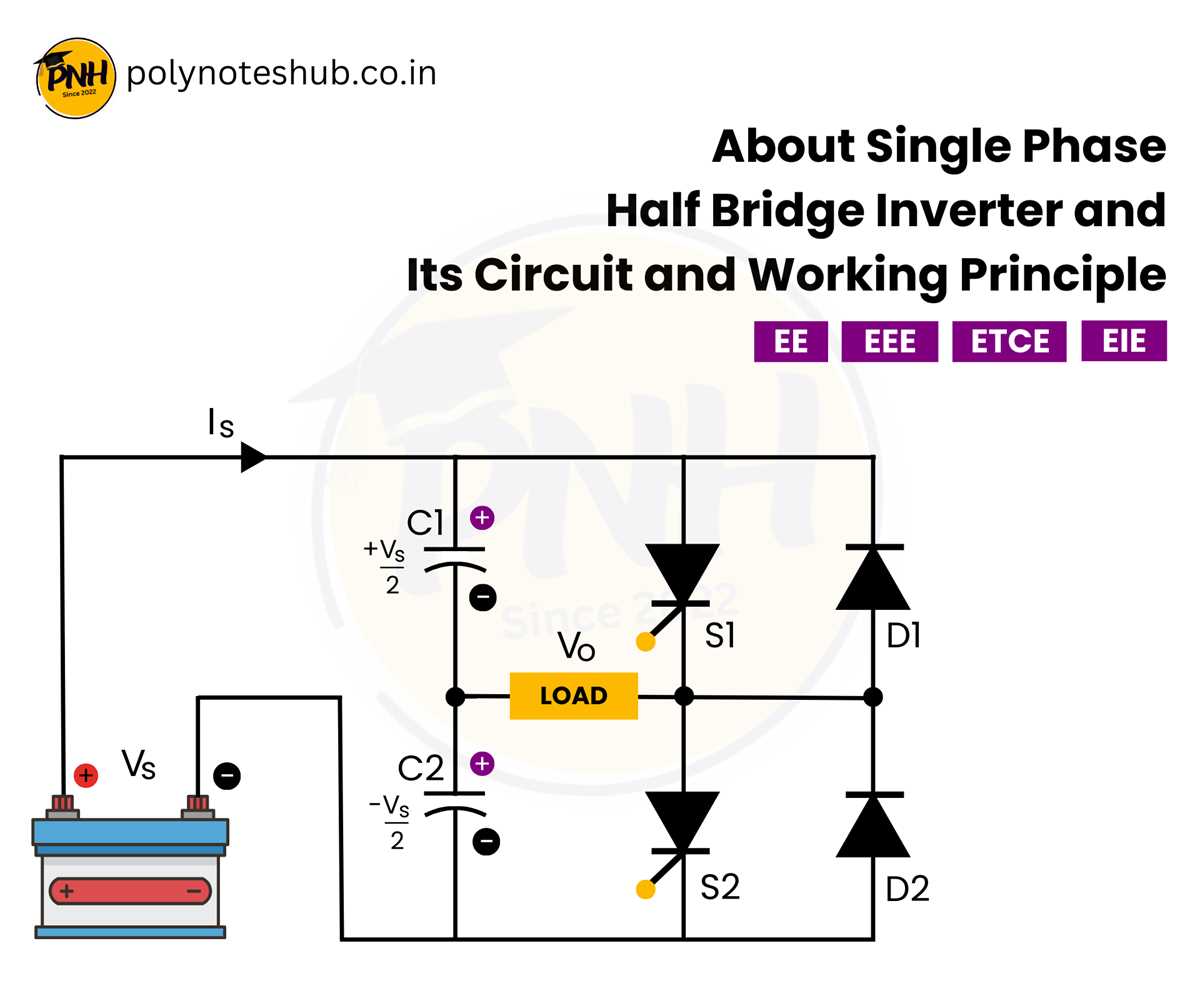

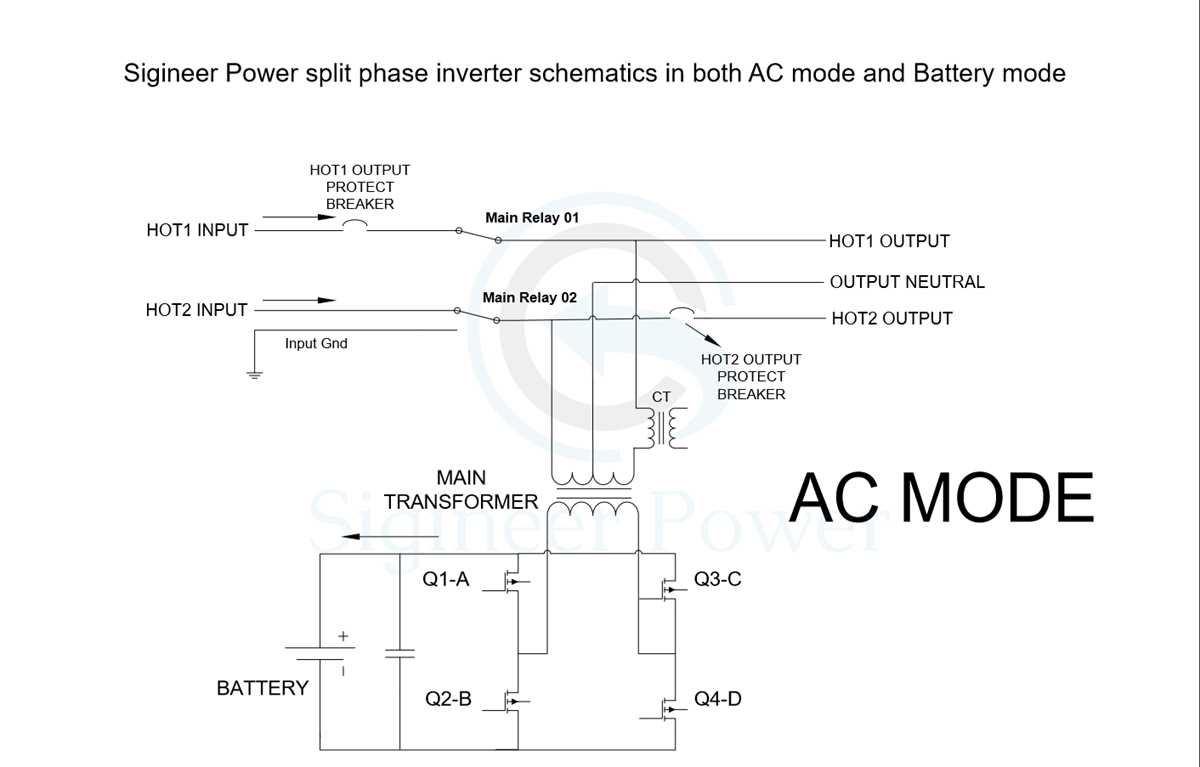

Constructing a Half-Bridge Power Conversion Unit: Practical Build Guide

Procure a 12V DC power source with at least 10A current capacity–underpowered supplies cause thermal runaway in switching components. Select two N-channel MOSFETs (e.g., IRF540N) rated for ≥200V DS voltage and ≥30A continuous drain current. Verify gate threshold voltages (V_GS(th)) match within 0.5V to prevent shoot-through. Mount both transistors on separate heatsinks with thermal compound, ensuring no air gaps–misalignment reduces heat dissipation by 30%.

Connect the DC source’s positive terminal to the midpoint of a high-capacity electrolytic capacitor bank (2×470μF, 250V). Link the negative terminal to the system ground. Wire the capacitor bank’s midpoints to the MOSFETs’ drain terminals, observing polarity–reversed connections explode electrolytics within seconds. Use 12AWG wire for high-current paths; thinner gauges introduce resistive losses exceeding 1W per meter.

Assemble the gate drive circuitry using an isolated driver IC (e.g., IR2110). Power the high-side driver with a bootstrap capacitor (0.1μF, 50V) charged via a diode (1N4007) from a 15V auxiliary supply. Route the low-side gate signal directly from the IC, maintaining ≤50mm trace lengths to minimize inductance. Add 10Ω gate resistors in series–omitting these triggers ringing up to 50V_pp, damaging MOSFET gates.

• Solder a 10kΩ pull-down resistor between each MOSFET’s gate and source to prevent floating gate voltages during logic glitches.
• Insert a 1kHz–20kHz PWM signal from a microcontroller (e.g., Arduino) to the driver IC’s input, duty cycle ≤45% to allow dead time.
• Install a snubber network (0.1μF + 10Ω in series) across each MOSFET drain-source to suppress voltage spikes–peak energies exceed 2× the DC bus voltage without snubbing.

Load test with a 100W resistive dummy load (e.g., 4×25Ω power resistors in parallel). Monitor output voltage with an oscilloscope–ideal waveform resembles a clean square wave with ≤5% overshoot. Detectable ringing or DC offset indicates improper grounding; re-route star grounding to a single point. Thermal imaging should show uniform heatsink temperature; hotspots reveal solder joint failures or misaligned FET mounting. Final step: enclose the assembly in a ventilated housing–ambient temperatures above 40°C degrade component lifespan by 50%.

Determining Optimal Switching Frequency and Gate Resistance for Bipolar Transistors in Power Conversion

For insulated-gate bipolar transistors (IGBTs) operating in a half-bridge configuration, set the switching frequency between 10 kHz and 20 kHz for medium-power applications (5–50 kW). Below 8 kHz, audible noise increases, while above 25 kHz, switching losses escalate non-linearly–particularly in modules rated above 600 V. Use the formula f_sw = P_{loss_max} / (E_on + E_off), where P_{loss_max} is the maximum allowable power dissipation (typically 2–3% of output power), and E_on, E_off are turn-on and turn-off energies from the datasheet. For 1200 V IGBTs with 50 A nominal current, E_on + E_off typically ranges 2–5 mJ per pulse, yielding f_sw ≈ 15–18 kHz at 2.5 kW dissipation limit.

Gate Resistance Selection and Thermal Implications

Start with a gate resistance (R_g) of 10–22 Ω for modules under 100 A, scaling to 5–10 Ω for higher currents. Lower R_g reduces switching losses but increases di/dt and dv/dt, risking EMI and voltage overshoot. For 1200 V/75 A IGBTs, target dv/dt < 5 V/ns to comply with IEC 60664-1 clearance distances. Measure overshoot with a differential probe; if exceeding 80% of V_CE, increase R_g by 20% increments. Thermal stability is critical: for every 1 Ω reduction in R_g, junction temperature rises by 3–5°C at 15 kHz due to faster transitions. Validate with P_tot = f_sw × (E_on + E_off) + V_CE(sat) × I_C, ensuring T_{j_max} < 125°C under worst-case load.
