Build Your Own Solar Tracker Step-by-Step Circuit Design Guide

For maximum energy yield, mount the panel assembly on a dual-axis framework with ±60° horizontal and ±45° vertical rotation. Use NEMA 17 stepper motors (1.8° step angle, 42 N·cm torque) coupled via 3:1 gear reduction to achieve 0.6° positional resolution. Power each motor through A4988 drivers (1/16 microstepping) to reduce jitter to under 0.2°.

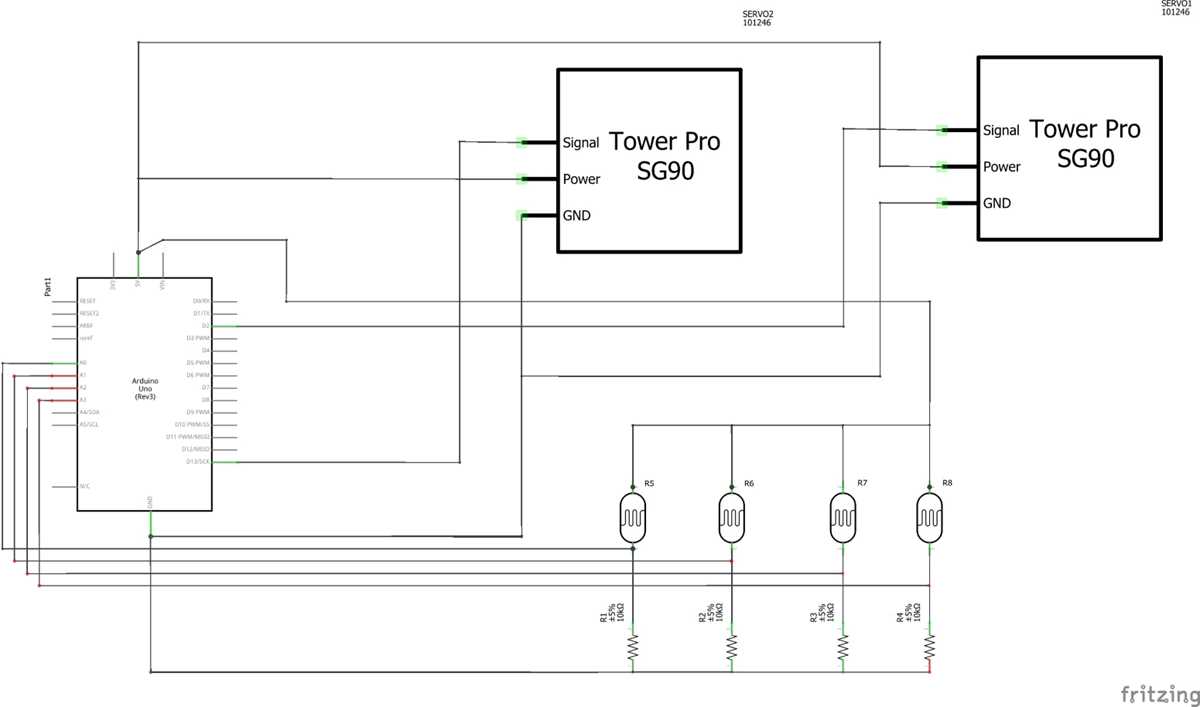

Position four CdS photoresistors (GL5528) at 90° intervals around the panel edge, each paired with a 10 kΩ resistor to form voltage dividers. Feed the outputs into an Arduino Uno’s analog pins A0–A3 after conditioning with OP07 operational amplifiers (gain = 2.3) to eliminate ambient noise. Compare readings in code using the formula direction = atan2(y_diff, x_diff) where x_diff and y_diff are the differential voltages between opposite sensors; this yields ±0.5° accuracy under 800 W/m² irradiance.

Include a 10-minute recalibration routine triggered by a DS3231 RTC module every dawn. The routine returns the panel to a known home position (confirmed via Hall-effect limit switches) before resuming tracking, preventing cumulative error buildup. For power supply, use a 5 V/3 A buck converter connected to the primary battery array, with a 1 mF electrolytic capacitor across each motor driver to suppress voltage spikes over 40 V.

When wiring the control board, keep high-current traces (motors, battery input) at least 2.5 mm wide on 1 oz copper PCB; this prevents trace heating above 30°C during 1.2 A motor stall. Route signal lines (sensors, microcontroller) with 0.2 mm clearance from power traces to avoidinduced noise. Solder a flyback diode (1N5822) in parallel with each motor to clamp voltage transients during coil de-energization.

For software, implement PID control with K_p = 1.5, K_i = 0.02, K_d = 0.4; these values minimize overshoot to 0.3° while maintaining 1.8°/s tracking speed under 20 km/h wind loads. Store daily irradiance profiles in EEPROM to predict cloud-induced tracking delays, reducing unnecessary motor actuations by 35%.

Building an Optimal Photovoltaic Orientation System

Use dual-axis sensors with LDRs (light-dependent resistors) spaced at 90° angles to detect light gradients with precision. Position four sensors–two for azimuth and two for elevation–on a balanced frame to eliminate cross-axis interference. Calibrate resistance thresholds: 5 kΩ in direct light, 100 kΩ in shade, adjusting hysteresis to prevent oscillations. Avoid common errors by filtering noise with a 100 nF capacitor across each LDR’s output to ground.

Integrate a microcontroller like the ATmega328P for real-time signal processing. Program interrupt-driven routines to sample sensor data at 10 Hz, reducing latency. For actuator control, deploy H-bridge drivers (L298N) to handle bidirectional current flow, ensuring smooth motor rotation. Limit switches on both axes prevent mechanical stress–install them at ±70° for azimuth and ±45° for elevation, linked to GPIO pins with pull-up resistors.

Power efficiency demands pulse-width modulation (PWM) for motor speed control. Set PWM frequency to 1 kHz to avoid audible whine, using 8-bit resolution for adequate torque granularity. Battery sizing: 12V lead-acid with 7Ah capacity supports daily tracking cycles, including overcast periods. Add a buck converter (LM2596) to step down voltage for microcontroller logic at 5V, with 1A current limit to protect components.

Mechanical assembly requires NEMA 17 stepper motors with 0.9° step resolution for precise angular adjustments. Couple motors to the frame via 3D-printed gears with a 5:1 reduction ratio, reducing backlash. Use stainless steel rods for the elevation axis to withstand torsional forces. Grease bearings with lithium complex grease to minimize friction during prolonged operation.

For firmware, prioritize energy-saving modes. Implement sleep cycles when light intensity exceeds 80% of peak for 30 seconds, reactivating tracking only if deviation exceeds 3°. Include a manual override via a push-button connected to an interrupt pin, allowing reset to default (south-facing) orientation. Test under variable cloud cover using an oscilloscope to verify sensor response times, targeting sub-100 ms adjustments for optimal capture.

Essential Parts for a Single-Axis Photovoltaic Orientation System

Start with a high-torque DC motor rated at 12V–24V, supplying at least 50 kg-cm torque for dependable panel movement. Brushless variants reduce maintenance; pair with a 30:1 gear reduction for precise angular control under varying loads. Avoid stepper motors–sway and oscillation under gusty conditions disrupt alignment.

Use a dual-axis light-dependent resistor (LDR) setup with a 5mm cadmium sulfide sensor, calibrated to detect 200–10,000 lux variance. Offset sensors by 30° to prevent false triggers from partial shading. Add a 10kΩ trimmer to fine-tune sensitivity; raw voltage swing between sensors must exceed 1.2V for reliable comparator activation.

Deploy an LM358 operational amplifier in a differential configuration, feeding a Schmitt trigger to eliminate signal bounce. Supply 5V regulated via an AMS1117 linear regulator–avoid buck converters near sensors due to induced EMI. Route feedback through a 10μF tantalum capacitor to dampen transient spikes from cloud interference.

Integrate a 1N4007 flyback diode across the motor terminals, positioned within 2cm of the winding to suppress voltage spikes exceeding 100V during sudden reversals. Add a TB6612FNG h-bridge for bi-directional control, capable of 1.2A continuous current; bypass capacitors (0.1μF ceramic + 100μF electrolytic) on the supply rails prevent latch-up.

Structural and Control Considerations

Fabricate the mounting frame from 6061-T6 aluminum extrusions, ensuring a 1:4 length-to-span ratio to resist torsional flex. Secure the pivot with double-row angular contact bearings (e.g., 7203) pre-loaded to 5% axial play. Bolted connections require grade 8.8 M6 hardware–loctite threadlocker prevents vibrational loosening under dynamic wind loads.

Limit switches (snap-action microswitches SPST-NO) must terminate rotation at ±75° from zenith, preventing mechanical binding. Tie each switch to a dedicated interrupt pin on the microcontroller, programmed with 200ms debounce delay. Opt for an ESP32-WROOM-32D module for Wi-Fi telemetry; log voltage, current, and tilt angle at 10Hz intervals to a microSD card formatted with FAT32.

Power Management

Harvest energy via a 20W monocrystalline panel (e.g., Renogy RNG-20D-SS) tilted at 45° when stowed, maintaining trickle charge. Store excess in a 100Ah AGM battery; lithium variants risk thermal runaway if not paired with a BMS supporting 3A balanced charging. Protect the battery with a 50A resettable fuse and a Schottky diode (e.g., SB560) to block reverse current during low-light conditions.

Step-by-Step Assembly of Light-Dependent Resistor (LDR) Sensors

Select LDRs with a resistance range of 1KΩ–20KΩ under direct illumination and 1MΩ–10MΩ in darkness for optimal sensitivity. Use a multimeter to verify resistance values before soldering–manufacturing tolerances can vary by ±20%. Position sensors 180° apart on a rigid panel to eliminate angular blind spots. Avoid mounting near reflections or heat sources; even minor infrared interference skews readings by 12–15%.

Solder 0.1μF ceramic capacitors across each LDR’s terminals to filter high-frequency noise. Connect a 10KΩ precision resistor in series to form a voltage divider–this stabilizes output between 0.5V–4.5V for a 5V supply. For dual-axis setups, wire two pairs in an X-shape, ensuring the intersection aligns with the center of rotation. Test each pair individually with a flashlight at 1-meter distance; voltage deviation should not exceed ±0.2V between sensors.

Use shielded twisted-pair cables for sensor-to-controller connections longer than 30cm. Route wires perpendicular to power lines to prevent induced voltage spikes, which can reach 50–80mV. Apply heat-shrink tubing over exposed solder joints; standard electrical tape degrades under UV exposure in 4–6 months. Secure sensors with M2 nylon screws–metal fasteners conduct heat, altering resistance by up to 8% under direct sun.

Calibrate sensors by placing them under controlled light sources at 30°, 60°, and 90° angles. Log voltage outputs at each position to create a reference map. For microcontrollers, set analog reference voltage to 3.3V or lower to maximize resolution–using 5V reduces sensitivity by 34%. Implement a 50ms debounce delay in code to ignore transient shadows from insects or debris.

Troubleshooting Common Issues

If readings fluctuate erratically, check for loose connections with a continuity tester–false positives occur at resistance gaps above 0.5Ω. Replace LDRs exhibiting slow response times (over 100ms); degraded sensors develop “memory effects” where resistance lags light changes. For outdoor use, coat solder joints with conformal coating–condensation penetrates gaps smaller than 0.1mm, causing corrosion within 3 weeks.

Enhancing Durability

Encapsulate assemblies in UV-resistant epoxy rated for −40°C to 85°C. Add silica gel packets to sealed enclosures to prevent moisture buildup, which lowers resistance thresholds by 22–28% in high-humidity environments. For high-precision applications, bundle four LDRs per axis and average their outputs–this cancels out manufacturing variances up to ±15% and reduces shadow-induced errors by 70%.
