Understanding Surge Protection Device SPD Circuit Diagrams Key Components

Start by placing varistors directly at the input terminals of sensitive equipment. Opt for metal-oxide varistors (MOVs) rated for 10–20% above the nominal line voltage to ensure transient suppression without premature degradation. Position them in parallel with the load, prioritizing low-inductance traces–keep lead lengths under 5 mm to minimize parasitic effects that compromise response time. For high-frequency applications, supplement MOVs with gas discharge tubes (GDTs) or TVS diodes to handle fast rise-time spikes.

Grounding layout demands a star topology with a dedicated, low-impedance path to the earth point. Avoid daisy-chaining grounds; instead, route each protection component’s ground return independently to a single central grounding bus (cross-section ≥ 10 mm²). Use copper pours on PCB layers to reduce impedance, ensuring the grounding plane covers at least 60% of the board area. For multi-stage schemes, separate transient paths from signal grounds with high-current vias (minimum 1.5 mm diameter).

Thermal derating curves dictate component selection–choose MOVs with a maximum clamping voltage (Vc) 20–30% below the equipment’s absolute maximum rating. For 230V AC systems, target Vc ≤ 900V for MOVs, and derate TVS diodes to 80–85% of their peak pulse power (e.g., 600W → 480W). In high-surge environments, add serial fuses (fast-blow, 2–3× nominal current) upstream of protection devices to isolate faults without cascading failures. Test layouts with a 1.2/50 µs impulse (IEC 61000-4-5) at 2–4 kV to validate clamping performance.

For distributed systems, use coordinated protection zones. Place primary suppressors at the service entrance (e.g., GDTs with 1–2 kA surge capacity), secondary devices at sub-panels (MOVs with 400–600J energy rating), and tertiary protection at point-of-use (TVS diodes with at least 5× safety margin between stages’ clamping voltages to prevent back-feeding. Audit schematics with a time-domain reflectometer to identify reflection points–stub lengths exceeding 5 cm can create transient voltage doubling.

Document component aging with thermal labels (e.g., temperature-sensitive stickers) on MOVs, replacing them after 5–7 surge events or when leakage current exceeds 1 mA at 80% rated voltage. For outdoor installations, specify waterproof IP67-rated enclosures and sealed terminals to prevent corrosion of GDT electrodes. Log test results with current probes (bandwidth ≥ 50 MHz) to distinguish between differential-mode (8/20 µs) and common-mode (1.2/50 µs) transients–adjust component placement accordingly.

Surge Protection Layout: Hands-On Installation Guide

Start by identifying the transient voltage entry points in your electrical setup–typically where service lines connect to equipment or distribution panels. Use MOVs (metal oxide varistors) rated for at least 20% above the system’s nominal voltage; for 230V AC, select 275V-320V models to balance response speed and durability. Place them as close as possible to the protected load, ideally within 1 meter, to minimize inductive voltage spikes caused by wiring length.

Grounding Essentials

Ensure the grounding conductor has a cross-sectional area equal to or larger than the phase conductors–minimum 16 mm² for 25A systems to handle fault currents without overheating. Connect all protection components to a single grounding busbar using copper straps, not wires, to reduce impedance. Verify ground resistance stays below 10 Ω with a dedicated tester before energizing the installation.

For three-phase systems, use delta-connected suppressors only if neutral transients are a concern; otherwise, Y-configuration (line-to-neutral) units simplify troubleshooting. Install decoupling inductors (3-5 μH) between suppressor modules if cascading multiple stages to prevent oscillations between components. Avoid placing filters upstream of protection devices, as they can mask actual surge signatures during diagnostics.

Component Selection Criteria

Choose gas discharge tubes for high-energy events (8/20 μs pulses above 10 kA) but pair them with MOVs to handle faster transients–gas tubes alone have microsecond response delays. For DC applications, pick TVS diodes with reverse standoff voltages matching the supply voltage ±10% tolerance; derate power ratings by 30% when ambient exceeds 50°C. Replace all protection components after absorbing a single pulse above 60% of their maximum rating, regardless of visible damage.

Label every connection point with operating voltage, current rating, and date of installation–use heat-shrink tubing infused with ultraviolet indicators to track degradation over time. Test the layout under simulated 6 kV/3 kA impulses with an IEC-compliant surge generator before commissioning; record voltage clamping levels at 50%, 75%, and 100% of rated current for baseline comparison during maintenance.

Avoid daisy-chaining protection devices–each load requires dedicated suppression. For motor circuits, add resistor-capacitor snubbers (0.1 μF + 10 Ω) across contacts to suppress switching transients generated by inductive loads. In outdoor installations, seal junction boxes with IP67-rated silicone and use corrosion-resistant nickel-plated terminals to prevent conductive path degradation.

Document surge events using a dedicated logger with isolated inputs; set thresholds at 50% of the protection device’s rating to catch subtler anomalies before failures. Replace all protection units every 5 years in normal environments, or every 2 years in areas with frequent lightning activity, even if no surges are recorded–degradation occurs regardless of visible signs.

Critical Elements in Surge Protection Assemblies and Their Roles

Select a metal oxide varistor (MOV) with a clamping voltage at least 20% below the maximum rated voltage of the system it protects. For 230V AC lines, prioritize MOVs rated 180–220V to prevent premature degradation while ensuring sufficient overvoltage suppression. Verify energy absorption capacity (joules) exceeds anticipated surge currents–industrial setups demand 40mm MOVs with 250–400J ratings, while residential applications may suffice with 20mm variants (80–200J). Pair MOVs with thermal disconnection mechanisms; devices lacking this feature risk catastrophic failure under sustained surges.

Gas Discharge Tubes and Their Strategic Placement

• Position gas discharge tubes (GDTs) on the line side of the assembly for diverting high-energy transients. Single-stage designs handle 10–50kA surges, but multi-stage configurations (serial GDT + MOV) endure 100kA+ pulses–critical for lightning-prone regions.
• Choose GDTs with a DC breakdown voltage 10–15% above the system’s peak operating voltage to avoid nuisance tripping. For 48V DC telecom systems, specify 60–70V GDTs.
• Ensure lead length between GDTs and conductive paths remains under 10mm; excess length introduces parasitic inductance, compromising response time (

Transient voltage suppression (TVS) diodes serve as the final defense layer for sensitive electronics. Opt for avalanche diodes with reverse standoff voltages 10–15% above nominal operating levels–for 5V logic circuits, select 6–6.8V diodes. Surface-mount SOD-123 packages offer sub-nanosecond response (

1. Fuse coordination: Pair surge elements with fast-acting fuses rated 125–150% of steady-state current. Slow-blow fuses increase failure risk during repetitive surges.
2. Grounding: Bond all conductive paths to a single low-impedance ground reference (
3. Material selection: Use copper busbars (not wires) for interconnections in high-current assemblies; aluminum oxidizes, increasing contact resistance over time.

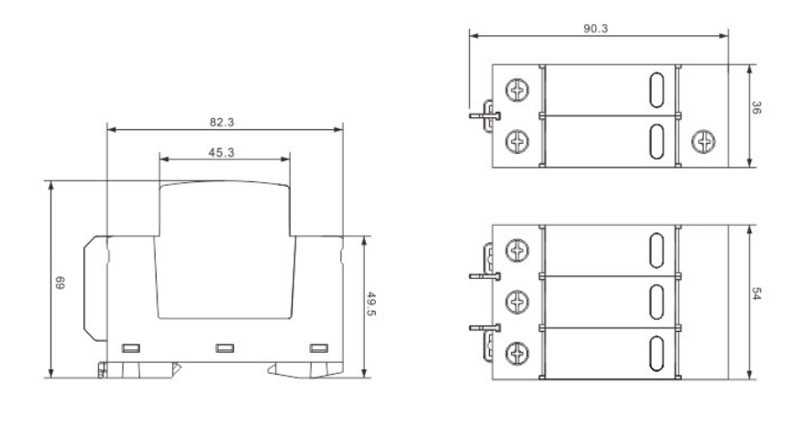

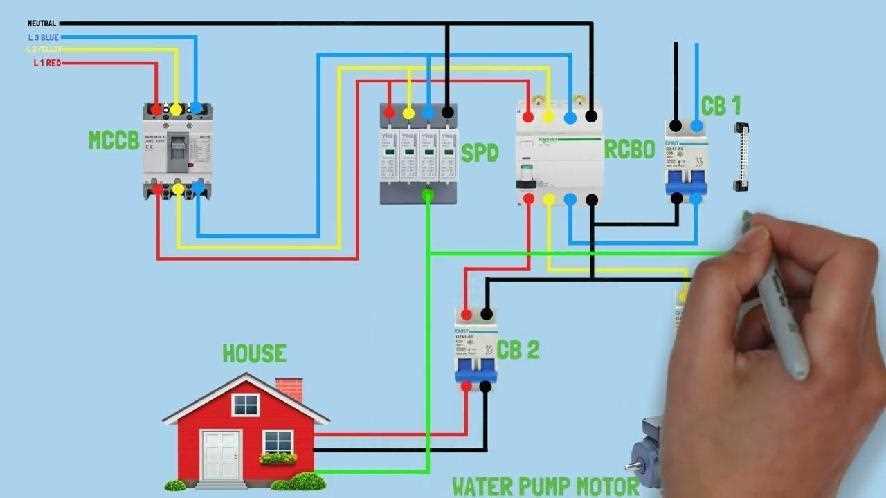

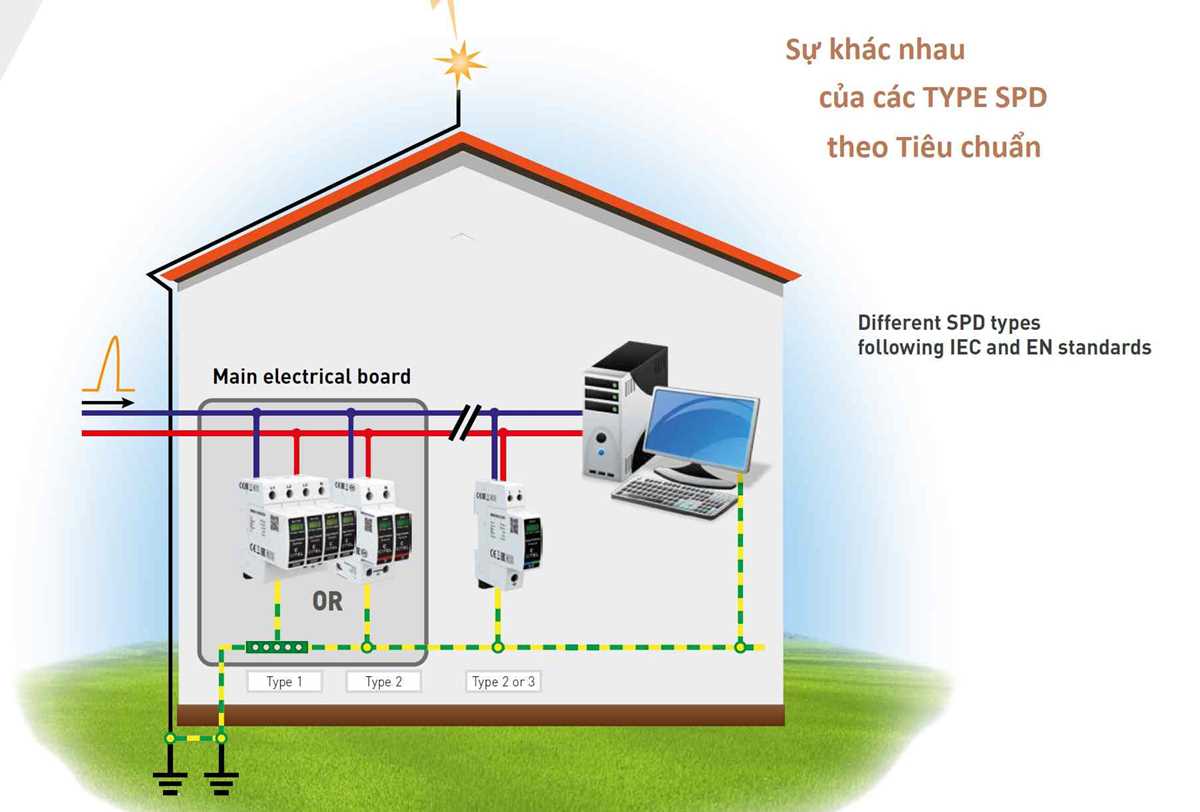

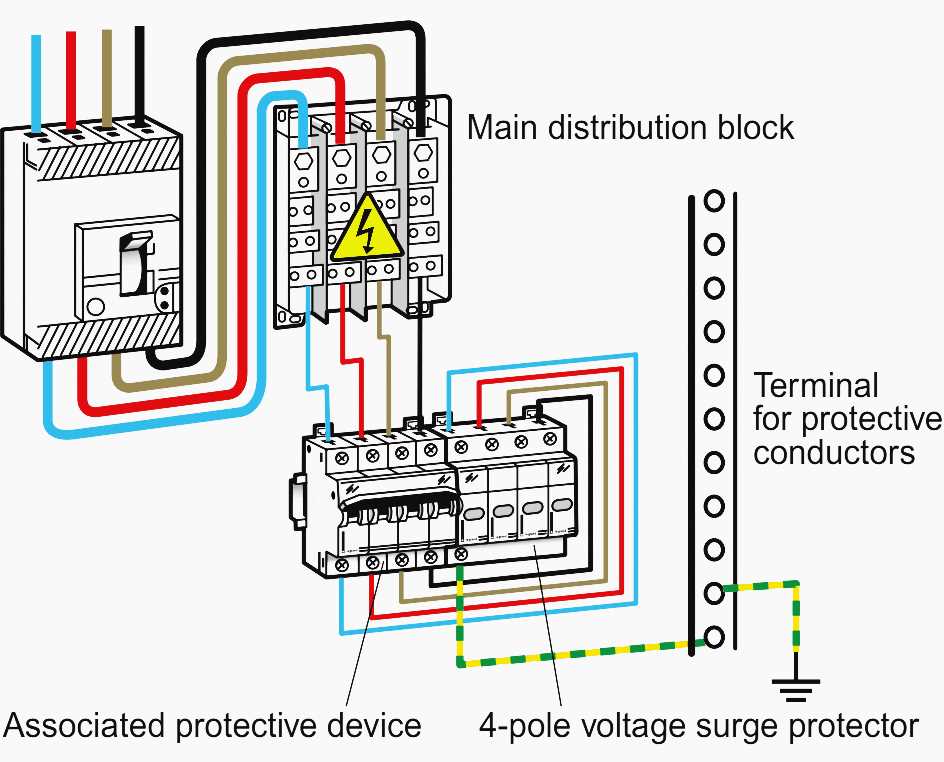

Step-by-Step Wiring for Common Surge Protection Setups

Begin by connecting the phase conductor directly to the input terminal of the surge arrester using a 10 AWG copper wire for systems up to 40 kA discharge capacity. For residential installations, ensure the neutral is bonded to the grounding busbar within the main service panel before routing it to the arrester’s neutral terminal. Use a dedicated 6 AWG grounding electrode conductor between the arrester’s ground terminal and the grounding rod, burying the rod at least 8 feet deep with a separation of no less than 6 feet from the building foundation.

For three-phase configurations, match the arrester’s voltage rating to the system’s line-to-neutral voltage (e.g., 120 V, 277 V, or 480 V). Install Class II arresters downstream of the main breaker and upstream of branch circuits, maintaining a minimum clearance of 30 mm between live conductors and grounded surfaces. Verify torque settings for terminal connections–typically 12 in-lbs for 10-14 AWG wires and 25 in-lbs for 6-8 AWG–to prevent loose connections that compromise performance.

Configuration	Wire Gauge (AWG)	Max. Surge Current (kA)	Recommended Installation Point
Single-phase, 120 V	10	40	Main panel, upstream of branch circuits
Three-phase, 480 V	8	80	Subpanel, downstream of disconnect
Data line (Cat5/6)	24 (solid)	5	Adjacent to network switch or POE injector

When integrating protection for signal cables, use a hybrid device combining gas discharge tubes and transient voltage suppression diodes. Connect the shield of coaxial or Ethernet cables to the arrester’s ground terminal using a 14 AWG jumper wire, ensuring the shield is isolated from the chassis ground at the equipment end. For PoE applications, select an arrester with a response time under 1 ns and insert it between the power sourcing equipment and the powered device, avoiding loops in the grounding path.
