How to Wire a Start Relay for Automotive and Industrial Applications

Begin by isolating the ignition control circuit. Locate the 85 terminal (standard DIN 72552 designation) on the switching device and connect it to the ignition switch or ECU output–verify voltage presence during cranking with a multimeter. The 86 terminal grounds the coil; ensure a low-resistance path to chassis or battery negative, ideally less than 0.5 ohms. Omit intermediate splices to prevent voltage drop.

For the switched circuit, wire terminal 30 directly to the battery positive via a fuse sized 20% above the motor’s peak current (typically 25–40A for passenger vehicles). Connect terminal 87 to the starter solenoid’s activation coil; confirm continuity with a probe before energizing. Use 10 AWG wire for runs under 1 meter, 8 AWG for longer distances–calculate resistance loss with V = IR if exceeding 2% of system voltage.

Avoid daisy-chaining auxiliary loads on the 87 output. Add a separate 50A relay for accessories like fuel pumps or ECU power feeds to prevent backfeed. Test each connection at –20°C; cold resistance increases up to 15% for copper-clad aluminum conductors. Label every terminal with heat-shrink tubing marked per ISO 6722 standards.

Automotive Circuit Activation Guide

Locate the control module near the engine bay or fuse box–most vehicles position it within 30 cm of the battery for minimal voltage drop. Connect the input terminal directly to the ignition switch’s auxiliary output, avoiding splices that introduce resistance. Use 10-gauge wire for currents above 20 amps and 12-gauge for lighter loads, ensuring the conductor cross-section matches the anticipated surge.

Ground the secondary circuit to a clean, unpainted chassis point within 15 cm of the module. Corrosion or loose fastening can cause intermittent failures, particularly in high-vibration zones. Verify continuity with a multimeter before securing connections–readings should not exceed 0.5 ohms between the chassis and ground terminal.

Bypass factory-installed fusible links only when modifying circuits for aftermarket components. Replace any inline fuses with ones rated 125% of the maximum expected current to prevent thermal degradation. For example, a 30-amp system requires a 37.5-amp fuse; rounding down risks premature failure while exceeding 125% reduces safety margins.

Route auxiliary power cables away from hot surfaces, moving parts, and sharp edges. Secure them every 20 cm using nylon ties or adhesive mounts to prevent chafing. Silicone-jacketed wires perform better in extreme temperatures but cost 2-3 times more than PVC alternatives–prioritize durability based on environmental exposure.

Common Pitfall Diagnostics

If the actuator fails to engage, check for voltage at the activation terminal during key-turn operation. A reading below 10.5 volts indicates a weak battery or excessive resistance in the power path. Measure upstream from the ignition feed to isolate whether the issue stems from a corroded relay socket or degraded wire insulation.

Test component responsiveness with a bench power supply set to 12.6 volts before reinstallation. Apply 5-second pulses to simulate real-world operation–erratic behavior suggests internal faults requiring replacement. Document all readings for comparison during seasonal maintenance checks, especially in climates with temperature swings exceeding ±20°C.

Enhancing Longevity

Apply dielectric grease to all electrical junctions exposed to moisture or road salt. This reduces oxidation rates by 70-80%, extending service intervals. For circuits subjected to frequent cycling (e.g., turbo timers), upgrade to gold-plated connectors to eliminate micro-arcing that degrades standard tin-plated terminals over time.

Step-by-Step Guide to Pinpointing Activation Switch Contact Points

Locate the component’s housing and examine the markings on its sides or base. Most manufacturers label terminals with alphanumeric codes (e.g., “S” for solenoid, “B” for battery, “M” for motor). If labels are absent, trace the thickest cable–this typically connects to the power source. Verify its path with a multimeter set to continuity mode; a beep confirms the correct terminal.

Testing with a Multimeter

Disconnect all connections before proceeding. Set the multimeter to DC voltage (20V range) and attach the red probe to the suspected power contact. Touch the black probe to the chassis ground–values between 11.5V and 13.5V indicate the battery terminal. For control contacts, switch to continuity or resistance mode (Ω). A closed circuit (0Ω) between terminals signals the internal coil connection; open circuits (OL) identify separate points.

For components lacking visible identifiers, consult the manufacturer’s schematics or cross-reference with a universal replacement guide. Note the physical placement: control contacts are often grouped together, while the high-current contact sits isolated, sometimes with a larger gauge wire attached. Double-check by reapplying power briefly–control contacts should not carry load current but trigger the mechanism audibly.

Frequent Circuit Errors and Prevention Techniques

Connecting the control circuit directly to the load terminals instead of the designated signal points causes immediate burnout. Verify terminal labels before attaching wires–most component manuals list pin assignments: pin 30 (battery), 85 (ground), 86 (trigger), 87 (output). Use a multimeter to confirm continuity between these points before energizing. Loose or corroded connections increase resistance, generating heat that melts insulation and fuses contacts. Crimp terminals with the proper tool (not pliers) and apply dielectric grease to outdoor connections.

• Mismatched wire gauge: 16 AWG handles 10A, while 12 AWG supports 20A at 3% voltage drop over 10 feet. Calculate maximum current draw and select gauge accordingly.
• Reversing polarity on sensitive electronics destroys them instantly. Mark positive/negative wires during disassembly–red typically denotes positive, black negative.
• Skipping fuse protection invites fires. Place a fuse within 7 inches of the power source, sized at 120% of the circuit’s rated current.
• Ground loops introduce noise and erratic behavior. Isolate grounds for high-current and signal circuits; connect them at a single point near the battery.

Essential Gear for Diagnosing and Mounting an Activation Switch

Secure a digital multimeter with a minimum 10 MΩ input impedance to prevent circuit loading during voltage checks. Set the range to 200Ω for continuity tests and 20V DC for power validation. Avoid analog meters–their low impedance distorts readings in low-current circuits. Pair it with insulated needle-nose pliers (rated 1000V) to probe terminals without shorting adjacent contacts.

• Jumper wires (18–22 AWG, silicone-coated) to bypass questionable components for direct testing.
• Heat-shrink tubing assortment (Ø2–6mm) and a butane soldering iron (60W, instant-heat) for repairing corroded joints.
• Torque screwdriver (0.5–2 Nm) to avoid overtightening terminal screws on latching mechanisms.
• Thermal camera (resolution ≤0.1°C) or infrared thermometer (laser targeting) to detect overheating (>70°C) in failed coils.
• ESD-safe workbench and grounding strap if testing semiconductor-based variants near sensitive electronics.

Use dielectric grease (silicone-based, ASTM D-495 compliant) on all connections to prevent oxidation. For field installations, carry a 25W LED inspection light (magnetized base) and magnetic pickup tool to retrieve dropped fasteners in tight compartments.

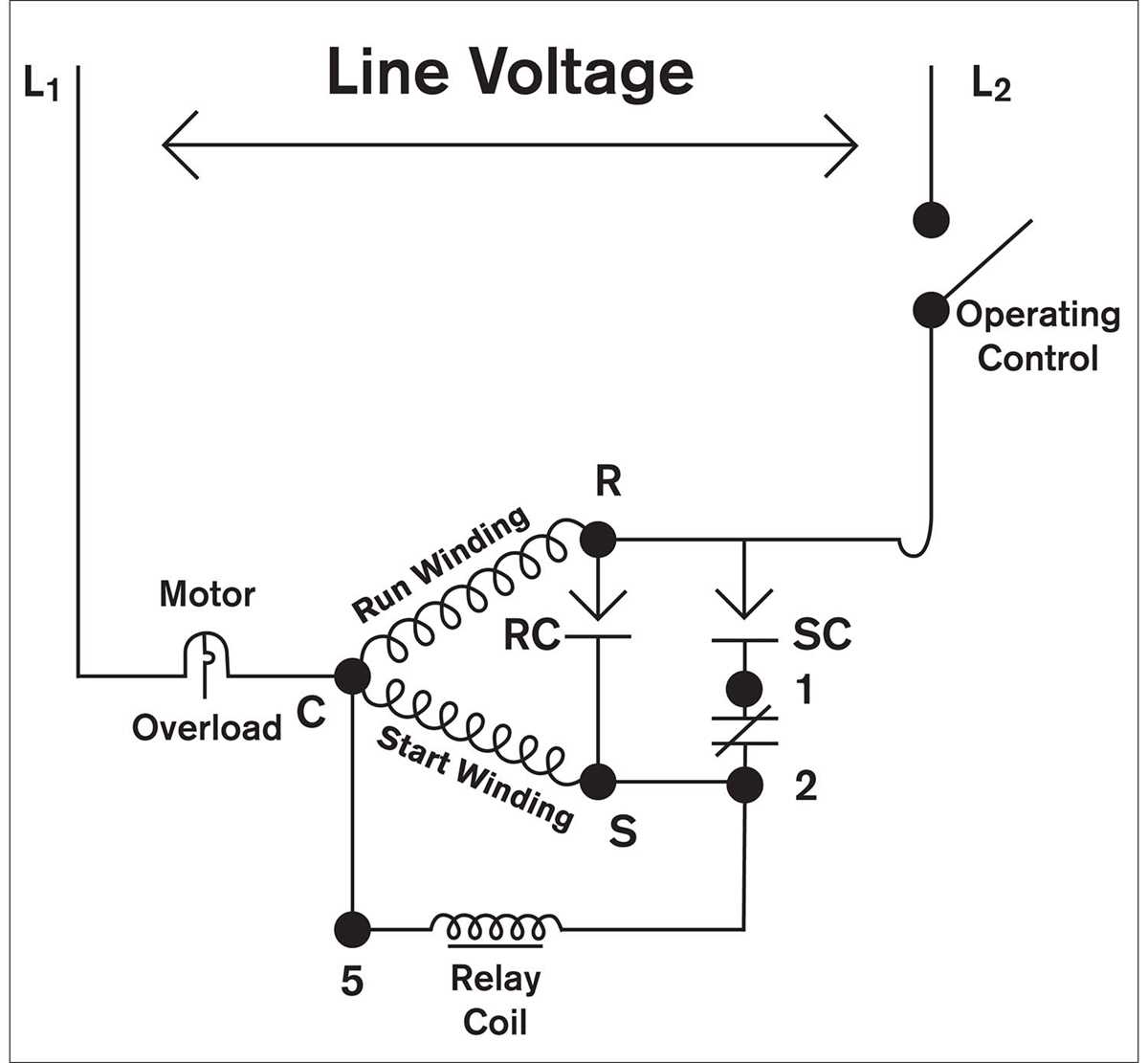

Interpreting Activation Circuit Schematics for Compressor Variants

Trace the primary circuit path first by locating the power source symbols–typically a battery or mains icon–then follow the boldest lines leading to the electromagnetic switch component. On most manufacturer layouts (e.g., Copeland, Danfoss), the thickest conductor represents the main feed, while thinner branches handle auxiliary functions like overload protection or capacitor connections. Critical node identifiers include alphanumeric labels (e.g., C for common, S for switch) often stamped next to terminal blocks; cross-reference these with the unit’s technical manual to avoid misinterpretation of mirrored layouts.

Compare voltage ratings and phase configurations between models using this reference table:

Manufacturer Model	Activation Voltage	Phase Type	Key Terminal Labels
Copeland CRxQ-0200	208-230V	Single	L-N-E, 1-2-3
Danfoss Maneurop MLZ06K3	400V	Three	U-V-W, A-B-C
Bitzer 4PES-10Y	220-240V	Single/Split	M-S-R, T1-T2

Isolate ground loops by identifying distinct color codes–green or bare copper typically denotes earth–then cross-check with the schematic legend, as some older European models invert yellow and blue conventions. For scroll compressors, note that auxiliary windings often share a terminal with the run capacitor, creating a potential misdiagnosis point if capacity values exceed 50 μF; use a multi-meter in capacitance mode to verify before energizing. When troubleshooting intermittent failures, focus on thermal cutout symbols–usually a bimetallic strip icon–and test continuity at ambient versus operational temperatures, as latent resistance increases can falsely implicate the actuation mechanism.
