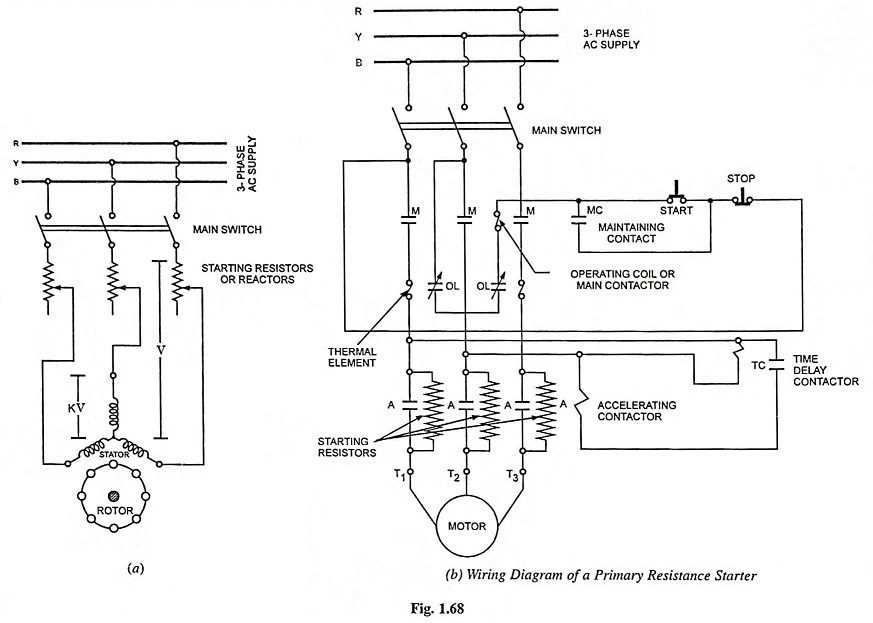

How to Read a Starter Motor Wiring Diagram Step by Step Guide

Begin by identifying the main components in the ignition circuit: the battery, solenoid, relay, and cranking mechanism. A common error occurs when connections between these parts corrode or loosen–inspect terminals for oxidation or wear before testing voltage. Use a multimeter to verify a steady 12V at the solenoid input when the key turns to the cranking position. If readings drop below 10V, check battery health and ground connections.

Trace the path from the ignition switch to the solenoid–most failures stem from faulty switches or improper wiring routing. Secure all wires away from moving parts or heat sources, using loom or conduit where necessary. Many modern systems include an immobilizer interface; bypassing it improperly can trigger fault codes. Always consult the vehicle-specific service manual for exact pin assignments.

For solenoid-mounted arrangements (common in older models), ensure the small trigger wire carries a clean signal. A rapid clicking sound typically indicates insufficient current reaching the cranking unit–test voltage at the solenoid contacts while the circuit is engaged. If power is present but the assembly doesn’t engage, the internal contacts may be pitted or burnt. Replacement is safer than repair in most cases.

Color-coded cables simplify troubleshooting: red usually delivers power, black grounds, and smaller gauge wires control relay activation. Follow the manual’s schematic precisely–deviations can damage modules. When splicing, solder joints last longer than crimped connectors. Heat-shrink tubing adds durability. Always disconnect the battery before working to prevent shorts.

How to Trace the Electrical Flow in Your Vehicle’s Cranking System

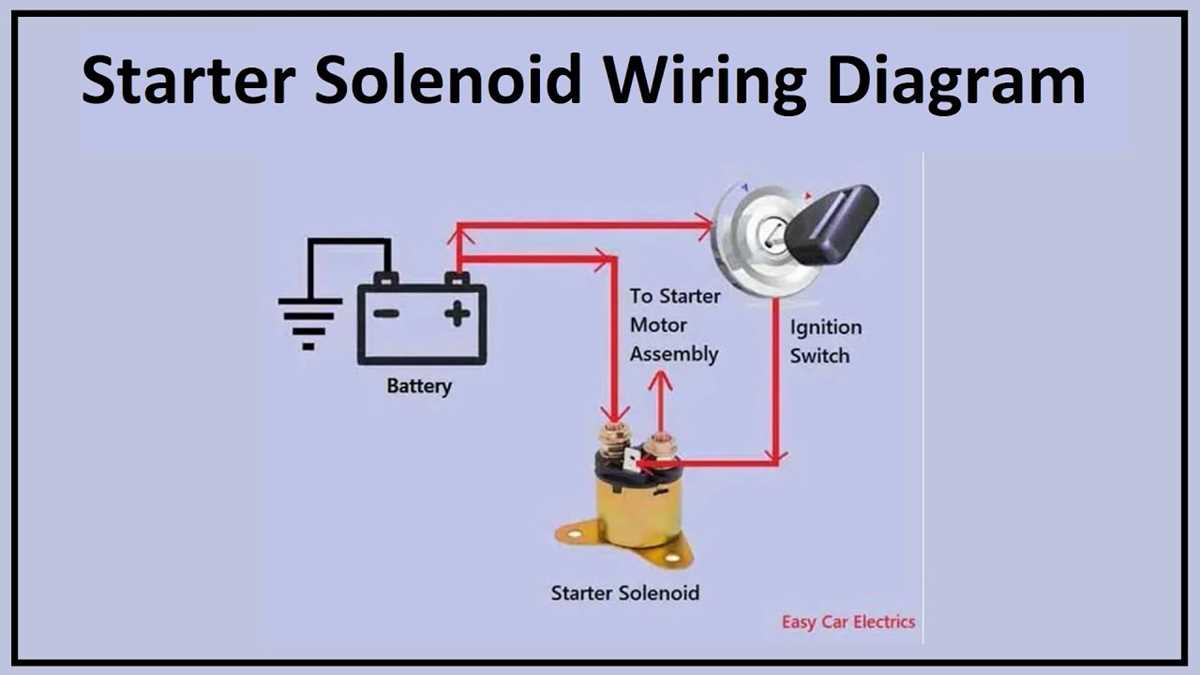

Begin by locating the solenoid terminals–typically marked with letters like “S” (switch) and “B” (battery). The “S” terminal connects to the ignition switch via a 16–18 AWG wire, often purple or yellow with a stripe, while the “B” terminal links directly to the battery’s positive post through a heavy-gauge cable (4–6 AWG). Verify these connections with a multimeter: probe the “S” terminal while turning the key; voltage should spike to 10–12V. If readings drop below 9.5V, inspect the ignition switch, neutral safety switch (automatic transmissions), or clutch pedal position sensor (manuals) for resistance or corrosion.

Check the ground path next–critical yet frequently overlooked. A clean, uninterrupted ground ensures the armature spins at full torque. Trace the system’s frame ground, usually a braided strap or thick wire bolted to the engine block or transmission bellhousing. Use a jumper wire to bypass the ground temporarily: if the issue resolves, clean the mounting surface with a wire brush and reattach the ground with a star washer to prevent loosening. For older vehicles, note that corroded chassis grounds can mimic battery failure symptoms.

Common Fault Points and Their Signatures

Symptom	Likely Cause	Diagnostic Test
Single click, no engagement	Weak solenoid coil or dead battery	Jump-start attempt; if fails, apply 12V directly to solenoid “S” terminal
Slow, labored cranking	High-resistance connection (battery cables, ground)	Voltage drop test across cables (
Rapid clicking, no crank	Low voltage at solenoid (poor ground or weak battery)	Load-test battery; check starter relay/fuse (if equipped)
Free-spinning without load	Broken or worn Bendix gear teeth	Inspect flywheel ring gear for missing teeth; replace drive mechanism

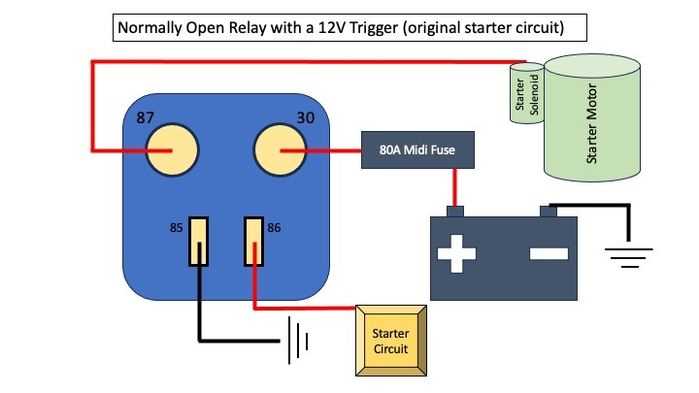

For pre-engaged designs (common in modern FI engines), probe the control circuit relay. These relays–often nestled in the fuse box–can fail silently. Swap with a known-good relay (horn or A/C relay) of identical amperage rating to isolate faults. If replacing components, prioritize OEM-grade solenoids over aftermarket units, which may lack the precision winding required for high-torque applications. Always disconnect the battery’s negative terminal before servicing to prevent accidental shorts, especially when working near the flywheel housing.

Identifying Key Components in an Ignition Drive Circuit

Begin by locating the solenoid–typically a cylindrical unit bolted to the main drive assembly. Verify its terminals: B+ (battery input) must show 12V+ when the key is turned, while S (control line) should deliver 8–12V from the ignition switch. A third terminal, M, routes power directly to the drive’s armature; resistance between M and ground should read 0.1–0.5 ohms. Check for corrosion on copper contacts–bright, clean surfaces ensure low-resistance conduction.

Trace the ground path next. Most layouts attach the drive housing to the engine block via a thick braided strap or direct bolt; resistance between the housing and negative battery post must stay below 0.2 ohms. Failures often hide here–look for paint, rust, or loose fasteners. If the strap is missing, retro-fit a 4 AWG cable, torqued to 15–20 Nm, to bypass weak chassis returns.

Critical Connections & Common Pitfalls

• Key switch: Replace any relay that shows voltage drop >0.5V across closed contacts; use a DPDT 30A relay for intermittent failures.
• Neutral safety: Bypass temporarily to confirm clutch safety switch alignment–misadjusted levers cause silent no-crank conditions.
• Flywheel engagement: Inspect pinion teeth for wear or glazing; a single missing tooth can stall engagement. Bench-test the Bendix for smooth free-spin and positive return.

Always bench-load test rebuilt assemblies at 50% rated current (typically 150A for 12V units) for 30 seconds. Monitor for excessive arcing or heat buildup at M terminal–consistent sparking indicates internal brush failure. Use a digital micro-ohmmeter to confirm inter-coil resistance across commutator segments; readings outside 2–6 ohms signal shorted windings.

How to Interpret an Electrical Activation Schematic for Ignition Systems

Locate the battery connection first–typically marked with a thick red line or labeled B+. Trace it to the solenoid terminal, noting any fusible links or inline fuses. A break here means voltage won’t reach the engagement coil, halting the entire sequence.

Identify the control circuit path, often a thinner wire branching from the ignition switch or relay. Follow this to the solenoid’s smaller terminal, usually labeled S or 50. If testing continuity, probe this point while turning the key; no signal indicates a faulty switch or broken conductor.

Examine the ground return route–critical yet frequently overlooked. The engagement mechanism’s housing or mounting bolts should connect directly to chassis earth. Corrosion or paint here disrupts current flow, causing intermittent failures even with intact power lines.

Spot the auxiliary contacts on the schematic, like bypass resistors or indicator lights. These aren’t decorative; a dim dashboard light may tie directly to the relay coil, meaning a bulb failure could mask deeper circuit issues. Test these components independently before assuming primary system faults.

Check for thermal or magnetic cutouts, sometimes depicted as dashed boxes. These act as safeguards, tripping under sustained current. If your system stalls after prolonged use but recovers after cooling, these elements are the likely culprits–not the main conductors.

Note color-coding deviations between the schematic and physical setup. Manufacturers sometimes alter conventions mid-production. Cross-reference with a physical inspection; a blue wire on paper may appear purple under the hood.

Finally, test each segment under load. A multimeter in resistance mode confirms continuity, but only by engaging the system with a known-good battery will you reveal high-resistance connections invisible in static checks. Record voltage drops at each juncture–any reading above 0.5V signals excess resistance requiring immediate attention.

Frequent Electrical Assembly Errors and Prevention Techniques

Reverse polarity connections cause immediate component failure. Verify terminal labels before attaching cables–red to positive, black or ground to negative. Use a multimeter on continuity mode to confirm correct paths, especially in systems with color-coded conductors that deviate from standard conventions.

Insufficient gauge wires overheat under load. Calculate current draw using Ohm’s Law: divide system voltage by the expected amperage, then select a conductor with 20% higher capacity. For 12V circuits pulling 100A, use 2 AWG copper cable with heat-resistant insulation, not 6 AWG.

Loose terminals create high-resistance joints. Clean contact surfaces with a wire brush, apply dielectric grease, and torque fasteners to manufacturer specifications–typically 8-12 Nm for M8 bolts. Check connections periodically for corrosion, which increases resistance by up to 50% over time.

Ignored Ground Path Integrity

Ground circuits must connect directly to the battery’s negative post, not chassis metal. Chassis ground introduces voltage drop, reducing performance. Use dedicated 1/0 AWG cables for high-current paths, bypassing factory grounds that may corrode or loosen.

Incorrect relay placement overextends low-voltage control circuits. Mount solenoids within 30 cm of the power source to minimize voltage loss. Test trigger circuits with a 12V test lamp–if it dims under load, reroute through a relay with properly rated contacts (minimum 30A for systems under 200A).

Skipping fuse protection invites catastrophic shorts. Install ANL fuses rated at 150% of maximum anticipated current, positioned within 18 cm of the power source. For dual-battery setups, fuse each battery individually with separate disconnects to isolate faults.

Overlooked voltage drop testing wastes troubleshooting time. Measure at both the source and farthest component–acceptable loss is ≤0.5V for 12V systems. If readings exceed this, upgrade conductor size, shorten paths, or segment high-current loads onto separate circuits.
