How to Build a Stereo to Mono Converter Wiring Diagram and Guide
Use a single summing operational amplifier (op-amp) like the TL072 or NE5532 with a 10 kΩ resistor on each input for balanced blending. This arrangement ensures minimal phase distortion while merging left and right channels into a unified signal. Configure the op-amp in a non-inverting setup with a gain of 0.5 (two equal resistors: input and feedback) to prevent clipping and maintain signal integrity.
For passive mixing, connect both channels through identical 1 kΩ resistors to a common output node, then add a 1 µF coupling capacitor to block DC offset. This method avoids active components but introduces a 6 dB reduction in amplitude–compensate with a preamp stage if higher output is needed. Avoid resistors below 1 kΩ to prevent loading effects on source devices.
Ground loops can introduce hum; use a star grounding technique by connecting all grounds at a single point near the power supply. If noise persists, insert a 10 Ω resistor in series with the ground path or use a small ferrite bead on the input lines. For wireless applications, ensure the summing circuit precedes the transmitter to avoid dual-channel bandwidth waste.
Test the output with a 50 Ω load to simulate real-world conditions–most amplifiers and recording interfaces present this impedance. If the signal weakens, reduce input resistors to 4.7 kΩ and recalibrate the op-amp gain accordingly. For battery-powered devices, bypass the op-amp with a 100 nF capacitor across the power rails to suppress high-frequency noise.
Critical applications (e.g., professional audio or medical equipment) demand temperature-stable components: use metal-film resistors (1% tolerance) and polypropylene capacitors for consistent performance. Avoid electrolytic capacitors in signal paths due to their non-linear behavior at low frequencies. For high-impedance sources (e.g., vintage synthesizers), buffer each input with a unity-gain op-amp before summing to prevent signal degradation.
Building a Dual-Channel Signal Merger: Practical Schematics
Start with a resistive summing network using two 10 kΩ resistors configured in a Y-splitter arrangement. Connect each input lead to one resistor, then join their outputs at a single junction. This passive method delivers a 6 dB attenuation per channel, preserving signal integrity without active components. For line-level sources, this ensures minimal phase distortion–critical for frequency transparency.
For microphone-level signals, replace the resistors with 1 kΩ units to maintain impedance matching. Measure the merged output with a multimeter set to AC voltage; expect half the input amplitude minus 3 dB. If parasitic hum appears, add a 100 nF ceramic capacitor between the junction and ground to filter RF interference above 10 kHz without affecting audio bandwidth.

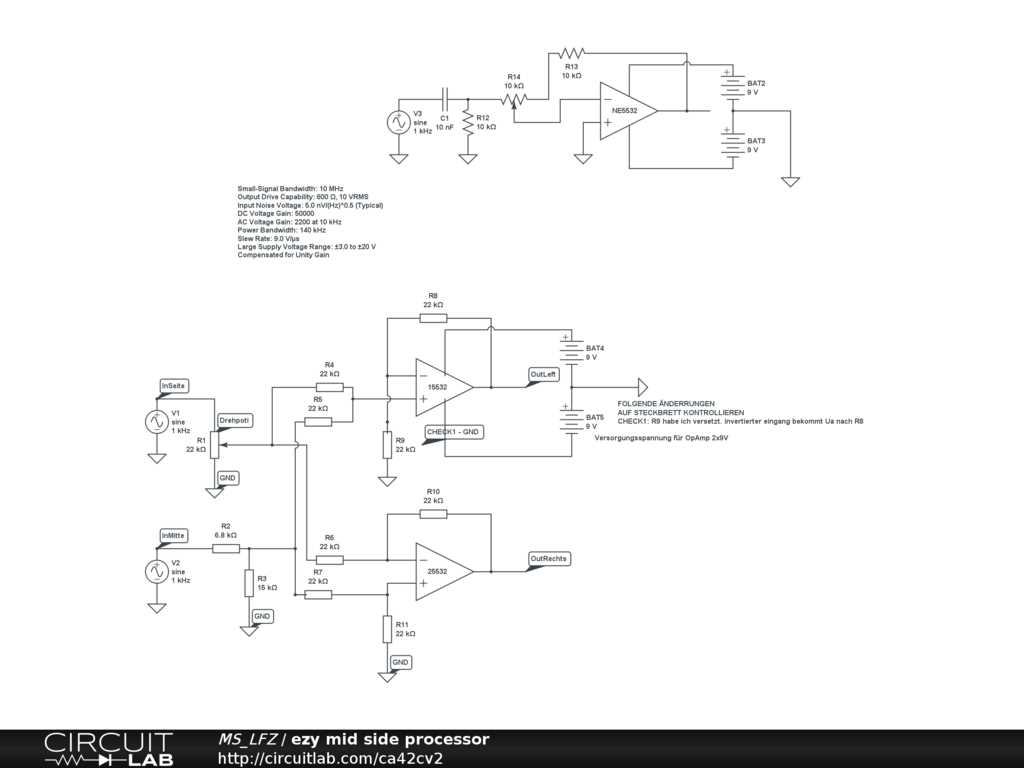

Active merging requires an op-amp in a summing amplifier configuration. Use an NE5532 or TL072 IC with a 10 kΩ feedback resistor and two 10 kΩ input resistors. Power the IC with ±12V rails–ensure decoupling capacitors (10 µF electrolytic + 0.1 µF ceramic) at each supply pin. This setup eliminates attenuation while introducing less than 0.005% THD at 1 kHz.
- Component tolerance: 1% resistors prevent channel imbalance above 0.1 dB.
- PCB layout: Keep input traces under 2 cm to avoid capacitive coupling.
- Grounding: Star-point topology isolates digital noise from analog paths.
For guitar or instrument applications, reduce the feedback resistor to 4.7 kΩ to drive a 500 Ω load without distortion. Test the merged output with a 1 kHz sine wave; verify symmetry in both channels using an oscilloscope. If asymmetry exceeds 2%, check resistor values or IC pin soldering.
Portable implementations can replace the op-amp with a single JFET stage (e.g., 2SK170) configured as a common-drain mixer. Use a 4.7 kΩ source resistor and a 1 MΩ gate resistor for each channel. Though this introduces 1.5 dB attenuation, it operates down to 3V with quiescent current under 1 mA–ideal for battery-powered devices.
Key Components for Building a Dual-Channel Signal Mixer
Use a precision resistor network (e.g., 10 kΩ ±1% metal film) to merge left/right inputs into a single output. Pair this with a low-noise operational amplifier (TL072 or NE5532) configured in inverting or non-inverting mode (gain = 0.5 per channel) to ensure balanced summation without phase distortion. Bypass capacitors (100 nF ceramic) near the op-amp power pins reduce high-frequency noise. For adjustable blending, replace fixed resistors with dual-gang potentiometers (10 kΩ linear taper), allowing real-time cross-channel attenuation.

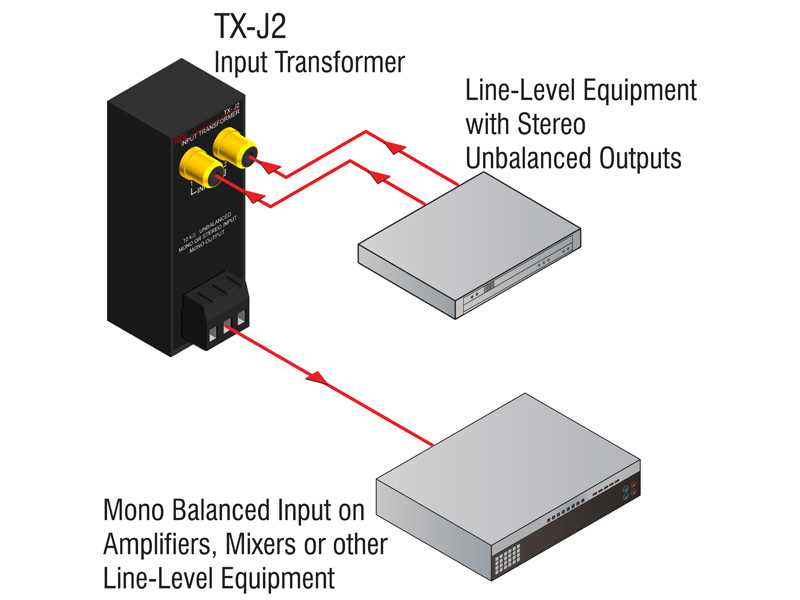

Add DC-blocking capacitors (2.2 µF polyester or electrolytic) at both inputs to prevent offset voltages from corrupting downstream equipment, and terminate the output with a 1 kΩ resistor to maintain stability with variable loads. If ground loops are a concern, insert a 1:1 audio isolation transformer (e.g., Jensen JT-11P-1) or use a star-grounding scheme. For low-impedance applications, a buffer stage (unity-gain op-amp) preserves signal integrity when driving long cables or multiple destinations.

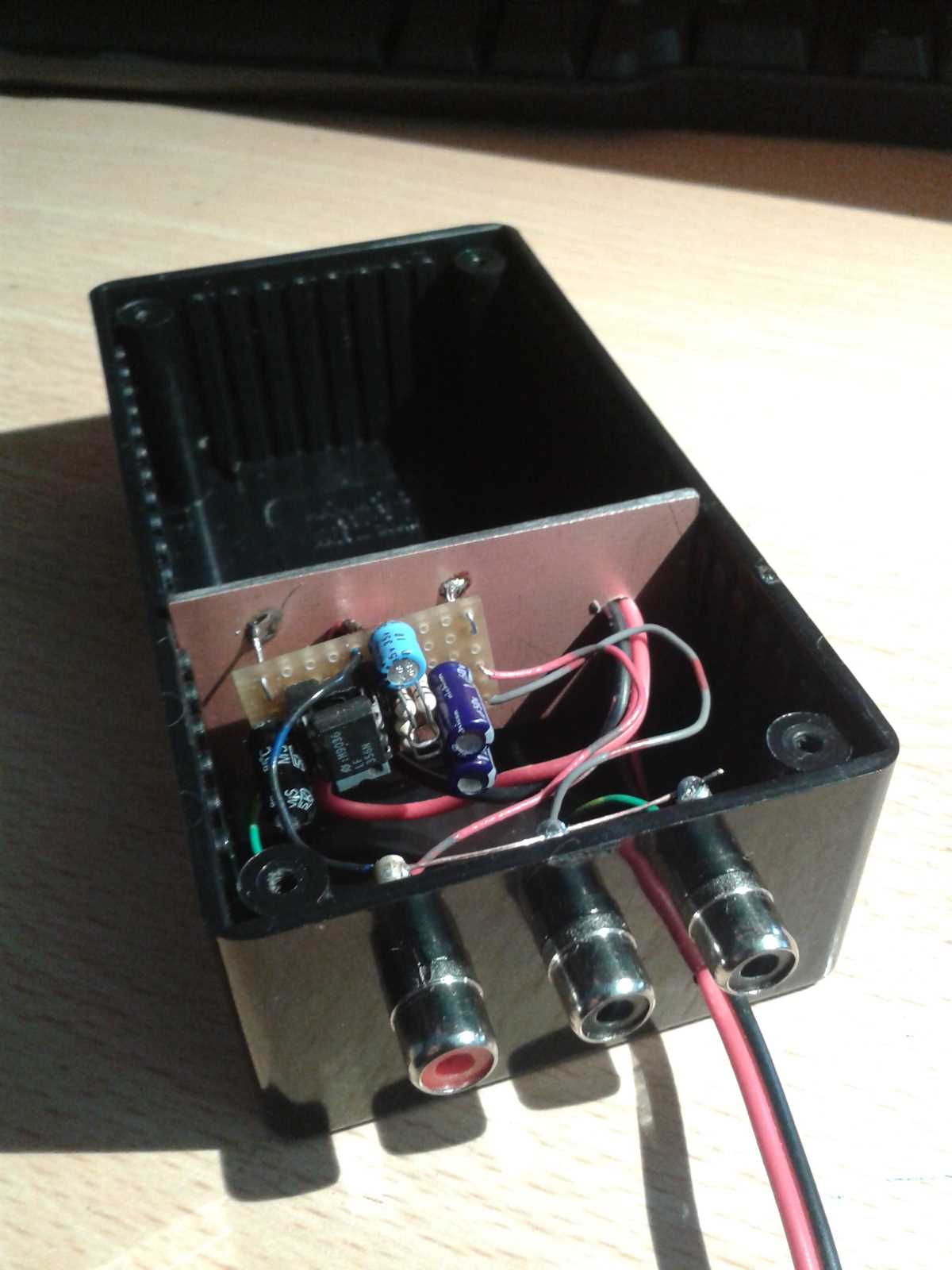

Step-by-Step Assembly Instructions for the Signal Combiner
Gather a summing amplifier IC like the TL072, two 10kΩ resistors, one 4.7kΩ resistor, a 10µF electrolytic capacitor, and a perfboard no smaller than 5×5 cm. Verify component values with a multimeter–impedance mismatches introduce distortion.
Position the IC socket on the perfboard, aligning its notch with the board’s edge. Solder pin 1 first to anchor it, then proceed with the remaining pins. Clip excess leads flush to the board to prevent shorts.
Attach the two 10kΩ resistors between the left/right input jacks and the IC’s inverting input (pin 2). Orient the resistors vertically to minimize board space. Confirm continuity with a probe; cold solder joints cause signal dropouts.
Capacitor and Feedback Resistor Placement
Connect the 4.7kΩ resistor between the IC’s output (pin 1) and inverting input (pin 2). This sets the gain–deviations above ±10% alter frequency response. Solder the 10µF capacitor from pin 2 to ground, observing polarity; reversed caps leak current.
Solder the non-inverting input (pin 3) directly to the perfboard’s ground plane. Use a third 10kΩ resistor here if input signals exceed 1V–this prevents clipping. Check ground connections last; floating grounds induce hum.
Strip 5mm of insulation from the input/output wires. Twist each pair (left/right input, output) to reduce interference. Secure wires to the perfboard with zip ties–vibration loosens joints in mobile setups.
Final Checks Before Powering
Apply 9V to the IC’s power pins (pin 4 to V-, pin 8 to V+). Measure DC offset at the output; voltages above ±50mV indicate a faulty IC or poor soldering. Replace the 4.7kΩ resistor with a 5kΩ trimmer if fine-tuning is needed.
Resistor Values and Their Impact on Signal Mixing
Use identical resistors for balanced summation–680Ω to 2.2kΩ delivers optimal impedance matching across line-level sources. Lower values (below 470Ω) risk overloading low-impedance outputs, causing premature clipping; higher values (above 10kΩ) introduce noise pickup due to increased susceptibility to electromagnetic interference. For unity-gain blending, 1kΩ resistors preserve signal integrity while minimizing phase cancellation artifacts between channels.
| Resistor Value | Maximum Input Level (Vrms) | Noise Floor (μV) | Power Dissipation (mW) |
|---|---|---|---|
| 470Ω | 1.8 | 12 | 3.2 |
| 1kΩ | 2.4 | 8 | 2.9 |
| 2.2kΩ | 3.1 | 6 | 2.2 |
| 4.7kΩ | 4.3 | 5 | 1.8 |
Mismatched resistor pairs skew signal ratio–deviations above 5% distort panorama balance, particularly in midrange frequencies (500Hz–4kHz). Metal film resistors (1% tolerance) outperform carbon composition in thermal stability; rapid temperature changes (ΔT > 15°C) shift carbon resistance by ±3%, introducing unwanted comb-filter effects. For passive networks, wirewound resistors (0.1% tolerance) eliminate drift but introduce parasitic inductance (>1μH) at ultrasonic frequencies, requiring compensatory filtering (22pF ceramic caps across inputs).
Common Wiring Mistakes and How to Avoid Them
Always verify signal polarity before soldering connections–reversing ground and hot terminals introduces unwanted phase cancellation, degrading audio clarity. Use a multimeter in continuity mode on the lowest resistance setting to confirm correct pin assignments before finalizing joins. For 3.5mm jack wiring, pin 1 is typically ground, while pins 2 and 3 carry left and right channels; swapping these causes signal imbalance detectable as muffled or uneven output.
Twisting bare wires without insulation stripping at junctions leads to short circuits under mechanical stress. Apply heat-shrink tubing over exposed conductors after soldering, ensuring no copper strands remain visible. Avoid excessive heat during soldering–prolonged iron contact melts wire insulation, creating hidden shorts. A 30-watt iron with temperature control prevents overheating thin gauge wires.
Incorrect impedance matching between source and destination devices causes signal loss or distortion. Passive adapters should never combine outputs directly without buffering–active components like operational amplifiers handle bridging high-impedance sources to low-impedance loads properly. Measure output impedance with an LCR meter; values above 1kΩ require buffering for clean signal transfer.
Ground Loop Errors
Shared ground paths between multiple devices create humming interference. Isolate grounds using separate cables or audio isolation transformers rated for the frequency range of the content. For DIY projects, star grounding–connecting all grounds to a single point–eliminates loops. Verify with an oscilloscope for AC ripple on the ground line; amplitudes above 10mV indicate troubleshooting needed.
Skipping shield grounding exposes signals to electromagnetic interference, especially in environments with fluorescent lighting or RF transmitters. Braided shielding must connect to chassis ground at both ends for optimal noise rejection. Use shielded twisted pair cables for lengths exceeding 1 meter–balancing the return path minimizes induced noise.
Overloading inputs with high-voltage signals damages downstream components. Check maximum input ratings before connecting; consumer line-level signals (±1V peak) differ from professional (+4dBu) standards. Insert attenuators between mismatched levels–voltage dividers with precision resistors maintain signal integrity while reducing amplitudes safely.
Mechanical Failures
Straining cables at connection points breaks internal conductors. Secure connectors with cable clamps or tie-wraps, leaving slack to prevent tension on solder joints. For panel-mounted jacks, reinforce solder pads with epoxy to resist vibration loosening–rigid mounting prevents intermittent failures. Test continuity while flexing cables; intermittent drops indicate poor mechanical integrity.
Ignoring cable length limits risks signal attenuation. Coaxial cables lose high frequencies over distances; for runs exceeding 10 meters, use active line drivers or fiber-optic links. Cat5e cable, though economical, has capacitance unsuitable for wideband audio–pairs should only carry signals below 20kHz if unavoidable. Calculate voltage drop using cable resistance tables to ensure sufficient headroom at endpoints.
