How to Build a Precision Strain Gauge Load Cell Measurement Setup

For accurate weight sensing under 100 kg, use a Wheatstone bridge with four 350 Ω resistors and a voltage excitation of 5–12 VDC. Ensure the amplifier has a gain of 500–1000 and a bandwidth below 10 kHz to reject high-frequency noise. Position resistors R1 and R3 on opposite sides of the flexing element to maximize differential voltage output. Ground the shielded cable at one end only to prevent ground loops.

Offset null adjustments require a 10-turn 20 kΩ potentiometer connected between the bridge output and the amplifier’s input. Use low-temperature-coefficient resistors (±25 ppm/°C) for critical paths to maintain stability across −20°C to +80°C. Filter the output with a 0.1 µF ceramic capacitor and a 10 µF electrolytic capacitor in parallel to suppress 50/60 Hz mains interference.

For microvolt-level signals, route traces no longer than 10 mm between the bridge and the instrumentation amplifier. Apply guard rings around input pins to reduce leakage currents below 1 nA. Use twisted-pair wiring for excitation and signal lines, keeping them at least 50 mm from AC power lines. Calibrate with a known reference weight–preferably 80% of full scale–to verify linearity within ±0.05%.

If hysteresis exceeds 0.1%, check for mechanical creep in the flexing element or adhesive bonds. Replace epoxies with cyanoacrylate for faster curing and lower drift. For dynamic measurements, add a 1 µF polyester capacitor across the bridge to dampen vibrations above 100 Hz. Test excitation stability by measuring voltage at the bridge–fluctuations above 0.5 mV indicate a faulty regulator or loose connection.

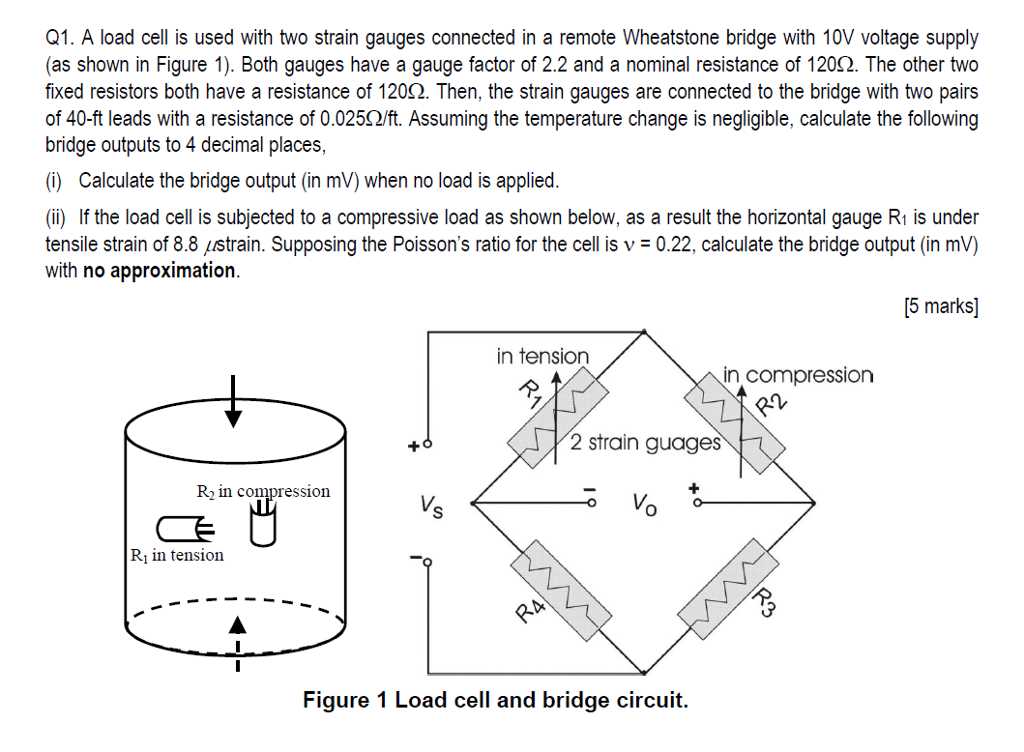

Wheatstone Bridge Sensor Wiring Configuration

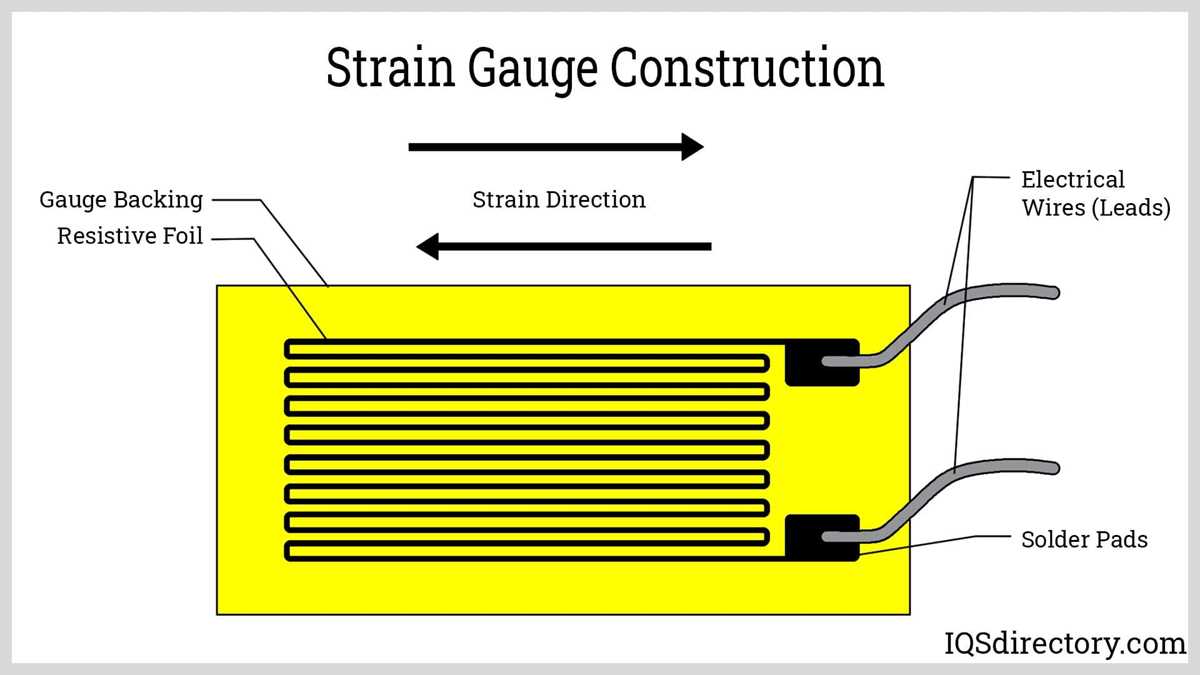

Begin by selecting a precision resistor network with a 350 Ω nominal resistance for optimal balance in quarter-bridge setups. Connect sensing elements in pairs on opposite arms to counteract thermal drift–integrate temperature-compensated foil grids rated for ±0.1% linearity. For half-bridge configurations, use matched resistors with a tolerance of 0.05% to maintain symmetry under compressive and tensile forces. Ensure all solder joints meet IPC-A-610 Class 3 standards to eliminate parasitic resistance.

• Excitation voltage: 5–10 V DC (avoid exceeding 12 V to prevent self-heating errors).
• Signal amplification: Instrumentation amplifier with CMRR > 120 dB (e.g., AD8221).
• Filtering: Low-pass RC network with 10 Hz cutoff to suppress 50/60 Hz noise.
• Shielding: Braided copper ground around signal paths, terminated at a single star point.

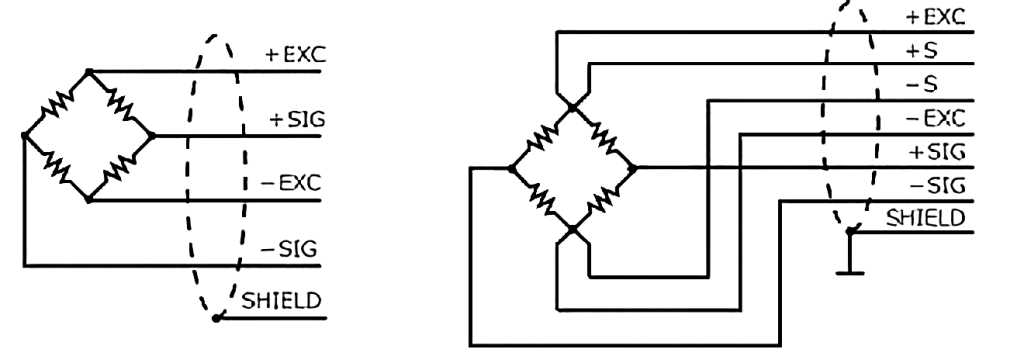

For high-capacity transducers (>500 kg), incorporate a 6-wire Kelvin connection to eliminate lead resistance effects–use twisted pairs for each positive/negative excitation and signal line. Calibrate zero-balance potentiometers to within ±2 mV/V of null output before applying mechanical preload. Validate linearity by applying 20%, 40%, 60%, 80%, and 100% of rated capacity, verifying output deviates by

Basic Components of a Force Measurement Sensor Assembly

Begin with a precision resistor bridge–Wheatstone configurations with 350Ω or 1000Ω elements offer optimal sensitivity for most industrial applications. Match the resistor tolerance to ±0.1% to minimize zero drift under temperature fluctuations of ±20°C. Excitation voltage should stay within 5V–12V DC; exceeding this risks self-heating errors surpassing 0.05% of full scale output per 10°C rise.

Select an instrumentation amplifier with a common-mode rejection ratio above 110 dB and input impedance above 10 MΩ to prevent signal degradation from parasitic capacitance. Offset nulling circuits–achieved via trimpots or digital calibration routines–must correct initial imbalance down to ±2 µV/V before amplification. For dynamic monitoring, low-pass filters with 10 Hz cutoffs eliminate 50/60 Hz mains interference without distorting transient force spikes.

Signal conditioning stages demand regulated power; linear regulators like LM7809 outperform switching types in noise-sensitive setups, holding ripple below 0.5 mVpp. Shielded twisted-pair cables with individual foil wrapping reduce capacitive coupling by 80% compared to unshielded alternatives. Ground loops are eliminated by star-point grounding directly at the amplifier’s reference pin, not the enclosure.

Calibration follows ASTM E74 standards: apply force in 10% increments, hold 30 seconds per step, and verify linearity within ±0.03%. Store calibration coefficients in non-volatile memory; EEPROMs with 100k write cycles ensure decade-long stability even after power cycles. For wireless nodes, Bluetooth 5 modules require 20 ms packet intervals to maintain 1 kHz sampling rates without data loss.

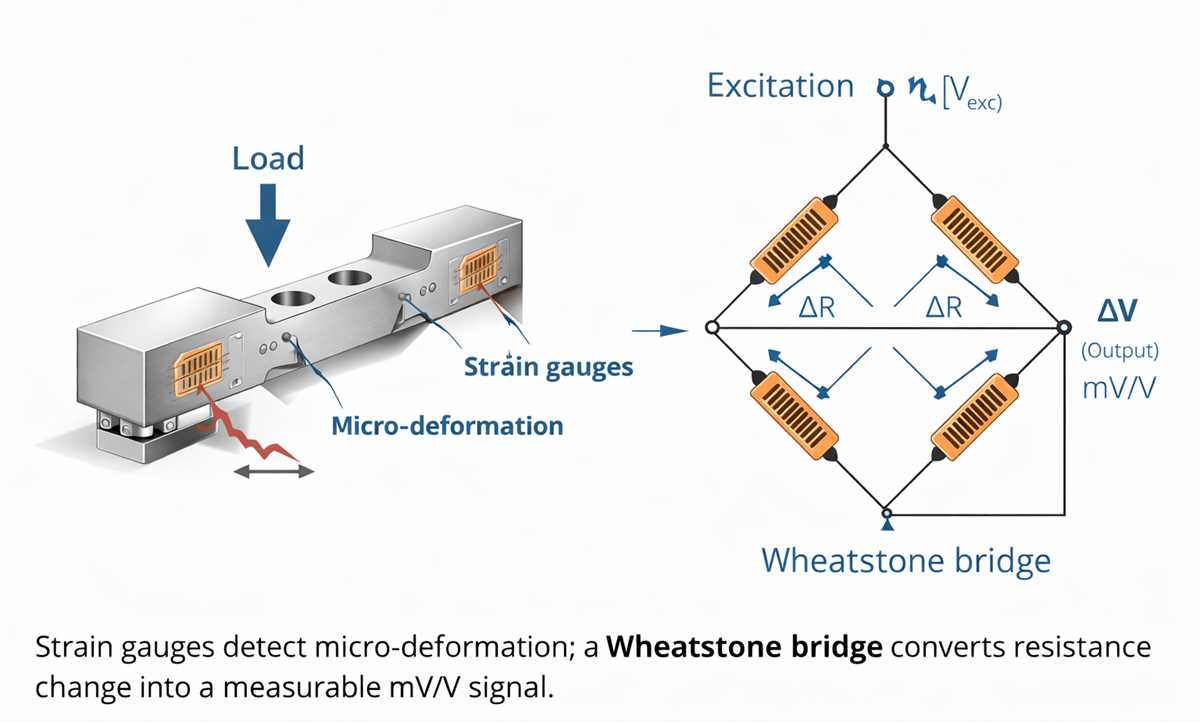

Wheatstone Bridge Setup for Precision Force Sensors

Assemble the bridge with four resistive elements: two fixed resistors and two variable sensors, arranged in a diamond pattern. Ideal resistance values range between 350Ω and 1kΩ for optimal sensitivity while minimizing thermal drift. Match resistor tolerances to ±0.1% to prevent zero-shift errors under no-force conditions. Excitation voltage should not exceed 10V DC for most industrial applications to avoid self-heating effects in the sensing elements.

Ground the bridge output differentially to reject common-mode noise from motors or switching power supplies. For ambient temperatures above 50°C, select resistors with temperature coefficients below 10 ppm/°C–ceramic-based types offer better stability than carbon-film. Include a potentiometer (typically 20-50Ω) in series with one arm to balance initial offset voltages, adjusting until the output reads 0 mV ±5 μV.

Signal amplification requires instrumentation amplifiers with input impedance exceeding 1 GΩ. PGA204 or AD620 variants deliver 1-1000x gain without introducing phase distortion. Configure low-pass filters (cutoff 10-50 Hz) after amplification to attenuate mechanical vibrations from pumps or conveyors. Use shielded twisted-pair cables for output lines, keeping sensor-side shields floating to prevent ground loops.

Calibration should follow a three-point procedure: zero-force, mid-scale (50% capacity), and full-scale. Use certified test weights rather than calculated values–real-world creep and hysteresis introduce errors up to 0.2% of span. Document the voltage-to-force ratio (typically 2-3 mV/V) after each calibration; deviations greater than 0.05% indicate fatigue or moisture ingress in sealed sensors.

For high-precision applications, integrate temperature compensation resistors directly into the bridge. A 10 kΩ NTC thermistor (Beta 3950) in parallel with a 15 kΩ fixed resistor can reduce thermal errors by 80% over a 0-80°C range. Never exceed the maximum rated voltage during power-up sequencing–rapid transients induce dielectric polarization, permanently skewing sensitivity. Test sensor linearity quarterly using standardized loads; nonlinearity beyond 0.02% FS suggests internal bond degradation.

Signal Conditioning Circuit for Accurate Measurements

Start with a low-noise instrumentation amplifier like the AD8221–its 120 dB CMRR at 60 Hz suppresses interference from power lines. Configure gain to match sensor output (typically 1–10 mV/V) without saturating; a 100× gain suits most industrial transducers, but verify with the sensor’s datasheet.

Add a passive RC filter at the amplifier input–10 kΩ resistor in series followed by a 100 nF capacitor to ground–reducing high-frequency noise above 160 Hz. This preserves the DC and low-frequency components critical for static force readings.

Use a precision voltage reference such as the REF5025 for excitation. A stable 2.5 V reference reduces drift in bridge-based sensors; avoid linear regulators, as their noise floor (typically 50 μV RMS) corrupts sub-millivolt readings.

Component	Specification	Purpose
Instrumentation Amplifier	AD8221, Gain = 100	Boosts sensor signal while rejecting noise
RC Filter	10 kΩ + 100 nF	Attenuates frequencies >160 Hz
Voltage Reference	REF5025, 2.5 V	Provides stable excitation
ADC	ADS1256, 24-bit	Digitizes signal with 0.5 μV resolution

Offset errors arise from amplifier input bias currents–buffer each input with an op-amp like the OPA2188 (0.5 pA input bias) before the instrumentation stage. This eliminates thermocouple effects in wiring and solder joints.

Digitize immediately after amplification using a delta-sigma ADC like the ADS1256. Its 24-bit resolution (0.5 μV/LSB) captures fine variations without needing additional gain stages, reducing component count and drift.

Grounding demands isolation between analog and digital sections–star-ground the sensor and amplifier to a single point near the ADC to prevent ground loops. Twist sensor wires and route them away from switching power supplies to avoid inductive pickup.

Temperature drift in amplifiers skews readings–place a thermistor (e.g., NTC 10 kΩ) near the amplifier and compensate mathematically in firmware. The OPA2188’s 1 μV/°C drift is manageable, but sensors often drift more; account for both.

For dynamic signals, add an active anti-aliasing filter–two-pole Sallen-Key with a cutoff at 10× the signal bandwidth. A 10 Hz signal needs a 100 Hz filter; use 0.1% tolerance resistors and film capacitors to maintain accuracy.

Amplification and Filtering Techniques in Precision Measurement Systems

Select an instrumentation amplifier with a CMRR above 120 dB and a gain error less than 0.01% to minimize common-mode noise in bridge-based sensors. AD8221 or INA125 integrate on-chip precision resistors, reducing parasitic effects from external discrete components. Configure gain via a single resistor between pins 1 and 8 for AD8221, ensuring exact resistance values (e.g., 499 Ω for 100× gain) to prevent drift.

Implement a two-stage low-pass filter: the first stage immediately after amplification with a 10 Hz cutoff (RC network: 10 kΩ, 1.59 μF), the second stage before ADC sampling at 1 Hz (Sallen-Key topology, Butterworth response). Use polyester film or C0G/NP0 ceramic capacitors to avoid dielectric absorption effects that distort small signals. For dynamic applications, switch to a Bessel filter (Q ≈ 0.577) to preserve transient response shape.

Active Filter Design Parameters

• Corner frequency: f_c = 1/(2πRC)
• Quality factor: Q = 1/(3 − A), where A = gain (1 + R_f/R_in)
• Op-amp slew rate: >5 V/μs for 0–5 kHz signals
• Power supply: ±15 V for rail-to-rail output swing

Reduce aliasing by setting ADC sampling rate to at least 5× the filter’s corner frequency. Use a delta-sigma converter (ADS1256) with 24-bit resolution to capture signals below 100 nV without additional gain stages. Isolate digital ground from analog ground via a star topology, connecting grounds at a single point near the converter. For excitation voltages above 5 V, employ a current source (e.g., LM334) instead of a voltage divider to maintain stability under temperature variations.

Recommended Components for Signal Conditioning

1. Op-amp: OPA333 (1.5 μV offset, 0.02 μV/°C drift)
2. Capacitor: 1% tolerance, polypropylene (WIMA FKP1)
3. Resistor: 0.1% metal film (Vishay Z201)
4. Voltage reference: REF5050 (5 ppm/°C stability)
5. ADC: LTC2440 (24-bit, 800 Hz output rate)

Add a notch filter (twin-T network) at 50/60 Hz to suppress mains interference, with Q > 10 for narrow rejection bandwidth. For environments with high RF noise, shield the sensor and amplifier using a Faraday cage connected to the signal ground. Test filter response with a network analyzer at ±1% amplitude accuracy across the passband to detect phase shifts affecting time-domain measurements.
