Understanding Substation Electrical Schematics and Key Components

Begin by isolating functional zones on the schematic–separate primary connections (busbars, breakers) from secondary systems (relays, meters, auxiliary power). Label each segment with industry-standard identifiers: ANSI/IEEE C37.2 for device numbers (e.g., 52 for circuit breakers, 87 for differential relays) or IEC 60617 symbols if working internationally. Precision in naming prevents misinterpretation during maintenance or fault tracing.

Use a hierarchical layout: place the main power flow horizontally across the top, with protection and control circuits branching downward in a systematic cascade. Apply consistent scaling–1 cm = 10 m for spatial accuracy–especially in switchyard layouts where physical clearance (minimum 5 m for 110 kV, 7 m for 220 kV) affects fault probability and worker safety. Avoid “spaghetti wiring” by aligning conductors in orthogonal paths; crossovers should occur only at 90-degree angles.

Incorporate mandatory redundancy markers: dual trip coils on breakers, mirrored current transformers on each phase, and redundant communication paths for SCADA (fiber optic for immunity to EMI, copper only for local signals). Color-code conductors per NFPA 79 or IEC 60446: red for control power, yellow for phase A, green-blue for neutral, green-yellow for grounding. Verify all labels against the site’s as-built documentation before finalizing–discrepancies cost $4,000–$12,000 per rework in medium-voltage systems.

Test every symbolic link through simulation before commissioning. Tools like ETAP or DIgSILENT validate coordination between relays (check pickup times: 50 ms for instantaneous, 200 ms for time-delayed) and breaker tripping sequences. Include arc flash hazard calculations (IEEE 1584) directly on the schematic in cal/cm² for compliance with OSHA 1910.269. Omit these, and expect fines $70,000+ plus liability for injuries.

Store all schematics in a revision-controlled repository (Git for text-based formats like SVG, CAD-locked PDFs for legacy systems). Each update must carry a timestamp, approver’s initials, and a changelog detailing voltage adjustments, new breaker ratings, or relay recalibrations. Missing a single revision can void insurance claims after incidents.

Key Components in Energy Facility Schematic Design

Begin with clearly labeling busbars and switchgear connections using standardized IEC or ANSI symbols to avoid misinterpretation during maintenance. Mark voltage levels beside each conductor–typically 110 kV, 35 kV, or 10 kV–to ensure safe isolation procedures. Include surge arresters on both transformer feeders and incoming lines, positioning them no farther than 10 meters from the equipment they protect.

Specify transformer cooling methods directly on the layout: ONAN/ONAF for oil-cooled units, or AN for dry-type. Add thermal sensors at winding hot spots and oil temperature gauges for real-time monitoring. Integrate differential relays with a 10% sensitivity setting to detect internal faults within 20 milliseconds.

Group protective relays by function: overcurrent (51), distance (21), and differential (87) should each occupy dedicated sections near their respective breakers. Use color-coding for CT/PT circuits–red for current paths, blue for voltage–to simplify troubleshooting. Connect VTs to metering devices with twisted-pair cables at a maximum length of 200 meters to prevent signal degradation.

Indicate grounding grids beneath critical equipment, showing cross-sectional area (minimum 70 mm² copper) and depth (0.5–1.5 meters). Separate operational and safety grounds by at least 10 meters to prevent interference. Include neutral grounding resistors on medium-voltage systems, sized to limit fault currents to 5–10 A for 10 seconds.

Place disconnect switches upstream of breakers, ensuring visible open gaps for lockout/tagout compliance. Mount them at a minimum height of 2.5 meters if overhead, or behind locked panels if below. Show interlocking schemes between breakers and isolators to prevent accidental operation under load–mechanical interlocks for older installations, or PLC-controlled for newer ones.

Label cable trays with conductor sizes (e.g., 240 mm² Cu for 110 kV lines) and insulation types (XLPE or EPR). Route low-voltage control cables perpendicular to high-voltage lines to reduce electromagnetic coupling. Include shield grounding at one end only to prevent ground loops in signal circuits.

Add auxiliary power sources near control panels, such as 110 V DC batteries with 12-hour autonomy. Specify battery charger ratings (typically 25% of total battery capacity) and include trickle chargers for maintenance-free cells. Connect inverters for AC loads only if nonlinear loads exceed 10% of total capacity to avoid harmonic distortion.

Include a legend with device designations (e.g., Q0 for main breaker, T1 for transformer) and reference grid coordinates for quick location. Use consistent line weights–0.5 mm for primary conductors, 0.3 mm for secondary–to distinguish hierarchy. Keep revision history in the lower-right corner, listing date, modification scope, and approver’s initials.

Core Elements for Electrical Facility Schematics

Start with primary switching apparatus: include high-voltage breakers rated for 110 kV or above, isolators with visible gap indicators, and current-limiting reactors where fault levels exceed 40 kA. Specify manufacturer model numbers–e.g., ABB HPL 145/20 or Siemens 3AP1-FG–and exact placement relative to busbars, noting clearance distances of at least 1.5 m for live parts at 132 kV. Label each device with its ANSI/IEEE function number: 52 for breakers, 89 for isolators, and 51 for overcurrent relays. Annotations must detail tripping curves and coordination settings–phase time-overcurrent (51) at 1.2×In with 0.3 s delay, ground (51N) at 0.5×In with instantaneous pickup.

Protection and Measurement Devices

Integrate protective relays on every feeder and transformer: differential (87) with 20% slope for transformers above 10 MVA, distance (21) with six zones for transmission lines longer than 30 km, and under-frequency (81) set to 48.5 Hz with 0.2 s delay. Include CT and VT ratios–e.g., 1200:5 A for CTs on 40 MVA transformers, 132 kV/110 V for VTs–alongside burden and accuracy class (e.g., 5P20, 20 VA). Mark digital meters (kWh, kvarh) with Modbus addresses; sync phasor units must sample at 50/60 Hz with IEEE C37.118 timestamping. Auxiliary DC supply routes for relays should trace via redundant 110 V batteries, each branch fused at 6 A.

Detail earthing systems: depict the main grid with 95 mm² Cu conductors buried 0.5 m deep, spaced 5 m apart, bonded to transformer neutrals and metallic structures without exceeding 1 Ω resistance. Show surge arresters (type III, 92 kV MCOV) placed within 3 m of transformers, labeled with energy-handling capability–e.g., 10 kA, 8/20 µs waveform–and discharge counter readings. Include soil resistivity data (Ω·m) adjacent to grounding pits and lightning masts, specifying rod lengths (3 m) and bonding clamps (bronze, M12).

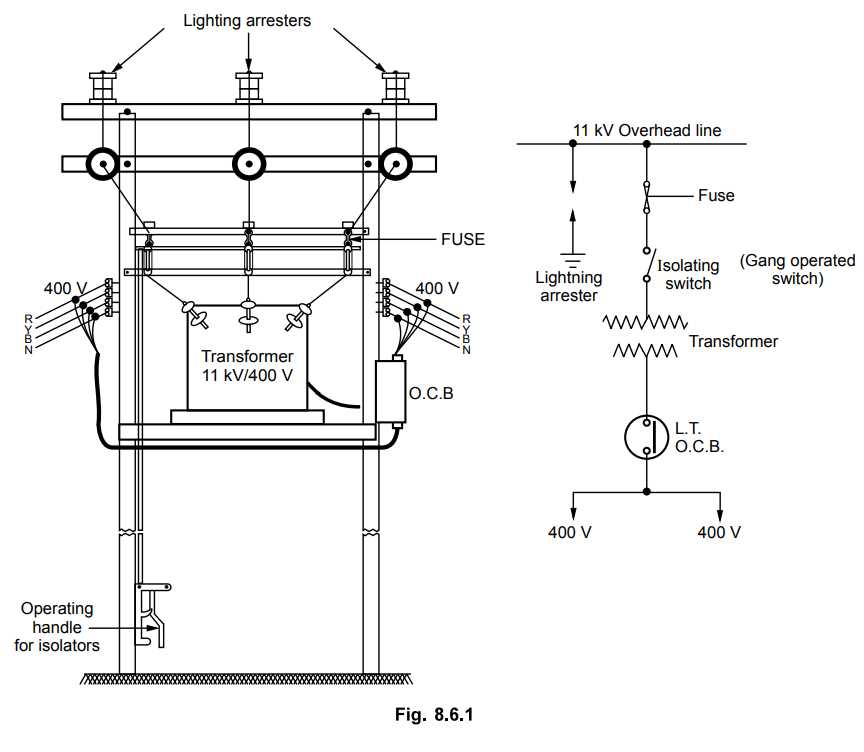

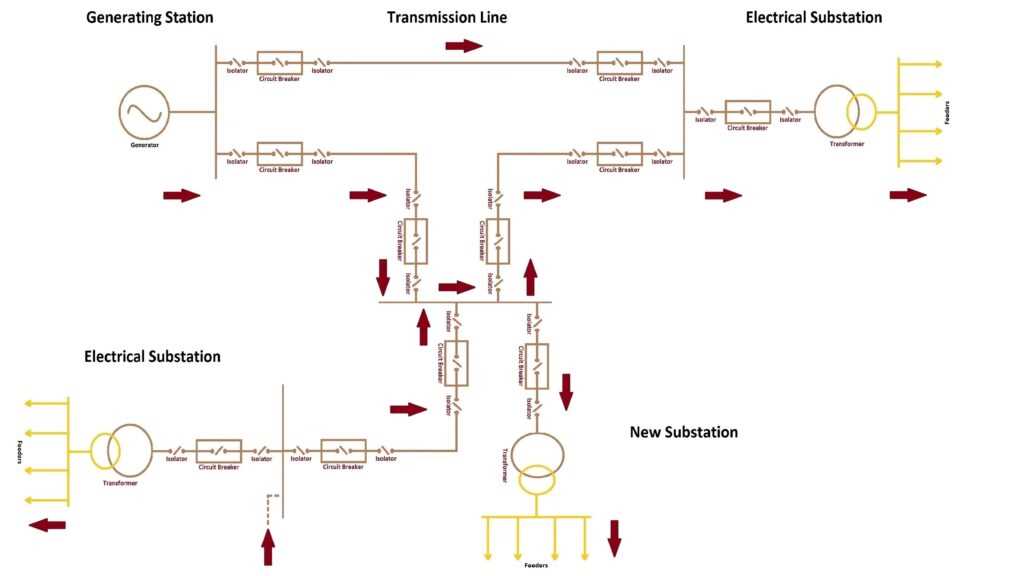

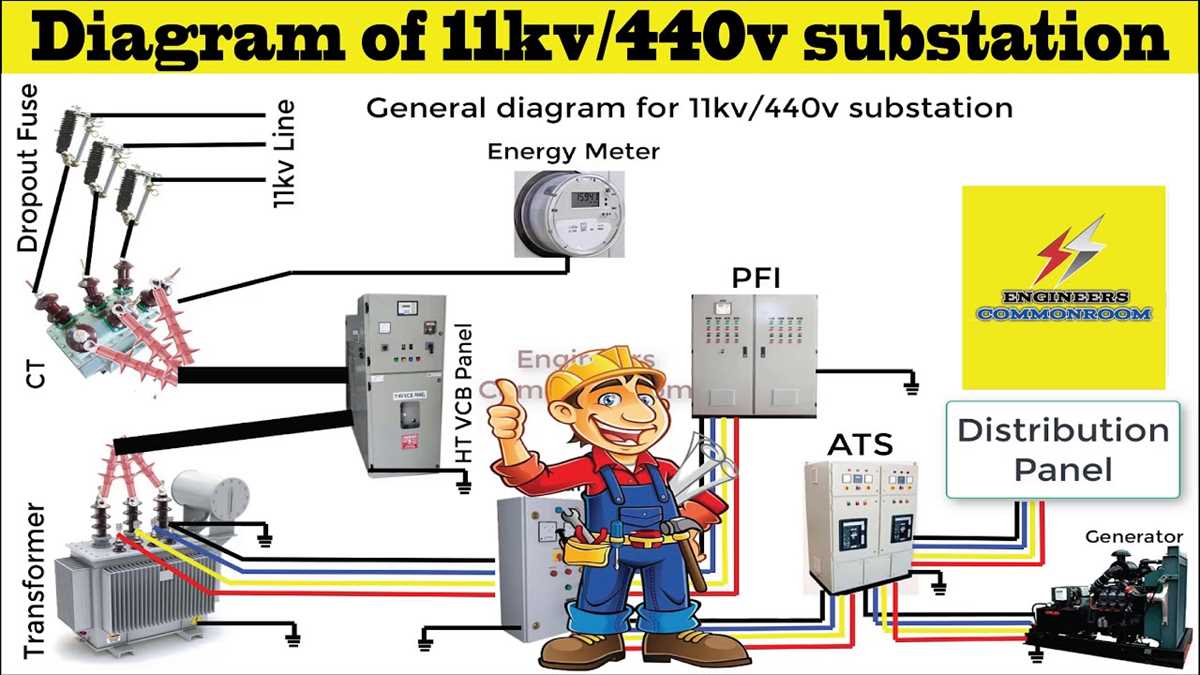

Creating a Single-Line Electrical Layout: A Practical Guide

Gather all technical specifications for the high-voltage equipment before drafting. Include transformer ratings, breaker types, busbar configurations, and protection relay models. Verify voltage levels and short-circuit capacities from system studies to ensure compatibility. Missing data at this stage leads to errors in later steps.

Select standardized symbols from IEC 60617 or IEEE Std 315. Use distinct shapes for transformers (rectangle with diagonal), breakers (square with cross), and disconnectors (angled line). Label each symbol with its unique identifier–e.g., T1 for transformer, CB2 for circuit breaker–to avoid ambiguity during review.

Sketch the primary connections on graph paper first, keeping a consistent layout: power sources on the left, loads on the right. Arrange busbars horizontally at equal spacing (2 cm for 11 kV, 3 cm for 132 kV). Draw conductors as straight lines, minimizing bends; use 45° angles where necessary to reduce clutter. For multi-voltage systems, segregate sections vertically with 5 cm spacing.

Annotate every component with nameplate data: voltage class (e.g., 11/0.415 kV), current rating (e.g., 630 A), and fault withstand (e.g., 25 kA for 1s). Place text above horizontal lines or to the right of vertical ones, aligned to a grid for readability. For transformers, add vector groups (Dyn11) and impedance (6%). Include relay settings (50/51, 50N/51N) near protection devices.

Integrate grounding and neutral arrangements. Show neutral grounding resistors (NGR) with a dashed line to earth symbols (three stacked horizontal bars). For earthing switches, use a circle with a diagonal slash. Specify grounding electrode resistance (less than 1 Ω) next to earth pits. Verify all grounding conductors are sized per IEEE 80 or IEC 60364-5-54.

Validate the drawing with a peer review. Check for missing labels, incorrect symbols (e.g., a breaker drawn as a disconnector), and inconsistent scaling. Cross-reference the one-line with protection coordination curves and short-circuit reports. Highlight discrepancies–such as a 2000 A busbar feeding a 1600 A breaker–in red for correction.

Finalize the document in CAD software (AutoCAD Electrical, EPLAN) or Visio. Export as PDF with layer controls: turn off construction lines, display only active layers (symbols, labels, conductors). Save an editable version (DWG/DXF) and a locked print-ready version (PDF/A). Include a revision block with date, author, and change log (e.g., “V1.1 – Added earth switch Q8”).
