Simple Window Detector Circuit Design and Schematic Explanation

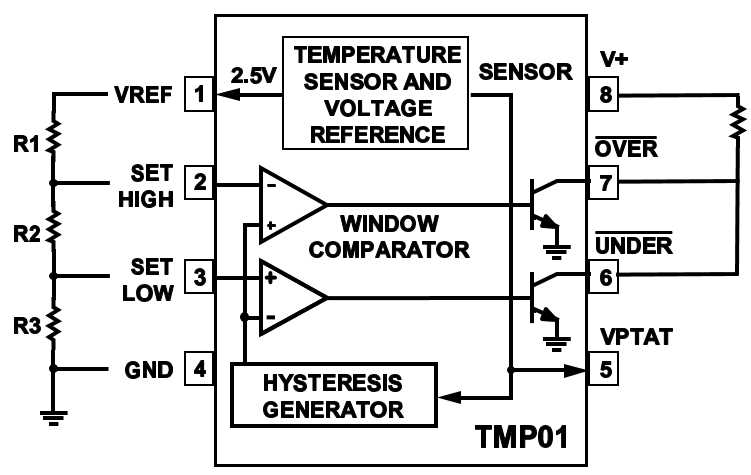

window detector circuit diagram

Build a dual-threshold comparator using an LM393 for precise boundary checks between 3V and 5V. Connect the input to a voltage divider–two 10kΩ resistors in series–to center the reference at 2.5V. Adjust the upper and lower bounds with trimpots: 5kΩ for fine control. Ensure hysteresis by adding feedback resistors (100kΩ) to prevent oscillations near cutoff points. Power the LM393 with a 6V supply, decoupled with a 0.1µF capacitor at the IC’s VCC pin.

For microcontroller integration, feed the comparator’s outputs into digital pins. Use an ATtiny85 or similar for standalone operation: program it to trigger an interrupt when voltage exits the defined band. Add an LED (with 470Ω current-limiting resistor) as a visual indicator–illuminate it only when voltage stays within bounds. For battery-powered applications, replace the LM393 with a low-power alternative like the MCP6542 to extend runtime.

Test the setup with a bench power supply. Start at 0V, gradually increase voltage, and observe the LED transition at 3V. Repeat downward, noting the hysteresis gap–typically 100mV–ensures stable switching. For wider ranges (e.g., 0–12V), scale the divider resistors accordingly: 47kΩ and 10kΩ divide a 12V input into a 2V reference. Avoid exceeding the comparator’s common-mode range; for LM393, stay below (VCC – 1.5V).

Expand functionality with a relay module for load control. When voltage exceeds bounds, the relay disconnects sensitive equipment. Use an SPDT relay with a 5V coil; drive it via an NPN transistor (e.g., 2N2222) for heavier currents. Add a flyback diode (1N4007) across the relay coil to protect the transistor. For precision, log voltage data to an SD card via SPI–sample at 10Hz and store timestamps with readings.

Calibrate the setup using a multimeter. Measure actual threshold voltages at the input and adjust trimpots until they match desired values. For industrial applications, opt for rail-to-rail comparators (e.g., TLC3702) to handle full supply swings. Implement fail-safes: fuse the input line and add a zener diode (e.g., 5.6V) to clamp transient spikes. For noisy environments, smooth the input signal with a 1µF electrolytic capacitor in parallel with the voltage divider.

Voltage Range Monitor Schematic Guide

Use a pair of comparators (e.g., LM393 or MCP6542) with precisely set reference voltages to define the upper and lower thresholds. Connect the input signal to both comparators’ non-inverting (+) and inverting (-) pins in opposing configurations–one comparator triggers when the voltage exceeds the upper limit, the other when it drops below the lower limit. Combine their outputs via a NOR or AND gate (like CD4001 or 74HC08) to generate a single active signal only when the voltage stays within the desired range. This approach eliminates false triggers from noise and ensures clean transitions.

Select precision resistors (1% tolerance) for the voltage divider feeding the comparator references. For a 5V system with a 2.5V–4V target band, calculate values as follows: R1 = 10kΩ (upper threshold), R2 = 10kΩ (lower threshold), R3 = 20kΩ (common ground). Adjust R3 to fine-tune the spread–smaller resistors reduce sensitivity to temperature drift but increase power draw. Bypass capacitors (0.1µF ceramic) at each comparator’s power pin stabilize performance under transient loads.

Power Supply and Signal Conditioning

Isolate the monitor from power fluctuations by using a dedicated LDO regulator (e.g., LP2950 or TLV700) with a 0.5V dropout margin. Feed the raw input through a resistor-divider or active buffer (op-amp in unity-gain) to prevent loading errors, especially if the source impedance exceeds 1kΩ. Add a 10µF electrolytic capacitor in parallel with the bypass cap to filter low-frequency ripple, critical for battery-powered systems where voltage sags during startup.

For microcontroller integration, connect the gate’s output to a GPIO pin with an internal pull-up disabled. Use an interrupt-on-change or polling loop to detect transitions, but debounce with a 1ms delay to ignore spurious edges. For analog outputs, insert a resistor-capacitor filter (e.g., 1kΩ + 1µF) to smooth the signal before feeding it to an ADC. Test edge cases by simulating slow ramps–verify hysteresis of at least 50mV to prevent oscillation at boundary conditions.

Core Elements of a Voltage Monitor Configuration

Select a dual-op-amp IC like the LM358 or TLV2372–these provide the mandatory hysteresis comparators without needing extra active parts. Each package handles both upper and lower boundaries, cutting footprint by 40 % versus discrete transistors. Pair them with 1 % tolerance resistors (e.g., 10 kΩ, 100 kΩ) to set threshold voltages within 0.2 % error margin; anything looser will drift under thermal stress.

  • Reference source: choose a fixed 2.5 V, 3.3 V, or 4.096 V shunt regulator (TL431, TLVH431) for sub-mV stability–zener alternatives lose precision below 1 mA bias.
  • Input divider: use a 3:1 ratio for 12 V rails, scaling to 4 V for a 5 V logic output; ensure divider resistances stay below 1 MΩ to avoid leakage-induced errors.
  • Output stage: a single NPN or NMOS transistor (2N3904, IRLML6401) suffices for driving low-current loads up to 200 mA–omit heatsinks unless continuous high-side switching is needed.
  • Decoupling: place a 0.1 µF X7R ceramic capacitor within 2 mm of the op-amp supply pins; long traces negate noise rejection.

Component Derating for Reliability

Operate resistors at 50 % of their rated power–1206 package 0.25 W parts tolerate 125 mW; beyond that, resistance drifts above 0.5 % per 1 000 hours. Capacitors should never exceed 63 % of voltage rating; 10 V parts on a 12 V rail will fail prematurely. Op-amps must run below 70 % of their maximum supply voltage; a 32 V-rated device on a 24 V rail leaves adequate headroom for transient spikes.

  1. Test threshold accuracy across -40 °C to +85 °C; compensate for resistor TCR if tighter than 5 % regulation is required.
  2. Solder only lead-free SAC305 alloy; its 217 °C melting point avoids tombstoning 0402 passives during reflow.
  3. Route high-impedance nodes away from switching converters; 10 mil spacing cuts coupling capacitance below 0.2 pF.

Building a Voltage Range Monitor on a Prototyping Board

Begin by gathering components: a dual-voltage comparator (LM393), two 10 kΩ resistors, one 4.7 kΩ resistor, an LED, and a 220 Ω current-limiting resistor. Place the comparator IC in the center of the board, leaving at least three empty holes on each side for connections.

Connect the non-inverting input of the first comparator stage to a reference voltage created by a voltage divider. Use the 10 kΩ resistors in series, with the midpoint tied to the positive rail (Vcc) and ground. This midpoint sets the upper threshold at 60% of Vcc. Repeat for the inverting input of the second stage to establish the lower threshold at 40% of Vcc.

Threshold Resistor Pair Divided Voltage (Vcc=5V)
Upper 10 kΩ + 10 kΩ 3.0 V
Lower 10 kΩ + 10 kΩ 2.0 V

Route the monitored signal to both the inverting input of the first stage and the non-inverting input of the second stage. Ensure the jumper wires lie flat against the board to prevent short circuits between adjacent rows.

Link the open-collector outputs of both stages together. Attach this common node to the positive rail via the 4.7 kΩ pull-up resistor. Add the LED and its 220 Ω series resistor between the common node and ground–this visual indicator will activate only when the input voltage strays outside the set bounds.

Apply power gradually. Use a 5 V supply for initial testing; later, switch to the target voltage source under observation. Probe the input with a multimeter while rotating a 10 kΩ potentiometer wired as a variable signal source. The LED should illuminate only when the input falls below 2.0 V or exceeds 3.0 V.

Fine-tune thresholds by swapping one 10 kΩ resistor in each divider for a 5 kΩ or 20 kΩ value. This moves the upper and lower bounds without recalculating the entire network. Keep track of new trip points in a log–note the exact resistor values and resulting voltages.

Secure loose wires with small dabs of hot glue at board edges after verifying operation. Relocate the assembled prototype to an enclosure only after confirming reliable behavior across temperature shifts, since comparator offset voltages can drift slightly between 0 °C and 70 °C.

Fine-Tuning Voltage Boundaries for Dual-Range Monitors

Set upper and lower voltage boundaries by selecting precision resistors with a tolerance of 1% or better for R1, R2 (upper comparator) and R3, R4 (lower comparator). Use the formula V_threshold = V_ref × (R2 / (R1 + R2)) for upper limits and V_threshold = V_ref × (R4 / (R3 + R4)) for lower limits, where V_ref is the reference voltage supplied by an ultra-stable 2.5V or 4.096V source like the ADR4525 or LT1019.

For adjustable boundaries, replace fixed resistors with multi-turn potentiometers (e.g., Bourns 3296 series) in series with a fixed resistor to prevent accidental shorting. A 10 kΩ potentiometer paired with a 1 kΩ resistor allows fine-grained control while ensuring stability. Always verify resistance values with a calibrated multimeter before finalizing adjustments–even minor deviations as small as 0.1% can shift thresholds by tens of millivolts.

Calibration Workflow for High-Accuracy Applications

  1. Power the setup with a precision bench supply set to the nominal operating voltage (e.g., 5V ±0.1%).
  2. Attach a high-resolution digital oscilloscope (minimum 8-bit, 1 GS/s) to the comparator outputs.
  3. Inject a programmable DC signal using a lab-grade power supply (e.g., Keithley 2450) starting 500 mV below the expected lower boundary.
  4. Sweep the input voltage upward in 10 mV increments until the lower comparator toggles. Record this voltage.
  5. Repeat the sweep upward to identify the upper boundary toggle point.
  6. Adjust potentiometers in 1/4-turn increments between sweeps; allow 30 seconds per adjustment for thermal stabilization of resistors.

Thermal drift in boundaries can exceed 100 ppm/°C with standard resistors. For critical applications, use thin-film or metal foil resistors (e.g., Vishay Z201 series) with temperature coefficients below ±10 ppm/°C. Place the sensing network in a thermally insulated enclosure if ambient fluctuations exceed ±5°C. For transient suppression, add a 100 nF X7R ceramic capacitor across V_ref and a 1 μF tantalum capacitor at the comparator’s supply pin.

Error Sources and Mitigation

  • Input Bias Current: Choose comparators with input bias currents below 50 nA (e.g., LM393A, TLV3501) to avoid loading errors. For picoampere-level sensors (e.g., photodiodes), opt for auto-zero amplifiers like the LTC1050.
  • Hysteresis: Introduce a 0.1–0.5% hysteresis by connecting a 100 kΩ–1 MΩ resistor between the comparator’s output and non-inverting input. This prevents chatter near toggle points without significantly altering boundaries.
  • Supply Noise: Regulate the comparator’s Vcc with an LDO (e.g., TLV704) and add a π-filter (10 μF–10 Ω–100 nF) to reject high-frequency transients.
  • Ground Loops: Star-ground all comparator inputs and reference points at a single node to eliminate voltage offsets. Use a ground plane for PCB layouts.

For battery-powered devices, scale boundaries dynamically by replacing fixed resistors with digitally controlled potentiometers (e.g., AD5235) or multiplying DACs (e.g., MCP4728). A microcontroller can adjust thresholds in real-time based on battery voltage decay–store lookup tables with pre-calibrated settings for 3.0V, 3.3V, and 3.6V nominal levels. For energy efficiency, use ultra-low-power comparators (

Verify boundary stability under load by connecting a simulated sensor impedance (e.g., 1 kΩ–100 kΩ resistor) at the comparator inputs. Measure toggle points with a 6.5-digit DMM (e.g., Keysight 34465A) and calculate the standard deviation over 100 cycles. Boundaries should maintain ±0.3% repeatability across a –40°C to +85°C range. If drift exceeds specifications, substitute comparators with auto-zero variants (e.g., MAX9600) or implement nested control loops with feedback linearization.
