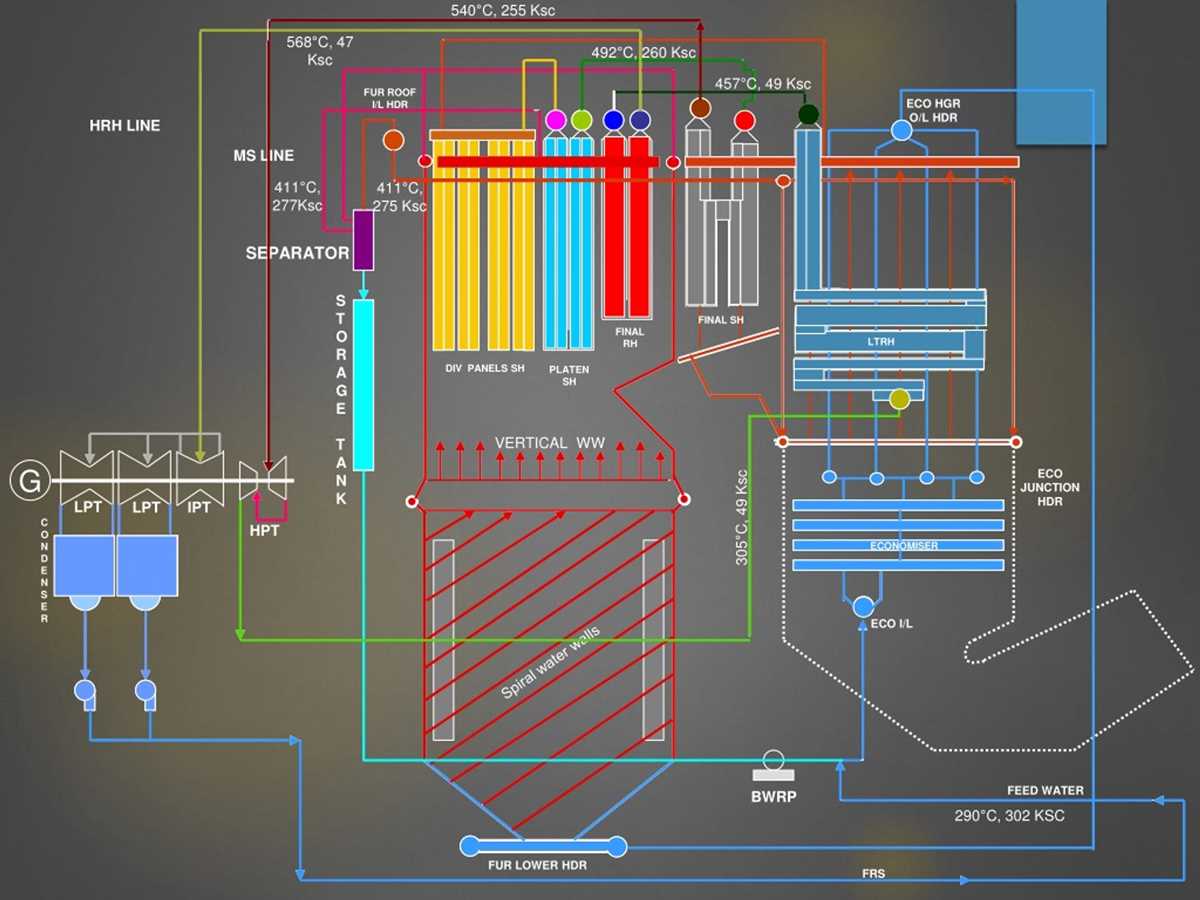

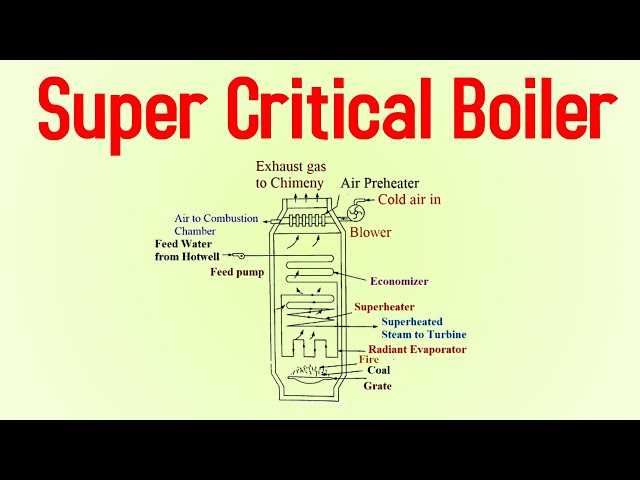

Supercritical Boiler Design and Operational Flow Schematic Explained

Install a once-through heat exchanger system operating above 22.1 MPa and 374°C to eliminate the need for steam-water separation. This eliminates drum failures and reduces thermal stress cycles, extending operational life by 30-40% compared to subcritical designs. Position the economizer at the gas exit to preheat feedwater to 300°C before it enters the radiant section, improving thermal efficiency by 5-8%. Use spiral-wound tubing in the lower furnace to maintain even heat distribution and prevent hot spots that degrade material integrity.

Configure the furnace wall tubes with a vertical gas flow path and staggered header arrangement to handle fluid expansion smoothly. Specify nickel-based alloys like Inconel 617 or Haynes 230 for walls exceeding 650°C, resisting oxidation and creep under extreme conditions. Integrate a bypass control valve downstream of the superheater to regulate outlet temperature within ±5°C of the target 600°C, preventing thermal cycling that accelerates fatigue cracking.

Locate the reheater banks between the intermediate and final superheater sections to heat steam returning from the high-pressure turbine. Use a split-flow design with two parallel paths for low-temperature reheat to balance pressure drops and optimize heat recovery. Install attemperator spray stations between superheater stages using desuperheated feedwater to fine-tune outlet conditions, ensuring consistent turbine inlet parameters. Size the radiant superheater coils to accommodate 10-15% higher heat flux than convective sections, compensating for uneven flame patterns.

Design the flue gas path with a split rear pass to accommodate two-stage air preheaters. First-stage air heaters raise combustion air to 250°C while cooling gases to 350°C, preventing acid dew point corrosion. Implement SCR catalysts upstream of the economizer at 350-400°C for peak NOx reduction efficiency, avoiding ammonia slip that damages downstream components. Include sootblowers at 3-meter intervals along the convective pass to remove ash deposits, maintaining heat transfer coefficients within 5% of design values.

Integrate a 6-10% overfire air system above the main burners to complete combustion and reduce carbon monoxide levels below 50 ppm. Position the coal feeders to distribute pulverized fuel evenly across the burners, preventing flame impingement on furnace walls. Specify ceramic coatings on burner quarls to withstand 1600°C flames and resist slag adhesion, reducing maintenance intervals by 50%. Connect the feedwater system to a high-pressure pump with a minimum 1.5x margin above peak operational demand, ensuring stable circulation during transient loads.

Add redundant sensors for temperature, pressure, and flow at critical points: furnace exit, primary superheater outlet, and reheater inlet. Calibrate sensors to ±1% accuracy to detect deviations early, preventing thermal runaway. Program the distributed control system to activate emergency spray valves within 2 seconds of a 20°C temperature spike, avoiding tube overheating. Include ash hoppers with pneumatic extraction to remove slag continuously, preventing blockages that disrupt gas flow and reduce efficiency.

Key Components of Advanced High-Pressure Steam Generators

For optimal thermal efficiency in ultra-high-pressure systems, prioritize a once-through flow design with spiral-wound furnace tubes. This configuration minimizes thermal stratification and prevents dryout zones by maintaining a uniform heat flux of 200–300 kW/m² along the entire evaporative section. Ensure the economizer inlet has a temperature margin of at least 20°C above the pseudo-critical transition point (typically 374°C at 22.1 MPa) to avoid phase separation and ensure stable flow dynamics.

Critical Pressure Control and Heat Recovery

Integrate a radiant superheater positioned immediately downstream of the furnace exit to capitalize on flue gas temperatures exceeding 1,000°C. Use austenitic stainless steel alloys (e.g., TP347HFG) for this section, as they withstand creep rupture at pressures above 25 MPa while resisting high-temperature corrosion from alkali sulfates. The reheater should operate with a steam-side pressure drop not exceeding 3% of the main steam pressure to maintain turbine efficiency.

Deploy a two-stage attemperator system between the primary and secondary superheater stages. The first stage should inject demineralized water at a controlled rate of 1–3% of the main steam flow, targeting ±5°C temperature stability at the turbine inlet. Avoid direct water injection into the reheater, as this disrupts heat transfer coefficients and risks thermal fatigue in downstream components.

For flue gas heat recovery, specify a low-temperature economizer with finned tubes to reduce exit gas temperatures to 85–95°C, recovering an additional 1.5–2.5% of fuel energy. Position this unit upstream of the air preheater to condense acidic vapors and mitigate cold-end corrosion, using corrosion-resistant coatings (e.g., Inconel 625) on vulnerable surfaces.

Key Components of a High-Pressure Steam Generator Layout

Start with the furnace waterwalls–opt for spiral-wound tubing in the lower radiant zone to handle extreme heat fluxes exceeding 500 kW/m². Tube materials must resist oxidation and creep; alloys like T91 or T92 with chromium content above 8% ensure longevity under 30 MPa pressure. Avoid vertical-only designs–spiral configurations reduce thermal stress gradients by 30% compared to traditional arrangements.

Main steam separators require precise cyclone placement to achieve droplet removal efficiency above 99.9%. Position cyclones in the convection pass where gas velocities range between 8–12 m/s; lower speeds risk fouling, higher speeds erode internal vanes. Incorporate chevron dryers downstream of cyclones–these enhance moisture separation by 15% when installed at a 45° angle to the flow.

Furnace exit gas temperature (FEGT) must stay below 1,100°C to prevent ash fusion; use platen superheaters with staggered tube spacing (pitch-to-diameter ratio <1.5) to improve heat transfer while minimizing slagging. Primary superheaters should utilize counterflow arrangements for thermal efficiency gains of 5–7%, but limit metal temperatures to 650°C to avoid premature failure. Integrate desuperheaters with dual-stage injection–first stage for coarse control, second for fine-tuning within ±3°C.

Fluid Dynamics and Pressure Control

Once-through systems demand feedwater pumps with 35% head margin above design pressure to accommodate transient spikes during load swings. Use variable-speed drives to reduce power consumption by 20% during partial loads. Economizer surfaces should precede air preheaters; arrange tubes in inline banks with fin spacing below 2.5 mm to boost heat recovery while preventing ash bridging. For steam reheaters, opt for horizontal elements with internal rifling to improve convective heat transfer coefficients by 25%.

Critical pressure zones (25–30 MPa) require seamless tubing with wall thicknesses calculated via ASME BPVC Section I formulas–underestimating by even 0.5 mm risks catastrophic rupture. Include redundant safety valves sized for 120% of maximum continuous rating (MCR), certified to ISO 4126-1. For sootblower placement, target areas with predicted ash deposition rates above 0.1 g/m²·s; high-velocity steam blowers (400 m/s) outperform air-based systems in removing fused deposits by 40%.

Step-by-Step Flow Path of Fluid in Ultra-High Pressure Systems

Initiate feedwater entry at pressures exceeding 22.1 MPa and temperatures above 374°C, where distinct liquid-vapor phase boundaries cease to exist. The pressurized fluid bypasses the economizer stage–unlike subcritical units–moving directly into spiral-wound heating tubes arranged in a once-through configuration. Ensure tube materials (typically austenitic stainless steels or nickel alloys) withstand thermal stresses of 600–700°C without creep deformation; incorrect metallurgy leads to premature oxidation or fatigue failures.

As enthalpy rises, the fluid transitions smoothly from dense-phase behavior to gas-like properties without boiling. Monitor the pseudo-critical region (~25 MPa, 385°C) where specific heat peaks–turbulent mixing here prevents temperature stratification. Downstream, the now low-density vapor enters vertical radiant sections, absorbing 80–90% of total heat input via furnace radiation. Exit enthalpy stabilization at 40–60 kJ/kg above inlet conditions guarantees optimal turbine inlet conditions; deviations risk blade erosion or thermodynamic inefficiency.

Furnace and Heat Transfer Integration in High-Pressure Steam Generators

Position radiant heating surfaces immediately downstream of the flame core, ensuring tube spacing of 1.5–2.0 times their outer diameter to prevent slag buildup while maximizing heat absorption. Membrane walls should cover the entire furnace perimeter, with alloy T12 or T22 used in the lower section (below 500°C flue gas) and T91 or TP347H for regions exceeding 600°C to resist high-temperature corrosion. Install steam cooling loops at the furnace exit to preheat feedwater to 280–300°C before it enters the primary superheater, reducing thermal stress on downstream components.

Coordinated Flow Paths for Optimal Heat Distribution

• Divide convective passes into at least two parallel lanes: one for high-dust flue gas (containing fly ash) and one for cleaned gas to protect heat transfer surfaces.
• Locate the primary superheater in the second convective pass where flue gas temperature drops below 1,050°C, using finned tubes with extended surfaces (fin density 7–9 fins/inch) to enhance heat transfer efficiency.
• Integrate economizer sections with counter-flow arrangements, maintaining a minimum approach temperature of 25–30°C between flue gas and water to prevent steaming and ensure uniform heat pickup.
• Place reheater sections in the third convective pass, employing twin banks with bypass dampers to regulate steam temperature at partial loads without sacrificing cycle efficiency.

Use refractory lining only at burner throats and slag tap openings, limiting thickness to 75–100 mm to avoid insulating effects that reduce heat transfer rates. Install sootblowers at 3–4 m intervals along the furnace height, using steam at 1.5–2.0 MPa pressure to maintain tube cleanliness and prevent slag-driven heat flux imbalances. Size downcomers at 20–25% of the total riser cross-sectional area to ensure stable circulation, with internal diameters no smaller than 60 mm to minimize friction losses and avoid flow instability in vertical tube panels.
