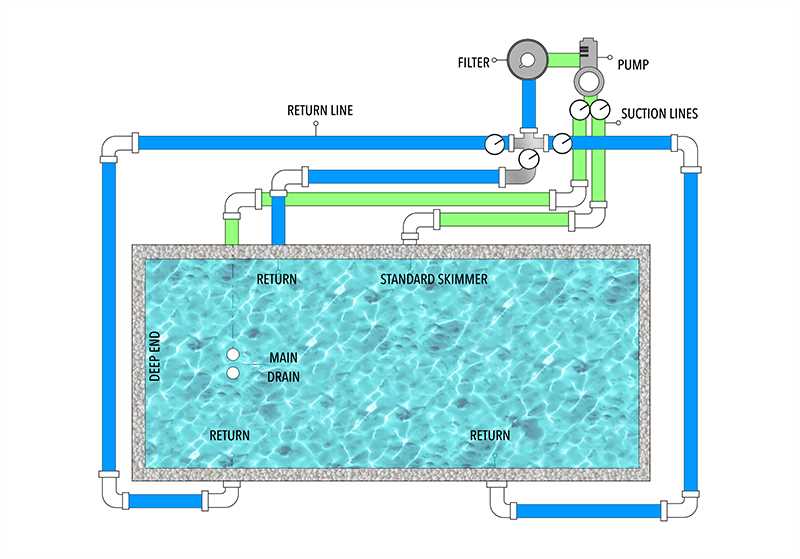

Step-by-Step Guide to Designing Safe Swimming Pool Electrical Systems
For underground and above-ground basins, install a residual current device (RCD) rated at 30 mA for all circuits supplying outlets, pumps, heaters, or lighting within 3 meters of the water’s edge. UL 943 Class A or IEC 61008-1 Type A devices are mandatory–never substitute with a lower-grade breaker.
Route conduits at least 1.5 meters horizontally and 2.5 meters vertically from the waterline, using Schedule 40 PVC or rigid metal with watertight fittings. Seal entries with duct seal compound and label all junction boxes “Wet Location.” Copper conductors must be minimum 12 AWG for lighting and 10 AWG for pumps, with THWN-2 or XHHW insulation–avoid THHN in damp zones.
Grounding rods must be 3-meter copper-clad steel, spaced no farther than 1.8 meters from the basin, bonded to the pump frame, ladder anchors, and any metal fixtures with 8 AWG solid copper conductors. Verify resistance under 25 ohms; if exceeded, drive a second rod at least 1.8 meters from the first.
Equipotential bonding grids require 6 AWG bare copper laid in a perimeter loop 0.3 meters below grade, encircling the entire structure. Connect all conductive components–drain covers, rebar, metal rails–to this loop with irreversible crimp splices, not solder or twist-on wire nuts.
Submersible luminaires must carry IP68 ratings and operate at 12V or 24V via a listed transformer, never directly from mains. Install transformers at least 1.2 meters from the waterline, enclosed in a NEMA 4X box. Verify polarity before energizing; reverse wiring will corrode anodes within hours.

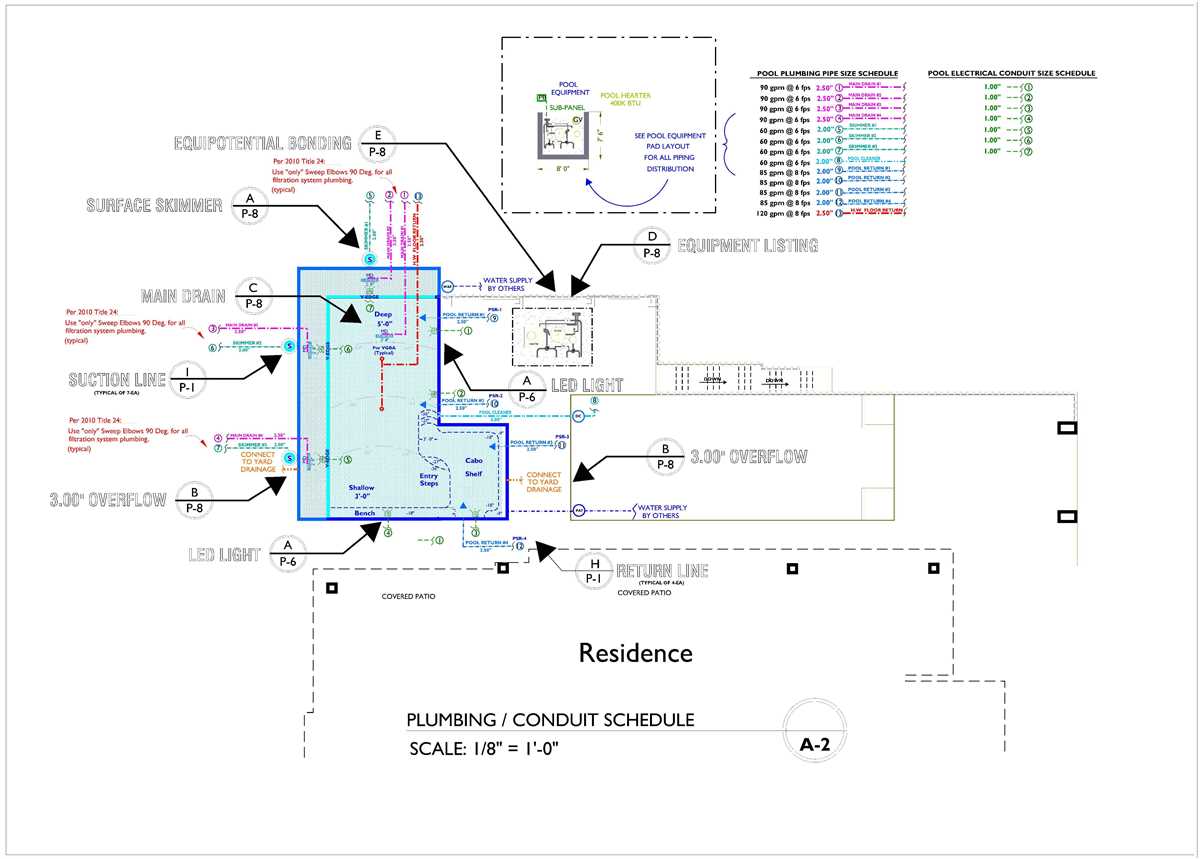

Electrical Layout for Aquatic Installations
Always position the disconnect switch at least 5 feet (1.5 meters) from the water’s edge to comply with NEC Article 680.22(A). Use GFCI protection rated for 5 mA leakage current on all circuits serving submerged equipment, including pumps, heaters, and underwater luminaires. For outdoor installations, select weatherproof junction boxes with a NEMA 4X rating to prevent corrosion from chlorine and moisture.
Wire size must account for ambient temperature and distance. Below is a reference for copper conductors in a conduit with an ambient temperature of 86°F (30°C):
| Circuit Ampacity | Conductor Size (AWG) | Max Distance (ft) |
|---|---|---|
| 15 A | 14 | 50 |
| 20 A | 12 | 80 |
| 30 A | 10 | 120 |
| 50 A | 8 | 180 |
Use liquidtight flexible conduit (LFNC) for connections to motors and lights to accommodate vibrations and movement. Secure LFNC with strain relief connectors within 12 inches of termination points. Bond all metallic components–ladders, rails, covers–using a solid copper conductor not smaller than 8 AWG. Ensure the bonding grid connects to the grounding electrode system via a dedicated conductor.
Lighting and Control Circuits
Install underwater luminaires on a dedicated 120V or 240V circuit with ground-fault circuit interrupter (GFCI) protection. Select fixtures labeled for wet-niche use with a minimum IP68 rating. Place transformers at least 12 feet from the water, or use low-voltage (12V or 24V) systems if closer proximity is unavoidable. For automation, integrate control panels with surge protection rated for 10,000 amps to safeguard against voltage spikes.

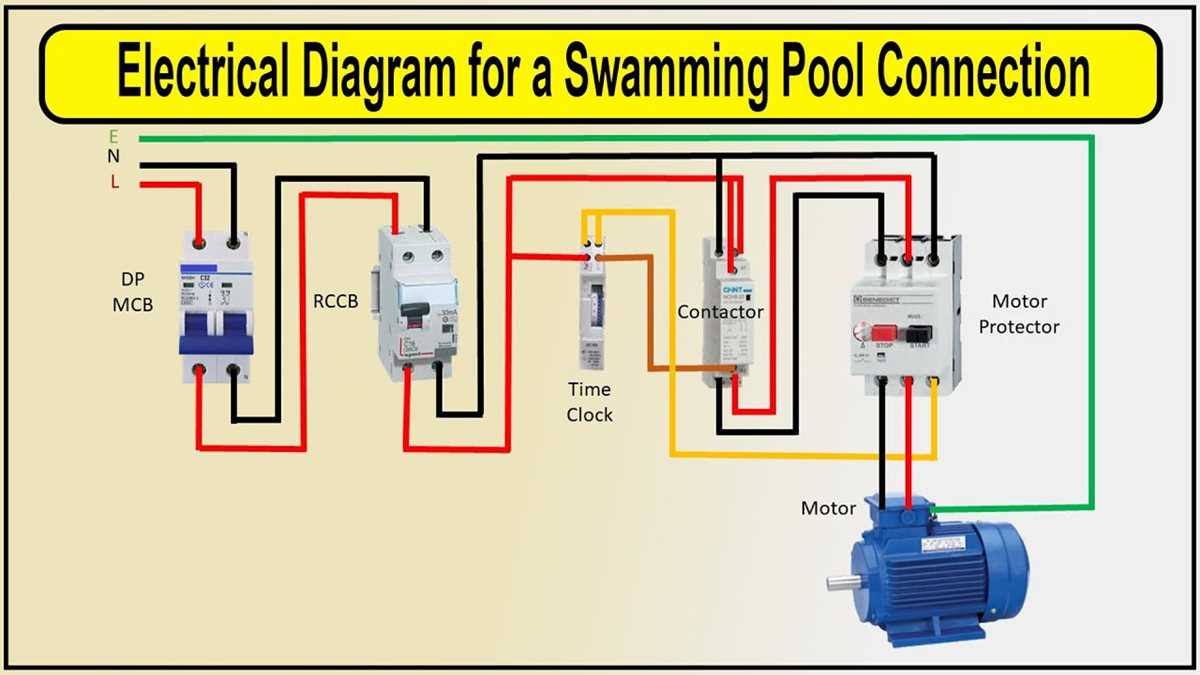

Key Components of a Water Feature Electrical System
Install a ground-fault circuit interrupter (GFCI) with a trip threshold of 5 milliamperes (±1 mA) for all circuits serving submerged or splash-prone equipment. NEC Article 680.22(A) mandates GFCI protection within 6 feet (1.83 m) of the water’s edge, not just at the breaker panel. Verify compliance by testing with a calibrated GFCI tester after installation and quarterly thereafter. Non-compliant setups risk nuisance tripping or, worse, unprotected shocks at 60–100 mA fault currents.
- Disconnecting means: Mount a lockable, weatherproof disconnect within sight of pumps, heaters, and lighting (NEC 680.12). Use a double-pole switch with a 240V rating matching the load; 30A for single-speed pumps, 60–100A for variable-speed or heaters. Labels must include “PUMP,” “HEATER,” or “LIGHT” with conductor ampacity (e.g., “30A Cu #10”). Locate no more than 5 feet (1.52 m) horizontally from the equipment pad, accessible without ladders or tools.
- Conductors: Select THWN-2 or XHHW-2 copper conductors sized per NEC Table 310.16. For a 1.5 HP pump (230V), use #12 AWG for control circuits, #10 AWG for branch circuits. Buried conduits must be Schedule 40 PVC (minimum 18″ cover) or RMC (6″ cover). Use liquidtight flexible conduit for connections to motors, with sealant at threads to prevent moisture ingress. Color-code: green (ground), white (neutral), black/red (line).
- Bonding grid: Create an equipotential plane with a solid #8 AWG bare copper conductor encircling the perimeter, bonded to all metallic components–ladders, rails, diving boards, drains, and equipment casings–via listed bonding lugs (UL 467). Space bonding jumpers no more than 4 feet (1.22 m) apart around the rim. Test continuity with a megohmmeter; resistance should not exceed 0.2 ohms. Omission can lead to stray currents, causing corrosion or shocks.
Equip underwater lighting with 12V or 24V LED fixtures (UL 676) and a listed transformer with isolated windings. Avoid halogen lamps; they require 120V GFCI circuits and pose higher shock risks. Mount transformers at least 12 inches (30.5 cm) above grade and 5 feet (1.52 m) from the water. For in-deck niches, use fixtures with a minimum IP68 rating and a hydrostatic relief valve to prevent water hammer. Replace gaskets every 2 years–degraded seals can flood fixtures, tripping circuits or creating electrical hazards.
Step-by-Step Electrical Setup for Aquatic Installations
Begin by locating the main service panel a minimum of 5 feet from the water’s edge and at least 3 feet above ground level. Use a dedicated 240V circuit for pumps, heaters, and chlorinators, ensuring the breaker matches the equipment’s amperage–typically 15A to 50A, depending on the load. Bury all conduit runs 18 inches deep if using rigid metal or PVC Schedule 40, with a warning tape 12 inches above the conduit for future excavation protection. Connect a grounding electrode system at the panel with a 6 AWG bare copper conductor tied to a driven rod, concrete-encased electrode, or metallic water pipe meeting NEC 250.52 requirements.
Circuit Segmentation and Load Calculation
Separate circuits for pumps, lights, and auxiliary systems prevent overload. A 2HP pump running at 230V draws roughly 9–12A; verify the exact figure on the nameplate and size conductors accordingly–10 AWG for 30A circuits, 8 AWG for 40A, with THWN-2 insulation rated for wet locations. Route conduits in straight, accessible paths, avoiding sharp bends that complicate pulling; use LB conduit bodies for direction changes. Install GFCI protection on all receptacles and lighting within 20 feet of the water, with the GFCI devices positioned at least 6 feet from the edge to comply with Article 680.
Label every wire at both ends with permanent, UV-resistant tags–phase conductors (black, red), neutral (white), and ground (green or bare). Test continuity between the panel ground and all metallic equipment housings using a megohmmeter; readings above 1 ohm indicate a faulty connection requiring retermination. Seal conduit entries into enclosures with duct seal compound to block moisture ingress, and apply anti-oxidant paste on aluminum conductors. Verify torque specifications on terminal screws–pump motors typically require 12–15 in-lbs; over-tightening can damage threads. Complete the setup by energizing circuits one at a time, checking for voltage drop with a multimeter (maximum 3% drop from panel to load) before finalizing covers and panels.
Critical Electrical Safety Standards for Artificial Water Installations
All conductive components within 1.5 meters of basin edges must comply with NEC Article 680, specifically subsection 680.26(A), requiring equipotential bonding grids. Install #8 AWG solid copper conductors connected to reinforcing steel, structural metal, and all wet-niche fixtures. Failure to bond these elements creates hazardous potential differences that can become lethal under fault conditions.
Ground-fault circuit interrupters (GFCIs) rated at 5 milliamperes must protect every electrical device operating at 120V or higher within 6 meters of water boundaries. This includes underwater luminaires, pumps, and ancillary systems. Class A GFCIs must be tested monthly using integrated test buttons, with documented results retained for inspection. DOE-listed devices with self-test features satisfy this requirement but do not replace manual verification.
- NEC 680.22(A)(1) mandates all receptacles installed between 1.8m and 6m from basin rims must be GFCI-protected and tamper-resistant.
- Handheld appliances like vacuum cleaners require portable GFCI adapters even when connected to protected circuits.
- Transformers for low-voltage lighting must be double-insulated, with secondary circuits limited to 15V.
Overhead conductors require minimum vertical clearances: 5.5m for 600V systems, increasing 100mm per additional 10kV. Laterals must maintain 3m horizontal separation from basin perimeters unless encased in grounded metallic conduit. Use schedule 80 PVC for underground runs, with burial depths starting at 450mm under pedestrian areas and 600mm where vehicle traffic exists.
Junction boxes serving underwater fixtures demand specific material properties: corrosion-resistant copper alloys for terminals, gasketed lids meeting NEMA 4X standards, and locking mechanisms preventing accidental opening. All conduit entries must use watertight compression seals, with conduits sloped at minimum 2% away from enclosures to prevent moisture accumulation. IEC 60529 IP68 rating is mandatory for submerged connections.
Emergency shutdown protocols require clearly labeled, red pushbuttons with mushroom heads located within 6m of each basin entrance. These controls must disconnect all power except dedicated sump pump circuits and fire protection systems. Signage must display circuit identification matching as-built schematics, with lettering no smaller than 12mm high on contrasting backgrounds.
- Annual inspections must validate bonding continuity using a ground impedance tester calibrated within 6 months.
- Thermal imaging scans of panelboards serve as secondary verification for loose connections.
- Underwater lighting circuits require 1-hour operation tests post-installation to confirm proper heat dissipation.
- Local authorities must approve modifications before energizing altered circuits.
