Complete Guide to Wiring a Two-Way Switch with Diagrams and Steps
For a reliable dual-control setup, connect the common terminal of the first toggle mechanism to the power source. Route one traveler wire to the corresponding terminal on the second device and the other traveler to its alternate contact. The remaining contact on the second mechanism connects directly to the load. Avoid daisy-chaining connections between devices–each should form an independent path to prevent voltage drop and ensure consistent performance.
Color-coding is critical: use black for hot (common), red and blue for travelers, and white for neutral if applicable. Ground both devices to a central grounding point using bare copper wire, ideally 12 AWG for 15-amp circuits or 10 AWG for 20-amp setups. Test continuity with a multimeter before energizing–traveler wires should show infinite resistance when toggles are in opposing positions and near-zero resistance when aligned.
For three-location control, insert a four-way crossover module between the two toggles. Wire the input travelers from the first device into the crossover’s top terminals, then take the output from the bottom terminals to the second device. Maintain strict polarity: travelers from the first toggle must match the corresponding terminals on the crossover and second toggle to avoid misrouting current. Use pigtails for splices, secured with wire nuts and wrapped in electrical tape to prevent loosening under vibration.
In metal junction boxes, bond all ground conductors to the box with a dedicated grounding screw–this ensures redundancy if a device’s internal ground fails. For plastic boxes, run a ground wire directly to each device. When retrofitting older wiring, verify the circuit breaker’s rating matches the conductor gauge; 14 AWG requires 15 amps max, while 12 AWG can handle 20 amps. Overloading risks overheating, particularly at connection points.
Label all wires at both ends with shrink tubing or tags to simplify future modifications. If using smart toggles, follow manufacturer-specific wiring (typically requiring an additional neutral wire). Always kill power at the circuit breaker and confirm with a non-contact voltage tester before handling–capacitors in LED-compatible setups can retain charge for minutes after disconnection.
Dual-Control Circuit Layout Guide

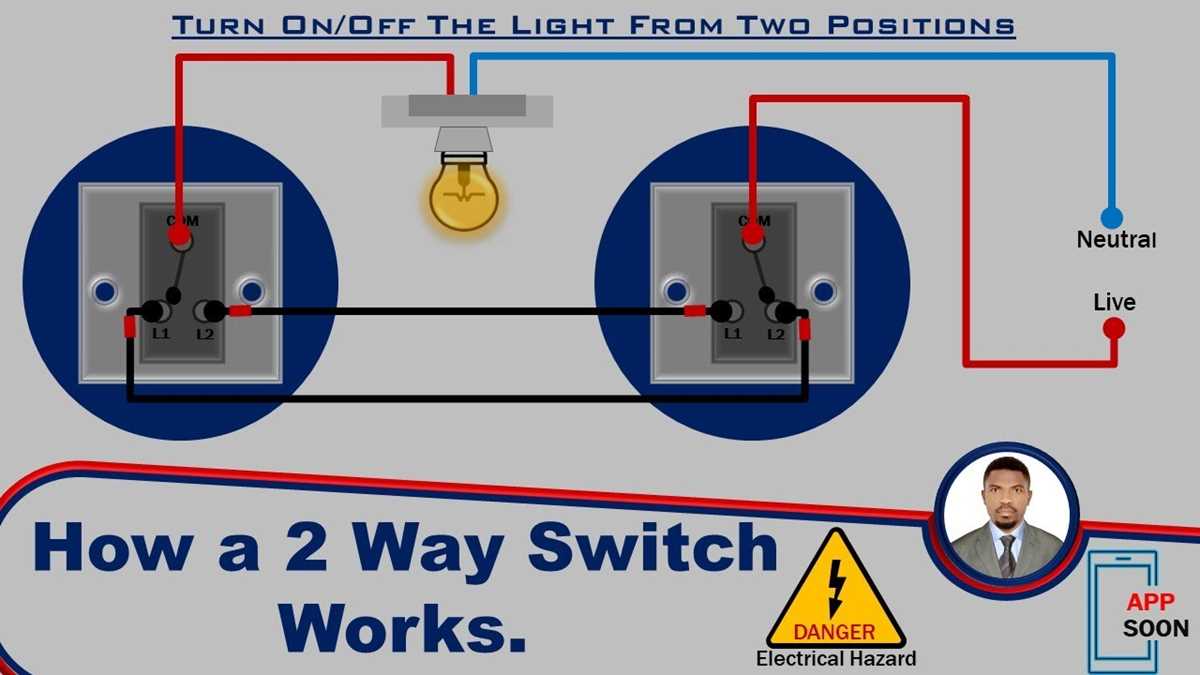

Connect the common terminal (marked “COM” or darker) of the first toggle to the power source’s live wire. Route the traveler wires–distinctively colored (red/yellow or striped)–between the two toggle units, terminating one at each corresponding traveler terminal (often labeled “L1” and “L2”). Ensure the second toggle’s common terminal links directly to the fixture’s live input; neutral and earth remain uninterrupted throughout the path. Test polarity with a multimeter before energizing the circuit to confirm no cross-connections exist between travelers and common terminals.
Use 14-2 or 14-3 NM cable for standard residential setups, reserving 12-gauge wire for 20-amp circuits. Label both travelers at each endpoint to prevent miswiring during future maintenance–marker sleeves or colored tape work reliably. For three-core-plus-earth cable, assign the third conductor as an alternative live feed if configuring multi-location control; otherwise, cap it securely with a wire nut to avoid stray currents.
Tools and Materials for Dual-Control Installation
Start with insulated screwdrivers–flathead (4mm) and Phillips (#2)–tested for 1000V insulation. Verify voltage rating on the handle to prevent shorts when handling live terminals. Wire strippers with 1.5mm² and 2.5mm² notches ensure clean cuts without nicking conductors, critical for solid connections. Include needle-nose pliers for bending loops and reaching tight spaces, especially in retrofit projects where gang boxes may be shallow.
Key Electrical Components
Use 14/2 or 12/2 NM-B cable rated for 600V; check jacket for copper purity (99.9% minimum) to avoid heat buildup. Terminal clamps must be solid brass, not plated steel–test with a magnet before purchase. For grounding, use bare copper wire (same gauge as hot/neutral) and a green grounding screw. Add two toggle mechanisms with marked “ON/OFF” positions if the circuit exceeds 15A; confirm traveler terminal spacing aligns with your cable’s cross-section.
Equip yourself with a non-contact voltage detector (CAT III, 600V minimum) and a multimeter set to continuity mode for verifying dead circuits. A cable ripper simplifies stripping outer jackets without damaging internal insulation. For masonry installations, use carbide-tipped masonry bits (10mm for junction boxes) and plastic anchors rated for 50lb shear strength. Keep a roll of electrical tape (PVC, 19mm width) for temporary insulation, though it should never replace permanent wire nuts rated for 15A circuits.
Installing a Dual-Control Mechanism with Screw Connectors
Begin by identifying the live feed cable–typically the black or red conductor–entering the first junction box. Secure this to the common terminal (marked “COM” or darker than the others) on the first control. Ensure the screw is tightened to a torque of 0.5 Nm to prevent loosening under load. Strip exactly 10 mm of insulation; excessive length increases short-circuit risk.
Connecting Traveler Wires Between Locations
Run two identical-length conductors (travelers) between the two boxes, using 1.5 mm² solid copper for circuits up to 10 A. Attach one traveler to the remaining screw on each unit, matching positions: left terminal on the first control connects to left on the second. Label these wires if multiple cables occupy the box to avoid misrouting. Confirm continuity with a multimeter before energizing.
| Terminal Type | Conductor Color | Required Tool |
|---|---|---|
| Common (COM) | Black/Red | Torque screwdriver (0.5 Nm) |
| Traveler L1 | Yellow/Blue | Crimping pliers (if using ferrules) |
| Traveler L2 | Yellow/Blue | Wire stripper (10 mm) |
For the neutral return path, bundle all whites together in a twist-on connector rated for the circuit amperage. Cap exposed ends with heat-shrink tubing where wires exit metal enclosures to meet IP44 ingress protection. Verify no bare strands protrude; even 1 mm can breach NEC or IEC clearance standards. Ground screws (green/yellow) must bond to the metal box if present, using a 2.5 mm² conductor.
Test functionality by toggling each toggle in sequence. If the load fails to energize from one position, recheck traveler continuity–most faults stem from reversed connections at the screw terminals. For three-core cables, use brown (live), blue (neutral), and green/yellow (earth) as per EU color codes; US installations require black (live), white (neutral), and bare copper (earth).
Common Mistakes to Avoid When Installing Dual-Control Electrical Connections
Mixing up traveler terminals leads to circuits that either fail to function or behave unpredictably. On most toggle mechanisms, the two brass-colored screws handle the interchangeable conductors, while the dark screw connects to the common feed. Reverse this pairing, and the setup may power only partial paths or create unintended live wires when toggled. Always verify terminal assignments with a multimeter before energizing the line–eighty percent of miswiring errors stem from mislabelled screws or outdated diagrams.
- Skipping polarity checks on incoming power lines risks damaging LED indicators or smart devices integrated into the circuit. Neutral (white) and hot (black) wires must align precisely; swapping them can induce phantom voltages detectable only under load.
- Ignoring junction box capacity causes loose connections over time. Use wire nuts rated for the gauge (typically 14 or 12 AWG) and ensure no bare copper touches the metal box without a grounding pigtail.
- Overlooking local code requirements for ground continuity results in failed inspections. Verify continuity through all traveler paths and the common terminal–poor grounding is the leading cause of intermittent faults in dual-toggle setups.
How to Pinpoint Messenger Conductors in a Dual-Control Setup
Start by turning off the power at the circuit breaker to prevent shocks or short circuits. Verify the circuit is dead using a non-contact voltage detector before handling any wires.
Remove the faceplates from both control points to expose the terminal screws. Messenger conductors (also called runners) are the two wires connecting the two mechanisms, allowing current to alternate between them. They are typically the same color–often red and black–or one may be marked with tape if local codes require identification.
Trace the cable bundle entering each junction box. In a standard 120-volt setup, you’ll see three wires: one live feed (usually black), one neutral (white), and two messengers. If the system uses 14/3 or 12/3 cable, the messengers share the same sheath as the live feed. In older installations, they might run separately.
Check the terminal labels on the mechanism. Most devices label the messenger screws with “T” (for traveler), while the live feed connects to “COM” or “common.” If no labels exist, observe which terminals the two identical-colored wires attach to–they’re almost always the messengers.
Use a multimeter set to continuity mode to test pairs of wires between boxes. Disconnect all wires at both ends first. Touch the probes to the two suspected messengers–if the meter beeps or shows near-zero resistance, those are your runners. No continuity suggests a misidentification.
If the setup includes a dimmer or smart device, note that some models combine messengers into a single terminal. Refer to the manufacturer’s documentation to confirm terminal assignments, as non-standard configurations can lead to confusion.
Reconnect messengers to their correct terminals once identified, ensuring tight screws. Loose connections cause flickering lights or intermittent operation. Wrap wires clockwise around screws and avoid using backstabs, which are less reliable.
After reassembly, restore power and test functionality. Toggle each control point–if the fixture turns on/off from both, the messengers are correctly installed. If issues persist, recheck wire identification, as miswiring can create dead-end circuits.
