How to Build and Understand a T Flip Flop Circuit Step by Step

Build the bistable mechanism using a single EXCLUSIVE-OR gate paired with a D-latch for optimal edge-triggered behavior. Connect the T input directly to the XOR’s first terminal, while the second terminal receives feedback from the latch’s Q̅ output. This arrangement ensures a controlled inversion on each active clock edge without metastability.

Select a 74LS74 (dual D-type) for prototyping–its setup and hold times (20 ns and 5 ns respectively) prevent race conditions in most 5 MHz+ designs. Alternatively, use a CD4013 for lower power (10 µA standby) but expect slower transitions (150 ns propagation). Ground the unused inputs to avoid floating-node interference.

For discrete implementations, pair 2N3904 transistors in a cross-coupled configuration with pull-up resistors (10 kΩ). Add a 100 nF decoupling capacitor near the supply pins to suppress switching noise. Verify timing with a 1 MHz square wave–output frequency must halve precisely, with no glitches exceeding 50 ns.

Label the inverted output (Q̅) with a bar symbol or slash for clarity. During layout, separate high-speed traces (>1 MHz) from reset lines to minimize crosstalk. Test with a logic analyzer at 2 V/div vertical scale; improper ground connections cause erratic toggling even with perfect schematic adherence.

Constructing a Toggled Binary Storage Element

Build the binary storage element using a dual NAND gate configuration for the primary latch. Connect the outputs of the first stage to the inputs of two secondary NAND gates arranged as inverters. Ensure the toggle input feeds both gates simultaneously through pull-down resistors (10 kΩ) to prevent floating states. Power the assembly with a regulated 5V DC supply and decouple with a 0.1 µF capacitor near the IC’s V_CC pin to suppress noise. Validate functionality by monitoring Q and Q̄ outputs on a logic analyzer while applying a 1 kHz square wave to the toggle input–output transitions should align precisely with input edges.

Component Selection Guide

Component	Recommended Part	Critical Specifications	Alternatives
NAND Gates	74LS00	Propagation delay ≤ 15 ns, IOL ≥ 8 mA	74HC00, CD4011
Resistors	10 kΩ ±5%	0.25 W, carbon film	1 kΩ for faster switching (trade-off: higher power)
Capacitor	0.1 µF	X7R dielectric, 25V rating	0.01 µF (reduced noise suppression)

Minimize skew by routing toggle and clock signals with matched trace lengths–deviations exceeding 5 mm introduce timing errors in high-frequency applications (f > 1 MHz). For metastability mitigation, cascade two storage elements in series: the first responds to input transitions while the second synchronizes the output to the system clock. Test edge behavior by applying a glitch (50 ns duration) to the toggle input–output should remain stable if the setup adheres to the specified gate delays and decoupling practices.

Basic Structure and Logic Gate Configuration of a Toggle Storage Element

Implement a toggle storage element using two cross-coupled NAND gates for stable states. Each gate’s output feeds back into the other’s input, creating a bistable multivibrator with complementary outputs–one terminal holds the stored bit (Q), the other its inverse (Q̅). Ensure inputs are active-low for proper operation; tie unused pins to a high-logic source to prevent floating signals.

Integrate an edge-triggered control mechanism by connecting a clock signal through an inverter to one gate’s input. This modification converts the storage unit into a synchronous device, toggling only on a rising or falling clock edge. Use a debounce-free pushbutton or oscillator for reliable clock pulses to avoid metastability.

Key Gate Arrangement and Signal Flow

• Clock input (CLK): Route through an inverter if negative-edge triggering is required. For positive-edge sensitivity, omit the inverter and connect CLK directly.
• Toggle control (T): Apply to the second gate’s input alongside CLK. When T=1, outputs alternate states per clock cycle; when T=0, outputs retain their current state.
• Feedback loops: Q and Q̅ must cross-connect to opposing gates to maintain bistability. Verify connections to prevent race conditions.

Minimize propagation delays by selecting fast logic families like 74LS or 74HC series. For discrete designs, use Schmitt-trigger gates to clean noisy toggle signals. Avoid long trace lengths between Q and Q̅; parasitic capacitance can destabilize states.

Power and Ground Practices

1. Decouple each gate with a 0.1μF ceramic capacitor across V_CC and GND, placed within 2mm of the IC pins.
2. Use a separate power plane for clock signals to reduce crosstalk. Isolate high-frequency toggle lines with series resistors (47Ω–100Ω).
3. Test stability with a 1kHz square wave before integrating into larger systems; metastable behavior often manifests as erratic toggling.

For asynchronous reset/set functionality, add dedicated input pins to force Q=0 or Q=1 independent of the clock. Connect these through two-input NAND gates with the original feedback lines. Ensure reset/set pulses are shorter than the clock period to prevent undesired latching.

Verify operation with an oscilloscope by probing Q and Q̅ while toggling the input. Expected behavior: outputs should switch states only when T=1 and a clock edge occurs. Any deviation indicates incorrect gate biasing or feedback misrouting.

Optimize for low power by gating the clock when T=0. Insert an AND gate between the oscillator and storage element, using T as the enable signal. This reduces dynamic power consumption by ~40% in battery-operated applications.

Step-by-Step Wiring Guide for Building a Toggle Switch with NAND Gates

Start by arranging four NAND gates on a breadboard or schematic layout, pairing them into two groups of two. Connect the output of the first NAND gate directly to one input of the second gate in its pair–this establishes the feedback loop required for bistable operation. Repeat the same connection for the second pair. Ensure the remaining input of each first NAND gate serves as the control line for toggling; label this as the trigger input.

Link the output of the second NAND gate in the first pair to one input of the first NAND gate in the second pair. Conversely, route the output of the second NAND gate in the second pair to the other input of the first NAND gate in the first pair. This cross-coupling creates the memory effect, forcing the arrangement to retain its state after each pulse. Double-check polarity; incorrect connections will prevent triggering.

Attach a push-button or clock signal to the trigger input–this can be a momentary switch or a pulsed logic level. To observe behavior, wire the output of one NAND gate pair to an LED with a current-limiting resistor (470Ω–1kΩ). Pressing the button should alternate the LED state between on and off with each pulse. If the LED remains static, re-examine the cross-connections between gates.

For stability, add a small capacitor (10–100nF) between the trigger input and ground to filter noise if using mechanical switches. In simulations, disable glitch filters to verify clean transitions. If implementing in hardware, power the gates with a regulated 5V supply–NAND ICs like the 74LS00 tolerate slight voltage variations but exceeding 5.5V risks damage.

To expand functionality, replace the push-button with a square-wave generator set to 1Hz. This demonstrates reliable toggling at controlled intervals. For troubleshooting, isolate each NAND pair: if one gate’s output toggles while the other remains fixed, the fault lies in the cross-connection wiring or the faulty NAND gate itself. Replace components incrementally to isolate errors.

Truth Table Verification and Toggle Operation Testing

Begin validation by constructing a four-row state matrix for the bistable element. Record inputs T and current Q against next-state Q_next. Test combinations: T=0/Q=0, T=0/Q=1, T=1/Q=0, T=1/Q=1. Cross-verify outputs against expected transitions–hold for T=0, inversion for T=1. Discrepancies indicate faulty gate coupling or incorrect clock synchronization. Use an oscilloscope to probe Q and Q̅ simultaneously; edges should mirror without skew.

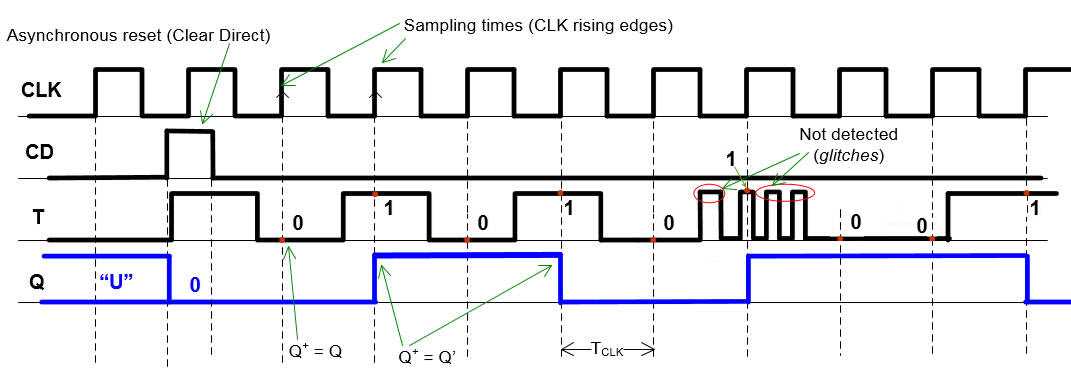

Apply sequential pulses to confirm toggle behavior under real conditions. Set a 1 kHz square wave at T, monitor Q on a logic analyzer at 10x sampling rate. Observe consistent 50% duty cycle division at Q if the element functions correctly. Asymmetry suggests metastability or setup/hold violations. For robust testing, vary pulse widths from 10 μs to 1 ms–output frequency must halve precisely regardless of input duration.

Introduce controlled noise via a 10 pF capacitor between T and ground to simulate signal degradation. Retest all combinations; Q_next must remain deterministic. If noise-induced errors appear, strengthen the bistable’s feedback path by reducing resistor values in the cross-coupled pair from 10 kΩ to 1 kΩ. Document jitter margins: acceptable limits are ±2 ns for 5V logic, ±1 ns for 3.3V. Exceeding these thresholds demands layout adjustments or dielectrics with lower parasitic capacitance.

Validate propagation delay by cascading two identical stages and analyzing output alignment. Trigger both elements concurrently; Q1 and Q2 should toggle within 5 ns of each other. Mismatches reveal variations in gate thresholds or resistive loading. For critical applications, pre-screen components using a curve tracer to match threshold voltages within 50 mV across all samples. Replace outliers to maintain uniform performance.

Final triage involves edge-case testing: rapid T transitions at 90% of maximum rating, sustained high/low signals over temperature ranges (–20°C to 85°C), and power supply ripple (±10%). Measure Q_next stability using a storage oscilloscope in infinite persistence mode–traces must overlay perfectly. Any divergence warrants revisiting schematic constraints or opting for a device with enhanced noise immunity, such as Schottky-clamped or ECL variants.
