Practical Guide to Designing a Three Phase Motor Control Wiring Schematic

For reliable operation of an asynchronous drive with 400V line voltage, integrate a contactor-based starting arrangement with thermal overload protection rated at 1.2× nominal current. Use a 50Hz-rated capacitor bank in delta configuration to correct power factor to 0.95; each bank leg must handle 1.5× reactive power demand.

Mount a three-pole circuit breaker with magnetic trip at 10× nominal current upstream of the contactor. Configure auxiliary contacts at 24V DC for interlocks; test coordination by triggering a simulated short circuit at motor terminals–response time must stay under 20ms to prevent insulation breakdown.

Wire a 24V AC control transformer with two 12V secondaries for isolated command circuits. Install pushbuttons (NO/NC) in series with the auxiliary contactor coil–use silver-plated contacts rated 3A continuous, 10A inrush to eliminate pitting.

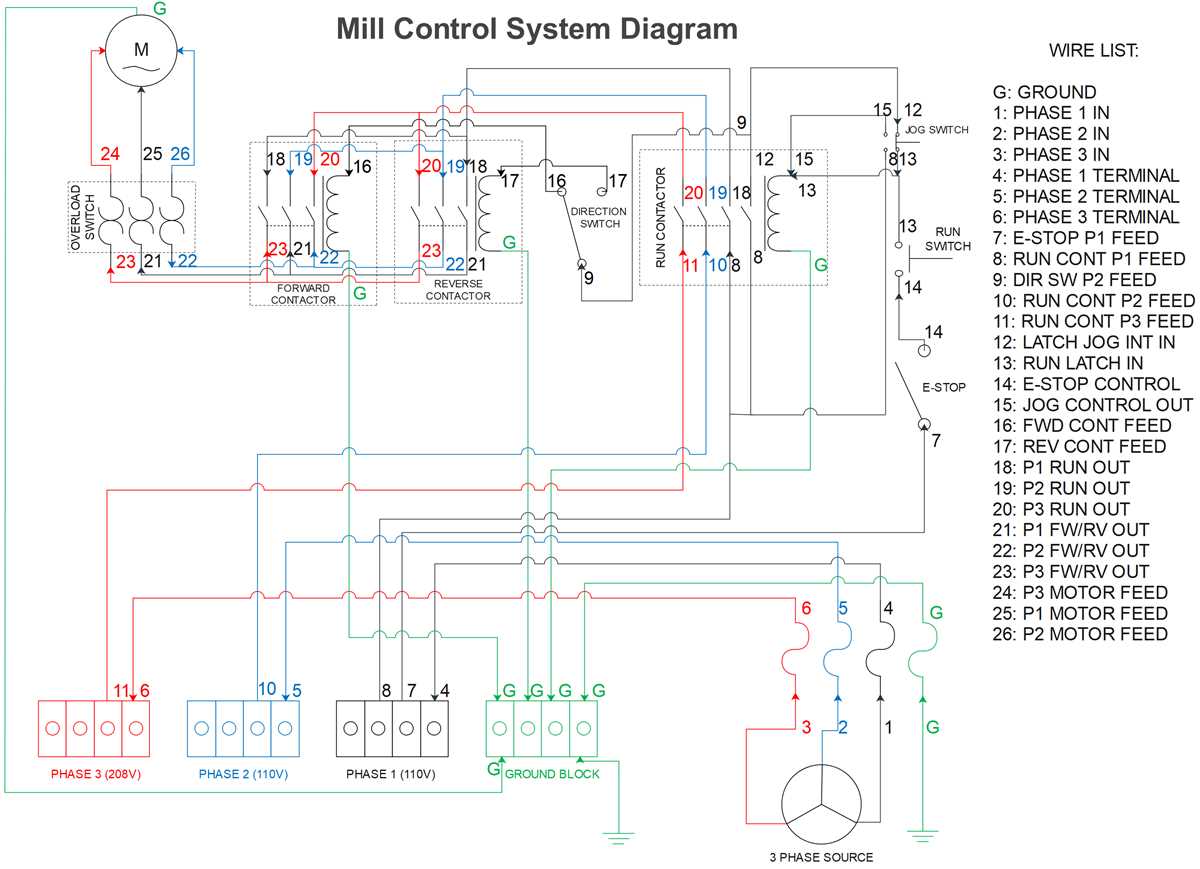

For reversing rotation, swap two line leads at the contactor output terminals; verify phase sequence with a scope showing 120° separation between waveforms. Add a time-delay relay set to 0.5s to prevent transient current spikes during switchover.

Ground the motor frame via 16mm² copper cable, bonded to a 3m driven rod with resistance below 10Ω. Test ground path continuity by injecting 5A AC; stray voltage on the frame must not exceed 2V rms.

Label all conductors with printed sleeves showing circuit number, current rating, and voltage level. Mark overload relay dials at 1.1× nominal current; verify thermal trip within ±5% tolerance using a calibrated test rig.

Use stranded copper conductors sized per IEC 60364-5-52 for expected ambient temperatures: 3×2.5mm² for currents up to 16A, 3×6mm² for up to 32A. Secure connections with tin-plated ferrules crimped at 2kN; torque specifications are 2.5Nm for M6, 3.5Nm for M8 terminals.

Include a surge arrester across line terminals–MOV with 600V clamping voltage, 10kA impulse rating. Test surge immunity by applying 6kV/1.2µs waveform; peak leakage current must remain below 1mA.

Schematic for Industrial Tri-Fed Power Device Operation

Start with a main disconnect switch rated for 25% above the full-load current of the driven equipment. This ensures thermal protection under locked-rotor conditions without nuisance tripping. For a 400 VAC system, select a molded-case breaker with adjustable trip curves (class 10 or 20) to match the starting torque.

Integrate a contactor with 2 NO and 2 NC auxiliary contacts for local/remote status indication. Siemens Sirius 3RT2 or equivalent provides AC-3 duty ratings up to 10x rated current for 10,000 operations–critical for frequent start-stop cycles in compressor applications. Size the coil voltage to match the control circuit (typically 120 VAC or 24 VDC).

Deploy overload relays with both thermal and current-transformer sensing. Use Class 10 relays for general-purpose loads and Class 20 for high-inertia fans or pumps. Schneider TeSys LRD or ABB TA25DU series offer RoHS compliance and ambient compensation up to 55 °C, preventing false trips in poorly ventilated enclosures.

Wiring Sequencing for High-Power Installations

Route the power conductors in separate conduits from the breaker to the contactor, using 75 °C THHN copper wire sized per NEC Table 310.16. For a 50 HP unit at 480 VAC, this requires 2 AWG conductors in 1.25″ EMT. Keep the neutral conductor isolated if the load is balanced–never rely on the grounded conductor for current-carrying duty in a delta-wye configuration.

Connect the control circuit through a step-down transformer with dual-wound primary (240/480 V) and 120 V secondary. Eaton or Hammond units provide 50 VA minimum capacity to handle start-up inrush without voltage sag. Add a primary fuse (3AG, 1 A) for short-circuit protection on the control side.

Wire the pushbuttons in series with the overload relay NC contacts. Mount the start button adjacent to the operator station and the stop button at the machine guard for emergency access. Use illuminated pushbuttons–red for stop, green for run–powered by the control transformer secondary to confirm circuit integrity before closing the contactor.

Terminate the electromagnetic brake (if equipped) in parallel with the contactor coil. For a 10 HP spindle drive, specify a 24 VDC brake with 200 ms release time to prevent coasting. Fit a flyback diode across the brake coil to suppress voltage spikes that can corrupt adjacent PLC inputs.

Critical Elements in Polyvoltage Drive Assembly Schematics

Always start with a robust contactor rated for 125% of the equipment’s full-load current. Schneider Electric’s TeSys D or Eaton’s Freedom Series offer reliable options with AC-3 duty cycles of 1.2 million operations. Avoid undersized units–thermal stress degrades contacts prematurely, leading to pitting or welding. Verify coil voltage matches the auxiliary supply (24V, 110V, or 230V) to prevent dropout under voltage sags.

Integrate thermal overload relays with trip classes aligned to the application: Class 10 for general-purpose loads (e.g., fans, pumps), Class 20 for high-inertia devices (e.g., crushers, conveyors). ABB’s ELR or Siemens 3RB22 models provide adjustable trip curves; set the current threshold within 1.05–1.2 times the nameplate amperage. Bypass relays during starting (e.g., via a timing delay) to avoid nuisance trips from inrush currents, which can spike 6–8× the rated value for 5–10 seconds.

• Circuit protection: Use MCCBs or fuses with a minimum 10kA interrupting capacity. For 400V systems, NH-type gG fuses (e.g., ABB NH00) should match the cable’s cross-section (e.g., 16A fuse for 2.5mm² Cu conductors). For variable frequency drives, select fast-acting semiconductor fuses (e.g., Ferraz Shawmut A70P) to protect IGBTs from short-circuit currents.
• Control transformers: Isolate control circuits with a 230V/24V transformer (e.g., Hammond 185E24) to minimize noise coupling. Ensure the VA rating exceeds the sum of all auxiliary loads (e.g., relays, pilot lights) by 20%. Ground the secondary neutral to reduce transient voltages.
• Pushbutton stations: Use maintained-contact selectors for start/stop functions and momentary-contact buttons for jogging. Enclosures should meet IP65 ratings for outdoor use, with NEMA 4X corrosion-resistant coatings in wet environments. Color-code buttons according to ISO 73: green for start, red for emergency stop (with direct-wiring to the contactor’s shunt trip coil).

Advanced Safeguards and Auxiliary Devices

For equipment exceeding 10HP, incorporate phase sequence relays (e.g., Carlo Gavazzi RN2A) to detect reverse rotation, which can damage centrifugal loads. Configure the relay to trip within 1 second of phase loss or imbalance (>10% voltage difference). For regenerative loads (e.g., elevators, cranes), add dynamic braking resistors sized for 50–100% of the rated braking torque. A 10Ω, 500W resistor suffices for a 5HP system, while larger setups may require liquid-cooled units.

Use current transformers (CTs) for monitoring branch currents without direct wiring. Select CTs with a 5A secondary rating and a turns ratio matching the feeder (e.g., 100:5 for a 100A circuit). Mount them 2–3 conductor diameters away from the contactor to avoid magnetic interference. For remote monitoring, pair CTs with analog output modules (e.g., ABB CM-MSS) to transmit 4–20mA signals to PLCs.

Wiring and Termination Best Practices

Segregate power and control conductors in separate conduits–use 12AWG THHN for auxiliary circuits and 8AWG or larger for power feeds, depending on distance (voltage drop should not exceed 3%). Terminate copper wires with crimp lugs and torque to manufacturer specs (e.g., 12 lb-in for 10mm² terminals). Apply heat-shrink tubing over lugs to prevent oxidation. Label every wire with shrink-tagged identifiers (e.g., “L1,” “U,” “AUX-START”) at both ends for traceability.

1. Ground all metallic enclosures via 6AWG green/yellow THHN wire directly to the system’s bonding busbar, avoiding daisy-chain connections.
2. Route control wiring perpendicular to power cables to minimize inductive coupling. Maintain a minimum 300mm separation where parallel runs are unavoidable.
3. Test insulation resistance with a 500V megohmmeter before energizing. Values below 1MΩ indicate moisture ingress or damaged conductors.
4. Validate interlocks using a continuity tester–false trips often stem from miswired auxiliary contacts or worn mechanical linkages.

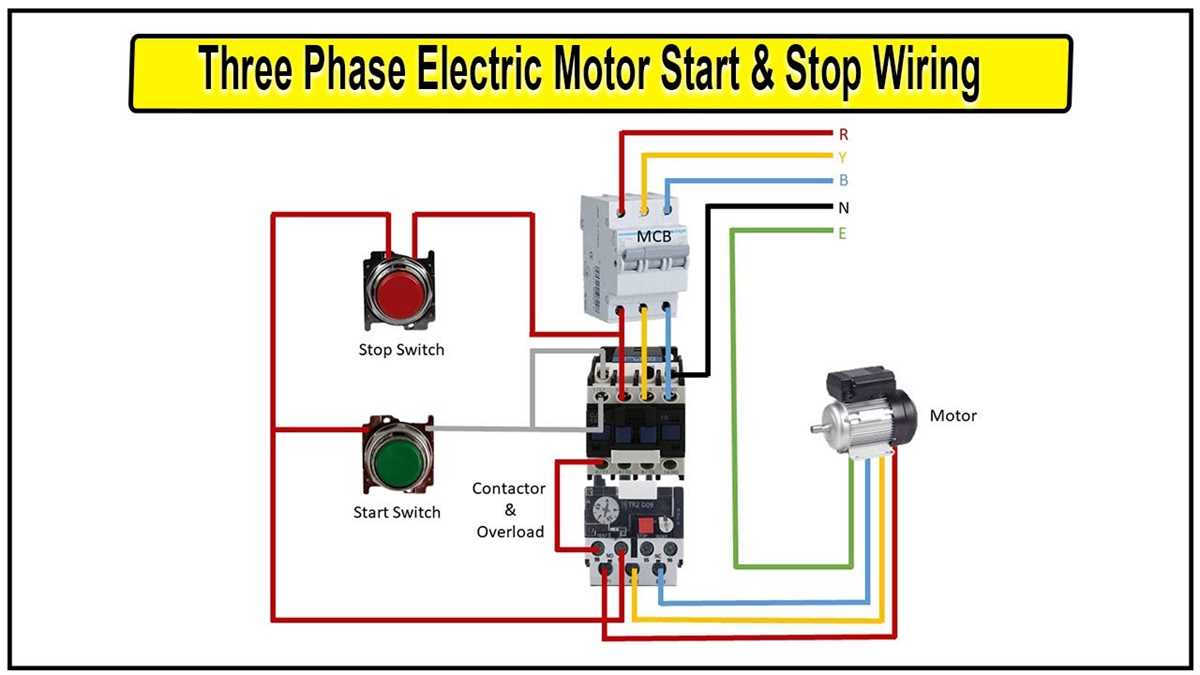

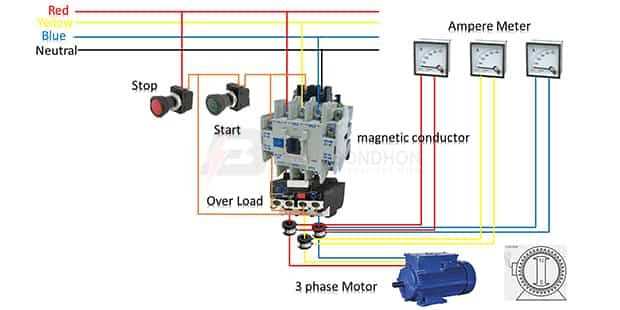

Step-by-Step Wiring of a Direct Online (DOL) Starter

Connect the main power supply terminals L1, L2, and L3 to the starter’s incoming lugs, ensuring each conductor is crimped with appropriately sized ring terminals–typically 16 mm² for a 7.5 kW load. Verify the labeled line voltage matches the system: 400V for delta-connected or 690V for star-connected setups before proceeding.

Wire the starter’s output U, V, and W terminals directly to the corresponding winding leads, maintaining consistent phase rotation. Use a torque wrench set to 2.5 Nm for terminal screws to prevent over-tightening, which can distort the copper busbars. Label each connection with heat-resistant sleeves to avoid misidentification during future maintenance.

Install the thermal overload relay between the contactor and the winding connections. Select a relay with a current range 10-15% above the full-load rating of the driven equipment–e.g., 18A for a 15A load. Adjust the dial precisely; a 0.5A error can reduce protection effectiveness by 30%. Secure the relay’s auxiliary contacts to the control loop using 1.5 mm² stranded wire.

Run the control circuit wiring from the start/stop pushbuttons to the contactor coil, using 1 mm² cable for low-voltage signals. Route wires through flexible conduits if vibration is present, avoiding sharp bends that could stress insulation. Connect the normally open start button in series with the coil and the normally closed stop button in parallel to form the basic latching circuit.

Link the overload relay’s normally closed contact in series with the stop button path. This ensures immediate coil de-energization if the relay trips. Test the response by simulating an overload: the coil should drop out within 10 seconds when the relay’s test lever is engaged. Replace the relay if the latency exceeds 15 seconds.

Ground the starter enclosure and all metallic components using a dedicated 6 mm² green-yellow conductor, terminated with a star washer for reliable contact. Bond the grounding lug to the enclosure with a 6 Nm torque; improper grounding increases leakage currents, risking nuisance tripping. Measure resistance between the ground point and neutral–values above 0.1Ω indicate corrosion or loose connections.

Power up the system in stages. First, energize the control circuit and verify coil activation with a 24V test lamp. Then, apply line voltage incrementally: check for balanced currents across L1-L3 with a clamp meter (expected deviation

Finalize the setup by applying a thin layer of antioxidant paste to all aluminum terminals, preventing oxidation that can raise contact resistance by up to 40% over time. Secure the starter enclosure door with captive screws to prevent ingress of dust exceeding IP54 rating. Document all wire colors and connection points on a laminated reference card fixed inside the enclosure for troubleshooting.
