Practical Guide to Building and Understanding Tilt Sensor Schematic
Start with a mercury-based switch and a 9V battery for the simplest setup. Place the switch at a 45-degree angle to trigger a response when orientation exceeds this threshold. Wire it in series with an LED–1.5V forward voltage and 20mA current–to verify activation without additional components. For precision, replace the mercury switch with an ADXL345 accelerometer; connect it via I2C to an Arduino Nano using pins A4 (SDA) and A5 (SCL). Power the module with 3.3V to avoid damage. Calibrate the device by measuring raw values at ±1g; apply a 2-degree deadband to filter noise.
For industrial applications, integrate an STM32 microcontroller with an LIS3DH MEMS module. Configure the interrupt pin to detect free-fall or 60-degree tilt using the embedded high-pass filter. Supply 5V through a buck converter to maintain stability under load variations. Use a 10kΩ pull-up resistor on the interrupt line to prevent false triggers. Test reliability by rotating the assembly at 0.5Hz while monitoring UART output for data consistency. Avoid ceramic capacitors near MEMS chips; their piezo effects introduce drift over time.
To extend battery life, program the MCU to enter deep sleep mode and wake on tilt events. Use a PCF8523 RTC for timed checks–set it to poll every 10 minutes with a 32.768kHz crystal for accuracy. Replace the LED with a MOSFET-driven relay to handle higher currents for alarms or motor activation. Ground planes beneath the sensing element reduce electromagnetic interference; ensure traces run orthogonally to minimize cross-coupling. For waterproofing, seal the PCB with conformal coating but leave the MEMS vent hole exposed.
When scaling to multiple units, opt for CAN bus communication over UART to reduce wiring complexity. Assign each node a unique identifier via firmware and limit message length to 8 bytes to avoid bus saturation. Use twisted-pair cables for signal lines and a separate shielded wire for power. Test the system under vibration using a shaker table at 10-50Hz to confirm mechanical robustness. Filter false positives in software by implementing a moving average on 100 samples before triggering actions.
Creating an Inclination Detection Schematic
For a reliable angle-sensitive switch, use a mercury-based component (Model KS-2 or equivalent) paired with a 5V DC power supply and a 10kΩ pull-down resistor. Connect the switch’s output to a microcontroller input pin (e.g., Arduino Uno’s D2) with an interrupt-enabled configuration to detect state changes within 5ms of inclination. Ensure the orientation marker (cathode side) aligns with the target detection axis (±15° from horizontal) to avoid false triggers.
Component Substitutions and Noise Mitigation
Substitute mercury with ball-bearing analogs (e.g., SW-200D) if regulatory restrictions apply, but note their reduced response precision (±3° hysteresis). Add a 100nF ceramic capacitor between the supply and ground near the switch to suppress voltage spikes during mechanical transitions. For outdoor applications, enclose the assembly in a silica gel-filled housing to prevent corrosion from humidity exceeding 60% RH.
The schematic’s critical path must be short and shielded–use twisted-pair wiring (24 AWG) for connections longer than 10cm to minimize electromagnetic interference. Test the setup with a digital oscilloscope (50MHz bandwidth) to verify the switch’s bounce duration (target: precision inclinometer (e.g., SCA100T) at 5° increments; discrepancies >1° indicate misalignment or faulty components.
Varieties of Inclination Detectors and Operational Mechanics
For precision in directional shifts, opt for mercury-based indicators–they offer unmatched reliability in environments where liquid conductance can be leveraged. These devices use a small conductive droplet enclosed in a sealed cavity; when orientation changes, the droplet bridges two contacts, completing a signal path. Their simplicity makes them ideal for applications demanding minimal power consumption, though their sensitivity to vibration requires careful mounting.

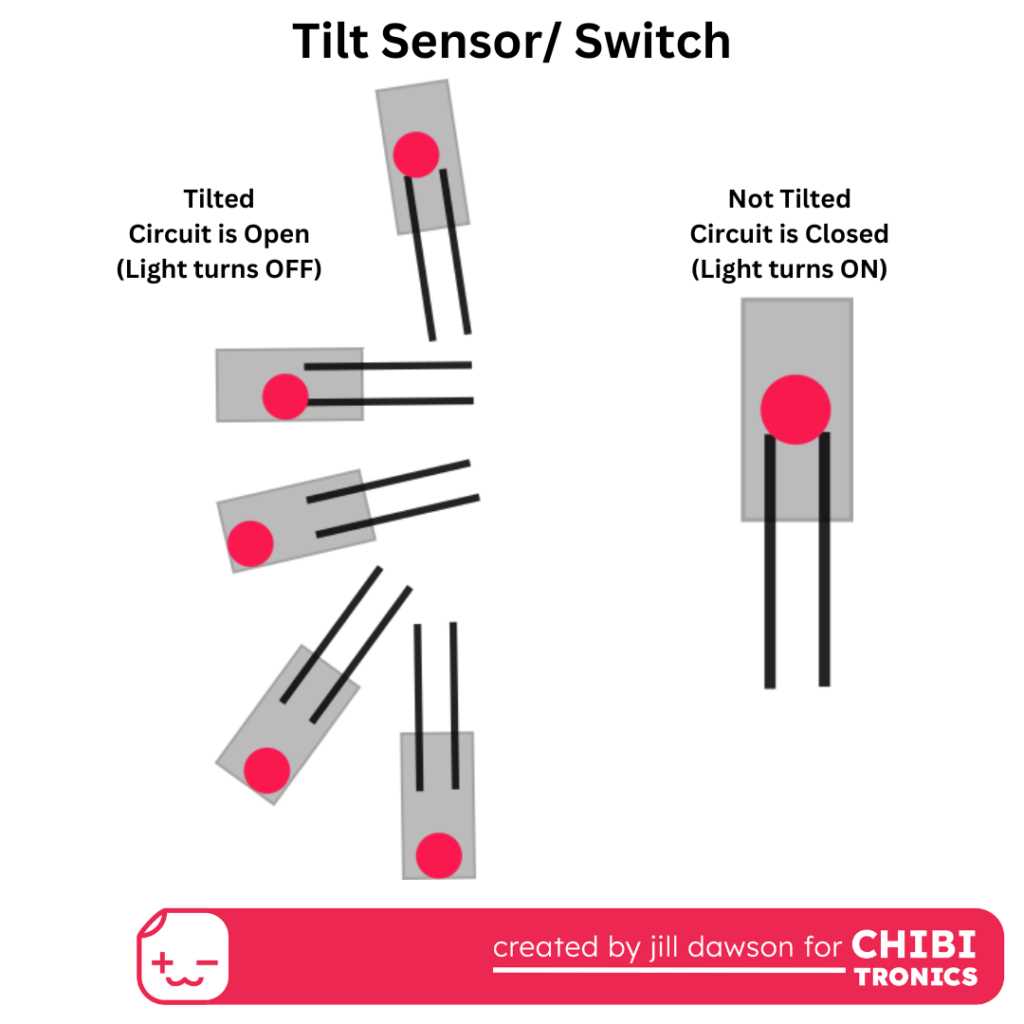

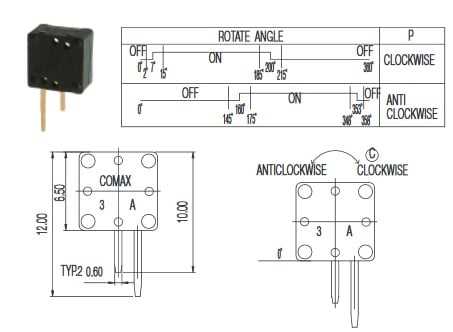

Ball-in-cage switches represent a rugged, cost-effective alternative for detecting angular deviations. Housed in a spherical or cylindrical enclosure, a freely moving conductive sphere rolls to make or break contact with electrodes depending on alignment. Common in industrial machinery and safety interlocks, they excel in low-frequency operations but suffer from contact bounce, necessitating debounce circuitry for clean signal interpretation.
Electrolytic transducers provide high-resolution angular measurements by exploiting the movement of a conductive liquid within a multielectrode cell. As the device rotates, the liquid’s surface remains level, altering the impedance between electrodes. This design is favored in aerospace and robotics for its sub-degree accuracy, though it demands sealed construction to prevent evaporation and contamination.
| Detector Type | Sensitivity Range | Response Time | Typical Applications |
|---|---|---|---|
| Mercury-based | ±5° to ±30° | 2–5 ms | Alarm systems, consumer electronics |
| Ball-in-cage | ±10° to ±45° | 10–50 ms | Industrial switches, automotive safety |
| Electrolytic | ±0.1° to ±5° | 50–200 ms | Aerospace, precision robotics |
| Capacitive | ±0.01° to ±1° | 1–10 ms | Medical devices, high-end instrumentation |
Capacitive inclination gauges measure angular displacement by detecting changes in capacitance between fixed and movable plates. The movable element, often a pendulum or rotary vane, alters the gap between plates, producing a signal proportional to the angle. These gauges are immune to magnetic interference and operate reliably in noisy electrical environments, but their complexity increases production costs.
MEMS-based detectors integrate micro-electromechanical components onto silicon substrates, enabling compact, low-power solutions for portable devices. A suspended proof mass deflects under gravity, altering capacitance or resistance in comb-like electrode structures. Their small form factor suits smartphones and wearables, though thermal drift and mechanical noise demand advanced calibration algorithms.
Optical angle detectors use laser or infrared beams to monitor the position of a reflective surface, translating positional changes into electrical signals. Their non-contact nature eliminates wear, making them suitable for high-precision applications like optical bench stabilization. However, alignment sensitivity and susceptibility to ambient light interference necessitate enclosed, controlled environments.
For high-temperature or corrosive settings, choose inclinometer types with ceramic or glass-encapsulated components. These isolate sensitive elements from harsh conditions, though their fragility requires shock-absorbing mounts. Always verify the detection range against the application’s dynamic limits–misalignment between design parameters and real-world movement leads to signal dropout or false triggers.
Constructing a Simple Orientation Detection Device
Begin by securing a small metallic ball bearing (4–6mm diameter) inside a non-conductive tube, such as a segment of plastic straw (10–12mm inner diameter). Mount two thin conductive wires on opposite inner walls of the tube–copper tape or bared 24AWG wire works well–positioned so the ball bridges them when the assembly rests horizontally. Connect one wire to a 5V DC source and the other to a 10kΩ pull-down resistor leading to ground; the resistor’s junction feeds a microcontroller input pin (e.g., Arduino digital pin 2). Verify the ball rolls freely, making contact only when the tube tilts beyond 15–20° from horizontal.
Calibration and Integration
To refine sensitivity, vary the wire spacing: reduce gap distance for sharper response (ideal for 5° swing applications) or widen it for broader tolerance (useful in rugged environments). Test by powering the device at 3.3V if using sensitive logic levels, avoiding false triggers. Attach a 0.1µF ceramic capacitor between the signal wire and ground to filter noise, critical when pairing with long cables (>30cm). For multi-axis detection, replicate the assembly orthogonally, ensuring tubes share no conductive paths. Program the controller to ignore transient contacts shorter than 50ms, distinguishing deliberate shifts from vibration.
Essential Parts and Equipment for Building an Orientation Detector
Start with a mercury switch (SW-200D) or an ADXL335 accelerometer–both detect positional changes but differ in precision and cost. Mercury-based modules offer binary output (open/closed) and cost under $2, while accelerometers provide analog readings with ±3g sensitivity, priced around $5–$8. For high-vibration environments, avoid mercury due to reliability issues.
Select a microcontroller with sufficient analog inputs. An Arduino Nano ($10) works for most setups, but a Raspberry Pi Pico ($4) suits projects needing Wi-Fi/Bluetooth integration. Ensure the board supports PWM if LED feedback is required. For low-power applications, consider an ESP32-C3 ($6) with built-in battery management.
- Resistors: 220Ω (for LEDs), 10kΩ (pull-up/down if needed).
- Capacitors: 100nF ceramic (noise filtering), 22µF electrolytic (power stabilization).
- Transistors: 2N2222 NPN (switching loads >20mA).
- Diodes: 1N4007 (reverse voltage protection).
Wiring and Assembly Supplies
Use 22–24 AWG jumper wires for flexible connections. For permanent builds, choose solder (60/40 rosin-core) and PCB headers to avoid loose contacts. A perfboard ($3) speeds up prototyping, while a custom PCB (order from JLCPCB, ~$10 for 5 units) ensures durability. Add heat-shrink tubing to insulate soldered joints.
For debugging, equip your workspace with:
- A digital multimeter (to verify voltage levels; e.g., Fluke 17B).
- A bench power supply (1A, 3.3V/5V) for stable testing.
- LEDs (red/blue, 5mm) and a buzzer (5V active) for visual/audible alerts.
Optional but Useful Additions
Add a 3.7V LiPo battery (1000mAh) with a TP4056 charger module ($2) for portable setups. For wireless data logging, integrate an HC-05 Bluetooth module ($7). If space is constrained, opt for SMD components (e.g., 0805 resistors/capacitors) and a hot-air rework station for precise soldering.
