Complete Tl071 Operational Amplifier Circuit Reference and Schematic Guide

For precise signal amplification, use the non-inverting configuration with a gain of 10. Connect the input to the non-inverting terminal through a 10kΩ resistor, while grounding the inverting terminal via another 10kΩ resistor. Add a 1MΩ feedback resistor from output to the inverting pin to stabilize the gain. Power the device with ±15V for optimal headroom–lower voltages reduce dynamic range.

High-impedance inputs demand a JFET-based op-amp like this model. Maintain a bypass capacitor (0.1µF ceramic) across the power rails, placed within 10mm of the package to suppress noise. Avoid long traces on the non-inverting input; parasitic capacitance above 10pF degrades phase margin, risking instability in high-gain setups.

The schematic should separate analog and digital ground planes. Route input signals as shielded pairs, keeping the shield connected only at the source to prevent ground loops. For unity-gain buffers, omit the feedback resistor–directly connect the output to the inverting terminal. Test with a 1kHz sine wave; expect

When driving capacitive loads (e.g., cables), insert a 50Ω resistor in series with the output. Without it, overshoot exceeds 20% for loads >100pF. For single-supply operation, bias the non-inverting terminal at mid-rail (V+/2) using two 100kΩ resistors as a voltage divider. Ensure decoupling capacitors handle transient currents–10µF electrolytic in parallel with the 0.1µF ceramic.

For differential amplification, set R1=R3 and R2=R4 (e.g., 10kΩ). The gain equals R2/R1. Use matched resistor pairs with 0.1% tolerance; mismatches introduce DC offset up to 5mV per 1% difference. In active filters, replace R2 with a capacitor (e.g., 10nF) to create a low-pass cutoff at 1/(2πRC).

Operational Amplifier Schematic: Hands-On Configuration

Attach a 100nF decoupling capacitor directly between the power supply pins (+V and -V) and ground, placing it no farther than 2mm from the IC package. Failure to observe this spacing renders the capacitor ineffective against high-frequency noise, causing signal distortion in audio-frequency applications. For single-supply setups, tie the negative rail to ground through a resistive divider (e.g., two 10kΩ resistors) to establish a virtual midpoint, ensuring the output swings symmetrically around this reference voltage.

Key Layout Pitfalls

Keep input tracks short. Exceeding 10mm invites parasitic capacitance, degrading bandwidth in high-impedance stages. Route feedback loops on the opposite layer of the PCB to minimize crosstalk; if unavoidable, use a grounded guard ring around sensitive nodes. Avoid shared return paths for power and signal currents–dedicate separate vias for each ground reference to prevent ground loops, which manifest as low-frequency hum or DC offset drift. Test stability by injecting a 1kHz square wave at 100mVpp; overshoot exceeding 15% indicates the need for a phase-lead capacitor (typically 3–30pF) across the feedback resistor.

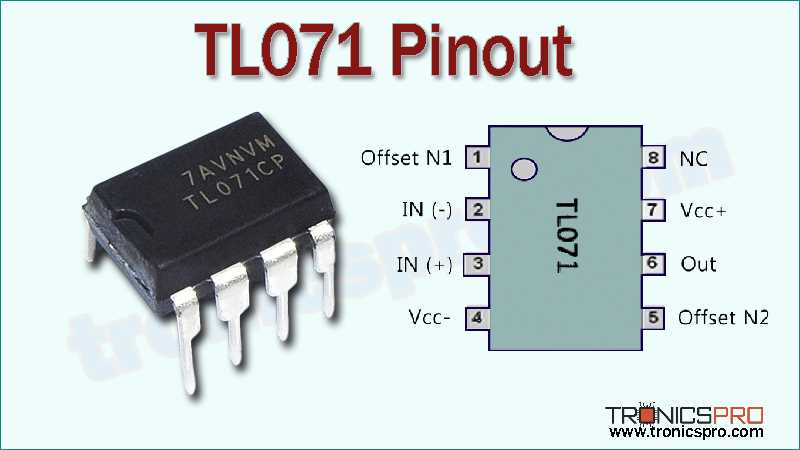

Operational Amplifier Pin Layout and Setup for Rapid Testing

Begin by identifying the standard 8-pin DIP configuration: pin 1 serves as offset null adjustment, pin 2 is the inverting input, and pin 3 the non-inverting input. Pin 4 connects to the negative power rail while pin 7 links to the positive rail–ensure these are stable low-noise supplies within ±5V to ±15V for optimal performance.

Use pins 5 and 8 for additional offset null adjustments if precision matters in your prototype. Skip these if the default input offset voltage (±3 mV max) is acceptable. Ground pin 4 directly when operating single-supply to avoid output drift.

• Pin 6: Output–buffer with a 100Ω resistor in series to prevent parasitic oscillations when driving capacitive loads.
• Pin 2 (inverting): Add a 10 kΩ feedback resistor for unity gain configurations to stabilize response.
• Pin 3 (non-inverting): Reference to mid-rail (e.g., via a voltage divider) for single-supply operation.

For quick breadboarding, ignore offset null pins but decouple power rails with 0.1 µF ceramics within 2 mm of pins 4 and 7–poor decoupling introduces high-frequency noise. Use a 1 µF tantalum on the rail if low-frequency stability is critical.

Test basic amplifier behavior with a 1 kHz sine wave applied to pin 3, observing pin 6 output on an oscilloscope. Expected gain matches (1 + Rf/Rin), where Rf (feedback resistor) and Rin (input resistor) set the closed-loop gain. Start with Rf = 10 kΩ and Rin = 1 kΩ for 11x gain.

1. Verify power-on behavior with a DC input: output should swing within 1–2 V of the rails, else check for open inputs or incorrect rail voltages.
2. Introduce a 10 pF compensation capacitor across the feedback resistor for high-gain setups to prevent ringing.
3. Isolate inputs from high-impedance sources with a 1 kΩ series resistor to block RF interference.

Common pitfalls include reverse power polarity (instant damage) and exceeding input differential voltage (±30V max). Use clamping diodes (1N4148) across pins 2 and 3 if inputs exceed rail voltages. Output short circuits are tolerated but brief–prolonged shorts risk thermal shutdown.

For comparator applications, tie the non-inverting input to a fixed reference (e.g., 2.5V) and drive the inverting input with the signal. Output will rail-to-rail without external feedback. Always confirm slew rate (13 V/µs) and bandwidth (~3 MHz) limits before scaling frequency-sensitive designs.

Constructing a Non-Inverting Amplifier with Precision Components and Optimal Resistance

Select a feedback resistor Rf between 10 kΩ and 100 kΩ for stable gain without introducing excessive noise. Lower values minimize thermal noise but increase power consumption, while higher values risk signal distortion due to input bias currents. For general-purpose audio applications, 47 kΩ offers a balanced trade-off.

The input resistor Rin should match the source impedance to prevent loading effects. If the source is low-impedance (e.g., <1 kΩ), bypass Rin entirely or use ≤1 kΩ to maintain linearity. For high-impedance sources (≥50 kΩ), increase Rin proportionally but verify thermal stability.

Critical Gain and Stability Considerations

Calculate gain using G = 1 + (Rf / Rg), where Rg is the gain-setting resistor. For unity gain (G = 1), replace Rg with a direct short (0 Ω) to achieve a voltage follower. To avoid instability:

• Keep Rf ≤ 1 MΩ for slew-rate-limited designs.
• Add a 5–10 pF compensation capacitor across Rf if overshoot exceeds 5% at 10 kHz.
• Use metal-film resistors with ±1% tolerance for Rf and Rg to reduce gain error.

For DC-coupled stages, ensure Rg equals the parallel combination of Rf and Rin to minimize input offset voltage drift. Example: If Rf = 47 kΩ and Rin = 10 kΩ, set Rg = 8.2 kΩ (47 kΩ || 10 kΩ ≈ 8.2 kΩ).

Noise and Bandwidth Optimization

To suppress high-frequency noise, insert a 1 kΩ resistor in series with the inverting input, decoupled to ground via a 100 nF ceramic capacitor. This forms a low-pass filter with a cutoff at ~1.6 kHz, removing RF interference without affecting signal integrity. For wideband applications (e.g., instrumentation):

1. Reduce Rf to 10 kΩ to improve slew rate (≥13 V/μs).
2. Select Rg to achieve the target gain while keeping its value ≤10 kΩ.
3. Use a 1% tolerance, low-TC (R_g to maintain gain accuracy over temperature.

Power supply decoupling requires 0.1 μF ceramic capacitors placed ≤5 mm from each supply pin to ground, augmented by 10 μF tantalum capacitors for low-frequency stability. Avoid electrolytic capacitors near the component; instead, route them ≥2 cm away to prevent ESR-related oscillations.

Verify performance by injecting a 1 kHz sine wave (0.5 V_pp) and measuring output distortion. Total harmonic distortion (THD) should remain <0.01% for Rf ≤ 100 kΩ. If THD degrades, reduce Rf incrementally while monitoring noise floor (keep ≤ -90 dB). For critical applications, substitute Rf with a 4.7 kΩ resistor and accept lower gain to prioritize linearity.

Schematic Design for Precision Op-Amp Based Low-Pass Filter with Adjustable Roll-Off

Use a non-inverting configuration with a 2-pole Sallen-Key topology to achieve a -40 dB/decade roll-off. Connect the input signal to the operational amplifier’s positive terminal via a 10 kΩ resistor, then link the negative terminal to the output through a 47 kΩ feedback resistor. Place identical 10 nF capacitors from each node to ground for consistent phase shift. This arrangement ensures a Butterworth response with minimal peaking, ideal for audio applications where transient response matters.

Calculate the cutoff frequency (f₀) using the formula: f₀ = 1 / (2πRC√(n)), where R is the resistor value (in ohms), C is the capacitor value (in farads), and n is the stage count (2 for this design). For example, with R = 47 kΩ and C = 10 nF, f₀ ≈ 338 Hz. Swap capacitors to 4.7 nF for a 720 Hz cutoff or 22 nF for 154 Hz, maintaining resistor values for stability.

Add a 100 pF capacitor across the feedback resistor to suppress high-frequency noise above 1 MHz without affecting the passband. Verify the design with a frequency sweep, ensuring the -3 dB point aligns with your calculation. Avoid resistors below 2.2 kΩ to prevent loading effects, and use metal-film capacitors for improved temperature stability in critical signal paths.

Power Supply Considerations: Dual Rail Setup and Noise Reduction

Use a symmetrical ±15V supply for optimal headroom, ensuring each rail remains within +18V/-18V absolute maximum limits. Decoupling capacitors (0.1µF ceramic in parallel with 10µF tantalum) must be placed 20kHz noise.

Parameter	Recommended Value	Critical Failure Point
Ripple (Vpp)	<1mV	>10mV
Load Regulation	<0.1%	>1%
Ground Impedance	<0.1Ω	>1Ω
Thermal Margin (TO-99)	≥40°C	<10°C

For analog signal integrity, route power traces orthogonally to input/output paths, avoiding shared vias. AGND and DGND separation must occur at the PSU; merge only at a single low-impedance node (
