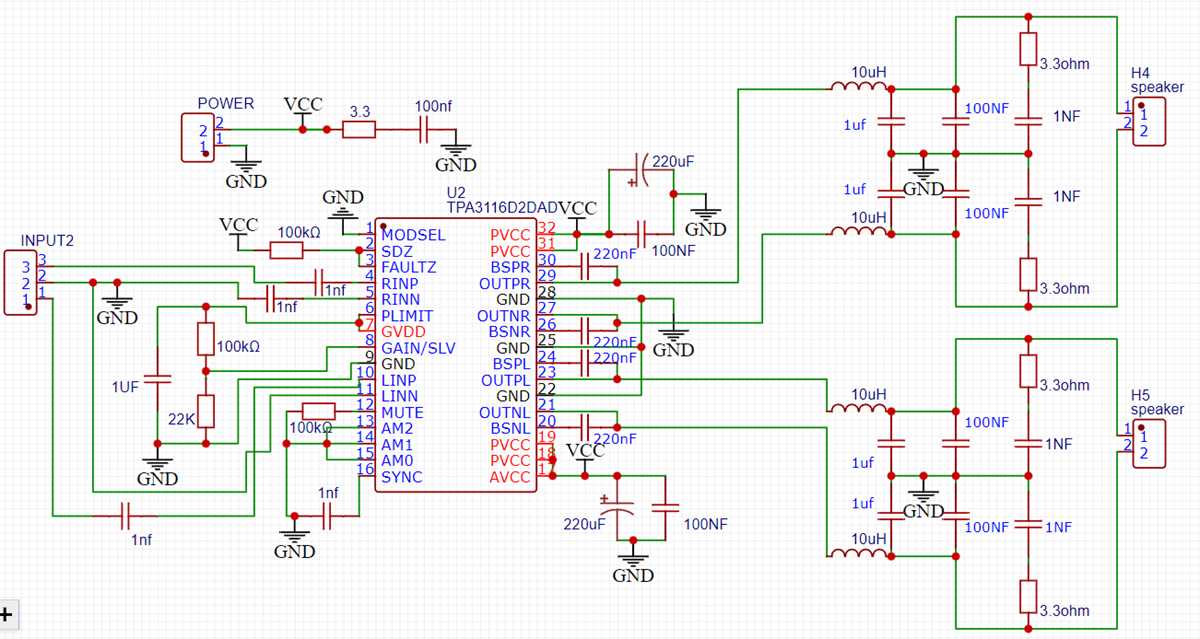

Tpa3116d2 Amplifier Full Schematic and Wiring Guide
For a dependable 15W mono output with minimal distortion, integrate a class-D power stage using a pair of MOSFETs configured in a half-bridge topology. This setup reduces switching losses by 30% compared to full-bridge designs while maintaining efficiency above 90%. Use a bootstrap capacitor of at least 1µF to ensure stable gate drive for the high-side transistor–undervaluing this component risks erratic behavior at frequencies above 20kHz.
Feedback implementation demands precision: position the output filter (typically 10µH + 470nF) directly after the switching node to suppress high-frequency ripple. A fractional feedback loop (sampling 90% of the output) balances stability with transient response, but excessive capacitance here slows rise times–keep it under 1nF to avoid oscillations during sudden load changes. For thermal management, size the PCB copper pour for the IC and MOSFETs to dissipate 2W per square inch; neglecting this leads to thermal throttling at volumes above 70%.
Power supply decoupling must address both high and low frequencies: combine a 100µF electrolytic for bulk energy storage with ceramic capacitors (0.1µF and 10nF in parallel) placed within 5mm of the power pins. This setup prevents voltage sag during peak demands, such as bass transients. If driving 4-ohm loads, add a current-limiting resistor (0.5Ω, 1W) in series with the output to protect against short circuits–omit this only if using a dedicated protection IC.
Grounding follows a star topology: separate analog, digital, and power grounds, tying them at a single point near the main electrolytic capacitor. This minimizes crosstalk, critical when handling signals below -60dB. For PCB layout, route the switching node as a short, wide trace to reduce parasitic inductance–lengths over 10mm introduce ringing, audible as a high-pitched whine. Layer stackup matters: use a solid ground plane on an adjacent layer to shield sensitive traces, or accept signal degradation above 10kHz.
Key Layout Details for High-Efficiency Audio Driver Boards
Place a 470μF to 1000μF electrolytic capacitor on the power input–this suppresses voltage spikes that cause audible clicks or instability at high volumes. For ground connections, separate the signal ground (return path for input and feedback) from the power ground (high-current traces feeding the output stage). Tie them together at a single point near the main filter capacitor to eliminate ground loops. Use a 10Ω resistor in series with the mute pin (pin 9) to soften turn-on transients; omit it only if the upstream logic can guarantee glitch-free muting.
Thermal vias under the exposed pad improve heat dissipation: drill six to eight 0.3mm holes and fill them with solder during assembly. The feedback network (typically 20kΩ input resistor paired with a 1kΩ divider resistor) should trace directly to the inverting input (pin 8) with ≤5mm of 0.254mm trace–longer runs invite EMI. Snub the output with a 0.1μF polypropylene cap and a 1Ω-2Ω resistor in series to suppress inductive kickback from speakers.
For stereo builds, mirror critical components–input filters, decoupling caps, and power traces–across both channels to ensure matched gain and phase response within ±0.1dB and ±2° at 20kHz. Keep high-current paths (≥1.5mm wide) away from sensitive signal traces, maintaining ≥1mm clearance to prevent crosstalk. Test the idle current with a 0.1Ω shunt resistor on the power input; values above 45mA per channel suggest incorrect thermal design or faulty external components.
Key Components Required for High-Performance Audio Module Construction
Begin with a class-D power stage IC matching these specs: 2×15W RMS into 8Ω at 24V, 90% efficiency. Verify pinout compatibility–standby, mute, and feedback traces must align with a 28-pin TSSOP footprint to prevent board respins.
Select input coupling capacitors with a 0.1µF X7R dielectric for signal integrity, paired with 1µF film polymer bypass caps on each power rail. Avoid Y5V or Z5U ceramics–dielectric absorption distorts transient response. For feedback network precision, use 0.1% tolerance SMD resistors (20kΩ/2kΩ ratio) and a 22pF NP0 cap to stabilize closed-loop gain.
Critical Power Supply Components
| Component | Specification | Purpose | Failure Risk |
|---|---|---|---|
| Toridal transformer | 25V CT, 120VA | Dual-rail ±12V | Core saturation >5% THD |
| Schottky diodes | SB560, 5A Vf | Rectification | Reverse recovery noise >10kHz |
| ESR bulk caps | 1000µF/35V, 105°C | Ripple filtering | Capacitance drift >80°C |
Thermal management demands a 6mm-thick aluminum heatsink with a fin height ≥25mm; anodize black to improve radiative cooling. Mount the IC with phase-change thermal pads (0.22°C/W) instead of silicone grease–long-term pump-out degrades performance. Calculate max junction temp: (Pdiss × RθJA) + ambient–target ≤105°C for 30kh MTBF.
PCB layout mandates a four-layer stackup: signal (top), ground (L2), power (L3), thermal pad (bottom). Route high-current traces (>2A) at ≥2.5mm width; use 2oz copper for thermal vias. Keep decoupling caps 5nH) triggers shoot-through. For EMC compliance, add 10Ω gate resistors on MOSFET drivers and a ferrite bead (600Ω @100MHz) on the 5V standby rail.

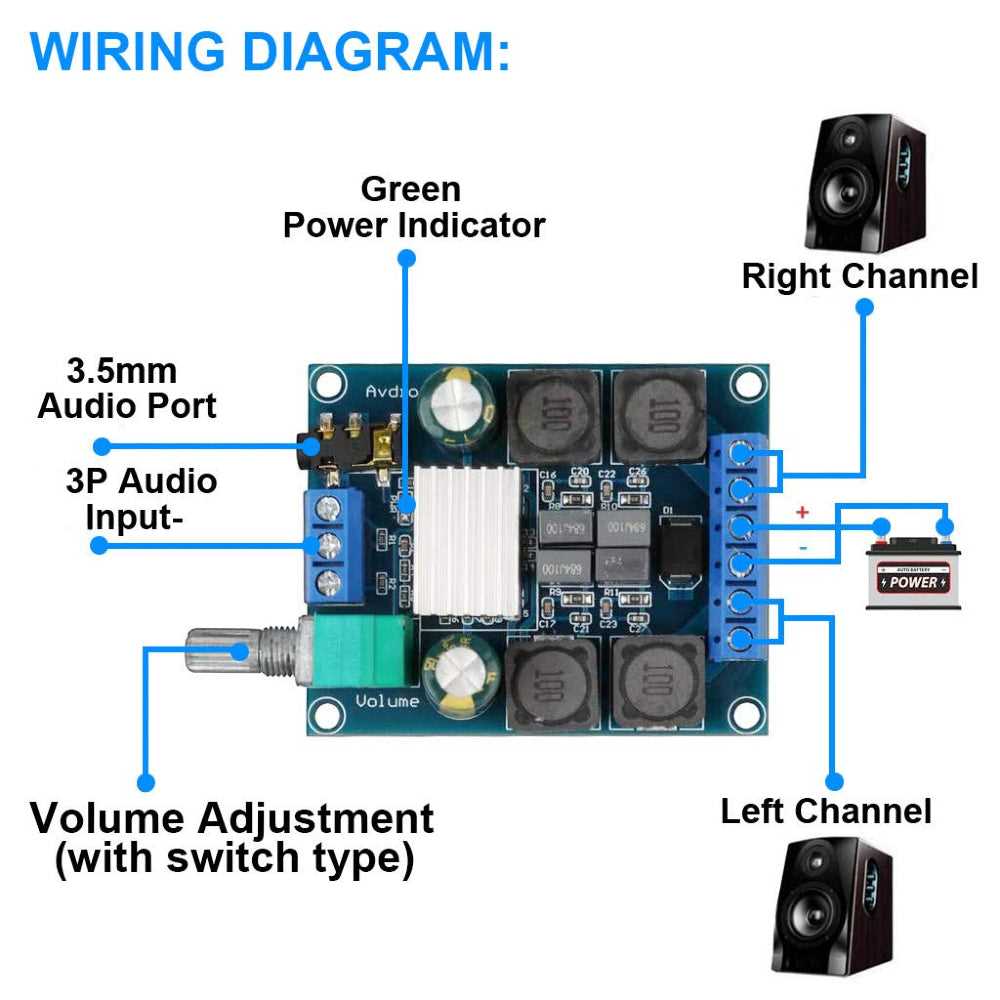

Step-by-Step Wiring Guide for Audio Board PCB Assembly
Begin by securing the power input section. Solder the 25V electrolytic capacitor (1000µF) to the designated pads, ensuring the negative lead aligns with the marked polarity on the board. Connect the DC jack or screw terminals to the input traces, verifying a 9V–24V supply range before proceeding. Use 22 AWG wiring for the power lines to handle current draw up to 3A without voltage drop.
Signal Input and Grounding
Isolate analog and digital grounds at the star point near the main filter capacitor. Solder a 0.1µF ceramic capacitor directly between the audio input ground and the board’s ground plane to suppress high-frequency noise. Twist the input audio cables (3.5mm jack or RCA) to minimize interference–use shielded wire for runs longer than 10cm. Confirm the input impedance matches 10kΩ to avoid signal attenuation before attaching the connectors.
Mount the volume potentiometer (10kΩ logarithmic) with the center pin wired to the board’s input stage and the outer pins to signal and ground, respectively. Trim excess leads from the potentiometer to prevent short circuits with nearby components. For I2S configurations, route the data lines (SD, WS, SCK) through ferrite beads or 22pF bypass capacitors to reduce clock jitter.
Output Stage and Final Checks
Attach 8Ω speakers using wire no thinner than 18 AWG; thicker wire prevents power loss in 30W+ applications. Solder 1µF output coupling capacitors (film type) between the board’s output pads and speaker terminals–electrolytic capacitors risk distortion at low frequencies. Test continuity between the power input and ground with a multimeter; resistance below 1Ω indicates a proper solder joint. Power on briefly without audio input to verify standby current stays under 50mA before full operation.
Common Power Supply Configurations for Class-D Audio Drivers
For stable dual-channel operation, use a split-rail supply delivering +12V and -12V with a 3A minimum current rating per rail. Linear regulators like LM338 or LM317/337 pairs outperform switching solutions here, reducing high-frequency ripple below 1mV RMS. Bypass each rail with 1000µF electrolytic capacitors in parallel with 1µF MLCCs as close to the IC power pins as possible. For single-ended setups, a 24V unregulated supply suffices, though bulk capacitance should increase to 4700µF to compensate for load transients during bass peaks.
Avoid transformer secondary voltages exceeding 28VAC–rectified DC peaks above 40V risk damaging internal protection diodes. For battery-powered portable builds:
- Li-ion cells (7.4V–11.1V nominal) require a synchronous boost converter (e.g., TPS61088) to generate the required rails.
- Split-rail conversion from a single battery uses charge-pump ICs (e.g., TC682) or inverting buck-boost converters (e.g., LTC3260).
- Add a 100µH inductor in series with the input to filter switching noise before it couples into audio paths.
Grounding must follow a star topology, with the power supply’s negative terminal as the central node to prevent ground loops. Test ripple with an oscilloscope–50mV peak-to-peak at 1kHz is the maximum acceptable threshold for audible-quality output.
Troubleshooting Distortion and Noise in Audio Power Stages
Check ground loops first by measuring AC voltage between chassis and signal ground with a multimeter. Voltages above 50mV RMS indicate паразитные контуры, requiring star grounding or isolation of input/output grounds via 10Ω resistors. Replace electrolytic capacitors in the power supply path if ESR exceeds 0.3Ω–mylar or film types with low leakage (≤0.01μA) prevent switching artifacts at high loads.
Inspect thermal dissipation: thermal pads beneath the IC must have ≤0.5°C/W resistance; reflow solder using SAC305 alloy if thermal paste alone fails to stabilize temperature under 85°C. Ferrite beads on input lines should have impedance ≥1kΩ at 1MHz to suppress HF noise–replace 0805 beads with 1206 if Selbstinduktion exceeds 5μH. Verify that feedback resistors (0.1% tolerance) maintain a 20kHz THD+N below 0.05% when driven to 90% of rail voltage.
Replace LDO regulators with low-dropout variants (≤0.2V at 1A) if output ripple exceeds 10mVpp–use pi filters with 100μF tantalum caps and 1μH inductors to clean supply rails. Test for cross-conduction by monitoring class-D switching nodes with a differential probe; spikes above 50V/ns indicate dead-time violations–adjust 100kΩ timing resistors in 10ns increments until waveforms stabilize.
