Step-by-Step Tracker Boat Electrical System Wiring Guide
Start by isolating the main power source–typically a 12-volt deep-cycle battery–before touching any terminal. A 6-gauge marine-grade cable is the minimum standard for connecting the battery to the fuse block; anything thinner risks voltage drop under load. Position the fuse block within 7 inches of the battery’s positive terminal to comply with ABYC (American Boat and Yacht Council) guidelines. Avoid daisy-chaining multiple circuits–each accessory should have a dedicated run back to the fuse block with its own inline fuse sized no more than 150% of the device’s continuously drawn amperage.

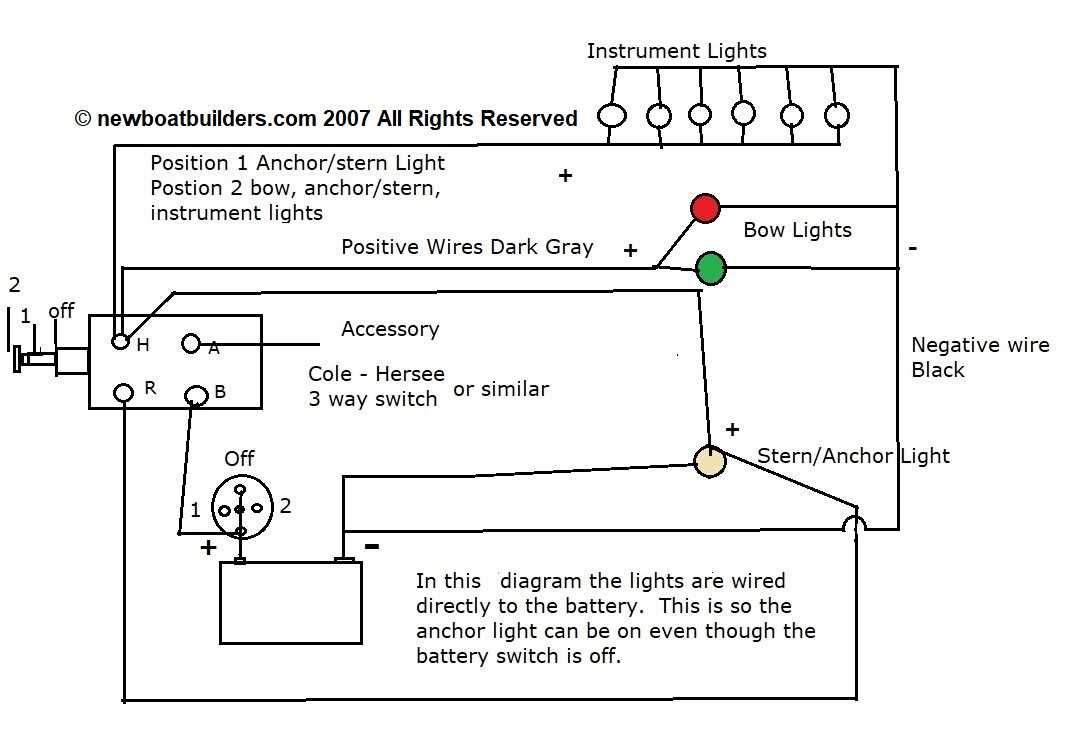

For navigation lights, use tinned copper wire (16 AWG minimum) and route it through waterproof conduit along the gunwale. Secure connections with heat-shrink tubing and adhesive-lined rings to prevent corrosion at splices. The bilge pump’s circuit demands redundancy: install a float switch wired in parallel to a manual override switch, both protected by a separate 15-amp fuse. Ground each circuit directly to the engine block or a dedicated bus bar–never to the vessel’s hull–using at least 4 AWG wire for the main ground return to the battery.
Label every wire at both ends with a heat-resistant sleeve or engraved tag. Color-coding alone isn’t enough: red for positive, black for ground, yellow for switched live circuits, and blue for navigation signals. Use a multimeter to test continuity after each connection–resistance above 0.5 ohms in any 10-foot run indicates a faulty crimp or loose terminal. For outboard motors with integrated alternators, bypass the factory voltage regulator if it’s under 40 amps; opt for an external smart regulator paired with a 100-amp isolator to prevent battery drain during idle.
Install a dual-bank battery switch with a “combine” setting only for emergencies. When charging, connect the starter bank first to avoid voltage spikes affecting sensitive electronics. For vessels over 20 feet, add a second battery isolated by a diode separator to ensure the engine starts even if auxiliary circuits drain the primary battery. Keep all wiring at least 18 inches above the waterline to avoid capillary action drawing moisture into connections. Replace any factory-supplied wiring harness older than five years–insulation degrades faster in marine environments, increasing the risk of short circuits.
Electrical Layout for Fishing Vessels
Begin by isolating the power source: connect the battery’s positive terminal to a master cutoff switch rated for marine environments, such as a Blue Sea 300 Amp model. Route a 2 AWG tinned copper cable from the switch to a fused distribution panel, ensuring the fuse does not exceed 125% of the maximum current draw. Label each circuit with waterproof tags–use a Brother PT-D600 for durable, UV-resistant labeling.
Install bilge pump circuits on dedicated breakers, positioning the float switch above the splash zone to prevent false activations. For navigation lights, use LED fixtures compliant with USCG 33 CFR 183 standards, wired through a 3-amp fuse and a rocker switch with an illuminated indicator. Anchor each connection with crimped terminals coated in dielectric grease, then heat-shrink to seal against corrosion.
For trolling motor integration, run 4 AWG cables directly from a 24V dual-battery bank to a Minn Kota MKR-21 connector, securing cables every 18 inches with nylon clamps to prevent chafing. Add a 50-amp circuit breaker within 7 inches of the battery bank, matching the motor’s max amp draw. Test continuity with a Fluke 17B multimeter; readings should match manufacturer specs (±0.5 ohms).
Terminal blocks should use marine-grade nylon bodies with tin-plated brass terminals–avoid aluminum to prevent galvanic corrosion. Ground all components to a common bus bar, bonding it to the engine block with a 4 AWG jumper. Verify voltage drop under load; aim for less than 3% loss across 20 feet of cable. Store digital schematics in a waterproof Pelican case, alongside printed backup sheets treated with Rust-Oleum NeverWet spray.
Core Elements to Spot in Marine Electrical Schematics
Locate the main power distribution panel first–it controls all circuits and typically includes fuses, breakers, and bus bars. Check for labeled input terminals where the battery cables connect (positive and negative). Verify the amperage rating of each breaker matches the system’s specs to prevent overloads. Look for separate circuits dedicated to navigation lights, bilge pumps, and instruments; these should branch directly from the panel with independent protection.
- Battery disconnect switch–essential for isolating power during maintenance or emergencies.
- Grounding block–ensures all negative returns converge at a single point, reducing corrosion risks.
- Voltage regulator–stabilizes output to sensitive electronics like GPS or fish finders.
- Waterproof connectors–used for connections exposed to moisture (e.g., trolling motor, livewell components).
Trace the ignition circuit next. The key switch should route power to the starter solenoid, fuel pump, and engine control module. Confirm the kill switch circuit interrupts power when activated, cutting fuel or ignition to stop the motor. Look for inline diodes in dual-battery setups to prevent backfeed between starting and house batteries.
Inspect bilge pump circuits carefully. They often include:
- Float switches–activate automatically when water levels rise.
- Manual override–allows testing or forced operation.
- High-water alarms–triggered by secondary switches for redundancy.
Ensure these run on a dedicated circuit with a fuse located as close to the power source as possible. Corrosion-resistant wiring (tinned copper) and heat-shrink tubing are critical here.
Examine lighting circuits last. Nav lights require compliance with USCG or local regulations–red/green bow lights must draw power separately from stern lights. Anchor lights and cabin lights often share a circuit but should have individual switches. Use relays for high-draw devices like spreader lights to avoid voltage drops. Label every wire at both ends to simplify troubleshooting later.
Step-by-Step Guide to Decoding Marine Electrical System Color Codes and Markings
Start by locating the central harness bundle near the vessel’s helm–most manufacturers tag critical paths with heat-shrink tubing or adhesive wraps. Examine each sleeve for alphanumeric identifiers: “B+” denotes the main positive feed, while “GND” marks chassis returns. Other labels may include “ACC” for accessory circuits or “STR” for starter solenoid connections. If markings are faded, reference the owner’s manual under the section titled “Electrical Schematics” to cross-check abbreviations.
Identify high-current conductors first, as these often use thicker gauge strands and bolder colors–typically red for 12V power, black for ground, and yellow for ignition feeds. Secondary circuits (e.g., lighting or bilge pumps) adopt finer wires with dual-color stripes: a primary hue followed by a tracer line. For example, dark blue with a white stripe often corresponds to navigation lights, while brown with a red stripe may indicate tachometer signals. Verify these against a standard marine color code chart:
| Primary Color | Tracer | Typical Function |
|---|---|---|
| Red | None | Main battery input |
| Black | None | Chassis return |
| Yellow | None | Starter solenoid or ignition |
| Dark Blue | White | Navigation lamps |
| Brown | Red | Engine RPM signal |
| Green | Yellow | Trim or tilt actuators |
| White | Red | Accessory power (e.g., livewell) |
Trace each wire’s path from source to termination–most fuse blocks include labeled slots (e.g., “Lighting #10A” or “Pump #15A”). Follow the bundle until it splits into sub-harnesses, noting junctions where crimp connectors or terminal blocks bridge circuits. Use a multimeter set to continuity mode to confirm connections: probe the fuse block slot while touching the opposite end of the wire to rule out breaks. Record every junction in a sketch for troubleshooting.
Pay special attention to chassis-ground points–these often rust or corrode, leading to intermittent failures. Scrape oxidation from mounting surfaces and tighten fasteners to 8-10 ft-lbs. For negative returns using ring terminals, ensure the terminal’s eyelet diameter matches the fastener (commonly #10 studs for main grounds). Replace any heat-damaged or brittle wires with marine-grade tinned copper strands (minimum 16 AWG for lighting, 10-12 AWG for pumps).
Decode unfamiliar abbreviations using a multilingual marine electrical glossary–”ALT” means alternator output, while “TEMP” signifies engine temperature sensor wires. Some vessels integrate CAN bus networks, where data lines use twisted pairs (often purple/orange or grey/white) with foil shielding. For these, maintain 1.5-inch untwisted ends to prevent signal degradation. If the layout includes a junction box, label each terminal with a fine-point marker before disconnecting.
Isolate circuits before testing by pulling fuses or opening breakers–this prevents false readings from parallel loads. For navigation instruments, consult the manufacturer’s pinout diagram: Depth sounder transducers typically use bare copper shielded coax (e.g., RG-59), while GPS units rely on DB9 or RJ45 connectors with brown/orange for power, blue/white for data. Test voltage drop across switches: excessive resistance (>0.5V) indicates corroded contacts or undersized wires.
Handle sensor wires with caution–MAP (manifold absolute pressure) circuits use thin 22-24 AWG strands (usually dark green with a black tracer) sensitive to electromagnetic interference. Route these away from ignition coils and fuel injectors, using split loom tubing for protection. For bilge pump floats, note switch positions: Normally Open (NO) circuits activate pumps when water rises, while Normally Closed (NC) versions cut power when liquid levels drop. Verify float operation by manually lifting the mechanism while observing current at the pump’s lead wires.
Reassemble connections in reverse order, securing each bundle with spiral wrap or zip ties at 6-inch intervals. Apply dielectric grease to terminals to prevent moisture intrusion, especially in corrosive environments. Reconcile your findings with the vessel’s original documentation–discrepancies may reveal aftermarket modifications requiring additional overcurrent protection. Store a digital copy of updated notes with onboard tools for future reference.
