Complete Guide to Traffic Light Electrical Wiring Schematics

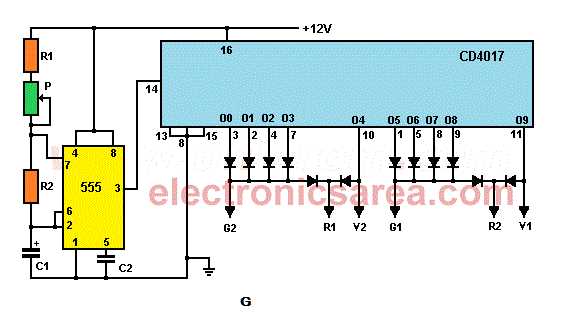

Begin with a 12V DC power supply for stable operation. Use a 555 timer IC in astable mode to generate consistent pulses–set the frequency between 0.5Hz and 2Hz based on desired cycle duration. For standard three-phase sequences (stop, caution, proceed), configure timings at 5 seconds (red), 2 seconds (amber), and 8 seconds (green) respectively. Adjust resistor-capacitor pairs (e.g., 100kΩ + 47µF for green) to fine-tune intervals without recalibration.

Connect power transistors (TIP120 or equivalent) to drive high-current bulbs–12V LEDs with limiting resistors (330Ω) extend lifespan. Implement two SPDT relays for directional control if simulating dual lanes: one relay switches the primary sequence, the second alternates between opposing flows. Wire bypass diodes (1N4007) across inductive loads to prevent back EMF damage during state changes.

Integrate momentary push buttons for manual override: connect one to the timer’s reset pin (Pin 4) to force an immediate cycle restart. For pedestrian crossings, add a piezo buzzer (active low) triggered by the amber phase–use a 555 in monostable mode to generate a 1kHz pulse for audible alerts. Test each state independently before full assembly to isolate faults in timing or load handling.

Document all connections in a schematic using free tools (KiCad or Fritzing). Label components clearly (e.g., R_green, C_amber) and include voltage nodes for troubleshooting. Store prototypes in anti-static bags–electrolytic capacitors degrade if unused for extended periods. For long-term reliability, replace mechanical relays with solid-state switches (e.g., BTA16 triacs) if operating frequencies exceed 1Hz.

Designing Urban Light Control Schematics

Begin by selecting microcontroller-compatible LED drivers with 8-channel PWM output for independent luminance control–critical for adaptive brightness in varying ambient conditions. Use LM393 comparators to monitor voltage drops across LEDs, triggering failsafe modes at thresholds below 3V. Ensure low-side switching with IRF540N MOSFETs rated for 100V/33A to handle inrush currents during phase transitions.

Key Component Specifications

• Timer IC: NE555 in astable mode (adjust frequency via 10kΩ potentiometer) for pedestrian delay sequencing.
• Current limiter: 1Ω/5W resistor in series with amber indicators to prevent thermal runaway.
• Surge protection: bidirectional TVS diodes (P6KE200CA) across all inputs to clamp transients exceeding 180V.
• Power distribution: isolated 12V/5V dual-rail supply with AMS1117 regulators for logic and load separation.

Diagram interconnects must follow a star-ground topology to minimize noise coupling–route high-current traces (minimum 2oz copper) separately from logic signals. For intersections with >4 lanes, implement daisy-chained 74HC595 shift registers to expand I/O without increasing microcontroller pin count. Verify EMI compliance by placing 100nF decoupling capacitors within 2mm of every IC power pin.

For pedestrian phases, integrate 2N2222 transistors driving 24V relays to isolate inductive walk-symbol loads. Test phase synchronization by measuring propagation delay between primary and secondary intersection controllers–target across all nodes. Document thermal design: mount power components on 25mm² heatsinks if continuous operation exceeds 60°C ambient, using Arctic MX-4 compound for efficient heat transfer.

Key Parts for a Fundamental Intersection Regulation Setup

Begin with three LED modules: red, amber, and green, each rated at 2-5V with 20mA forward current. Choose 5mm diffused lenses for optimal visibility in outdoor conditions. Pair each with a 220Ω current-limiting resistor to prevent burnout–calculate values using Ohm’s law based on your power supply.

Select a microcontroller unit (MCU) with at least 6 I/O pins and internal timers. The ATtiny85 is a compact option, while the ESP8266 offers Wi-Fi for remote adjustments. Ensure the MCU operates at 5V logic to match most LEDs or include a logic level converter if using 3.3V variants.

A 9-12V DC power adapter or 9V battery provides stable input. Regulate voltage to 5V using an LM7805 linear regulator, incorporating a 10μF capacitor at input and output to smooth fluctuations. For portable setups, a TP4056 charging module with lithium-ion cells extends runtime.

SPST push buttons or tilt sensors enable manual override for pedestrian crossings. Debounce switches with 0.1μF capacitors to avoid false triggers. For automated operation, integrate a DS3231 real-time clock to synchronize light sequences with peak hours, reducing reliance on manual intervention.

Use prototype boards or custom PCBs to organize connections. Keep traces short to minimize voltage drops, especially for the red LED which draws the longest duty cycle. Label all wires with heat-shrink tubing or color-coded sleeves–consistency prevents miswiring during maintenance.

Optocouplers like the PC817 isolate high-power segments (e.g., streetlamps) from the MCU, protecting against voltage spikes. For advanced setups, add LDRs (light-dependent resistors) to adjust brightness at dusk, improving energy efficiency without manual recalibration.

Enclosure selection depends on exposure: IP65-rated polycarbonate boxes resist moisture and UV, while metal housings require dielectric grease on connectors to prevent corrosion. Mount components internally with standoffs to avoid shorts, and drill ventilation holes if heat dissipation is critical for prolonged operation.

Step-by-Step Wiring of LEDs, Resistors, and Power Supply

Begin by connecting the positive terminal of a 5V DC source to the anode of the first LED (long leg) via a 220Ω resistor. Ground the cathode (short leg) to the negative terminal–this ensures stable current flow without overheating. For three-color setups, repeat the process for red, yellow, and green LEDs, matching resistor values to their forward voltage: 220Ω for 2.0–2.2V (red), 150Ω for 2.5–2.7V (yellow), or 100Ω for 3.0–3.3V (green). Verify polarity before soldering–reversed connections will prevent illumination.

Testing and Troubleshooting

After wiring, apply power and check each LED individually with a multimeter set to DC voltage. A dim glow or flickering indicates either a loose connection or incorrect resistor value–replace the resistor if voltage drop exceeds 0.2V above the LED’s forward voltage. For parallel wiring, ensure the power source can deliver at least 20mA per LED; a 9V battery with a 5V regulator (e.g., LM7805) prevents voltage spikes. Use heat-shrink tubing on exposed joints to avoid short circuits.

Designing a 555 Timer-Controlled Intersection Sequence Controller

Begin with a monostable multivibrator configuration for the 555 IC, setting the timing intervals via an RC network. Use a 470 kΩ resistor and a 100 μF capacitor for a 30-second cycle; this delivers consistent on/off states without drifting. Cascading three such stages–each governing one lamp phase (red, amber, green)–eliminates complex logic gates. Replace potentiometers with fixed resistors to prevent accidental misalignment during voltage spikes.

The schematic must account for power dissipation: supply 9–12 V DC through a 7805 regulator, ensuring stable 5 V output for the 555 IC and 2N2222 transistors driving the LEDs. Calculate current draw per LED leg (20 mA per lamp) and use 220 Ω series resistors to prevent burnout. For synchronization, interconnect the control pins (pins 2 & 6) between stages via 1N4007 diodes–this creates a sequenced handoff without false triggers.

Component	Value	Function
NE555 IC	3x	Timing unit
Capacitor	100 μF	Timing
Resistor	470 kΩ	Timing
LED	5 mm, 20 mA	Visual indicator
2N2222	3x	LED driver

Test the prototype with a 1 Hz square wave generator connected to each 555’s trigger pin before installing permanent wiring. Ensure the amber phase lasts 3 seconds–critical for safe transition–while red and green phases can extend up to 30 seconds depending on junction traffic density. Encase the entire assembly in a grounded aluminum chassis with vent holes to avoid thermal runaway; heat sinks on the regulator are mandatory for continuous operation.

Microcontroller-Based Customizable Intersection Management

Select an Arduino Uno or PIC16F877A microcontroller for primary control due to their 16 MHz clock speed and 32 KB/8 KB flash memory, respectively–sufficient for handling three-phase cycle logic without external delays. Connect each LED cluster (red, amber, green) to a dedicated output pin via a 220Ω current-limiting resistor to prevent thermal damage; use a ULN2003 Darlington array for clusters drawing over 200 mA. Power the controller separately from the LED assemblies with a 7805 regulator to maintain 5V stability, critical for avoiding erratic timing.

Implement a finite state machine (FSM) in code to define phase transitions: Phase A (15 s green, 3 s amber), Phase B (10 s green, 3 s amber), and Phase C (20 s green, no amber) with an all-red 2 s overlap between phases. Store phase durations in an array for quick adjustments; modify values directly in EEPROM for runtime updates without recompiling. Use Timer1 interrupts for precise timing–Arduino’s `millis()` drifts ±4% over 24 h, while Timer1 achieves ±0.005% accuracy. Include a manual override input (e.g., pedestrian push-button) wired to an interrupt pin (e.g., Arduino D2) to trigger an immediate amber-to-red transition with a 10 s delay for clearance.

For environmental adaptability, integrate a BH1750 light sensor to adjust LED brightness dynamically–dim outputs to 30% between 22:00 and 06:00 to reduce glare while maintaining visibility. Add a DS1307 real-time clock module for synchronized schedules across multiple intersections; configure it via I2C to broadcast timing signals to secondary controllers if managing a network. Log operational data (phase changes, errors) to an SD card module in CSV format for post-analysis; use FAT32 file system for cross-platform compatibility.

Secure all connections with screw terminals and enclose the assembly in a NEMA 4X-rated polycarbonate box to withstand moisture and temperature swings. Route cables through conduit and seal entry points with silicone to prevent corrosion. For wireless configuration, embed an HC-05 Bluetooth module to adjust parameters via smartphone–limit pairing range to 10 m to prevent unauthorized access. Test voltage drop across all paths with a multimeter; ensure no segment exceeds 0.5V loss under full load to maintain LED intensity.

Download pre-tested code templates from this repository; libraries like RTClib (for DS1307) and SD (for logging) are pre-optimized for minimal latency. Flash the firmware via ISP programming if using PIC microcontrollers to bypass bootloader overhead. Calibrate optical sensors by exposing them to controlled lux levels (e.g., 100 lux for twilight, 1000 lux for daylight) and fine-tune thresholds in the code’s conditional statements.
