Complete 4 Pin Trailer Plug Wiring Guide for Safe Towing Connections

Use color-coded cables when linking the vehicle harness to the towing socket. The standard sequence for a 4-way flat connector is: white for ground, brown for tail lights, yellow for left turn/brake, and green for right turn/brake. Verify each wire’s function with a multimeter before securing connections–incorrect pairing risks short circuits or non-functional signals.

For proper grounding, attach the white conductor directly to the vehicle’s chassis or a clean, unpainted metal surface. Avoid relying on bolted components that may shift over time–loose ground connections cause intermittent failures in lighting. Use crimp connectors or solder joints for durability, and seal all exposed connections with heat-shrink tubing to prevent corrosion.

Test all functions–turn signals, brake lights, and running lights–before finalizing installation. If lights malfunction, check for shorted or crossed wires at the harness junction. For dual-filament bulbs (commonly used for combined brake/turn signals), ensure the wiring harness supports the correct voltage draw. Replace damaged or brittle cables entirely; temporary fixes like electrical tape degrade under vibration.

Secure the connector socket with sturdy mounting hardware to prevent detachment during towing. Route cables away from sharp edges or moving parts, and use cable ties spaced every 12–18 inches to eliminate sagging. Refer to the vehicle’s manual for manufacturer-specific deviations–some models require additional relays for heavier loads.

Connecting Your Towing Vehicle’s 4-Way Connector

Start by matching the color-coded wires to the correct terminals on the vehicle’s socket: white for ground, brown for running lights, yellow for left turn/brake, and green for right turn/brake. Use a multimeter to verify voltage–12V should register between the ground and each colored wire when the corresponding function is activated. Secure connections with solder or crimp connectors rated for at least 20 amps, then seal with heat-shrink tubing to prevent corrosion.

Common Wiring Mistakes to Avoid

Crossing yellow and green wires will trigger both turn signals simultaneously, confusing other drivers and risking short circuits. Skipping the ground wire (white) leads to intermittent failures, especially in wet conditions–attach it directly to the chassis for a solid connection. Avoid using household electrical tape; it degrades over time. Test each function separately, including brakes and hazard lights, before hitching the load.

For aftermarket installations, check the vehicle’s fuse box for dedicated towing circuits–some models require a relay for higher current loads. If the running lights flicker, inspect the brown wire’s ground path or add a separate ground wire to the light assembly. Use a circuit tester to confirm no voltage leaks occur when the tow system is idle, as this can drain the battery overnight.

Regular maintenance involves cleaning the socket’s terminals with dielectric grease every six months, particularly in humid or coastal areas. Replace damaged wires immediately–even minor frays can cause voltage drops that reduce bulb brightness by up to 40%. For LED lights, ensure compatibility with the vehicle’s system; some older models may require a load resistor to prevent hyper-flashing.

How to Match the Right Cables for a Standard 4-Connector Vehicle Outlet

Begin by locating the vehicle’s lighting harness under the rear bumper or near the hitch receiver. Most manufacturers use a 4-connector outlet with these colors: white (ground), brown (running lights), yellow (left turn/brake), and green (right turn/brake). Confirm the sequence with a multimeter set to DC voltage; probe each terminal while activating the corresponding function–voltage should register only on the active line.

Check the owner’s manual for exceptions. Some European models reverse the turn signal colors, swapping yellow and green. Asian brands may include an extra red line for aux power, which overlaps with brake functions on other setups. If no manual is available, consult the manufacturer’s website using the VIN for exact specs–generic color charts often mislead for import vehicles.

Use these tools to verify connections before attaching any device:

• A continuity tester to confirm ground integrity–bare metal to white line should show zero resistance.
• A test light or multimeter for live circuits–brown should illuminate when headlights are on, yellow and green only when their respective signals flash.
• Dielectric grease to prevent corrosion–apply sparingly to each contact after cleaning with a wire brush.

If colors don’t match the standard scheme, trace the harness back to the vehicle’s fuse box. Label each wire at both ends with masking tape before cutting or splicing. For aftermarket adapters, select a kit with pigtails that include waterproof heat-shrink sleeves–generic connectors fail within months under road debris and salt exposure.

Avoid These Common Mistakes

Never assume brown is always running lights. On older Ford trucks, brown carries brake signals, while running lights use red. Likewise, GM full-size SUVs often split brake and turn functions–yellow handles left brake only, and a separate dark green line controls the left turn. Cross-wiring these causes hyper-flashing or no lighting at all.

Secure all splices with solder rather than crimp connectors. Even gold-plated contacts degrade under vibration; solder bonds last decades. After joining, wrap each connection with electrical tape, then cover the entire repair with split loom tubing. Route the loom away from sharp edges and moving parts–exhaust pipes and suspension linkages will slice through protective layers over time.

For vehicles with integrated towing modules, consult the dealer for firmware updates. Many 2015-and-newer models disable lighting functions if the harness detects a short or incorrect load. Resetting requires a scan tool with OEM codes–generic bluetooth adapters won’t trigger the necessary protocols. Keep a spare 4-connector outlet and 10 feet of replacement cable in the glovebox for roadside repairs.

How to Connect a 4-Way Vehicle Outlet: Clear Instructions

Start by gathering the necessary tools: a wire stripper, crimping tool, electrical tape, butt connectors, and a multimeter. Ensure the vehicle’s power is off before handling any cables to avoid short circuits. Identify the color-coded leads on your hauling setup–typically brown (marker lights), yellow (left turn/brake), green (right turn/brake), and white (ground).

Locate the towing socket on the tow vehicle. If it’s absent, mount a new 4-way panel near the rear bumper, securing it with self-tapping screws. Drill a hole just large enough for the harness to pass through, then feed the wires inside the vehicle’s frame. Use cable ties to prevent slack or rubbing against sharp edges.

Strip ¼ inch of insulation from each wire end. For the ground, attach the white lead to a bare metal surface free of paint or corrosion–scrub the area with sandpaper if needed. Connect the remaining wires to their corresponding functions on the vehicle’s lighting system: brown to running lamps, yellow to left signals, and green to right signals. Use butt connectors to join the wires securely.

Test each circuit with a multimeter before finalizing. Set the meter to DC voltage (20V range) and probe the pins on the vehicle’s outlet while activating the lights, brakes, and turn signals. Voltage should read between 12–14V for each active function. If readings are absent, check for loose connections, blown fuses, or incorrect wire pairing.

Seal all splices with adhesive-lined heat shrink tubing. Slide the tubing over the connection, apply heat evenly with a heat gun, and ensure a watertight seal. Avoid electrical tape alone–it degrades over time. Route excess cable along the vehicle’s frame, avoiding heat sources like exhaust pipes or moving parts.

Verify the setup with a test light adapter or a small utility light. Plug it into the outlet and confirm all functions illuminate correctly: running lights, left/right signals, and brakes. If issues persist, inspect the vehicle’s fuse box–some models require adding relays for heavier loads. Replace any blown fuses with the exact amperage rating listed in the owner’s manual.

Secure the completed assembly with plastic clamps or zip ties. Recheck all connections after 50 miles of towing to ensure vibration hasn’t loosened any wires. Store spare connectors and a spare fuse in the glovebox for quick repairs. Regularly inspect the outlet for corrosion, especially after exposure to road salt or moisture.

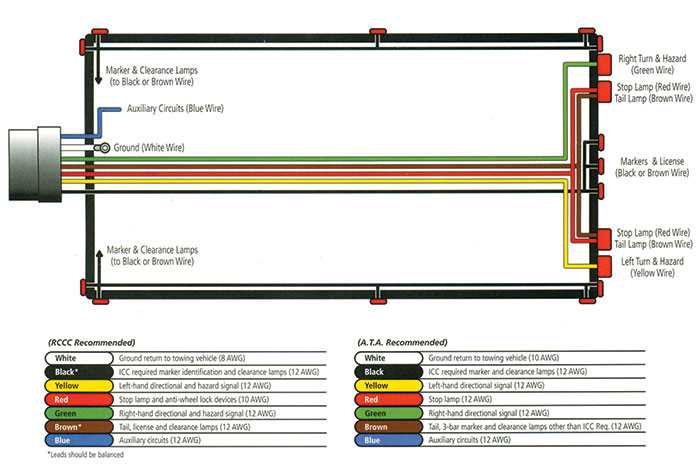

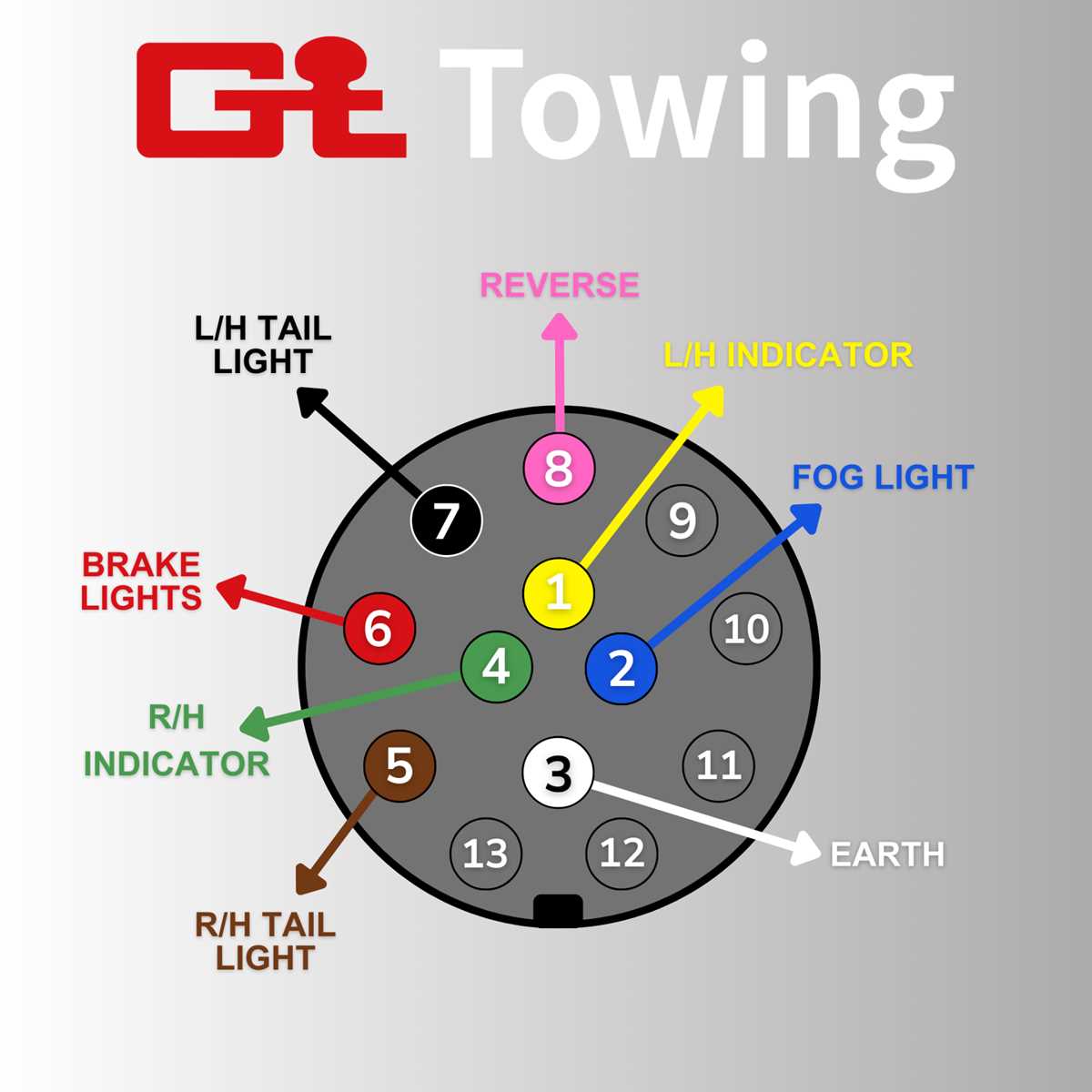

Standard Connector Color Assignments and Roles in 4-Way Vehicle Lighting Systems

Begin by verifying the harness matches the SAE J1128 standard–this prevents compatibility errors with lighting fixtures or braking modules. The brown wire delivers constant power to running lights, typically identified by its solid or striped pattern; confirm it carries 12 volts when the headlights activate but remains inactive during braking. If voltage drops occur, inspect the towing vehicle’s fuse box for a dedicated circuit labeled “Running Lamps” or “Tail Lights,” as shared circuits can dim illumination under braking loads.

Ground faults manifest as flickering or partial operation–test the white conductor (common earth) by probing its termination point with a multimeter while cycling the brakes; readings should stay below 0.5 ohms. A faulty earth often mimics electrical short symptoms, so clean corrosion from the mounting surface and secure the connection with star washers, bypassing paint or coatings that insulate. For vehicles with composite rear panels, route the ground wire to a bare chassis stud instead of relying on factory-attached eyes.

Critical Current Paths in Auxiliary Lighting Harnesses

The yellow cable exclusively powers the left turn/stop lamps, while the green handles the right; splicing either into other circuits causes erratic flashing or brake light failure. Use heat-shrink butt connectors rated for 20 amps minimum–standard crimp connectors corrode in marine or off-road environments. For LED upgrades, insert a load resistor (10W, 6Ω) in parallel to prevent hyper-flashing; resistor placement should be near the light assembly to avoid voltage drop down the cable run. Avoid aluminium wiring–copper-braided conductors withstand vibration better in high-stress applications.

Conductor Color	Primary Function	Secondary Role	AWG Gauge (Min.)	Voltage Drop Limit
White	Chassis ground	None	12	0.5V
Brown	Clearance/side marker lamps	License plate illumination	14	1.0V
Yellow	Left turn signal	Stop lamps (combined)	14	1.5V
Green	Right turn signal	Stop lamps (combined)	14	1.5V

Troubleshooting Miswired Circuits

Reverse polarity between yellow and green wires causes turn signals to activate opposite sides–swap the connectors if both lights flash simultaneously during testing. For adapters with additional circuits (e.g., reverse lights), ignore the extra pin; the 4-way standard lacks this provision, and tapping it risks overloading the fuse. If brake lamps remain lit while signaling, the stop lamp switch is faulty–replace it or install a separate brake pressure sender for vehicles with integrated systems. Always disconnect the battery before probing live circuits–accidental shorts can fry the ECU in modern vehicles.
