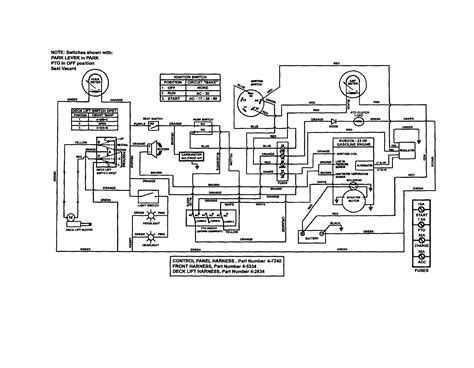

Complete Wiring Guide for Troy Bilt Ignition Switch Connections
To avoid frustrating no-start issues, locate the power source terminals first–typically marked B (battery) and M (magneto) on most small-engine setups. Splice a 14-gauge red wire to B, routing it directly to the solenoid’s input post. Avoid daisy-chaining through accessories; voltage drops under 11.8V will prevent firing. Ground the black wire securely–paint-free metal contact ensures stability.
Check the safety interlocks next. Most equipment uses a neutral switch or seat sensor; bypassing these prematurely risks damage. Attach a multimeter set to 200Ω across each switch–readings above 0.5Ω indicate corrosion. Clean terminals with 120-grit sandpaper or replace the component entirely. Connect a jumper wire only temporarily to verify the circuit’s integrity before final assembly.
For push-button setups, note the three-spade connector configuration: P (power), S (start), and G (ground). Use a relay if the starter draws over 80A; the stock switch contacts will burn out otherwise. Heat-shrink all splices–exposed copper oxidizes within weeks, especially in humid climates. Test with a 9V battery before reinstalling the flywheel cover to confirm consistent cranking.
Electrical Connection Guide for Rotary Equipment Start Systems
Begin by locating the primary component terminals: battery (B), solenoid (S), magneto (M), and accessory (A). On most models, the red wire connects directly to the B-post–verify this first to prevent power loss. If the engine fails to crank, test for 12V at the S-terminal when the key is turned to the start position. A voltage drop below 10.5V typically indicates a faulty connection or depleted power source.
For push-button configurations, trace the purple (start) and black (ground) leads from the control module to their respective terminals. Misrouted wires often cause intermittent starting issues. Use a multimeter set to continuity mode to confirm the ground path from the module’s mounting point to the frame–resistance should read below 0.5 ohms. If readings exceed this, clean corrosion from mounting surfaces or replace the grounding strap.
Common Wiring Errors and Fixes
- Yellow lead disconnected: Results in no power to accessories. Reattach to the A-terminal after confirming the fuse holder isn’t blown.
- White lead shorted to frame: Causes erratic operation. Insulate with heat-shrink tubing where the wire exits the harness bundle.
- Loose battery connections: Corrosion builds rapidly. Remove cables, scrub posts with a wire brush, and secure with star washers to maintain clamp pressure.
On models with hour meters, the gray wire must route to the meter’s power input. Skipping this step disables the meter entirely. For retrofits, splice into the yellow accessory wire using a weatherproof connector rated for 20A minimum. Avoid twisting wires together–this creates resistance points that fail under vibration.
Safety interlocks vary by model year. Pre-2015 units use a single brake pedal switch, while later versions add a seat switch. Bypass tests can isolate failures: jump the brake switch terminals with a paperclip and attempt start. If the engine turns over, replace the switch. Never leave jumpers installed during operation–this defeats safety features and risks unintended engagement.
Finding the Power Control Lines on a Horse Brand Motor
Start by removing the engine cowling–typically secured with two to four 10 mm bolts. On most Horse-brand horizontal-shaft models, the power control unit sits directly behind the flywheel screen. Look for a small rectangular plastic box with three or four color-coded leads: red, black, yellow, and occasionally white. The red lead is almost always the primary feed line from the battery terminal, while the black lead grounds the circuit to the engine block.
To confirm the correct leads, set a multimeter to DC 12 V and attach the probes to the red and black wires while someone turns the key to the start position. If voltage appears, these are the lines you need. On vertical-shaft motors, the connector may be tucked beneath the recoil starter housing; gently lift the entire assembly after unclipping two spring retainers to access the wires.
Trace the Wires Without Pulling Them
Follow the bundle from the control module toward the rear panel–snip any zip ties that bind the harness so you can separate each wire without straining the terminals. On equipment built after 2018, the yellow lead feeds the starter solenoid, while white (if present) powers dashboard lights or charge coils. Mark each line with a 3 cm strip of masking tape and label it with a fine-tip Sharpie to avoid cross-connecting later.
If the wires disappear under a rubber grommet, use a right-angle pick to pry it free, then thread the entire harness through the hole. Check for a thin clear sleeve covering the junction; slide it back to reveal crimped connectors–these should be gently squeezed with needle-nose pliers to ensure solid contact before reassembly.
Step-by-Step Guide to Resolving Electrical Control Issues in Yard Equipment
Disconnect the battery terminal first to prevent short circuits. Use a multimeter set to continuity mode to test the starter solenoid. Probe the large terminal (connected to the battery) and the small terminal (linked to the activation mechanism). A reading below 0.5 ohms confirms proper function; anything higher suggests a faulty solenoid requiring replacement.
Inspect the key-operated mechanism’s harness for damage. Corrosion on connectors is common–clean contacts with fine-grit sandpaper and dielectric grease. Check the wire gauge: 10-12 AWG for primary power, 14-16 AWG for signal paths. Thinner wires often fail under vibration, a frequent issue in mowers built before 2018.
- Remove the dashboard panel to access the control module. Label each wire with masking tape before detachment.
- Trace the red wire (12V input) from the battery to the module–interruptions here cause intermittent starts.
- Test the black/white wire (ground) for resistance. Ideal: <0.1 ohms. Replace if corroded or frayed.
- Verify the yellow wire (safety interlock) completes the circuit only when the parking brake engages.
If the engine cranks but won’t start, focus on the solenoid’s plunger. Apply 12V directly to the small terminal–if the plunger doesn’t retract, the solenoid coil is burned out. Measure coil resistance: 3-5 ohms is normal; infinite resistance means failure. Replace defective units with OEM parts only–aftermarket solenoids often lack proper voltage regulation.
For no-crank conditions, bypass the activation mechanism temporarily. Use a jumper wire between the battery’s positive terminal and the solenoid’s small post. If the starter engages, the issue lies in the key actuator or its wiring. Replace the entire harness if insulation is brittle–repairing individual wires rarely holds under operational stress.
Standard Connector Color Codes for Outdoor Power Equipment Start Systems
Always verify the battery’s positive terminal link uses a bold red conductor–this is non-negotiable for safety and function. The ground return cable should consistently terminate in black, though some units pair it with a thin white stripe for distinction. Smaller engines may substitute yellow or orange for the red lead on solenoid triggers, but inconsistencies appear across 12-volt vs. 24-volt variants.
Auxiliary circuits often follow a predictable pattern: purple wires typically feed the hour meter or backlit dash displays, while brown lines handle headlamp filaments or gauge illumination. Green striped cables are reserved for kill-circuit solenoids or safety interlock loops; mixing these with solid green (which indicates chassis grounding) risks immediate cutout failures. Blue wires occasionally appear on premium models, routing directly to electromagnetic PTO clutches.
Core Circuit Color Reference
| Component Interface | Primary Color | Alternative Colors | Critical Notes |
|---|---|---|---|
| Starter Motor Engagement | Red | Yellow, Orange | Fuse-protected; never splice inline without dielectric grease |
| Chassis Return Path | Black | Green | Verify continuity at engine mounting tabs |
| Accessory Power Lead | Purple | Gray | Max 5A draw; check for voltage drop under load |
Twisted-pair bundles usually indicate CAN bus communications or sensor feedback lines–keep these isolated from high-current runs. Pink or white-striped wires frequently carry low-voltage signals to fuel shutoff valves or ECU inputs; splicing these incorrectly garbles diagnostic codes. Always tag each connection point with heat-shrink labels before disassembly to avoid cross-wiring during reassembly.
Essential Equipment for Diagnosing and Restoring Garden Equipment Starter Circuits
Begin by securing a multimeter calibrated to measure resistance and voltage. For most outdoor power tools, a device with a range of 0-20V DC and 0-200 ohms will suffice. Set it to continuity mode before probing connector pins–this confirms unbroken pathways without dismantling components. Probe discrepancies below 0.5 ohms suggest faulty connections, while readings above 3 ohms indicate corrosion or broken strands requiring immediate attention.
A set of insulated probes with sharp, fine tips prevents accidental shorts when accessing tight terminal clusters. Needle-nose pliers with embedded wire strippers expedite repairs–select models with cutters rated for 16-12 AWG copper strands. Avoid using universal crimp connectors; instead, opt for heat-shrink tubing paired with a portable butane torch. This combination seals splices against moisture ingress better than vinyl or nylon alternatives.
Specialized Diagnostic Gear
Equip yourself with a load tester to simulate starter draw under operational conditions. Target specs should mirror the manufacturer’s recommended amperage–typically 50-150A for small engines–to detect voltage drops masked during standard multimeter checks. Connect it directly to the solenoid posts, observing readings while engaging the trigger mechanism. A drop exceeding 0.2V signals internal brush wear or solenoid failure.
For visual inspections, a fiber-optic inspection camera reduces guesswork. Probe beneath cowlings to identify melted insulation, cracked housings, or displaced terminal blocks–common failure zones in exposed circuitry. Pair it with a magnetized retrieval tool to recover fallen screws or washers, preventing foreign object damage. Keep a non-conductive mirror handy to reflect light into obscured engine compartments without obstructing workspaces.
Finalize preparations with dielectric grease and contact cleaner. Apply the grease sparingly to blade connectors to inhibit oxidation, focusing on weather-exposed junctions. Use the cleaner on corroded terminals–spray directly into connector housings and allow 30 seconds of dwell time before wiping. This two-stage approach restores conductivity without abrasive scraping, which risks damaging gold-plated contacts found in premium models.
