Step-by-Step Heavy-Duty Truck Power Inverter Installation Guide
Begin by selecting a 12V-to-110V converter rated for 50% above your load requirements. A 1500W unit handles 1000W sustainably, avoiding thermal stress. Identify the vehicle’s main fuse block–typically near the battery–and trace the heavy-gauge cable supplying the starter relay. Avoid splicing into the alternator’s output directly; instead, connect to the battery-positive terminal through a 100A fuse, placed within 18 inches of the battery to prevent fire hazards.
Ground the converter’s negative terminal to the chassis using a 4 AWG cable, terminating at a dedicated unpainted bolt adjacent to the battery’s negative post. Measure resistance between the ground point and the chassis–values above 0.1 ohms indicate corrosion or loose connections. Use dielectric grease on all terminal surfaces to inhibit oxidation. For added stability, route the DC input through a solenoid relay triggered by the ignition circuit, preventing parasitic drain when the vehicle is off.
Position the AC output wires (10 AWG minimum) away from rotating components and sharp edges. Secure them with zip ties spaced every 6 inches, avoiding stretch tension. Install a 15A circuit breaker within 12 inches of the converter’s AC output to protect against short circuits. Test the system by powering a 60W lamp: fluctuations exceeding ±5V suggest incorrect grounding or insufficient alternator capacity. Upgrade the alternator to a 200A model if sustained loads exceed 70% of the converter’s rating.
For remote monitoring, integrate a shunt-based ammeter between the battery and converter input. Configure it to display both charging and load currents, ensuring the net current remains positive during operation. If the vehicle operates in cold climates, add a battery heater to the negative terminal connection–lithium-ion units are vulnerable to voltage drops below 10V, reducing lifespan by 40%. Document all cable runs with photographs for troubleshooting.
Guide to Connecting a Heavy-Duty DC-AC Converter in Commercial Vehicles
Start by locating the vehicle’s battery bank, typically found in the engine bay or beneath the cab. Ensure the battery terminals are clean and free of corrosion–use a wire brush or baking soda solution if oxidation is present. Secure direct access to the positive (+) and negative (-) posts, as these will serve as the primary connection points for your conversion unit. Avoid tapping into smaller auxiliary circuits, as they lack sufficient capacity for sustained loads.
Use 2/0 AWG (or thicker) copper cables for the main feed lines, as undersized wires overheat under load. Measure the distance from the battery to the installation site–each foot of cable introduces voltage drop. For a 1,500W unit, expect a drop of ~0.1V per foot at peak draw; shorten runs or upsize cables to compensate. Terminate cables with correctly crimped lugs and heat-shrink tubing to prevent moisture ingress.
Install a Class T or ANL fuse (rated 250-300A for 2,000W units) within 7 inches of the battery’s positive terminal. This protects against catastrophic failures and complies with NFPA and UL standards. Some systems integrate a manual disconnect switch–mount this in an accessible yet protected location, such as beneath a side panel or behind a removable cover.
For vehicles with sensitive electronics (e.g., ECUs, telematics), add a 400–600A battery isolator between the converter and the starter system. This prevents voltage sag during operation from interfering with critical components. The isolator should be installed upstream of the main fuse to ensure full protection coverage.
Ground the negative line directly to the vehicle’s chassis, not the battery’s negative post. Choose a clean, unpainted metal surface with a cross-sectional area of at least 1.5x the feed cable’s gauge. Use a star washer to penetrate surface coatings, and apply dielectric grease to inhibit corrosion. Test continuity with a multimeter before finalizing connections.
If integrating with a pre-existing 12V system, avoid daisy-chaining to other accessories. Dedicate a circuit breaker or fused distribution block (rated for 125% of the converter’s maximum draw) to isolate the unit. Label all connections clearly–use weatherproof tags or colored heat-shrink tubing (e.g., red for positive, black for negative) to simplify future diagnostics.
Ventilation is critical; mount the unit in a well-ventilated area, away from fuel lines, hydraulic hoses, or exhaust components. Leave at least 3 inches of clearance around the housing to allow heat dissipation. For enclosed installations, add a 12V cooling fan (drawing
After completing the physical connections, verify polarity with a multimeter before energizing the system. Test under load (e.g., a resistive heater or small appliance) to confirm stable output. Monitor input voltage during initial operation–if it dips below 11.5V at idle, the vehicle’s alternator may require upgrading to support the additional demand.
Selecting Optimal Onboard Voltage Converters for Heavy Vehicles
Match the device’s continuous load rating to your vehicle’s auxiliary battery capacity–never exceed 80% of the battery’s CCA value for sustained operation. For example, a 200Ah lithium-ion battery paired with a 2000W unit requires 160A draw at peak; ensure cable gauge (4AWG minimum) and fuse ratings (250A) align precisely. AGM and lead-acid batteries degrade faster under deep cycles, so opt for lithium models with built-in BMS if runtime exceeds 4 hours daily. Verify the converter’s idle consumption–units should not draw more than 0.5A when inactive to prevent parasitic drain.
Critical Specifications Comparison
| Parameter | Recommended Value | Failure Risk if Ignored |
|---|---|---|
| Peak Surge Rating | 2x continuous load (e.g., 4000W for a 2000W model) | Tripped breakers during compressor startup |
| Input Voltage Range | 10.5–16V DC (12V systems) | Shutdown during engine cranking or alternator fluctuations |
| THD (Total Harmonic Distortion) | <3% for sensitive electronics | Premature failure of medical or gaming devices |
| Efficiency at 50% Load | >88% (pure sine wave) | Excessive heat, reduced battery lifespan |
Prioritize units with synchronized low-voltage cutoff (10.5V ±0.2V) and high-temperature auto-shutdown (70°C). Modified sine wave converters suffice for resistive loads (lights, heaters) but corrupt inductive devices (laptops, CPAP). For fleets with telematics, choose models featuring RS-232/USB data ports to log voltage sag events. Always mount near the battery bank with
Connecting Your Vehicle’s Energy Converter to the Auxiliary Cell: A Precise Guide

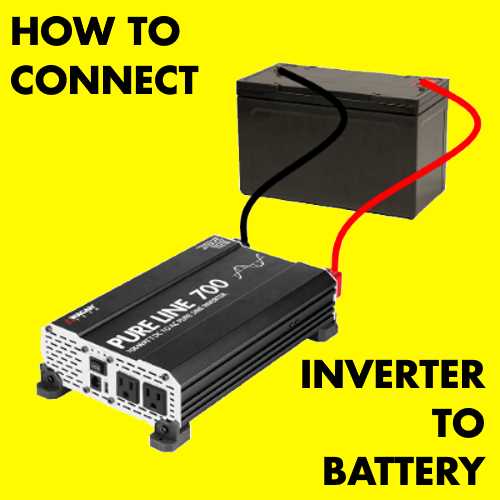

Begin by selecting heavy-gauge cables–minimum 4 AWG for units under 1000W, thicker for higher loads–to prevent voltage drop and overheating. Strip ½ inch of insulation from both ends, then crimp terminal lugs tightly using a hydraulic crimper for secure contact. Attach the positive (red) cable first to the converter’s input stud, followed by the negative (black) to the housing ground or dedicated bolt; ensuring reverse polarity protection by double-checking connections with a multimeter before finalizing.
Mount an inline fuse holder within 7 inches of the auxiliary cell’s positive terminal, matching the fuse rating to the converter’s peak surge (e.g., 150A for a 2000W unit). Route cables away from moving components, sharp edges, and heat sources, securing them every 12 inches with automotive-grade clamps to avoid chafing. Use dielectric grease on terminals to inhibit corrosion, and split loom tubing to shield exposed sections–especially near the chassis or exhaust paths.
For installations demanding prolonged high-draw (e.g., refrigerators, tools), add a battery isolator or relay to prevent deep discharging. Test under load before closing the hood: verify 12.6V+ at the converter input, stable output (120VAC ±5%), and no excessive heat buildup at connections after 10 minutes of operation. If oscillations occur, revisit ground paths–attach a dedicated 4 AWG strap directly to the vehicle’s frame, bypassing painted or anodized surfaces.
Strategic Fuse and Circuit Protector Positioning for Onboard Electrical Conversions
Install the primary protective device within 18 inches of the battery terminal. This minimizes the exposed conductor length, reducing fire risk if a short occurs. Use a Class T fuse rated at 125% of the continuous load current–calculating the exact value from the appliance’s continuous and peak wattage ratings. For a 1500-watt unit at 12 volts, this translates to 156 amps, requiring a 200-amp fuse.
Secondary safeguards should sit immediately upstream of each sensitive load branch. ANL fuses work well here, offering compact size and high interrupt capacity. Position them no further than 12 inches from the conversion box output terminals; longer runs necessitate heavier gauge cables to offset voltage drop, which defeats the purpose of localized protection.
Add a manual reset breaker for transient-prone circuits. Place it at the halfway point of extended cable runs (over 6 feet) to segment fault zones. A 30-amp breaker serves most 12-volt DC auxiliary loads like LED work lights, while a 100-amp breaker suffices for AC-driven compressors. Always match breaker trip curves to fuse blow characteristics to prevent nuisance trips.
Secure protective devices in a waterproof junction box mounted above the chassis rail. NEMA 4X enclosures resist corrosion from road salts and prevent dust ingress. Use spade-type fuse holders for Class T units and bolt-on ANL fuses; crimp ring terminals with adhesive-lined heat shrink ensure vibration-proof connections.
Magnetic circuit breakers outperform thermal types in mobile settings. Their instantaneous trip mechanism eliminates thermal delay under repeated surge conditions. For a 2000-watt DC-to-AC unit, select a breaker with a 250-amp frame and a 200-amp trip coil–this aligns protection with sustained current draw while tolerating brief overloads up to 400 amps during motor starts.
