Complete Guide to Twist Throttle Wiring Connections for Electric Bikes

For precise control module integration, connect the variable resistor output (typically 1–4 kΩ) to the ECU’s signal pin using shielded 18–22 AWG copper wire. Ground the outer potentiometer terminal directly to the vehicle’s chassis via a dedicated 10–12 AWG return path, ensuring resistance does not exceed 0.5 Ω to prevent voltage drop.

Power the handgrip sensor with a regulated 5V (±0.2V) supply from the ignition circuit. Use a 1N4007 diode in series to protect against reverse polarity, and a 100 nF capacitor across the power and ground terminals to filter high-frequency noise. Test the signal wire with a multimeter: at idle, voltage should stabilize at 0.8–1.2V; full rotation must reach 4.0–4.8V without fluctuations.

For aftermarket motor controllers (e.g., Kelly KBS-X or VOTOL EM-150), match the analog input impedance to 10 kΩ minimum. If the controller expects a pull-down configuration, add a 2.2 kΩ resistor between the signal wire and ground to avoid floating voltage. Verify the throttle response curve in diagnostic mode before final assembly–deviation >0.3V at any point indicates miswiring or faulty potentiometer.

When routing cables, maintain a 5 cm separation from high-current lines (e.g., battery or motor leads) to avoid induced interference. Secure connections with solder and heat-shrink tubing; crimp connectors degrade under vibration. Label each terminal with its function (e.g., “POT-SIG,” “ECU-IGIN”) using adhesive markers for future servicing.

Common pitfalls include reversed potentiometer terminals (swapping idle/full-throttle voltages) and insufficient grounding. If the system exhibits erratic acceleration, measure resistance across the potentiometer wiper and track–values outside 50 Ω–3.9 kΩ suggest wear and require replacement. Always disconnect the battery before modifying circuits to prevent short circuits.

Controller Handle Connection Guide

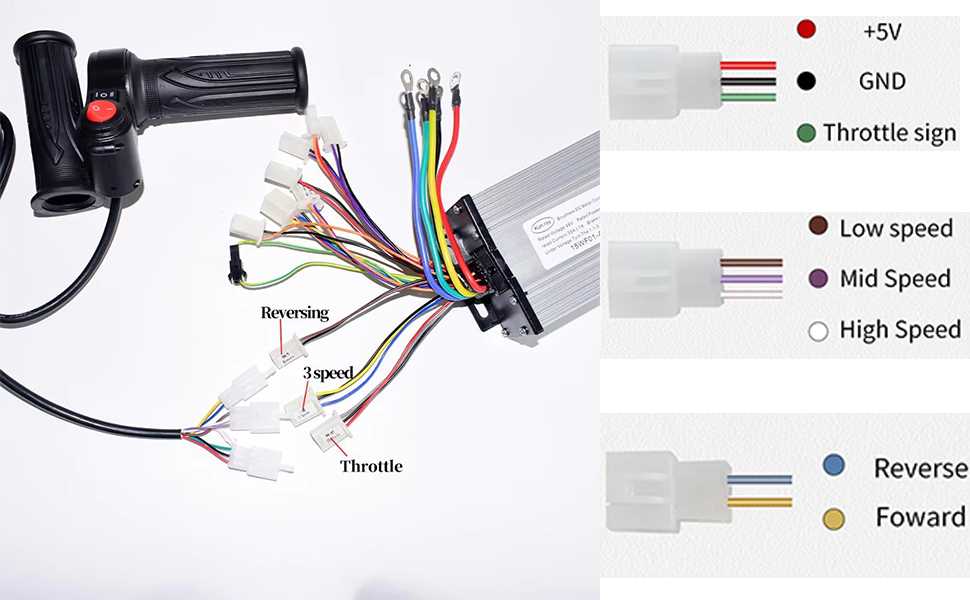

Connect the grip sensor’s red wire to the 5V terminal on your motor controller or battery pack, ensuring polarity matches–reversed leads risk damaging the potentiometer. The black lead grounds directly to the controller’s negative terminal; avoid daisy-chaining grounds through other components to prevent voltage drop interference. Yellow or white wires typically carry the signal–route this to the controller’s corresponding input, often labeled “THR” or “SIG.” For brushless systems, verify the controller’s pinout: some require an additional 1KΩ resistor between signal and ground to stabilize readings.

Use this reference for common handle configurations:

Component Type	Wire Color (Standard)	Connection Point	Voltage (V)
Potentiometer	Red (+)	Controller +5V	4.8–5.2
Potentiometer	Black (–)	Controller GND	0
Signal Output	Yellow/White	Controller THR	0.8–4.2
Hall Effect	Green	Controller VR	Variable (0–5)

Troubleshooting Voltage Irregularities

If the motor stutters at partial engagement, measure the signal wire’s output with a multimeter–values below 0.5V or above 4.5V indicate a faulty grip or misconfigured controller. For hall-effect units, ensure the magnet aligns perpendicular to the sensor within ±2mm; misalignment skews readings by 30–50%. Replace frayed wires with 18AWG silicone-coated leads to handle 10A surges–standard hookup wire melts under sustained load.

Pinpointing Conductors in a Rotary Handle Interface

Begin by securing a multimeter and setting it to continuity mode or low-voltage DC (under 5V). Probe the connector’s contacts while activating the grip–most systems include three primary pathways: a live input (typically 5V or 12V), a signal line returning a variable voltage (0.8V–4.2V), and a ground return. If readings fluctuate with handle movement, the signal lead is identified; constant voltage indicates power, while zero volts marks the ground.

• Red or orange conductor: power delivery (check for steady 4.5V–5.5V)
• Green or blue wire: variable signal (watch for voltage swing)
• Black or brown strand: common return (near 0V)

Absence of expected voltages suggests a disrupted rail, reversed polarity, or a faulty contact–verify the harness integrity before proceeding.

Isolating Non-Standard or Auxiliary Leads

Advanced units integrate additional circuits for features like cruise, motor braking, or LED indicators. Probe secondary pins–these may yield pulsed signals (100–500Hz), momentary 3.3V spikes, or switched grounds. Measure against chassis ground; floating voltages (e.g., 1.5V without reference) hint at unused auxiliary inputs or parasitic noise. Cross-reference any proprietary pinouts in service bulletins–custom color coding deviates beyond the red-green-black baseline.

1. Clip the multimeter’s negative probe to the ground pin
2. Touch each remaining contact while rotating the grip fully
3. Note voltage behavior (linear rise, plateau, hysteresis)
4. Compare against manufacturer specs–divergences expose damaged tracks

Ignore leads exhibiting clipped waveforms (below 0.5V or above 4.8V); these signal internal component failure.

Quick-Reference Condensed Checks

Pre-assembled plugs often embed recessed sockets; use a straightened paperclip to bridge contacts temporarily without damaging the connector body. For sealed assemblies, slice the insulation sleeve lengthwise–avoid cutting deeper than 0.3mm to preserve waterproofing. Label each conductor with heat-shrink markers denoting measured function; adhesive tape migrates under vibration. If voltage jumps erratically, suspect oxide buildup–clean terminals with a fiberglass pen and reflow flux-cored solder (Sn60/Pb40) for corrosion-resistant joints.

How to Wire a Rotary Handle Control to Your Electric Bike Electronics

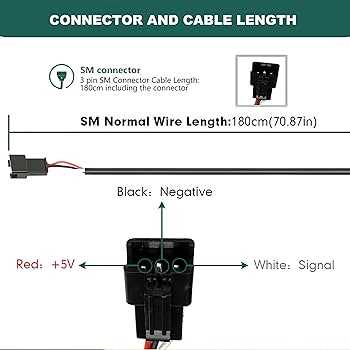

Locate the 3-wire cable from the rotary handle–typically red (5V+), black (ground), and signal (often green or yellow). Match these to your motor driver’s input connections: power to power, reference to reference, and the adjustable output to the controller’s speed input. If colors differ, use a multimeter to verify continuity–probe the handle’s connector while turning it to detect the varying voltage wire.

Before connecting, disconnect the battery to avoid short circuits. Secure the wires with insulated ferrules or solder joints, then cover each contact with heat-shrink tubing. Twist connectors risk poor contact under vibration; soldering ensures durability. If your system uses a hall sensor, confirm its voltage range (usually 1–4V) aligns with the controller’s acceptable input–adjust trimpots if necessary.

Required Tools and Components

• Crimping tool or soldering iron
• Heat-shrink tubing
• Wire strippers
• Multimeter (set to DC voltage)
• Insulated spade connectors (optional)
• Small screwdriver (for controller terminals)

Identify the controller’s speed input terminal–consult your model’s manual, as some label it “THR” or “SPEED.” If your handle’s signal wire outputs 0.8–2.5V, ensure the controller expects this range; mismatch can cause erratic acceleration. For controllers with built-in LCDs, disable pedal-assist first to isolate the handle’s effect during testing. Failure to do so may confuse calibration.

Attach the handle’s mount to the handlebar with clamps, positioning it for comfortable grip rotation. Route the cable along the frame using zip ties, avoiding sharp edges or moving parts. Leave slack near the controller to allow future adjustments. If the cable rubs against metal, wrap it in spiral wrap or electrical tape to prevent wear.

1. Power off the system and disconnect the battery.
2. Strip 3–5mm of insulation from each wire.
3. Insert wires into controller terminals: red to 5V+, black to ground, signal to speed input.
4. Tighten terminal screws securely–loose connections cause intermittent response.
5. Reconnect the battery and turn the handle gently while observing the multimeter.
6. Confirm voltage climbs smoothly from ~1V at idle to ~2.5V at full rotation.
7. If voltage spikes or drops, recheck solder joints or ferrule crimps.

Test the setup on a stand or with the bike’s rear wheel elevated. Turn the handle gradually–jerky acceleration suggests noise interference; add a 0.1μF capacitor between signal and ground to filter spikes. If the motor cuts out at full rotation, the handle’s voltage may exceed the controller’s limit–reduce the maximum output by adjusting a trimmer on the handle (if available) or reprogramming the controller.

Troubleshooting Common Issues

• No response: Verify battery voltage (minimum 36V). Check for reversed polarity or broken wires.
• Intermittent power: Inspect terminals for corrosion. Reseat connectors with contact cleaner.
• Full throttle at idle: Signal wire may be shorted to 5V–isolate and test continuity.
• Backward rotation: Swap two of the three motor phase wires at the controller.
• Overheating: Reduce acceleration ramp settings in the controller’s firmware if adjustable.

Frequent Errors in Handlebar Grip Circuit Setup and Correction Methods

Connecting power and signal cables in reverse order fries control modules. Always verify pin assignments with a multimeter before plugging anything in–grey to +5V, brown to ground, white or green to signal. Mismatched voltages (e.g., feeding 12V into a 5V input) destroy sensors instantly; double-check regulator specs if splicing direct battery lines.

Skipping the kill-switch loop creates safety hazards. Integrate a normally-open pushbutton between the grip signal wire and ground. Pressing it drops the signal line to zero, cutting engine output–test continuity before sealing connections.

Insufficient wire gauge causes voltage drop, leading to sluggish responsiveness. Use at least 18 AWG for 5V circuits, 14 AWG for 12V. Crimp terminals with a hydraulic press; solder alone fails under vibration.

Ignoring EMI shielding invites erratic behavior. Route signal wires perpendicular to ignition coils and ECU cables, keeping them at least 10 cm apart. Wrap sensitive lines in braided copper sleeve grounded at one end.

Overlooking connector moisture seals allows corrosion. Apply dielectric grease liberally to female contacts before mating. Shrink tubing alone isn’t enough–use liquid electrical tape on exposed splices if riding in wet conditions.

Assuming all grips are cross-compatible burns out incompatible controllers. Verify hall-effect vs. potentiometer types before swapping. Potentiometers need a constant voltage source; hall-effect sensors require a 5V regulated line.

Failing to calibrate after installation causes incorrect idle or full-throttle settings. Most ECUs require a zero-point reset: turn on the system, rotate the grip fully without twisting, then follow manufacturer-specific reset procedures (usually holding a button for 5 seconds).

Loose handlebar clamps cause wire chafing. Secure cables every 10 cm with nylon zip ties, leaving slight slack for bar rotation. Check all anchor points every 500 km–vibration loosens mounts over time.
