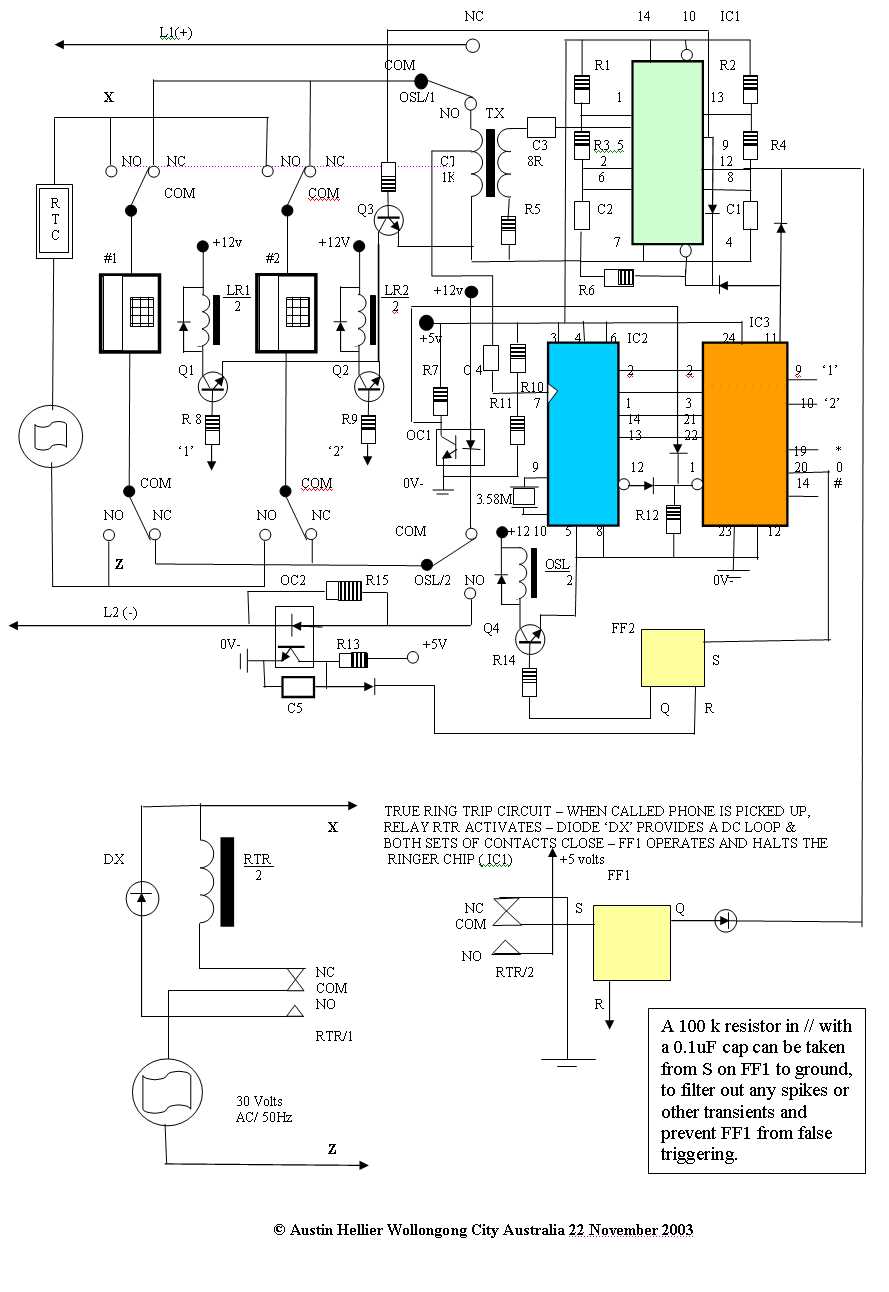

Build a Simple Bidirectional Intercom System Using Basic Circuit Diagrams

Start with a dual-channel amplifier configuration using LM386 ICs for each station. Connect the input of the first IC to a microphone preamp with a 10kΩ resistor for signal conditioning, followed by a 0.1μF coupling capacitor to block DC offset. The output of the LM386 should feed into a 220μF electrolytic capacitor to drive an 8Ω speaker at maximum efficiency. Mirror this setup for the second station but reverse the audio paths to enable full-duplex operation. Ensure ground isolation between channels with a 1N4007 diode to prevent feedback loops.

For power distribution, use a single 9V supply split between stations via a center-tapped transformer or two 4.5V batteries in series. Add a 100μF smoothing capacitor across the power rails to stabilize voltage fluctuations caused by speaker impulses. Wire a push-to-talk (PTT) switch–preferably a momentary SPST–between the ground and the input stage to mute the receiving channel during transmission. Opt for shielded cables for all audio connections to minimize RF interference.

Avoid common pitfalls like shared ground loops between stations or insufficient current-limiting resistors (use 47Ω resistors in series with LEDs for status indicators). Test impedance matching at each stage; speakers below 4Ω will overheat the LM386. If range exceeds 50 meters, amplify signals with a second stage using BC547 transistors before transmission. For noise suppression, insert a 1kHz low-pass RC filter (1kΩ resistor + 0.1μF capacitor) at the output of each channel.

Label every component on the schematic with precise values–ambiguity leads to debugging failures. Document the polarities of electrolytic capacitors and diode orientations. Verify signal flow with an oscilloscope; a clean square wave at 1kHz confirms proper amplification. Schematic software like KiCad ensures trace accuracy, but manual sketching works if all connections are cross-checked.

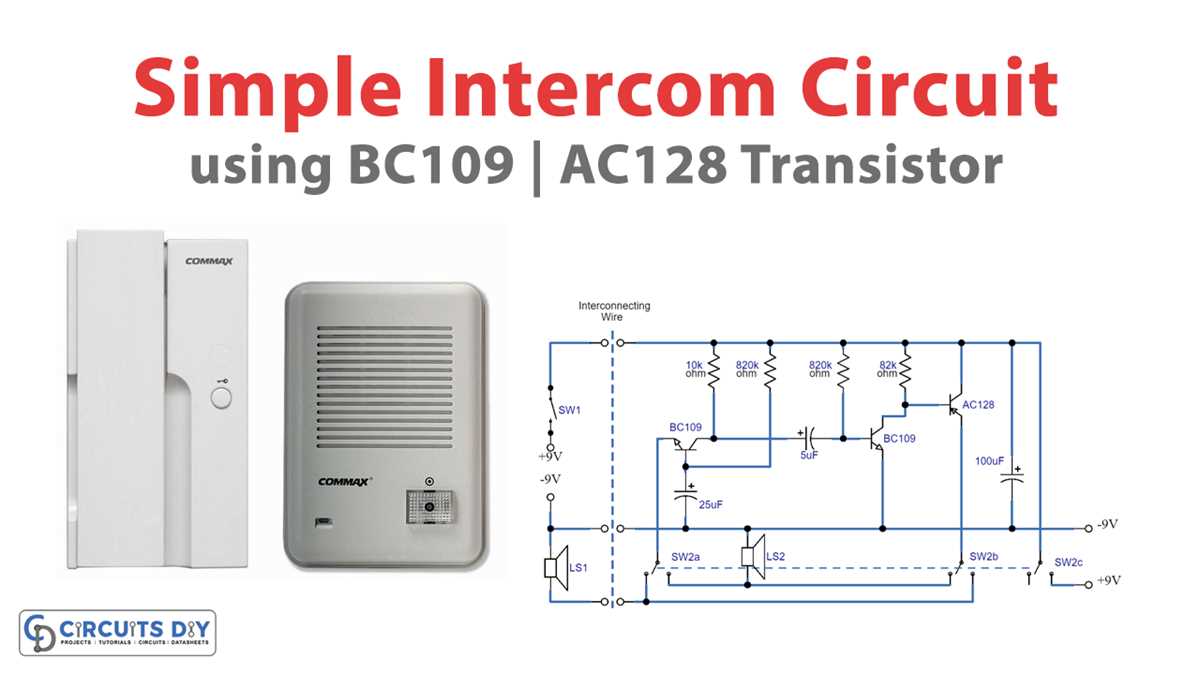

Dual-Channel Voice Communication System Blueprint

Select a push-to-talk (PTT) switch rated for at least 5A current handling to avoid overheating during prolonged use. Micro-switches from brands like Omron or TE Connectivity provide reliable contact durability, typically exceeding 100,000 cycles under load.

Opt for a matched pair of electret microphones with a sensitivity range of -42dB to -38dB for balanced audio capture. Preamp transistors like the 2N3904 or BC547 should be positioned within 10cm of the mic capsule to minimize signal degradation, using a 10kΩ collector resistor for stable gain.

Amplifier Stage Configuration

Construct the audio amplifier using a dual-op-amp IC such as the LM358, with each channel dedicated to one direction of communication. Set the gain via a 1MΩ feedback resistor (Rf) paired with a 10kΩ input resistor (Rin), yielding a voltage gain of 100 (Av = 1 + Rf/Rin). Coupling capacitors (47µF electrolytic) should isolate DC bias while allowing AC signals to pass.

Power the op-amps with a regulated 12V supply, ensuring capacitors (0.1µF ceramic) are placed close to the IC’s power pins to filter noise. For louder output, replace the LM358 with a TDA2030A, which delivers 15W RMS into 4Ω speakers with minimal distortion (≤0.5% THD).

Signal Routing and Switching

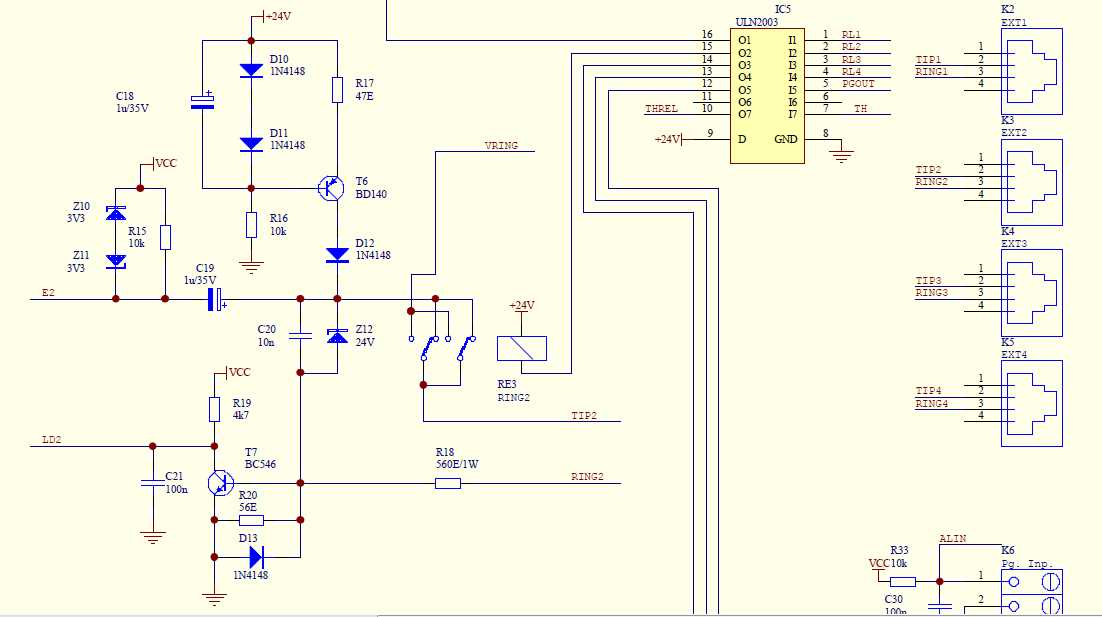

Implement a double-pole, double-throw (DPDT) relay like the Omron G5LE to toggle between transmit and receive modes. The relay coil voltage should match your system’s supply (e.g., 12V), drawing ~30mA. Wire the common terminals to the amplifier output, while the normally closed (NC) and normally open (NO) contacts route signals to the respective speaker or microphone path.

Avoid direct connection of low-impedance loads (e.g., 8Ω speakers) to the mic input, as this can cause feedback. Instead, use a 1kΩ series resistor followed by a 1µF coupling capacitor to block DC while preserving audio integrity. For outdoor deployments, add a varistor (e.g., 14D471K) across the relay contacts to suppress voltage spikes from inductive loads.

Test signal integrity with an oscilloscope before final assembly. Apply a 1kHz sine wave at 100mV RMS to the mic input and verify the output waveform remains undistorted, with amplitude scaling predictably based on the gain settings. Check for crosstalk by measuring the voltage at the inactive speaker terminal during transmission–it should not exceed 10mV RMS.

For extended cable runs (over 10m), use shielded twisted-pair wire to reduce electromagnetic interference. Terminate connections with gold-plated RCA or XLR connectors for corrosion resistance. In high-noise environments, insert a ferrite bead (e.g., Fair-Rite 2643002402) on the power input leads to attenuate RF interference above 1MHz.

Key Parts for a Duplex Communication Device

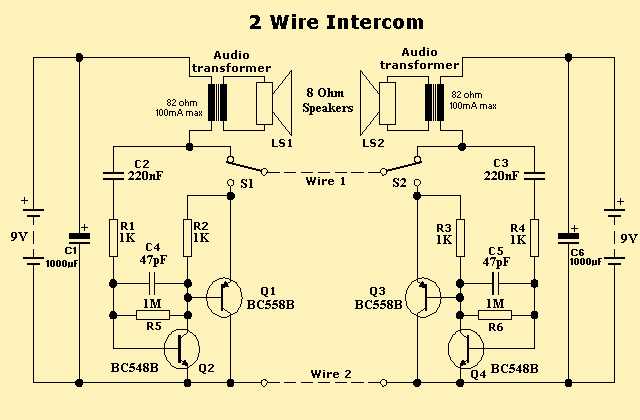

Begin with a pair of 8-ohm speakers, rated for at least 0.5W. These handle both transmission and reception, eliminating the need for separate microphones. If clarity is critical, opt for 3-inch full-range drivers–they reduce distortion at mid frequencies, where human speech peaks (800Hz–4kHz). Avoid piezoelectric buzzers; their frequency response is too narrow.

Core amplification requires a dual-channel audio op-amp like the LM386 or TDA2822. The LM386 operates at 9V, delivering 0.5W per channel–sufficient for short-range setups (≤10m). For longer distances (≥20m), switch to the TDA2822: it runs on 3V–12V, outputs 1W, and includes built-in thermal protection. Both chips require minimal external components–just a 10μF coupling capacitor and a 0.1μF bypass capacitor per channel to filter noise.

Power and Switching Essentials

Use a DC power source between 6V and 12V. A 9V alkaline battery works for prototyping, but for permanent installations, a 12V wall adapter (e.g., Mean Well GS12E) ensures stability. Include a DPDT toggle switch (e.g., C&K 7201) to reverse polarity between talk/listen modes. This eliminates the need for complex relays–just wire the switch directly to the op-amp’s output pins.

• Electrolytic capacitors: 100μF (25V) for power smoothing, 47μF for audio coupling.
• Resistors: 10kΩ (biasing), 1kΩ (gain control for LM386, set to 200x via pins 1/8).
• Diodes: 1N4007 for reverse polarity protection; BAT85 Schottky diodes if using solar charging.
• Connectors: 3.5mm audio jacks for modularity, or solder wires directly for fixed setups (18AWG for minimal resistance).

Optional but Useful Additions

For outdoor use, replace standard wires with shielded twisted pair (Belden 9841) to reduce EMI. If distance exceeds 50m, integrate a line driver IC like the MAX485 for differential signaling–boosting range to 1,200m over Cat5 cable. Add a 100Ω potentiometer per channel to adjust volume dynamically, or use fixed resistors if space is constrained. For battery-powered units, a 5V buck converter (e.g., MP2307) maximizes efficiency from 12V supplies.

Step-by-Step Wiring Instructions for Connecting Microphones and Speakers

Select shielded audio cables (e.g., RG-59 or balanced XLR) to minimize interference between components. Strip 5–7 mm of insulation from each wire end using wire strippers, ensuring no copper strands are severed. Twist exposed strands lightly to prevent fraying.

Connect the microphone’s positive (+) lead to the amplifier’s input terminal marked “MIC IN” or “AUX IN,” typically red or white. Secure the negative (–) lead, usually black, to the adjacent ground terminal. For dynamic mics, ensure impedance matches the amplifier (4–16 ohms for passive models; 600 ohms for condenser types requiring phantom power).

Attach speakers by matching polarity–red (+) to “+” on the amplifier’s output, black (–) to “–”. Use banana plugs or spade connectors for secure mechanical fit; avoid loose connections risking signal loss or short circuits. For 8-ohm speakers, verify the amplifier’s minimum impedance (never pair below spec, e.g., 4-ohm speakers with a 6-ohm minimum amp).

Route cables away from power lines, transformers, or fluorescent lights to reduce hum. Use cable ties to bundle wires every 30–50 cm, preventing physical strain on terminals. Ground loops? Connect all chassis grounds at a single point using a star topology instead of daisy-chaining.

Testing Signal Flow

Activate the system at low volume. Speak into the mic; adjust gain until waveform peaks at –6 dB on the amplifier’s VU meter. No meter? Increase volume until feedback occurs, then reduce by 3 dB. Switch speaker wires if output distorts–incorrect polarity inverts phase, canceling bass frequencies.

For echo cancellation, mount speakers opposite mics, angled 15–30 degrees downward. Place mics 30–50 cm from the sound source for clarity; beyond this range, ambient noise dominates. Condenser mics need 48V phantom power–enable via the amplifier’s phantom switch or external PSU.

Finalize wiring with solder joints if connections vibrate (e.g., mobile setups). Apply heat-shrink tubing over exposed terminals to insulate against oxidation. Label each cable end with color-coded tape for future troubleshooting.

Periodically check resistance between ground and signal wires with a multimeter–values above 1 ohm indicate degraded connections. Clean terminals with contact cleaner every 6 months if deployed in humid environments.

Power Supply Options and Voltage Requirements

Use a 9V DC adapter as the primary power source for most duplex communication systems. Ensure the adapter delivers at least 500mA to support both audio transmission and reception without distortion. For portable setups, pair it with a rechargeable 9V lithium-ion battery, rated for 600mAh or higher, to maintain consistent performance during extended use.

For dual-station configurations, regulate power with a LM7809 voltage regulator to step down higher input voltages (12V-18V DC) to a stable 9V. Add a 1000µF electrolytic capacitor across the output to filter voltage spikes, preventing audio noise. If using a 12V lead-acid battery, include a low-dropout regulator (LDO) like the MIC29302 to minimize power loss.

Avoid unregulated wall adapters below 8V–they fail under load, causing intermittent dropouts. Test voltage under load with a multimeter; deviations beyond ±0.2V indicate poor regulation. For outdoor installations, use a solar-charged 12V battery with a buck converter set to 9V output, paired with a 5W solar panel for trickle charging.

Dual-channel systems with separate amplifiers require isolated power rails. Use a center-tapped transformer (12V AC output) and a full-wave bridge rectifier to generate ±9V rails. Include 1N4007 diodes for reverse polarity protection. Avoid sharing a single power supply with RF transmitters–separate feeds prevent ground loops.

Microcontroller-based units need 3.3V or 5V alongside the main 9V rail. Add a AMS1117-5.0 LDO for clean logic power, with 0.1µF ceramic capacitors on both input and output to suppress high-frequency noise. Battery-operated nodes should include a power switch with a 1A fuse to prevent short-circuit damage.

High-impedance speaker loads (>8Ω) draw 20-30% more current than standard 4Ω drivers. Match power supplies to peak transient loads by selecting adapters with 20% headroom–for example, a 500mA load requires a 600mA minimum supply. Switched-mode power supplies (SMPS) are compact but may introduce audible whine; opt for linear regulators if audio clarity is critical.

For PoE (Power over Ethernet) setups, use an IEEE 802.3af-compliant injector with a DC-DC converter to step 48V down to 9V. PoE budgets are limited to 15.4W; calculate total load (including network switches) to avoid brownouts. Wired installations benefit from 24V AC doorbell transformers, rectified with a KBPC2504 bridge, yielding ~34V DC–then regulate to 9V with a LM7809.

Emergency backup solutions include 9V alkaline battery packs (6x AA cells in series) for 1-2 hours of runtime. For 24/7 reliability, combine a lead-acid battery (7Ah minimum) with a charger/maintainer like the NOCO Genius G7200. Add a low-voltage disconnect circuit (e.g., MAX8212) to prevent battery damage from deep discharge. Always verify compatibility with the system’s sleep/standby current–some designs draw 50mA or more even when idle.
