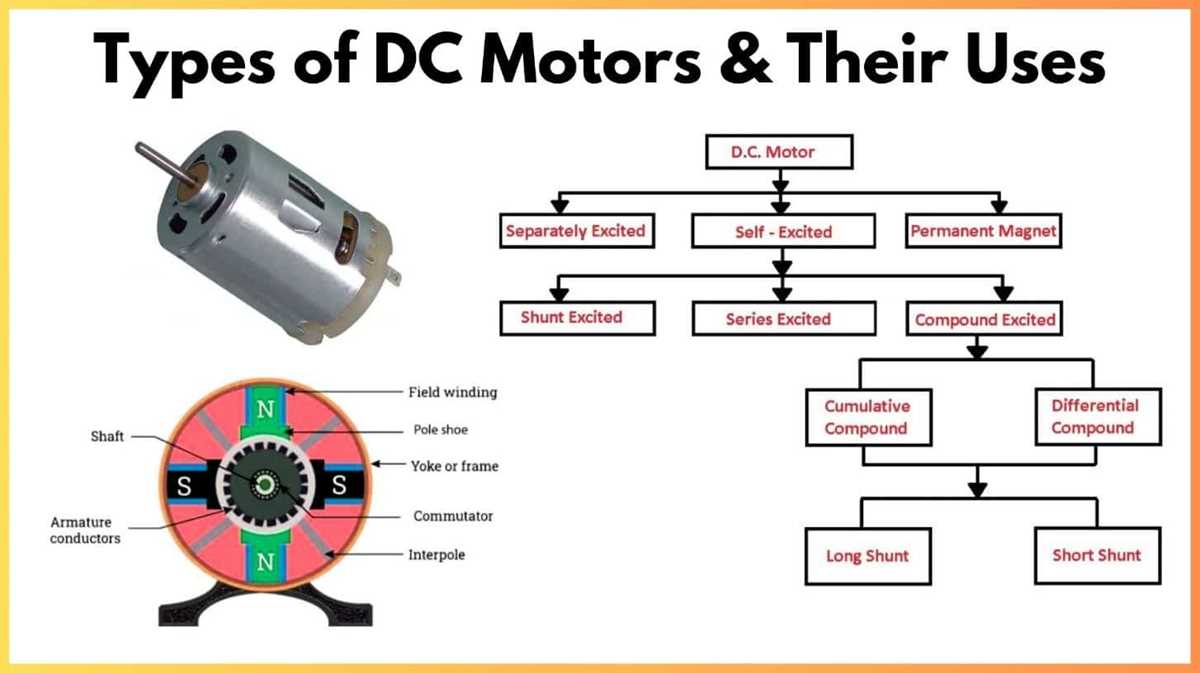

Complete Guide to DC Motor Circuit Diagrams and Their Operational Types
Begin with a separately excited setup–this arrangement isolates the armature and field windings, providing precise torque control at low speeds. Use a rheostat in series with the field winding to adjust excitation current, ensuring stable operation under varying loads. Keep field voltage below 20% of armature voltage to prevent excessive flux saturation, which degrades efficiency.
For applications requiring self-starting capability, implement a shunt-wound configuration. The field coils connect parallel to the armature, maintaining consistent speed under light loads. Add a by-pass resistor (5-10% of armature resistance) to divert inrush current during startup, reducing stress on brushes and commutator segments. Monitor brush wear–replace when gap exceeds 0.5mm to avoid arcing.
In high-torque, low-speed scenarios, opt for a series-wound layout. The field windings share current with the armature, delivering maximum torque at stall. Integrate a current-limiting relay (set to 150% of rated current) to prevent runaway conditions during sudden load changes. Avoid no-load operation–this configuration lacks speed regulation and risks overspeed damage.
The compound-wound system combines shunt and series fields, balancing speed stability and torque response. For cumulative compounding, ensure series field polarity matches the shunt field to avoid flux cancellation. Use a diverter resistor (adjustable 0-5Ω) across the series field to fine-tune performance. Ideal for lifts and conveyors–test under 75% load to verify stability before full deployment.
For bidirectional control, incorporate an H-bridge arrangement using four power switches (e.g., MOSFETs rated 1.5× the max current). Drive the gates with PWM signals (20-50 kHz) to minimize switching losses. Include flyback diodes (fast recovery, 1N5822 or equivalent) across each switch to clamp inductive kickback. Use dead-time (1-2µs) in control logic to prevent shoot-through.
When designing for adjustable speed, pair the drive with a chopper circuit. A buck converter (with a 50µH inductor and 1000µF capacitor) reduces voltage while maintaining torque. Set the switching frequency between 10-20 kHz–lower frequencies increase ripple, while higher frequencies raise core losses. Include a snubber circuit (RC network: 10Ω + 0.1µF) across the switch to suppress voltage spikes.
Verify all connections with a megohmmeter (minimum 1MΩ insulation resistance). Check commutator segments for uniform wear–regrind if groove depth exceeds 0.1mm. Apply silver graphite brushes for high-current applications; use copper graphite for lower currents. Ground the frame via a dedicated path (≤0.1Ω impedance) to prevent stray currents.
Variations of Direct Current Electrical Schematics
For permanent magnet configurations, ensure the wiring connects the armature directly to the power source with a single rheostat in series for speed regulation. Avoid shunt connections here–mismatched voltage drops will cause inefficient torque loss. Use thick-gauge wire (18 AWG minimum) to handle startup currents exceeding 5x nominal ratings. Include a flyback diode (1N4007) across the rotor terminals to suppress voltage spikes during commutation; failure risks brush erosion within 50 operational hours. Test polarity before full power application–reversed leads reverse rotation, potentially damaging gear-driven loads.
Key Schematic Categories
- Series-Wound: Series the field windings and rotor; expect high startup torque but unstable speeds under light loads. Add a centrifugal switch to disconnect field coils above 75% rated RPM to prevent runaway conditions. Monitor armature temperature–continuous stall currents degrade windings at 150°C.
- Shunt-Wound: Parallel field coils and rotor; maintain consistent RPM across varying loads (±3% regulation). Use separate power supplies if field resistance exceeds 50Ω to avoid voltage sag. Install a thermal cutout at 120°C for overload protection.
- Compound-Wound: Combine series and shunt fields for balanced torque/speed characteristics. Prioritize short-shunt (series coil outside parallel path) for >1HP applications–long-shunt variants introduce instability above 3000 RPM. Verify magnetic saturation points with a gauss meter; fields should not exceed 1.2T to prevent core losses.
- Brushless Alternatives:
Replace commutator assemblies with Hall-effect sensors and three-phase inverters. Phase sequences must align with rotor position sensors (±5° tolerance); misalignment causes torque ripple >10%. Use MOSFET drivers rated for 1.8x stall current to handle regeneration spikes. Capacitor snubbers (0.1µF) on drive outputs suppress EMI exceeding FCC Class B limits.
Always match wire gauges to expected current density (4–6 A/mm² for continuous duty). For 24V systems, fuse each branch at 120% nominal current–slow-blow fuses prevent nuisance trips during transient loads. Label schematic components with voltage/current parameters to streamline troubleshooting; omit this step increases debug time by 40% in multi-load setups.
Basic Wiring of a Permanent Magnet Direct-Current Drive
Connect power leads directly to the brush terminals of a permanent magnet drive, ensuring polarity matches the intended rotation direction. Swap wires if reverse spin is needed–no additional components are required for this adjustment. For 12V units, verify voltage tolerance; most tolerate ±10% but check datasheets for exact limits.
Use a single-pole switch for on/off control when simplicity is critical. Place it in series with the positive lead for easiest access. Avoid momentary switches unless pulse operation is intended; latching types prevent accidental shutdowns during operation.
| Component | Wire Gauge (AWG) | Max Current (A) |
|---|---|---|
| 40 mm diameter, 75W unit | 18 | 6.2 |
| 60 mm diameter, 150W unit | 16 | 12.5 |
| 80 mm diameter, 300W unit | 14 | 25 |
Fuse protection is mandatory. Select a slow-blow fuse rated at 125% of the drive’s continuous current draw. Place it within 150 mm of the power source to safeguard wiring; clip-on holders simplify replacements. Never omit fuses in bench setups, even for brief tests.
For speed regulation, insert a potentiometer in series with the power feed. Choose linear taper types with resistance double the winding’s measured value at stall. Wiper currents should exceed expected load by 50%; derate if ambient temperatures exceed 50°C.
Ground the frame if metallic enclosures are used, even in low-voltage applications. Attach a 10 mm lug to a clean, unpainted surface; torque to 3 N·m. Floating grounds invite noise coupling in adjacent signal wires, particularly problematic in shared chassis multiaxis setups.
Inspect brush wear before first use. On new drives, run at 50% speed for one hour to seat brushes against commutator bars. Replace brushes when remaining length drops below 2 mm–earlier if abnormal sparking appears. Commutator pitting indicates excessive load; reduce duty cycle or up-size the drive.
For locked-antiphase PWM control, use H-bridge modules with timing compatible with the winding inductance. Measure rise/fall times; values exceeding 10 µs per amp of drive current require snubber networks. Keep lead lengths under 200 mm to prevent ringing at switching edges.
Series Wound Direct Current Drive Layout and Wiring
Begin by connecting the armature and field windings in sequence to ensure the same current flows through both components. This arrangement eliminates the need for separate excitation, simplifying the design for high-torque applications like cranes or electric vehicles. Verify the wire gauge matches expected current loads–undersized conductors will overheat under sustained operation.
Critical Termination Points
- Supply terminals: Attach the positive lead directly to the field winding’s start point; route the negative pole to the brush assembly after the armature.
- Starter resistor: Insert a variable rheostat (typically 0.5–2 ohms) between the power source and field coil to limit inrush current during spin-up.
- Brush/commutator interface: Maintain consistent brush pressure (1.5–2.5 N/cm²) to prevent arcing under varying loads.
Include a freewheeling diode (e.g., 1N4007) antiparallel to the rotor windings to clamp inductive voltage spikes when the supply disconnects–omitting this risks damaging insulation or nearby semiconductors. For reversing rotation, swap either the field leads or the armature leads, but never both; simultaneous reversal will cancel direction change.
Use tachometer feedback if speed regulation is required: mount a Hall-effect sensor near the commutator segments, adjusting air gap to 0.3–0.5 mm for reliable pulse generation. Without closed-loop control, speed varies dramatically with load–expect 100% no-load speed reduction to 20–30% under rated load in a typical 12 Vdc configuration.
Ground the stator frame to the chassis via a dedicated conductor; floating frames can accumulate static charges, interfering with control signals. For dual-voltage systems (e.g., 12 V/24 V), ensure all series components (fuses, resistors) are rated for the higher potential–mixed ratings will lead to premature failure.
- Test continuity: measure
- Apply half-rated voltage; monitor current draw (should stabilize within 1–3 seconds).
- Gradually increase to full load; confirm torque remains constant ±5%.
- Reverse polarity briefly to verify directional response without abnormal noise.
Shunt-Connected Excitation Winding for Precise Speed Regulation
Connect the field coils in parallel to the armature terminals using a rheostat with a resistance range of 5–20 Ω to adjust excitation current between 0.5 A and 2 A. Ensure the power rating of the rheostat exceeds the product of its maximum resistance and the square of the full excitation current by at least 20% to prevent overheating. For 24 V systems, use a 50 W rheostat; for 48 V, opt for 100 W. Wire the field directly to the supply if fixed speed is acceptable, but include a 2 A fuse in series to protect against short circuits in the winding.
Critical Wiring Sequence and Component Placement
Start by attaching the armature’s + terminal to the supply via a switch-rated relay (10 A minimum) to handle inrush currents up to 8× nominal. Place the rheostat’s slider on the highest resistance setting before power-up to limit initial current surge. After energizing, decrease resistance gradually while monitoring armature voltage with a multimeter–target 80–90% of supply voltage at no load for optimal speed stability. Use 16 AWG wire for field connections and 12 AWG for armature leads, securing splices with heat-shrink tubing rated to 125°C. For dual-direction operation, insert a DPDT switch between the rheostat and field terminals, ensuring the switch contacts can handle the excitation current without arcing.
