Step-by-Step Guide to Building an Ultrasonic Generator Schematic

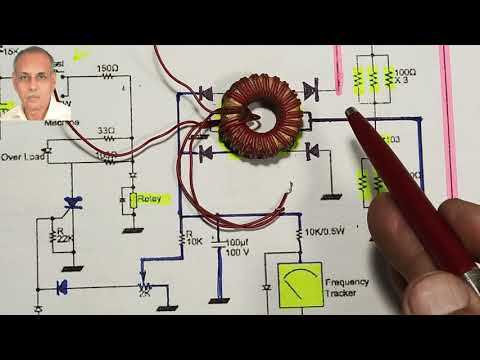

ultrasonic generator circuit diagram

Start with a push-pull configuration using complementary transistors (e.g., BD139/BD140) or a dedicated half-bridge IC like the IRS2003 to drive the output stage at frequencies between 20 kHz and 50 kHz. This setup minimizes switching losses while ensuring clean signal transitions–critical for maintaining efficiency in piezoelectric or magnetostrictive transducers. For power levels up to 50 W, a class D amplifier stage (e.g., LM3886 or IRS2304 driver with MOSFETs like IRF540N) will reduce heat dissipation compared to linear topologies.

Critical components to include: A 555 timer or PIC12F675 microcontroller for frequency generation, with a precision trimmer (e.g., 10 kΩ multi-turn) to fine-tune the waveform to ±1% of the target frequency. Use a 1:10 ferrite-core transformer (e.g., EE16 or ETD29) for impedance matching–this boosts the voltage to the transducer while protecting the driver from back EMF. A snubber circuit (10 Ω resistor + 0.1 µF capacitor) across the output terminals suppresses ringing, which can degrade performance by up to 30% if unchecked.

For stability, regulate the supply with a buck converter (e.g., LM2596) set to 12–24 V, depending on the transducer’s voltage rating. A 100 µF electrolytic capacitor on the input and a 1 µF ceramic on the output of the regulator prevent voltage sags during high-current pulses. Ground the system at a single star point to avoid ground loops–common in high-frequency designs–which can introduce noise and reduce output amplitude by 15–20%.

Testing procedure: Connect the transducer to the output via a series 1 Ω resistor and monitor the waveform on an oscilloscope. Adjust the frequency until the current through the resistor peaks, indicating resonance. For industrial applications (e.g., cleaning baths), add a feedback loop with a current transformer (e.g., CT100) to dynamically adjust the drive signal–this compensates for temperature drift and load variations, keeping efficiency above 85%.

Designing a High-Frequency Signal Emitter: Key Schemes

Start with a push-pull configuration using complementary transistors (e.g., BC547/BC557) for a 40 kHz emitter. This setup ensures balanced output with minimal harmonic distortion. Power the driver stage with 12V DC, feeding the base resistors at 470Ω for stable switching. Connect a 10μF capacitor between the output and a piezoelectric load to smooth voltage spikes and improve efficiency.

  • Component selection: Use a 555 timer in astable mode (R1=10kΩ, R2=100kΩ, C=1nF) for consistent pulse generation. Replace standard resistors with metal-film types (1% tolerance) to reduce thermal drift.
  • Matching network: Add a 1mH inductor in series with the piezo element to counteract capacitive reactance, maximizing power transfer. For frequencies above 100 kHz, increase inductance to 2.2mH.
  • Heat management: Mount transistors on a 2mm aluminum heatsink if continuous operation exceeds 5W. Use thermal paste sparingly–excess causes insulation.

Troubleshooting Common Failures

  1. If the emitter fails to start, check the timer’s discharge pin (7) for short circuits. A faulty capacitor (leakage >5μA) often causes erratic behavior.
  2. For weak output, measure the piezo’s impedance at the target frequency using an LCR meter. Replace if impedance exceeds 500Ω (typical range: 200-350Ω).
  3. Overheating in the final stage? Reduce base current by increasing resistor values to 1kΩ–this lowers drive current but improves reliability for 24/7 use.

For variable-frequency applications, replace fixed resistors in the timer circuit with a 10kΩ potentiometer and a 1n4148 diode to prevent frequency drift above 200 kHz. Calibrate using an oscilloscope–adjust potentiometer until duty cycle stabilizes at 50%. Avoid breadboarding high-power stages; solder directly to a perforated board with

Key Components for Assembling a High-Frequency Signal Emitter

Start with a piezoelectric transducer rated for the target operating range–typically between 20 kHz and 100 kHz. Models like the Murata MA40S4S or PUI Audio ABT-441-RC provide precise resonant frequencies and withstand continuous duty cycles. Avoid generic ceramics; confirm impedance (usually 50Ω–2 kΩ) matches the driving stage to prevent power loss.

The driving stage demands a high-speed MOSFET or IGBT with low switching losses. The IRF540N (100V, 22A) or IXYS IXFN32N120 (1200V, 32A) are ideal for most setups. Pair it with a gate driver IC like the IR2110 or UCC27510, which delivers 1A–4A peak current to ensure rapid on/off transitions, minimizing thermal dissipation.

Select a capacitor bank with low ESR and high ripple current tolerance. For frequencies above 40 kHz, use film capacitors (MKP/MKT)–polypropylene types like WIMA MKP4 handle 100 kV/µs slew rates. For lower frequencies, ceramic X7R/X8R (e.g., Kemet C1210C104K5RACTU) suffice but derate voltage by 50% to avoid piezoelectric cracks.

Component Recommended Part Critical Spec
Transducer Murata MA40E8-2 Resonant: 40 kHz, SPL: 110 dB
Switching Device STGW30NC60WD VDS: 600V, ID: 40A
Gate Driver TI UCC21225 Propagation delay: 30 ns
Energy Storage Panasonic ECQUA 10 µF, 63V, 5% tolerance

Power regulation requires a switching regulator with tight load transient response. The LT3757 (for up to 40V input) or TPS54331 (adjustable 0.8V–28V output) maintains stable voltage under pulsed loads. Add a flyback diode (e.g., STTH3R06) to clamp inductive spikes; schottky types reduce recovery time but have lower reverse voltage tolerance.

Step-by-Step Wiring of a High-Frequency Emitter

Begin by securing the emitter’s positive lead to the output pin of your driver module–typically marked *OUT* or *SIG*. Use 22AWG silicone-insulated wire for flexibility under vibration, stripping exactly 5mm of insulation to prevent shorts while ensuring full contact. Solder joints should be reinforced with heat-shrink tubing rated for 125°C to withstand thermal cycling; avoid flux residue, as it degrades signal integrity over time. Ground the emitter’s negative terminal to the driver’s common return path, but isolate it from chassis ground if the system operates above 50kHz–parasitic capacitance can introduce phase noise otherwise.

  1. Verify emitter impedance matching before wiring. Most 40kHz transducers exhibit 300–500Ω impedance; confirm this with an LCR meter at 1V RMS, 1kHz test signal. Mismatched impedance drops efficiency by 30–40%.
  2. Route wiring away from power lines or switching regulators. Induced noise at 10Vpp can corrupt the waveform, especially in resonant designs. Maintain 20mm spacing from noisy traces.
  3. Use ferrite beads (300Ω @ 100MHz) on both signal and return lines if the driver lacks built-in filtering. These suppress ringing that distorts the 5–20μs pulse bursts common in timed applications.
  4. Test continuity with a low-voltage ohmmeter (≤1V) after soldering. High-impedance emitters can read open if probed with standard meters.

Apply conformal coating to exposed connections in humid environments–corrosion increases contact resistance, raising the thermal coefficient of the emitter by up to 15%. Monitor temperature during first 10 minutes of operation; above 60°C, derate the drive voltage by 2% per °C to prevent depoling.

Methods for Tuning Output in High-Frequency Signal Sources

Adjust the resonance point by selecting a variable inductor with a tuning range of 5–20% of the nominal value. Pair it with a low-tolerance capacitor (≤1%) to maintain stability across temperature shifts. For precision, use a non-metallic screw core in the inductor to minimize eddy current losses at frequencies above 40 kHz.

Implement a phase-locked loop (PLL) with a voltage-controlled oscillator (VCO) for dynamic frequency correction. The VCO should operate within 10% of the target band, while the PLL loop filter bandwidth must be at least 10 times narrower than the reference frequency to suppress jitter. Choose a charge pump current of 1–5 mA to balance lock time and phase noise.

For manual adjustments, a multi-turn potentiometer in series with a fixed resistor provides fine control. A 10 kΩ potentiometer with a 1 kΩ series resistor limits the tuning range to ±15%, preventing overdrive. Ensure the wiper’s contact resistance remains below 50 Ω to avoid signal degradation.

Digital tuning via microcontroller requires a lookup table of DAC values mapped to target frequencies. Use 12-bit resolution or higher for sub-0.1% accuracy. Update rates should exceed 10 times the signal’s fundamental frequency to track changes without lag. Opt for a rail-to-rail op-amp buffer to drive the DAC output into low-impedance loads.

Switched capacitor arrays offer rapid tuning without inductors. Select capacitors with a Q-factor above 100 at the operating range to reduce losses. Clock the switches at 50–100 times the signal frequency to avoid aliasing, and use a MOSFET with on-resistance under 0.5 Ω for minimal insertion loss.

Thermal compensation is critical for long-term stability. Mount a thermistor (NTC, 10 kΩ) near the resonant components and feed its output into an analog compensator circuit. A simple op-amp difference amplifier with a gain of 2 can adjust the bias voltage of a varactor diode, counteracting temperature-induced drift of ±50 ppm/°C.

Avoid fixed-frequency designs in applications requiring adaptability. Instead, integrate a digital encoder for user input, with debounce circuitry to prevent rapid toggling. For automated systems, a PID controller can dynamically adjust the signal source, using error feedback from a frequency counter or phase detector. Keep the PID constants below 0.1 to prevent overshoot in transient responses.
